| Camera | Resolution 1080p(1920×1080); 1.3M(1280 × 960); 720p(1280×720); D1(704× 576/704×480); VGA(640×480); |
|---|
| 影像感測器 | 1/2.7” 5Megapixel progressive CMOS CIF(352×288/352×240) |
|---|
| 最大解像度 | 2592 (H) × 1944 (V) Bit Rate Control CBR/VBR H.264: 32 kbps–8192 kbps |
|---|
| ROM | 128 MB Video Bit Rate H.265: 12 kbps–8192 kbps |
|---|
| RAM | 256 MB Day/Night Auto(ICR)/Color/B/W |
|---|
| Scanning System | Progressive BLC Yes |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
|---|
| HLC | Yes |
|---|
| 最低照度 | 0.008 Lux @ F1.5 |
|---|
| WDR | 120 dB |
|---|
| S/N Ratio | >56 dB Auto/natural/street lamp/outdoor/manual/regional White Balance custom |
|---|
| Illumination Distance | 40 m (131.2 ft) |
|---|
| Gain Control | Auto/Manual |
|---|
| Illuminator On/Off Control | Auto/Manual |
|---|
| Noise Reduction | 3D NR |
|---|
| Illuminator Number | 2 (IR LED) |
|---|
| Motion Detection | OFF/ON (4 areas, rectangular) Pan: 0°–355° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–75° Region of Interest(RoI) Yes (4 areas) Rotation: 0°–355° |
|---|
| Smart Illumination | Yes 0°/90°/180°/270° (Supports 90°/270° with 2592 × 1944 Image Rotation |
|---|
| 鏡頭類型 | Motorized vari-focal resolution and lower.) |
|---|
| Mount Type | φ14 Mirror Yes |
|---|
| Privacy Masking | 4 areas |
|---|
| 焦距 | 2.7 mm–13.5 mm |
|---|
| Max. Aperture | F1.5 |
|---|
| 音訊壓縮 | G.711a; G.711Mu; G.726 Horizontal: 100°–26° |
|---|
| Field of View | Vertical: 72°–20° Alarm Diagonal: 133°–33° No SD card; SD card full; SD card error; network |
|---|
| 光圈類型 | Fixed disconnection; IP conflict; motion detection; video Alarm Event tampering; tripwire; intrusion; illegal access; voltage |
|---|
| Close Focus Distance | 0.8m–0.8m (2.62 ft–2.62 ft) detection; audio detection; safety exception; local alarm |
|---|
| 鏡頭 | Detect Observe Recognize Identify Network 64 m 25.6 m 12.8 m 6.4 m Network RJ-45 (10/100 Base-T) |
|---|
| DORI Distance | (209.97 ft) (83.99 ft) (41.99 ft) (21 ft) 220 m 88 m 44 m 22 m SDK and API Yes (721.78 ft) (288.71 ft) (144.36 ft) (72.18 ft) Video encryption; firmware encryption; configuration |
|---|
| 智能事件 | encryption; Digest; WSSE; account lockout; security logs; |
|---|
| Cyber Security | IP/MAC filtering; generation and importing of X.509 |
|---|
| IVS | Tripwire; intrusion certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; H.265; H.264; H.264B; MJPEG (only supported by the Protocol RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; |
|---|
| 視頻壓縮 | NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour sub stream) |
|---|
| Smart Codec | Smart H.265+/ Smart H.264+ ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Interoperability Genetec |
|---|
| 主碼流 | User/Host 20 2592 × 1944 (1 fps-20 fps) 2688 × 1520 (1 fps-25/30 fps) Storage FTP; Micro SD card (support max. 256 G); NAS; SFTP Video Frame Rate Sub stream: 704 × 576 (1 fps-25 fps) IE 704 × 480 (1 fps-30 fps) Browser Chrome Firefox |
|---|
| Stream Capability | 2 streams Management Software Smart PSS; DSS; DMSS www.dahuasecurity.com |
|---|
| Mobile Phone | IOS; Android Accessories |
|---|
| Certification | Optional: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive |
|---|
| Certifications | 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 PFA137 PFB203W PFA152-E |
|---|
| Junction Box | Wall Mount Pole Mount Port |
|---|
| 音訊輸入 | 1 channel (RCA port) |
|---|
| 音訊輸出 | 1 channel (RCA port) |
|---|
| PFA200W | PFA106 PFB220C |
|---|
| 警報輸入 | 1 channel In: 5mA 5VDC Rain Shade Mount Adapter Celling Mount |
|---|
| 警報輸出 | 1 channel Out: 300mA 12VDC Power |
|---|
| 供電 | 12V DC/PoE (802.3af) |
|---|
| PFB200C | PFM321D LR1002-1ET/1EC |
|---|
| 功耗 | < 8.0W |
|---|
| In-Celling Mount | DC12V1A Power Single-port Long |
|---|
| Adapter | Reach Ethernet over |
|---|
| Environment | Coax Extender |
|---|
| Operating Conditions | -30°C to +60°C (-22°F to +140°F)/less than ≤ 95% |
|---|
| 儲存溫度 | -40°C to +60°C (-40°F to +140°F) |
|---|
| 防護等級 | IP67, IK10 PFM900-E PFM114 |
|---|
| Integrated Mount | TLC SD Card |
|---|
| Structure | Tester |
|---|
| Casing | Metal Pole Mount |
|---|
| Wall Mount | Wall Mount |
|---|
| PFA137 | PFA137+PFA200W PFB203W PFB203W+PFA152-E |
|---|

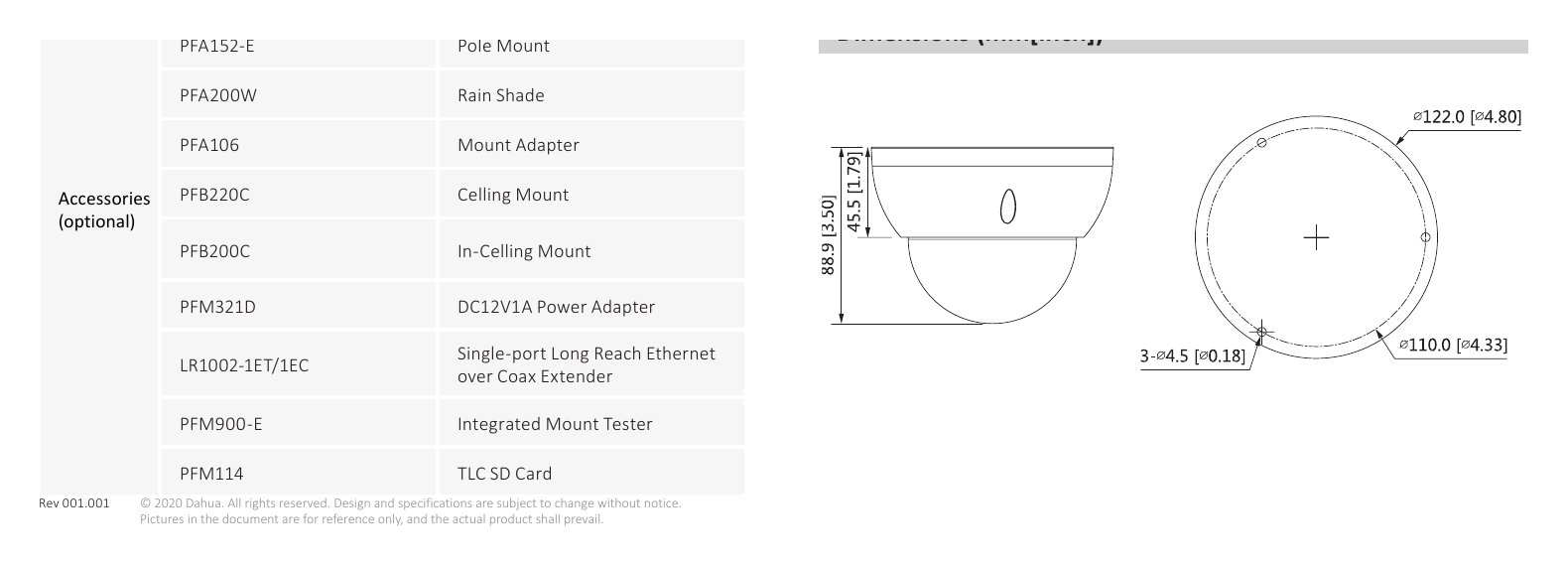

| 尺寸 | Φ122 mm × 88.9 mm (Φ4.80" × 3.50") |
|---|
| 淨重 | 0.47 kg (1.1 lb) |
|---|
| 毛重 | 0.63 kg (1.4 lb) Ordering Information |
|---|
| Ceiling Mount | In-Ceiling Mount |
|---|
| 類型 | Part Number Description PFA106+PFB220C PFB200C 5MP Lite IR Vari-focal Dome DH-IPC-HDBW2531RP-ZAS-S2 Network Camera,PAL 5MP |
|---|
| PFB203W | Wall Mount |
|---|
| PFA152-E | Pole Mount Dimensions (mm[inch]) |
|---|
| PFA106 | Mount Adapter |
|---|
| Accessories | PFB220C Celling Mount (optional) |
|---|
| PFM321D | DC12V1A Power Adapter Single-port Long Reach Ethernet LR1002-1ET/1EC over Coax Extender |
|---|
| PFM900-E | Integrated Mount Tester |
|---|
| PFM114 | TLC SD Card |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
