| Camera | Resolution 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × |
|---|
| 影像感測器 | 1/2.7” 8Megapixel progressive CMOS 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) |
|---|
| 碼率控制 | CBR/VBR |
|---|
| ROM | 128 MB H.264: 32 kbps–8192 kbps Video Bit Rate H.265: 12 kbps–8192 kbps |
|---|
| RAM | 256 MB |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| Scanning System | Progressive |
|---|
| BLC | Yes |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
|---|
| HLC | Yes |
|---|
| 最低照度 | 0.008 Lux@F1.5 |
|---|
| WDR | 120 dB |
|---|
| S/N Ratio | >56 dB Auto/natural/street lamp/outdoor/manual/regional |
|---|
| Illumination Distance | 40 m (131.2 ft) White Balance custom |
|---|
| Illuminator On/Off Control Auto/Manual | Gain Control Auto/Manual |
|---|
| Illuminator Number | 2 (IR LED) Noise Reduction 3D NR |
|---|
| Pan: 0°–355° | Motion Detection OFF/ON (4 areas, rectangular) |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–67° |
|---|
| Rotation: 0°–355° | Region of Interest(RoI) Yes (4 areas) |
|---|
| 鏡頭 | Smart Illumination Yes 0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 |
|---|
| 鏡頭類型 | Motorized vari-focal Image Rotation resolution and lower.) |
|---|
| Mount Type | φ14 Mirror Yes |
|---|
| 焦距 | 2.7 mm–13.5 mm Privacy Masking 4 areas |
|---|
| Max. Aperture | F1.5 Audio |
|---|
| Pan: 113°–31° | Audio Compression G.711a; G.711Mu; G.726 |
|---|
| Field of View | Tilt: 58°–17° |
|---|
| Diagonal: 138°–36° | Alarm |
|---|
| 光圈類型 | Fixed No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video Alarm Event tampering; tripwire; intrusion; illegal access; voltage |
|---|
| Close Focus Distance | 0.8m–0.8m (2.62 ft–2.62 ft) detection; audio detection; safety exception; local alarm |
|---|
| W | Network RJ-45 (10/100 Base-T) |
|---|
| DORI Distance | (279.9 ft) (111.9 ft) (55.8 ft) (27.9 ft) 280 m 112 m 56 m 28 m SDK and API Yes (918.6 ft) (367.5 ft) (183.7 ft) (91.9 ft) Video encryption; firmware encryption; configuration |
|---|
| 智能事件 | encryption; Digest; WSSE; account lockout; security logs; |
|---|
| Cyber Security | IP/MAC filtering; generation and importing of X.509 |
|---|
| IVS | Tripwire; intrusion certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; |
|---|
| Protocol | RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; H.265; H.264; H.264B; MJPEG (only supported by the NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour Video Compression sub stream) ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; |
|---|
| Smart Codec | Smart H.265+/ Smart H.264+ Interoperability Genetec |
|---|
| 用戶管理 | 20 Main stream: 3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps) Storage FTP; SFTP; Micro SD Card (support max. 256 GB); NAS Video Frame Rate Sub stream: 704 × 576 (1 fps–25 fps) IE 704 × 480 (1 fps–30 fps) Browser Chrome Firefox |
|---|
| Stream Capability | 2 streams Management Software Smart PSS; DSS; DMSS www.dahuasecurity.com |
|---|
| Mobile Phone | IOS; Android Accessories |
|---|
| Certification | Optional: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive |
|---|
| Certifications | 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
|---|
| PFA137 | PFB203W PFA152-E |
|---|
| Junction Box | Wall Mount Pole Mount Port |
|---|
| 音訊輸入 | 1 channel (RCA port) |
|---|
| 音訊輸出 | 1 channel (RCA port) |
|---|
| PFA200W | PFA106 PFB220C |
|---|
| 警報輸入 | 1 channel In: 5mA 5V DC Rain Shade Mount Adapter Celling Mount |
|---|
| 警報輸出 | 1 channel Out: 300mA 12V DC Power |
|---|
| 供電 | 12V DC/PoE (802.3af) |
|---|
| PFB200C | PFM321D LR1002-1ET/1EC |
|---|
| 功耗 | < 7.4W |
|---|
| In-Celling Mount | DC12V1A Power Single-port Long |
|---|
| Adapter | Reach Ethernet over |
|---|
| Environment | Coax Extender |
|---|
| Operating Conditions | –30°C to +60°C (–22°F to +140°F)/less than ≤ 95% RH |
|---|
| 儲存溫度 | –40°C to +60°C (–40°F to +140°F) |
|---|
| 防護等級 | IP67; IK10 PFM900-E PFM114 |
|---|
| Integrated Mount | TLC SD Card |
|---|
| Structure | Tester |
|---|
| Casing | Metal |
|---|
| Junction Mount | Wall Mount Wall Mount Pole Mount |
|---|
| 尺寸 | Φ122 mm × 88.9 mm (Φ4.80" × 3.50") |
|---|
| 淨重 | 0.47 kg (1.1 lb) |
|---|
| 毛重 | 0.63 kg (1.4 lb) Ordering Information |
|---|
| Ceiling Mount | In-Ceiling Mount |
|---|
| 類型 | Part Number Description PFA106+PFB220C PFB200C 8MP Lite IR Vari-focal Dome DH-IPC-HDBW2831RP-ZAS-S2 Network Camera,PAL 8MP |
|---|
| PFB203W | Wall Mount |
|---|

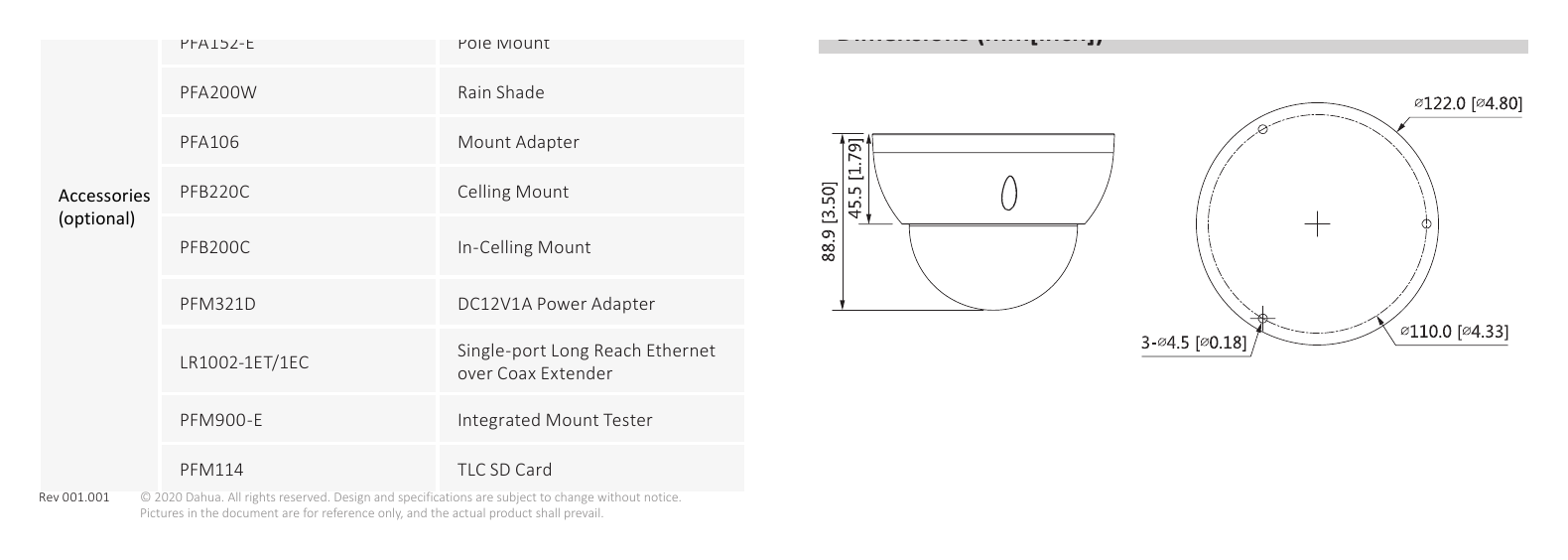

| PFA152-E | Pole Mount Dimensions (mm[inch]) |
|---|
| PFA106 | Mount Adapter |
|---|
| Accessories | PFB220C Celling Mount (optional) |
|---|
| PFM321D | DC12V1A Power Adapter Single-port Long Reach Ethernet LR1002-1ET/1EC over Coax Extender |
|---|
| PFM900-E | Integrated Mount Tester |
|---|
| PFM114 | TLC SD Card |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
