| Motion Detection | Off / On (4 Zone, Rectangle) |
|---|
| Region of Interest | Off / On (4 Zone) |
|---|
| 影像感測器 | Two 1/2.8” 2Megapixel progressive scan CMOS Electronic Image Stabilization N/A |
|---|
| Effective Pixels | 1920(H)x1080(V) (EIS) |
|---|
| RAM/ROM | 512MB/256MB Smart IR Support |
|---|
| Scanning System | Progressive Defog N/A |
|---|
| Auto/Manual, 1/3(4)~1/100000s | Digital Zoom 16x Electronic Shutter Speed |
|---|
| Flip | 0°/90°/180°/270° 0.009Lux/F2.0( Color,1/3s,30IRE) |
|---|
| Minimum Illumination | 0.07Lux/2.0( Color,1/30s,30IRE) Mirror Off / On 0Lux/F2.0(IR on) Privacy Masking Off / On (4 Area, Rectangle) |
|---|
| S/N Ratio | More than 50dB |
|---|
| IR Distance | Distance up to 20m (66ft) |
|---|
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| IR On/Off Control | Auto/ Manual 10 x 2 IR LEDs -M Model: RJ-45 (10/100Base-T) |
|---|
| 鏡頭 | Ethernet -M12 Model: M12 D-Coding (10/100Base-T) |
|---|
| 鏡頭類型 | Fixed HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; |
|---|
| Mount Type | Board-in Protocol NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S NMP;TLS |
|---|
| 焦距 | 2.8mm (3.6mm optional) |
|---|
| Max. Aperture | F2.0 (F2.1) |
|---|
| Interoperability | ONVIF Profile S&G, API |
|---|
| Angle of View | H: 110° (86°), V:60° (46°) Streaming Method Unicast / Multicast |
|---|
| Optical Zoom | N/A |
|---|
| Max. User Access | 10 Users /20 Users |
|---|
| Focus Control | Fixed NAS |
|---|
| Close Focus Distance | N/A Edge Storage Local PC for instant recording |
|---|
| DORI Distance | 2.8 mm 41m(134ft) 16m(52ft) 8m(26ft) 4m(13ft) |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari 3.6 mm 55m(180ft) 22m(72ft) 11m(36ft) 6m(20ft) |
|---|
| Management Software | Smart PSS, DSS, DMSS Pan/Tilt/Rotation |
|---|
| Smart Phone | IOS, Android |
|---|
| Pan/Tilt/Rotation Range | Pan:±90˚; Tilt:0˚~65˚; Rotation:0˚~360˚ |
|---|
| Intelligence | Certifications CE (EN 60950:2000) Motion detection, Video tampering, Scene changing, UL:UL60950-1 |
|---|
| Event Trigger | Network disconnection, Ip address conflict, Illegal |
|---|
| Certifications | FCC: FCC Part 15 Subpart B access, Storage anomaly E-mark(ECE-Regulation No.10) |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing EN50155(Environment) Advanced Intelligent Functions Face Detection Interface |
|---|
| Video | Video Interface N/A |
|---|
| Smart Codec | N/A RS485 N/A |
|---|
| Streaming Capability | 2 Streams Alarm N/A 1080P(1920x1080)/1.3M(1280x960)/ Electrical |
|---|
| 解像度 | 720P(1280×720)/D1(704×576/704×480)/ |
|---|
| VGA(640×480)/CIF(352×288/352×240) | -M Model: DC12V, PoE (802.3af)(Class 0) Power Supply |
|---|
| 主碼流 | -M12 Model: PoE (802.3af)(Class 0) CH1: 1080P (1~25/30fps) |
|---|
| CH2: 1080P (1~25/30fps) | DC 12V: 4.32W 6.02W(IR on) |
|---|
| Frame Rate | Power Consumption PoE: 4.32W 6.02W(IR on) Sub Stream: CH1: D1(1~25/30fps) CH2: D1(1~25/30fps) Environmental |
|---|
| 碼率控制 | CBR/VBR |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH H.264: 32~10240Kbps |
|---|
| Bit Rate | Stroage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH H.265: 12~7168Kbps |
|---|
| Day/Night | Auto(ICR) / Color / B/W Ingress Protection IP67 |
|---|
| BLC Mode | BLC / HLC / WDR（120dB） |
|---|
| Vandal Resistance | IK10 |
|---|
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Gain Control | Auto/Manual www.dahuasecurity.com |
|---|
| Construction | Accessories |
|---|
| Casing | Metal Optional: |
|---|
| 尺寸 | Φ122mm×65.4mm (4.79”×2.57”) |
|---|
| 淨重 | 0.505kg (1.11lb) |
|---|
| 毛重 | 0.53kg (1.17lb） |
|---|
| Ordering Information | PFA137 PFB203W PFA152-E |
|---|
| 類型 | Part Number Description |
|---|

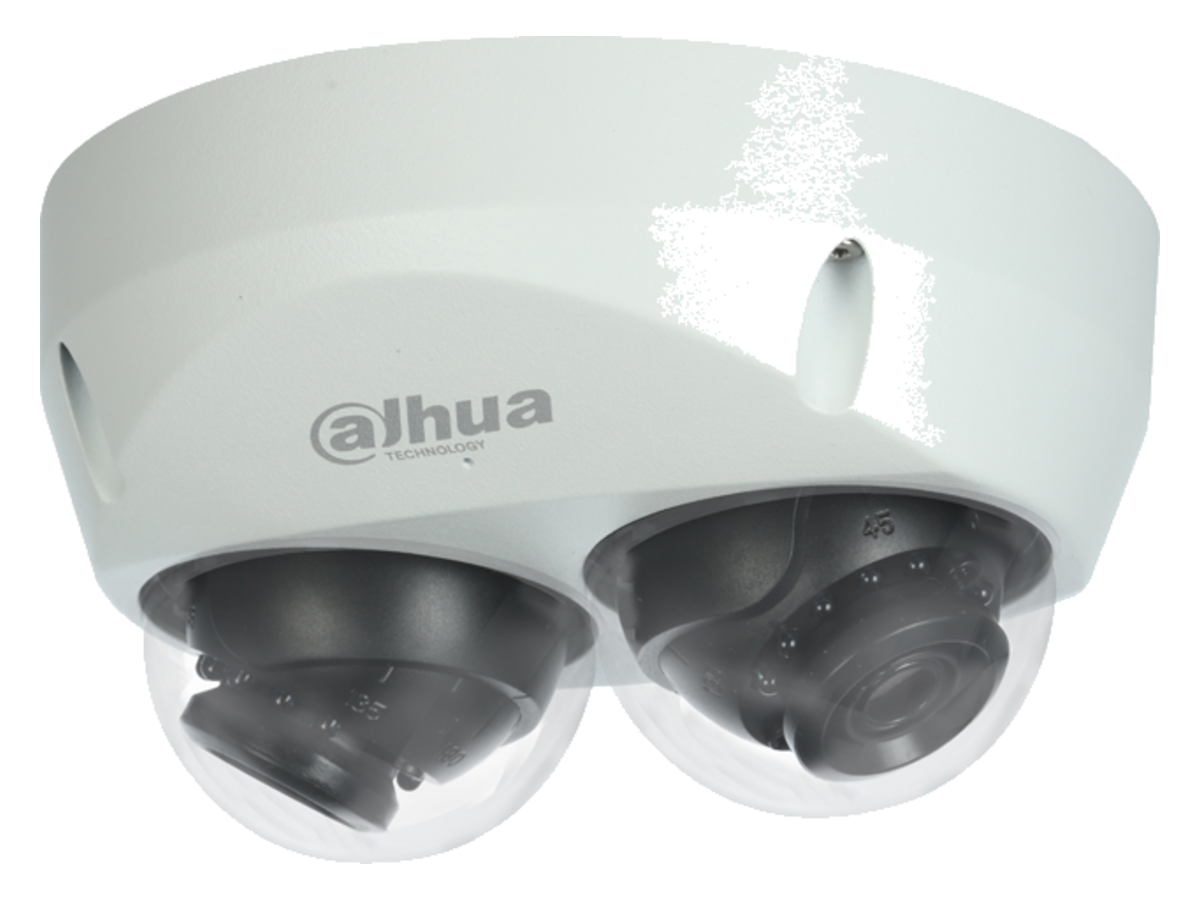

| DH-IPC-HDBW4231FP-E2- | 2x2MP IR Mini Dome Network |
|---|
| M-0280B | Camera, PAL |
|---|
| DH-IPC-HDBW4231FN-E2- | 2x2MP IR Mini Dome Network |
|---|
| PFB220C | PFA106 |
|---|
| IPC-HDBW4231FP-E2-M- | 2x2MP IR Mini Dome Network 0280B Camera, PAL |
|---|
| Junction Mount | Wall Mount |
|---|
| IPC-HDBW4231FN-E2-M- | 2x2MP IR Mini Dome Network PFA137 PFA137 PFB203W 0280B Camera, NTSC |
|---|
| M-0360B | Camera, PAL |
|---|
| M12-0280B | Camera, PAL |
|---|
| IPC-HDBW4231FP-E2- | 2x2MP IR Mini Dome Network |
|---|
| IPC-HDBW4231FN-E2- | 2x2MP IR Mini Dome Network |
|---|

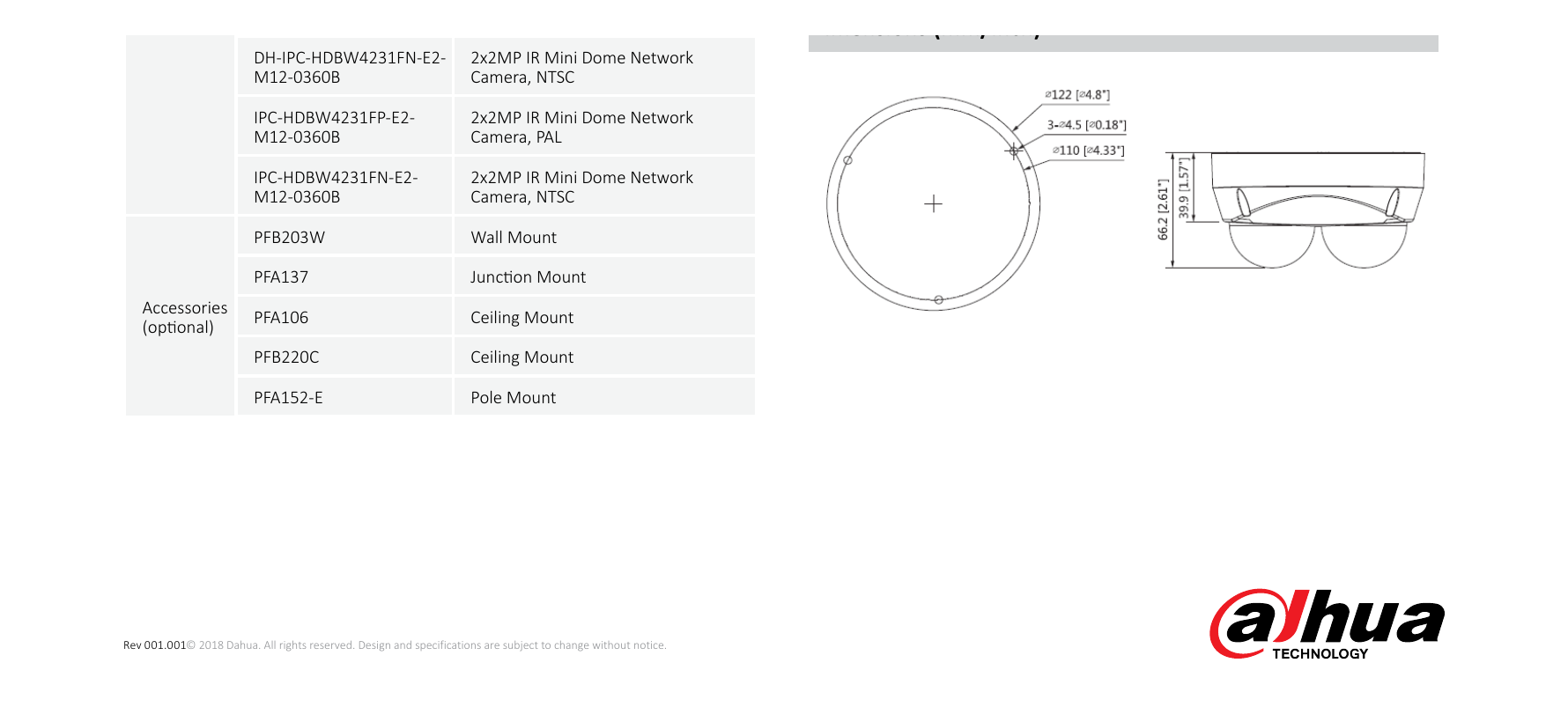

| M12-0360B | Camera, PAL Dimensions (mm/inch) |
|---|
| PFB203W | Wall Mount |
|---|
| PFA137 | Junction Mount Accessories |
|---|
| PFA106 | Ceiling Mount (optional) |
|---|
| PFA152-E | Pole Mount www.dahuasecurity.com |
|---|
