| Camera | Gain Control Auto/Manual |
|---|
| 影像感測器 | 1/3”4Megapixel progressive scan CMOS Noise Reduction 3D DNR |
|---|
| Effective Pixels | 2688(H)x1520(V) Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| RAM/ROM | 512MB/32MB Region of Interest Off / On (4 Zone) |
|---|
| Scanning System | Progressive Electronic Image Stabilization |
|---|
| Auto/Manual, 1/3(4)~1/100000s | N/A |
|---|
| Electronic Shutter Speed | (EIS) 0.06Lux/F1.6( Color,1/3s,30IRE) 0.4Lux/F1.6( Color,1/30s,30IRE) Smart IR Support Minimum Illumination 0Lux/F1.6(IR on) |
|---|
| 除霧 | Support |
|---|
| S/N Ratio | More than 50dB |
|---|
| Digital Zoom | 16x |
|---|
| IR Distance | Distance up to 30m (98ft) |
|---|
| Flip | 0°/90°/180°/270°/Corridor mode |
|---|
| IR On/Off Control | Auto/ Manual |
|---|
| IR LEDs | 18 Mirror Off / On |
|---|
| 鏡頭 | Privacy Masking Off / On (4 Area, Rectangle) |
|---|
| 鏡頭類型 | Fixed Audio |
|---|
| Mount Type | Board-in Compression G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| 焦距 | 2.8mm (3.6mm, 6mm optional） |
|---|
| Max. Aperture | F1.6 (F1.6, F1.6) |
|---|
| Ethernet | RJ-45 (10/100Base-T) |
|---|
| Angle of View | H: 104° (83°, 55°), V: 55° (45°, 31°) HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; |
|---|
| Optical Zoom | N/A FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; |
|---|
| Focus Control | Fixed IGMP; SNMP |
|---|
| Close Focus Distance | 0.9m (1.5m, 3.1m) |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| Streaming Method | Unicast / Multicast 2.8 mm 56m(184ft) 22m(72ft) 11m(36ft) 6m(20ft) |
|---|
| DORI Distance | Max. User Access 10 Users /20 Users 3.6 mm 80m(262ft) 32m(105ft) 16m(52ft) 8m(26ft) NAS 6.0 mm 120m(394ft) 48m(157ft) 24m(79ft) 12m(39ft) |
|---|
| Edge Storage | Local PC for instant recording Mirco SD card 128GB Pan/Tilt/Rotation |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚ |
|---|
| Management Software | Smart PSS, DSS, Easy4ip Intelligence |
|---|
| Smart Phone | IOS, Android |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing Advanced Intelligent Functions Face Detection,People counting,Scene change Certifications CE (EN 60950:2000) |
|---|
| Video | Certifications UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|---|
| Compression | H.265+/H.265/H.264+/H.264 |
|---|
| Streaming Capability | 3 Streams Interface 4M(2688×1520)/3M(2304×1296)/ Video Interface N/A 1080P(1920×1080)/1.3M(1280x960)/ Resolution 720P(1280×720)/D1(704×576/704×480)/ Audio Interface 1/1 channel In/Out VGA(640×480)/CIF(352×288/352×240) |
|---|
| Main Stream: 4M(1~25/30fps) | RS485 N/A |
|---|
| Frame Rate | Sub Stream: D1(1~25/30fps) 1 channel In: 5mA 5VDC Alarm 1 channel Out: 300mA 12VDC Third Stream: 720P(1~25/30fps) |
|---|
| 碼率控制 | CBR/VBR Electrical |
|---|
| H.264: 24K ~ 10240Kbps | Power Supply DC12V, PoE (802.3af)(Class 0) Bit Rate H.265: 14K ~ 9984Kbps |
|---|
| Day/Night | Auto(ICR) / Color / B/W Power Consumption <5W |
|---|
| BLC Mode | BLC / HLC / WDR(120dB) www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 Construction |
|---|
| PFA136 | PFB203W PFA152-E LR1002 PFA200W |
|---|
| Casing | Metal Junction Box Wall Mount Pole Mount ePoE Over Coax Converter Rain shade |
|---|

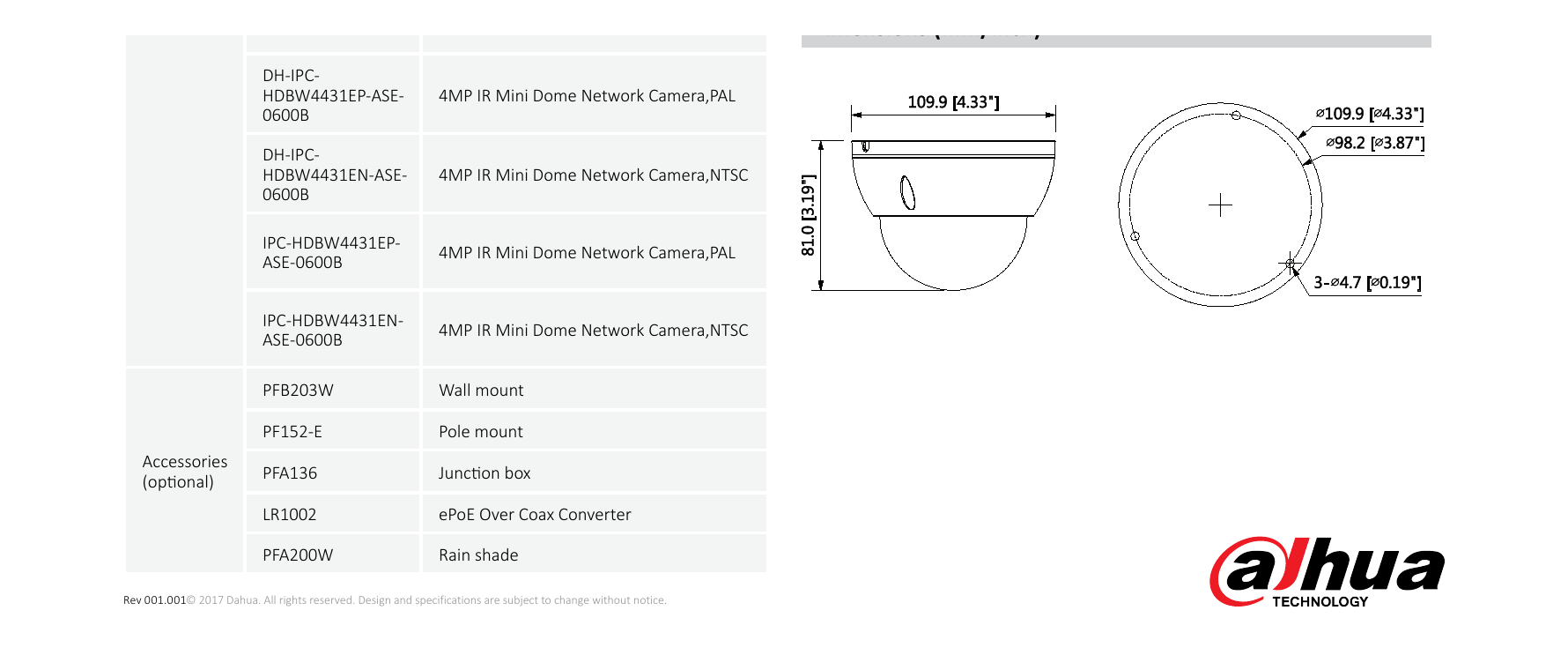

| 尺寸 | Φ109.9mm×81mm (4.33”×3.19”) |
|---|
| 淨重 | 0.41kg (0.91lb) |
|---|
| 毛重 | 0.53 kg (1.17lb) |
|---|
| Ordering Information | Juncon Mount Pole Mount |
|---|
| 類型 | Part Number Description DH-IPC- |
|---|

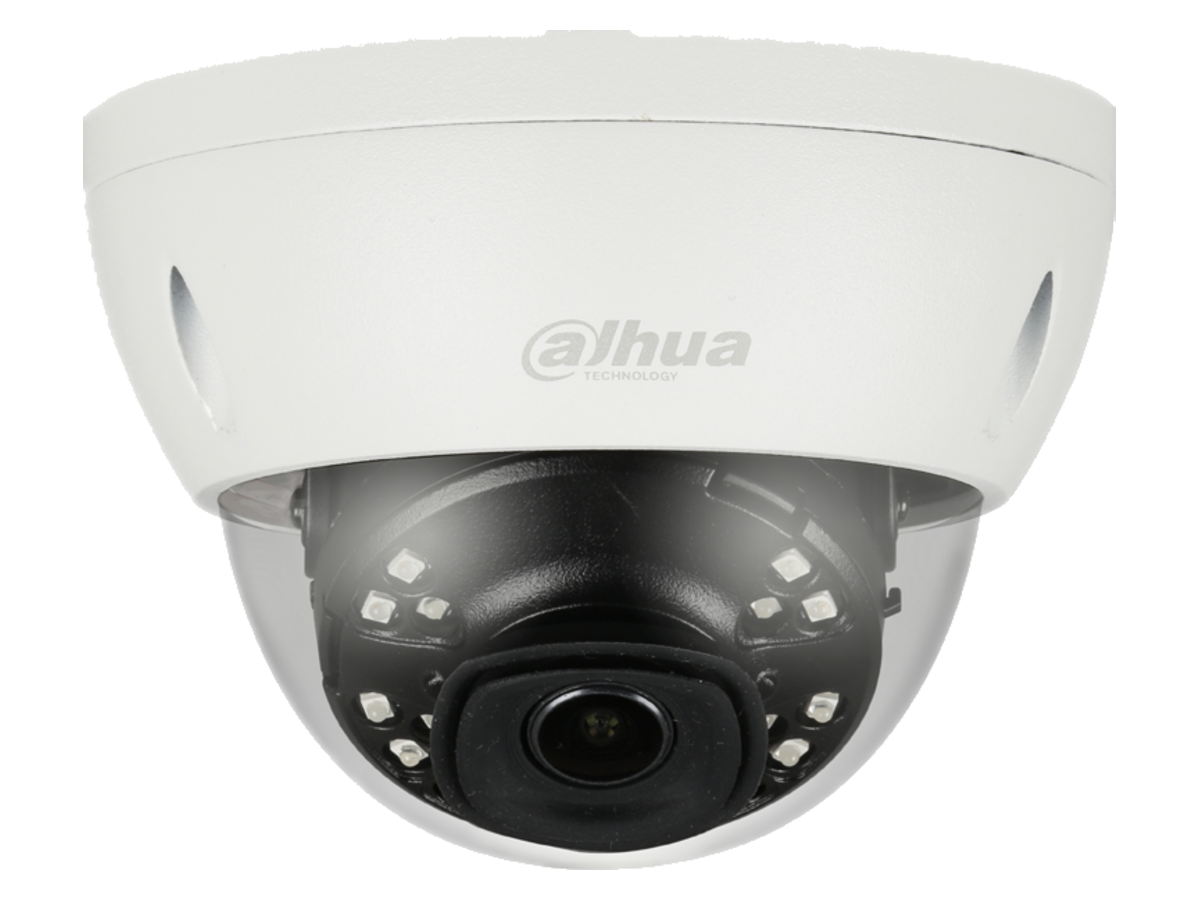

| HDBW4431EP-ASE- | 4MP IR Mini Dome Network Camera,PAL 0360B Wall Mount DH-IPC- |
|---|
| HDBW4431EN-ASE- | 4MP IR Mini Dome Network Camera,NTSC PFB203W 0360B IPC-HDBW4431EP- 4MP IR Mini Dome Network Camera,PAL ASE-0360B Pole Mount with Rain Shade |
|---|
| IPC-HDBW4431EN- | PFA136W + PFA152-E+PFA200W 4MP IR Mini Dome Network Camera,NTSC ASE-0360B Wall Mount with Rain Shade DH-IPC- PFA136W+PFA200W |
|---|
| ASE-0280B | Dimensions (mm/inch) DH-IPC- |
|---|
| PFB203W | Wall mount |
|---|
| PF152-E | Pole mount Accessories (optional) PFA136 Junction box |
|---|
| LR1002 | ePoE Over Coax Converter |
|---|
| PFA200W | Rain shade www.dahuasecurity.com |
|---|
