| Camera | Gain Control Auto/Manual |
|---|
| 影像感測器 | 1/3”4Megapixel progressive scan CMOS Noise Reduction 3D DNR |
|---|
| Effective Pixels | 2688(H)x1520(V) Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| RAM/ROM | 512MB/32MB |
|---|
| Region of Interest | Off / On (4 Zone) |
|---|
| Scanning System | Progressive Electronic Image Stabilization |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s N/A (EIS) 0.01Lux/F1.6( Color,1/3s,30IRE) |
|---|
| Minimum Illumination | 0.4Lux/F1.6( Color,1/30s,30IRE) Smart IR Support 0Lux/F1.6(IR on) |
|---|
| 除霧 | N/A |
|---|
| S/N Ratio | More than 50dB |
|---|
| Digital Zoom | 16x |
|---|
| IR Distance | Distance up to 30m (98ft) |
|---|
| IR On/Off Control | Auto/ Manual Flip 0°/90°/180°/270° |
|---|
| IR LEDs | 18 Mirror Off / On |
|---|
| 鏡頭 | Privacy Masking Off / On (4 Area, polygonal) |
|---|
| 鏡頭類型 | Fixed Audio |
|---|
| Mount Type | Board-in |
|---|
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| 焦距 | 2.8mm (3.6mm, 6mm optional） |
|---|
| Max. Aperture | F1.6 (F1.6, F1.6) |
|---|
| Ethernet | RJ-45 (10/100Base-T) |
|---|
| Angle of View | H: 104° (83°, 55°), V: 55° (45°, 31°) HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; |
|---|
| Optical Zoom | N/A FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; |
|---|
| Focus Control | Fixed IGMP; SNMP, CIFS, SMB; |
|---|
| Close Focus Distance | 0.9m (1.5m, 3.1m) |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| Streaming Method | Unicast / Multicast 2.8 mm 56m(184ft) 22m(72ft) 11m(36ft) 6m(20ft) DORI Distance 3.6 mm 80m(262ft) 32m(105ft) 16m(52ft) 8m(26ft) Max. User Access 20 Users 6.0 mm 120m(394ft) 48m(157ft) 24m(79ft) 12m(39ft) NAS |
|---|
| Edge Storage | Local PC for instant recording |
|---|
| Pan/Tilt/Rotation | Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚ Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Intelligence | Management Software Smart PSS, DSS, Easy4ip |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing Smart Phone IOS, Android Advanced Intelligent Functions Face Detection Certifications |
|---|
| Video | CE (EN 60950:2000) |
|---|
| Certifications | UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|---|
| Streaming Capability | 3 Streams Interface 4M(2688×1520)/3M(2304×1296)/ Video Interface N/A 1080P(1920×1080)/1.3M(1280x960)/ Resolution 720P(1280×720)/D1(704×576/704×480)/ |
|---|
| Audio Interface | 1/1 channel In/Out VGA(640×480)/CIF(352×288/352×240) |
|---|
| Main Stream: 4M(1~25/30fps) | RS485 N/A |
|---|
| Frame Rate | Sub Stream: D1(1~25/30fps) 1 channel In: 5mA 5VDC |
|---|
| 警報 | 1 channel Out: 300mA 12VDC Third Stream: 720P(1~25/30fps) |
|---|
| 碼率控制 | CBR/VBR Electrical H.264: 24K ~ 10240Kbps |
|---|
| Bit Rate | Power Supply DC12V, PoE (802.3af)(Class 0) H.265: 14K ~ 9984Kbps |
|---|
| Day/Night | Auto(ICR) / Color / B/W Power Consumption <5W |
|---|
| BLC Mode | BLC / HLC / WDR(120dB) www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 Construction |
|---|
| PFA136 | PFB203W PFA152-E LR1002 PFA200W |
|---|
| Casing | Metal Junction Box Wall Mount Pole Mount ePoE Over Coax Converter Rain shade |
|---|
| 尺寸 | Φ109.9mm×81mm (4.33”×3.19”) |
|---|
| 淨重 | 0.41kg (0.91lb) |
|---|
| 毛重 | 0.53 kg (1.17lb) Ordering Information |
|---|
| 類型 | Part Number Description DH-IPC- |
|---|

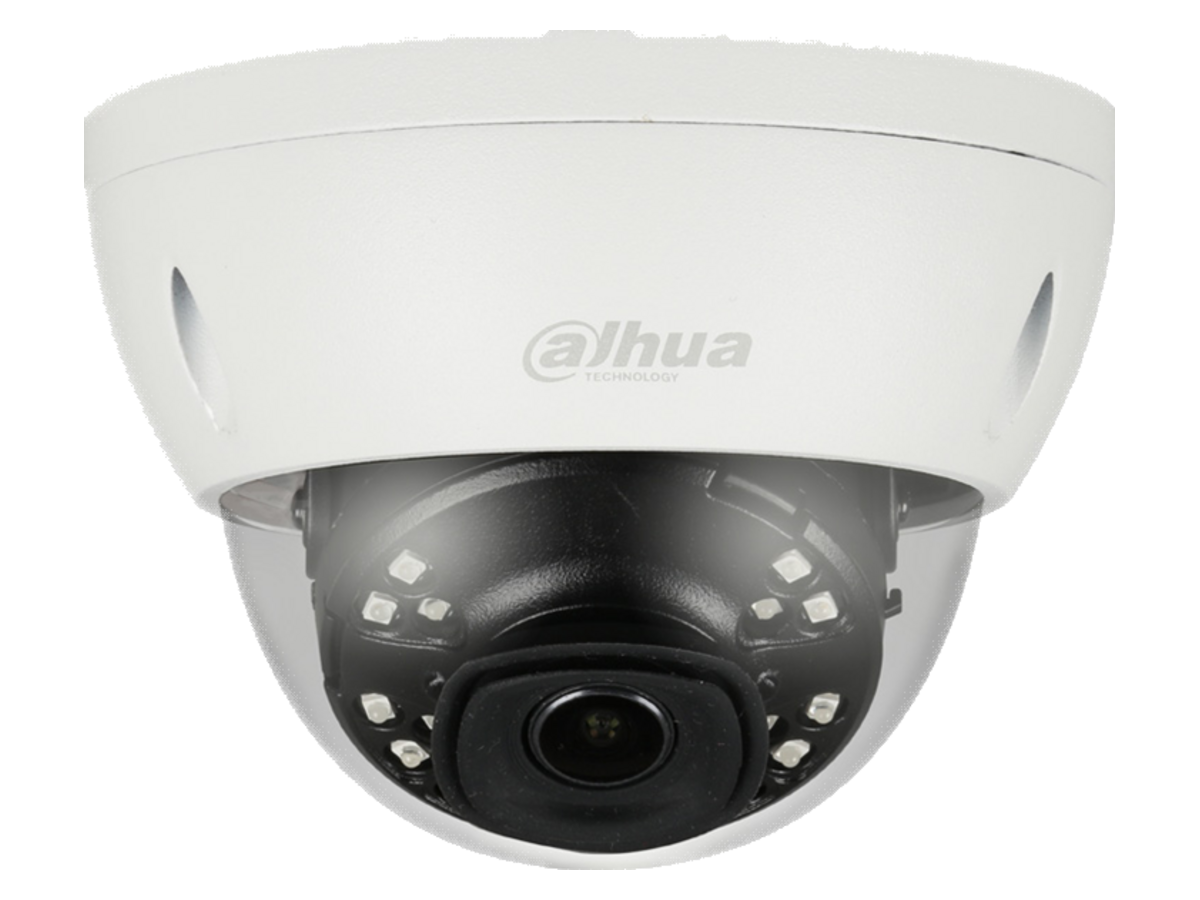

| HDBW4431EP- | 4MP IR Mini Dome Network Camera,PAL ASEB- 0360B DH-IPC- |
|---|
| HDBW4431EN- | 4MP IR Mini Dome Network Camera,NTSC PFB203W ASEB- 0360B IPC-HDBW4431EP- 4MP IR Mini Dome Network Camera,PAL ASEB-0360B IPC-HDBW4431EN- 4MP IR Mini Dome Network Camera,NTSC ASEB-0360B DH-IPC- |
|---|

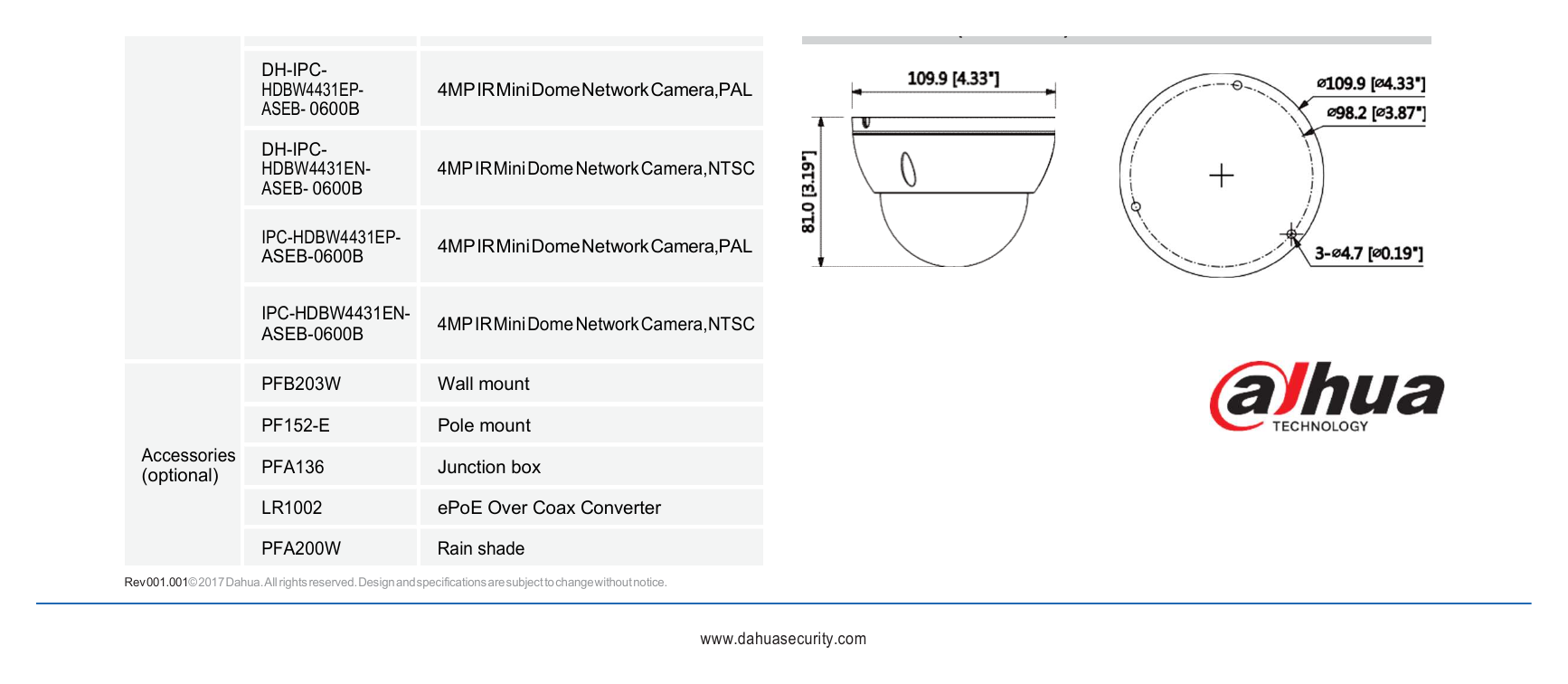

| ASEB-0280B | Dimensions (mm/inch) DH-IPC- |
|---|
| PFB203W | Wall mount |
|---|
| PF152-E | Pole mount Accessories (optional) PFA136 Junction box |
|---|
| LR1002 | ePoE Over Coax Converter |
|---|
| PFA200W | Rain shade www.dahuasecurity.com |
|---|
