| Camera | Gain Control Auto/Manual |
|---|
| 影像感測器 | 1/2.5” 8Megapixel progressive scan CMOS Noise Reduction 3D DNR |
|---|
| Effective Pixels | 3840(H)x2160(V) Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| RAM/ROM | 512MB/32MB Region of Interest Off / On (4 Zone) |
|---|
| Scanning System | Progressive Electronic Image Stabilization N/A |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s (EIS) 0.05Lux/F1.6( Color,1/3s,30IRE) Smart IR Support |
|---|
| Minimum Illumination | 0.2Lux/F1.6( Color,1/30s,30IRE) 0Lux/F1.6(IR on) Defog N/A |
|---|
| S/N Ratio | More than 50dB |
|---|
| Digital Zoom | 16x |
|---|
| IR Distance | Distance up to 30m (98ft) |
|---|
| Flip | 0°/90°/180°/270° |
|---|
| IR On/Off Control | Auto/ Manual |
|---|
| Mirror | Off / On |
|---|
| IR LEDs | 24 |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| 鏡頭類型 | Fixed |
|---|
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| Mount Type | Board-in |
|---|
| 焦距 | 4mm Network |
|---|
| Max. Aperture | F1.6 Ethernet RJ-45 (10/100Base-T) |
|---|
| Angle of View | H:87° , V:48° HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; |
|---|
| Optical Zoom | N/A Protocol UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; |
|---|
| Focus Control | Fixed IGMP; SNMP |
|---|
| Close Focus Distance | N/A Interoperability ONVIF, PSIA, CGI |
|---|
| 鏡頭 | Detect Observe Recognize Identify Streaming Method Unicast / Multicast DORI Distance 4mm 99m(325ft) 40m(131ft) 20m(66ft) 10m(33ft) Max. User Access 10 Users /20 Users |
|---|
| Pan/Tilt/Rotation | NAS |
|---|
| Edge Storage | Local PC for instant recording |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~355˚; Tilt:0˚~64˚; Rotation:0˚~355˚ Mirco SD card 128GB |
|---|
| Intelligence | Web Viewer IE, Chrome, Firefox, Safari |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing Management Software Smart PSS, DSS, Easy4ip Advanced Intelligent Functions Face Detection Smart Phone IOS, Android |
|---|
| Video | Certifications CE (EN 60950:2000) |
|---|
| Certifications | UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|---|
| Streaming Capability | 3 Streams 4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/ 3M(2048x1536)/3M(2304×1296)/ |
|---|
| 解像度 | 1080P(1920×1080)/1.3M(1280x960)/ Video Interface N/A 720P(1280×720)/D1(704×576/704×480) / |
|---|
| VGA(640×480)/CIF(352×288/352×240) | Audio Interface 1/1 channel In/Out |
|---|
| Main Stream: 4K(1~15fps)/3M(1~25/30fps) | RS485 N/A |
|---|
| Frame Rate | 1 channel In: 5mA 5VDC |
|---|
| Sub Stream: D1(1~25/30fps) | Alarm 1 channel Out: 300mA 12VDC Third Stream: 720P(1~25/30fps) Electrical |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 供電 | DC12V, PoE (802.3af)(Class 0) H.264: 24K ~ 10240Kbps Bit Rate H.265: 14K ~ 9984Kbps |
|---|
| 功耗 | <5W |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| BLC Mode | BLC / HLC / DWDR www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 Construction |
|---|
| PFA136 | PFB203W PFA152 |
|---|
| Casing | Metal Junction Box Wall Mount Pole Mount |
|---|
| 尺寸 | Φ109.9mm×81mm (4.33”×3.19”) |
|---|
| 淨重 | 0.41kg (0.91lb) Juncon Mount Pole Mount |
|---|
| 毛重 | 0.53 kg (1.17lb) Ordering Information |
|---|
| 類型 | Part Number Description |
|---|
| DH-IPC- | 8MP IR Mini Dome Network Camera, |
|---|
| HDBW4830EP-AS | PAL Wall Mount |
|---|
| HDBW4830EN-AS | NTSC 8MP camera |
|---|
| IPC-HDBW4830EP- | 8MP IR Mini Dome Network Camera, |
|---|
| AS | PAL |
|---|
| IPC-HDBW4830EN- | 8MP IR Mini Dome Network Camera, |
|---|

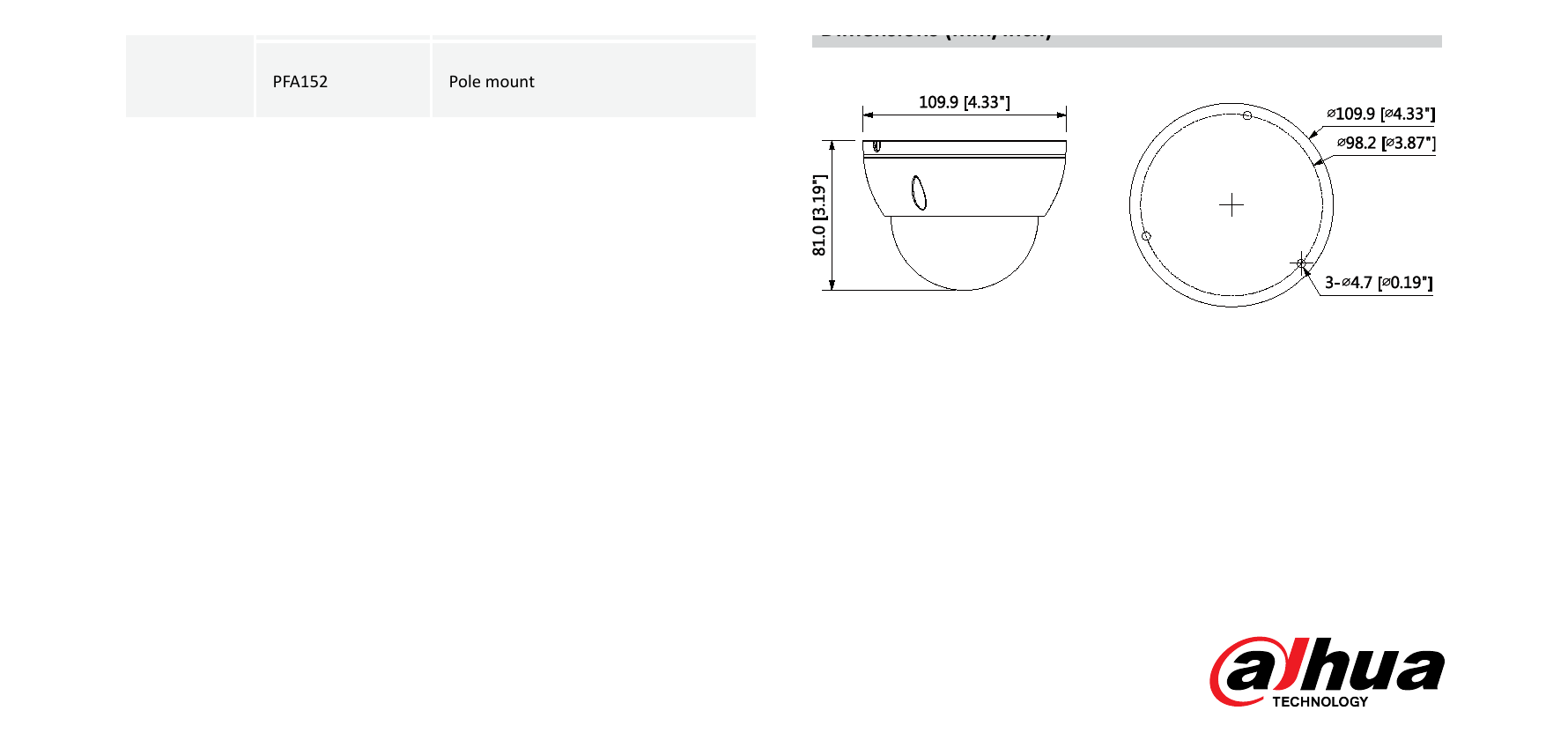

| PFB203W | Wall mount (optional) Dimensions (mm/inch) |
|---|
| PFA152 | Pole mount www.dahuasecurity.com |
|---|
