| Camera | BLC Mode BLC / HLC / WDR(120dB) |
|---|
| 影像感測器 | 1/2.8” 2Megapixel progressive scan CMOS White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Effective Pixels | 1920(H) x 1080(V) Gain Control Auto/Manual |
|---|
| RAM/ROM | 256MB/32MB Noise Reduction 3D DNR |
|---|
| Scanning System | Progressive Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Region of Interest Off / On (4 Zone) 0.006Lux/F1.4 ( Color,1/3s,30IRE) Electronic Image Stabilization N/A |
|---|
| Minimum Illumination | 0.05Lux/F1.4 ( Color,1/30s,30IRE) (EIS) 0Lux/F1.4 (IR on) |
|---|
| Smart IR | Support |
|---|
| S/N Ratio | More than 50dB |
|---|
| 除霧 | N/A |
|---|
| IR Distance | Distance up to 50m (164ft) |
|---|
| Digital Zoom | 16x |
|---|
| IR On/Off Control | Auto/ Manual |
|---|
| Flip | 0°/90°/180°/270° |
|---|
| IR LEDs | 3 |
|---|
| Mirror | Off / On |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| 鏡頭類型 | Motorized/ Auto Iris(DC) |
|---|
| Mount Type | Board-in |
|---|
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| 焦距 | 2.7mm~13.5mm |
|---|
| Max. Aperture | F1.4 Network |
|---|
| Angle of View | H: 101°~31°, V:54°~17° Ethernet RJ-45 (10/100Base-T) |
|---|
| Optical Zoom | 5x HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; |
|---|
| Focus Control | Motorized IGMP; SNMP; RTCP |
|---|
| Close Focus Distance | 0.3m Interoperability ONVIF, PSIA, CGI |
|---|
| 鏡頭 | Detect Observe Recognize Identify Streaming Method Unicast / Multicast |
|---|
| W | 44m(144ft) 18m(59ft) 9m(29ft) 4m(13ft) Max. User Access 10 Users / 20 Users Distance |
|---|
| T | 143m(469ft) 57m(187ft) 28m(92ft) 14m(46ft) NAS |
|---|
| Edge Storage | Local PC for instant recording Mirco SD card 128GB Pan/Tilt/Rotation |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚ |
|---|
| Management Software | Smart PSS, DSS, Easy4ip Intelligence |
|---|
| Smart Phone | IOS, Android |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing Certifications Advanced Intelligent Functions Face Detection CE (EN 60950:2000) |
|---|
| Video | Certifications UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|---|
| Streaming Capability | 3 Streams |
|---|
| Video Interface | 1 Port(For adjustment only) 1080P(1920x1080)/1.3M(1280x960)/ |
|---|
| 解像度 | 720P(1280×720)/D1(704×576/704×480)/ Audio Interface 1/1 channel In/Out VGA(640×480)/CIF(352×288/352×240) |
|---|
| RS485 | N/A Main Stream: 1080P (1~50/60fps) 1 channel In: 5mA 5VDC |
|---|
| Frame Rate | Sub Stream: D1(1~50/60fps) Alarm 1 channel Out: 300mA 12VDC |
|---|
| Third Stream: 1080P(1~25/30fps) | Electrical |
|---|
| 碼率控制 | CBR/VBR Power Supply DC12V, AC24V, PoE+(802.3at)(Class 4) |
|---|
| Bit Rate | H.264: 24~9472Kbps H.265: 14~5632Kbps Power Consumption <15W www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 PFB302S PFA138 PFB201C LR1002 |
|---|
| Wall mount | x In-ceiling mount ePoE Over Coax Converter Construction |
|---|
| Casing | Metal |
|---|

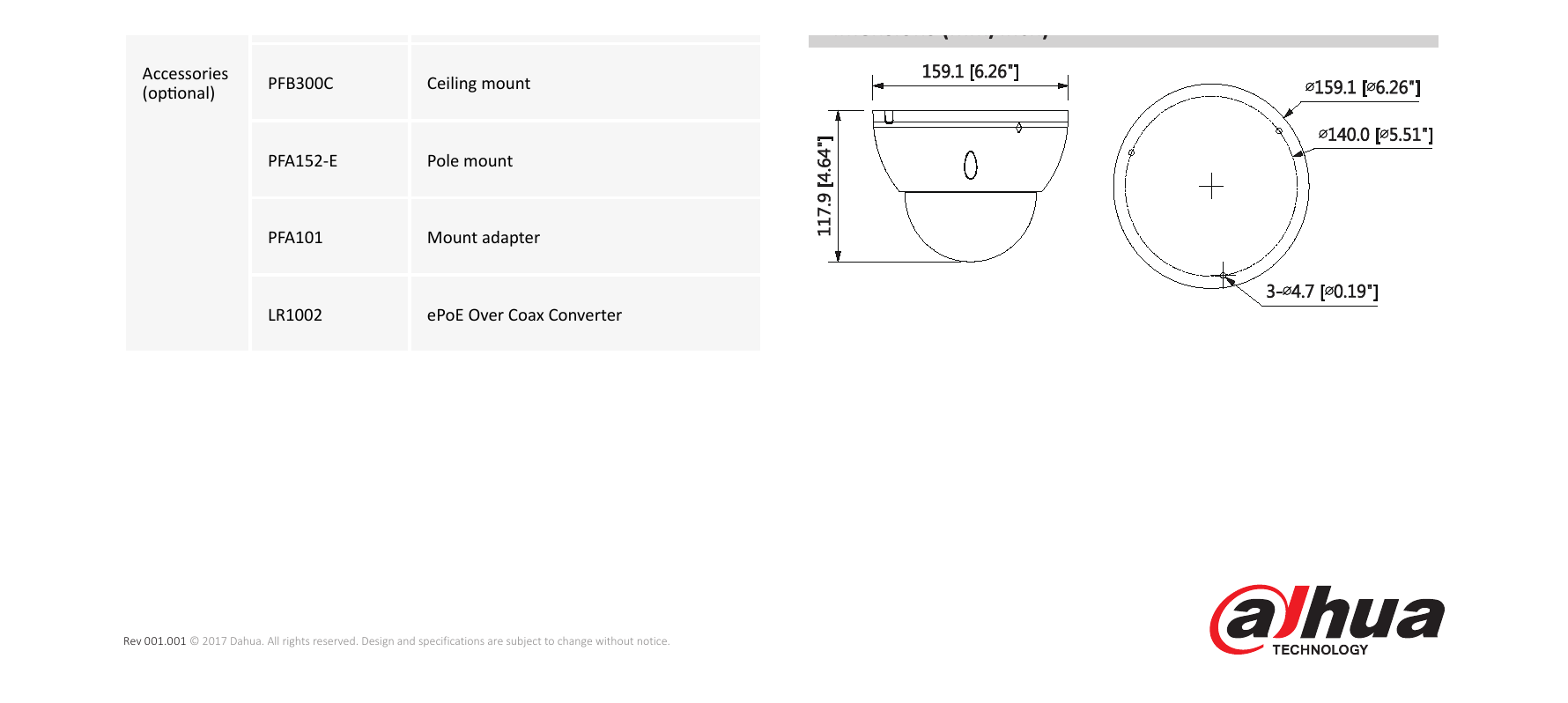

| 尺寸 | Φ159.1mm×117.9mm (6.26”×4.64”) |
|---|
| 淨重 | 0.95kg (2.09lb) PFB300C PFA152-E PFA101 |
|---|
| Ceiling mount | Pole mount Mount adapter |
|---|
| 毛重 | 1.20kg (2.65lb) Ordering Information |
|---|
| 類型 | Part Number Description |
|---|
| In-ceiling Mount | Juncon Mount Pole Mount |
|---|
| DH-IPC- | PFB201C PFA138 PFA101 + PFB302S + PFA152 2MP IR Dome NetworkCamera,WDR, PAL HDBW5231EP-ZE DH-IPC- 2MP IR Dome Network Camera, WDR,NTSC HDBW5231EN-ZE 2MP camera IPC- 2MP IR Dome Network Camera,WDR, PAL HDBW5231EP-ZE IPC- |
|---|
| Ceiling Mount | Wall Mount 2MP IR Dome Network Camera WDR,NTSC PFA101 + PFB300C PFA101 + PFB302S HDBW5231EN-ZE |
|---|
| PFA138 | Junction Box |
|---|
| PFB302S | Wall mount |
|---|
| PFB201C | In-ceiling mount Dimensions (mm/inch) Accessories |
|---|
| PFB300C | Ceiling mount (optional) |
|---|
| PFA152-E | Pole mount |
|---|
| PFA101 | Mount adapter |
|---|
| LR1002 | ePoE Over Coax Converter www.dahuasecurity.com |
|---|
