| Camera | Support the counting of number in area, and 4 rules People Counting configuration. Count number of people or stay time and |
|---|
| 影像感測器 | 1/1.8”2Megapixel progressive CMOS link alarm. Support queue management, and 4 rules configuration. |
|---|
| 最大解像度 | 1920 (H) × 1080 (V) Count number of people or stay time and link alarm. |
|---|
| ROM | 128 MB Work together with Smart NVR to perform refine |
|---|
| Intelligent Search | intelligent search, event extraction and merging to event |
|---|
| RAM | 1 GB videos. |
|---|
| Scanning System | Progressive Video H.265; H.264; H.264H; H.264B; MJPEG (only supported |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s Video Compression by the sub stream) |
|---|
| 最低照度 | 0.003 Lux @F1.8 Smart Codec Smart H.265+/H.264+ |
|---|
| S/N Ratio | ＞56 dB Main stream: 1920 × 1080 (1 fps–50/60 fps) |
|---|
| Video Frame Rate | Sub stream: D1 (1 fps–50/60 fps) Third stream: 1080p (1 fps–25/30 fps) |
|---|
| Illumination Distance | 50 m (164 ft) (IR LED) |
|---|
| Stream Capability | 3 streams |
|---|
| Illuminator On/Off Control | Auto/Manual 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 |
|---|
| Illuminator Number | 3 (IR LED) Resolution × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240) Pan: 0°–355° |
|---|
| 碼率控制 | CBR/VBR |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–80° |
|---|
| Rotation: 0°–355° | H.264: 32 kbps–8192 kbps Video Bit Rate H.265: 32 kbps–8192 kbps |
|---|
| Day/Night | Auto (ICR)/Color/B/W |
|---|
| 鏡頭類型 | Motorized vari-focal |
|---|
| BLC | Yes |
|---|
| Mount Type | φ14 |
|---|
| HLC | Yes |
|---|
| 焦距 | 2.7 mm–18 mm |
|---|
| WDR | 140 dB |
|---|
| Max. Aperture | F1.8 |
|---|
| Scene Self-adaptation | Yes Horizontal: 107°–33.9° |
|---|
| Field of View | Vertical: 69°–19° Auto/natural/street lamp/outdoor/manual/regional White Balance |
|---|
| Diagonal: 134°–38.8° | custom |
|---|
| Gain Control | Auto/Manual |
|---|
| 光圈類型 | Auto |
|---|
| Noise Reduction | 3D DNR |
|---|
| Close Focus Distance | W/T: 1.2 m (3.9 ft) |
|---|
| Motion Detection | OFF/ON (4 areas) |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| 感興趣區域 ROI | Yes (4 areas) 41.0 m 16.0 m 8.0 m 4.0 m |
|---|
| DORI 偵測距離 | W (130.7 ft) (52.5 ft) (26.2 ft) (13.1 ft) Electronic Image |
|---|
| Distance | Yes Stabilization (EIS) 130.7 m 52.0m 26.0m 13.0m (428.8 ft) (170.6 ft) (85.3 ft) (42.7 ft) Smart Illumination Yes |
|---|
| 智能事件 | Defog Yes |
|---|
| IVS | Abandoned object; missing object Image Rotation 0°/90°/180°/270° |
|---|
| Heat Map | Yes Mirror Yes |
|---|
| Professional, intelligent | Privacy Masking 4 areas Tripwire; intrusion; fast moving (the three functions Audio support the classification and accurate detection of vehicle and human); loitering detection; people Audio Compression PCM; G.711a; G.711Mu; G.726; AAC; G.723 gathering; parking detection Alarm Face detection; track; optimization; snapshot; report high No SD card; SD card full; SD card error; network quality pictur |
|---|
| Face Detection | sadness, disgust, surprise, confusion and fear), mask, |
|---|
| Alarm Event | missing object; fast moving; parking detection; loitering beard; face matting setting: face, single inch photo; three detection; people gathering; input abnormal detection; snapshot methods: real-time snapshot, optimization intensity change detection; people counting; face snapshot, quality priority; face angle filter; optimization detection; people counting in area; stay alarm; people time settin |
|---|
| Network | Ordering Information |
|---|
| SDK and API | Yes 2MP Vari-focal Dome WizMind DH-IPC-HDBW5242HP-ZE-MF Network Camera , PAL IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; 2MP Vari-focal Dome WizMind RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; DH-IPC-HDBW5242HN-ZE-MF |
|---|
| Protocol | Network Camera , NTSC UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 2MP 802.1x; SNMP Camera 2MP Vari-focal Dome WizMind IPC-HDBW5242HP-ZE-MF Network Camera , PAL ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; |
|---|
| Genetec; P2P | 2MP Vari-focal Dome WizMind IPC-HDBW5242HN-ZE-MF Network Camera , NTSC |
|---|
| 用戶管理 | 20 (Total bandwidth: 80 M) |
|---|
| PFA773 | Wall Mount FTP; SFTP; Micro SD card (support max. 256 G); Dahua |
|---|
| Storage | PFB210W Pole Mount Cloud; NAS |
|---|
| IE: IE8 and later | PFA152-E Pole Mount |
|---|
| Chrome | Accessories |
|---|
| Browser | PFA101 Ceiling Mount |
|---|
| Firefox | (Optional) Safari: Safari 12 and later |
|---|
| PFB300C | Ceiling Mount |
|---|
| Management Software | Smart PSS; DSS; DMSS |
|---|
| PFM900-E | Integrated Mount Tester |
|---|
| Mobile Phone | IOS; Android |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|
| CE-LVD: EN62368-1 | Accessories CE-EMC: Electromagnetic Compatibility Directive |
|---|
| Certification | 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
|---|
| 音訊輸入 | 1 channel (terminal) PFA773 PFB210W PFA152-E |
|---|
| Wall Mount | Pole Mount Pole Mount |
|---|
| 音訊輸出 | 1 channel (terminal) |
|---|
| 警報輸入 | 3 channels in: 5mA 3V–5V DC |
|---|
| 警報輸出 | 2 channels out: 300mA 12V DC |
|---|
| PFA101 | PFB300C PFM900-E |
|---|
| 供電 | Ceiling Mount Ceiling Mount Integrated Mount Tester |
|---|
| 功耗 | <11.9W PFM321D |
|---|
| Operating Conditions | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH 12V 1A Power Adapter |
|---|
| Strorage Conditions | –40°C to +60°C (–40°F to +140°F) |
|---|
| Protection Grade | IP67; IK10 |
|---|
| Casing | Metal |
|---|

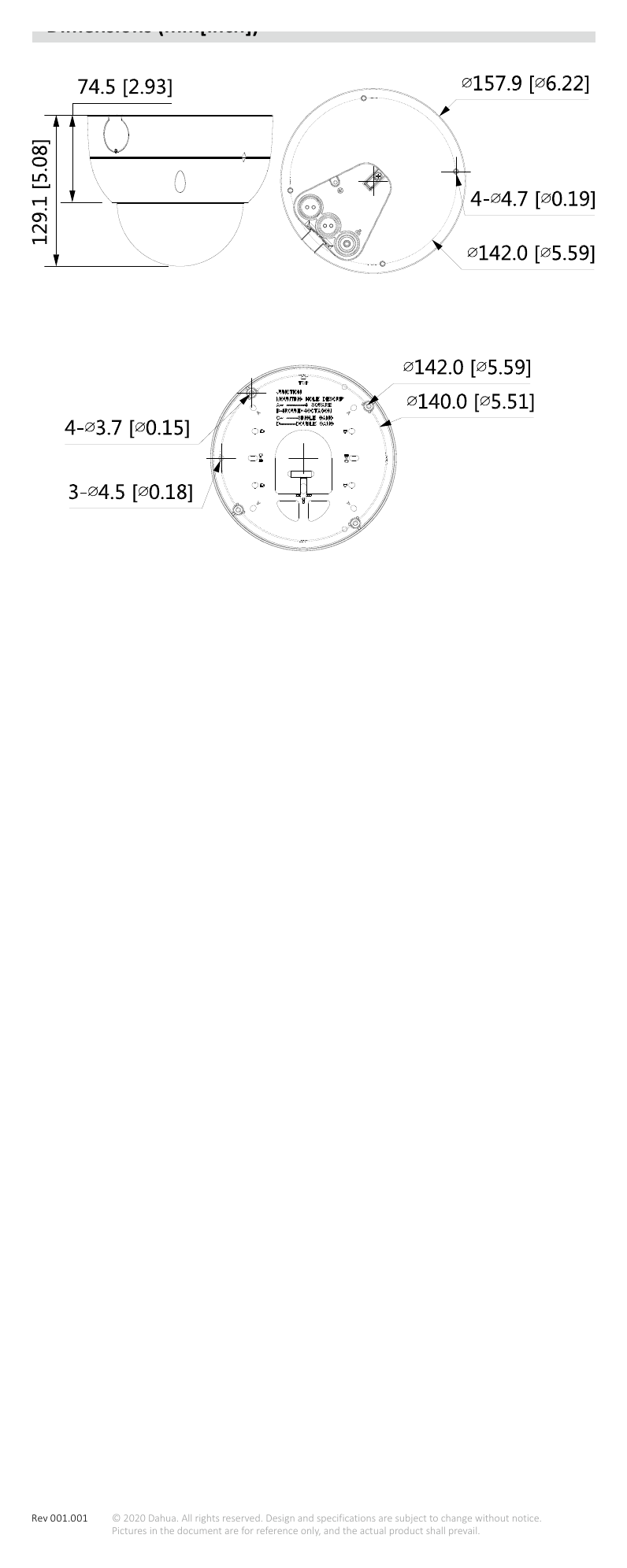

| 尺寸 | 129.1 mm × Φ157.9mm (5.1"× Φ6.2") |
|---|
| 淨重 | 1500.0 g (3.3 lb) |
|---|
| 毛重 | 1600.0 g (3.5 lb) www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
