| Camera | BLC Mode BLC / HLC / WDR |
|---|
| 影像感測器 | 1/2.9” 6Megapixel progressive scan CMOS White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Effective Pixels | 3072(H)x2048(V) Gain Control Auto/Manual |
|---|
| RAM/ROM | 512MB/32MB Noise Reduction 3D DNR |
|---|
| Scanning System | Progressive Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Region of Interest Off / On (4 Zone) 0.03Lux/F1.4 (Color,1/3s,30IRE) Electronic Image Stabilization 0.3Lux/F1.4 (Color,1/30s,30IRE) N/A |
|---|
| Minimum Illumination | (EIS) 0Lux/F1.4(IR on) |
|---|
| Smart IR | Support |
|---|
| S/N Ratio | More than 50dB |
|---|
| 除霧 | N/A |
|---|
| IR Distance | Distance up to 100m (328ft) |
|---|
| Digital Zoom | 16x |
|---|
| IR On/Off Control | Auto/ Manual |
|---|
| Flip | 0°/90°/180°/270° |
|---|
| IR LEDs | 3 |
|---|
| Mirror | Off / On |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| 鏡頭類型 | Motorized/ Auto Iris(HALL) |
|---|
| Mount Type | Board-in |
|---|
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| 焦距 | 7mm~35mm |
|---|
| Max. Aperture | F1.4 |
|---|
| Ethernet | RJ-45 (10/100Base-T) |
|---|
| Angle of View | H:32°~10° , V:22°~8° HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; |
|---|
| Optical Zoom | 5x Protocol UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
|---|
| Focus Control | Motorized |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| Close Focus Distance | 0.6m |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| DORI 偵測距離 | Max. User Access 10 Users /20 Users |
|---|
| Distance | W 234m(767ft) 94m(308ft) 47m(154ft) 23m(75ft) |
|---|
| T | 765m(2509ft) 306m(1004ft) 153m(502ft) 76m(251ft) NAS |
|---|
| Edge Storage | Local PC for instant recording |
|---|
| Pan/Tilt/Rotation | Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚ |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari |
|---|
| Intelligence | Management Software Smart PSS, DSS, Easy4ip |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing |
|---|
| Smart Phone | IOS, Android Advanced Intelligent Functions Face Detection Certifications |
|---|
| Video | CE (EN 60950:2000) |
|---|
| Certifications | UL:UL60950-1 |
|---|
| Streaming Capability | 3 Streams Interface 6M(3072×2048)/5M(3072x1728)/ 5M(2592×1944)/ Video Interface 1 Port(For adjustment only) 4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ |
|---|
| 解像度 | 1080P(1920×1080)/ 1.3M(1280x960)/ Audio Interface 1/1 channel In/Out 720P(1280×720)/ D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/352×240) |
|---|
| RS485 | N/A Main Stream: 6M(1~20fps)/4M(1~25/30fps) 1 channel In: 5mA 5VDC |
|---|
| Frame Rate | Sub Stream: D1(1~25/30fps) Alarm 1 channel Out: 300mA 12VDC Third Stream: 720P(1~25/30fps) Electrical |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 供電 | DC12V, AC24V, PoE+(802.3at)(Class 4) H.264: 24K ~ 10240Kbps Bit Rate |
|---|
| H.265: 14K ~ 9984Kbps | Power Consumption <15W www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| PFB302S | PFA138 PFB201C LR1002 |
|---|
| Vandal Resistance | IK10 Wall mount x In-ceiling mount ePoE Over Coax Converter Construction |
|---|
| Casing | Metal |
|---|
| 尺寸 | Φ159.1mm×117.9mm (6.26”×4.64”) |
|---|
| PFB300C | PFA152-E PFA101 |
|---|
| 淨重 | 0.95kg (2.09lb) Ceiling mount Pole mount Mount adapter |
|---|
| 毛重 | 1.20kg (2.65lb) Ordering Information |
|---|
| In-ceiling Mount | Junction Mount Pole Mount |
|---|
| 類型 | Part Number Description PFB201C PFA138 PFA101 + PFB302S + PFA152 |
|---|
| DH-IPC- | 6MP IR Dome Network Camera, WDR, |
|---|
| HDBW5631EP-Z5E | PAL |
|---|
| HDBW5631EN-Z5E | NTSC 6MP camera Ceiling Mount Wall Mount |
|---|
| IPC-HDBW5631EP- | 6MP IR Dome Network Camera, WDR, PFA101 + PFB300C PFA101 + PFB302S |
|---|
| Z5E | PAL |
|---|
| IPC-HDBW5631EN- | 6MP IR Dome Network Camera, WDR, |
|---|

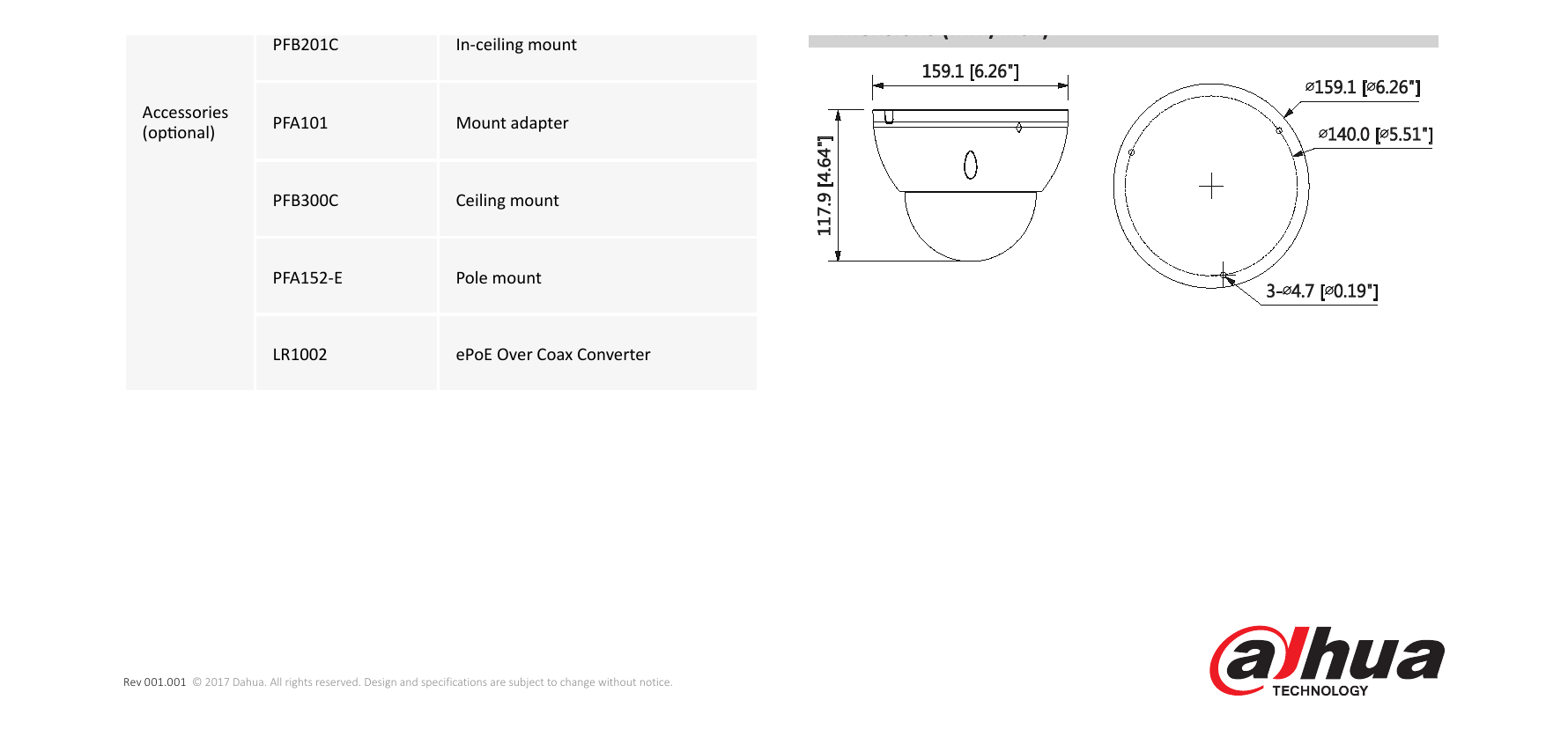

| PFA138 | Junction box Dimensions (mm/inch) |
|---|
| PFB201C | In-ceiling mount Accessories |
|---|
| PFA101 | Mount adapter (optional) |
|---|
| PFA152-E | Pole mount |
|---|
| LR1002 | ePoE Over Coax Converter www.dahuasecurity.com |
|---|
