| Camera | BLC Mode BLC / HLC / DWDR |
|---|
| 影像感測器 | 1/2.5” 8Megapixel progressive scan CMOS White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Effective Pixels | 3840(H)x2160(V) Gain Control Auto/Manual |
|---|
| RAM/ROM | 512MB/32MB Noise Reduction 3D DNR |
|---|
| Scanning System | Progressive Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Region of Interest Off / On (4 Zone) 0.05Lux/F1.4 (Color,1/3s,30IRE) Electronic Image Stabilization |
|---|
| Minimum Illumination | 0.2Lux/F1.4 (Color,1/30s,30IRE) N/A (EIS) 0Lux/F1.4(IR on) |
|---|
| S/N Ratio | More than 50dB Smart IR Support |
|---|
| IR Distance | Distance up to 50m (164ft) Defog N/A |
|---|
| IR On/Off Control | Auto/ Manual Digital Zoom 16x |
|---|
| IR LEDs | 2 Flip 0°/90°/180°/270° |
|---|
| Mirror | Off / On |
|---|
| 鏡頭類型 | Motorized/ Auto Iris(DC) Privacy Masking Off / On (4 Area, Rectangle) |
|---|
| Mount Type | Board-in Audio |
|---|
| 焦距 | 2.7mm~12mm Compression G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| Max. Aperture | F1.4 Network |
|---|
| Angle of View | H:102°~39° , V:55°~22° Ethernet RJ-45 (10/100Base-T) |
|---|
| Optical Zoom | 4x HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; |
|---|
| Protocol | DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; |
|---|
| Focus Control | Motorized Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
|---|
| Close Focus Distance | 0.3m Interoperability ONVIF, PSIA, CGI |
|---|
| 鏡頭 | Detect Observe Recognize Identify Streaming Method Unicast / Multicast |
|---|
| DORI 偵測距離 | W 91m(299ft) 36m(118ft) 18m(59ft) 9m(30ft) Max. User Access 10 Users /20 Users Distance |
|---|
| T | 228m(748ft) 91m(299ft) 46m(151ft) 23m(75ft) NAS |
|---|
| Edge Storage | Local PC for instant recording |
|---|
| Pan/Tilt/Rotation | Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation Range | Web Viewer IE, Chrome, Firefox, Safari Pan:0˚~355˚; Tilt:0˚~75˚; Rotation:0˚~355˚ |
|---|
| Management Software | Smart PSS, DSS, Easy4ip Intelligence |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing Smart Phone IOS, Android Advanced Intelligent Functions Face Detection Certifications CE (EN 60950:2000) |
|---|
| Video | Certifications UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|---|
| Compression | H.265+/H.265/H.264+/H.264 |
|---|
| Streaming Capability | 3 Streams 4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/ Video Interface N/A 3M(2048x1536)/3M(2304×1296)/1080P(192 |
|---|
| 解像度 | 0×1080) /1.3M(1280x960)/720P(1280×720)/ Audio Interface 1/1 channel In/Out D1(704×576/704×480) /VGA(640×480) |
|---|
| CIF(352×288/352×240) | RS485 N/A |
|---|
| Main Stream: 4K(1~15fps)/3M(1~25/30fps) | 1 channel In: 5mA 5VDC Alarm 1 channel Out: 300mA 12VDC |
|---|
| Frame Rate | Sub Stream: D1(1~25/30fps) Third Stream: 720P(1~25/30fps) Electrical |
|---|
| 供電 | DC12V, PoE(802.3af)(Class 0) |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 功耗 | <9W |
|---|
| Bit Rate | H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 Construction |
|---|
| PFA137 | PFA152 PFB203W PFB200C |
|---|
| Casing | Metal Junction Box Pole Mount Wall Mount In-ceiling Mount |
|---|

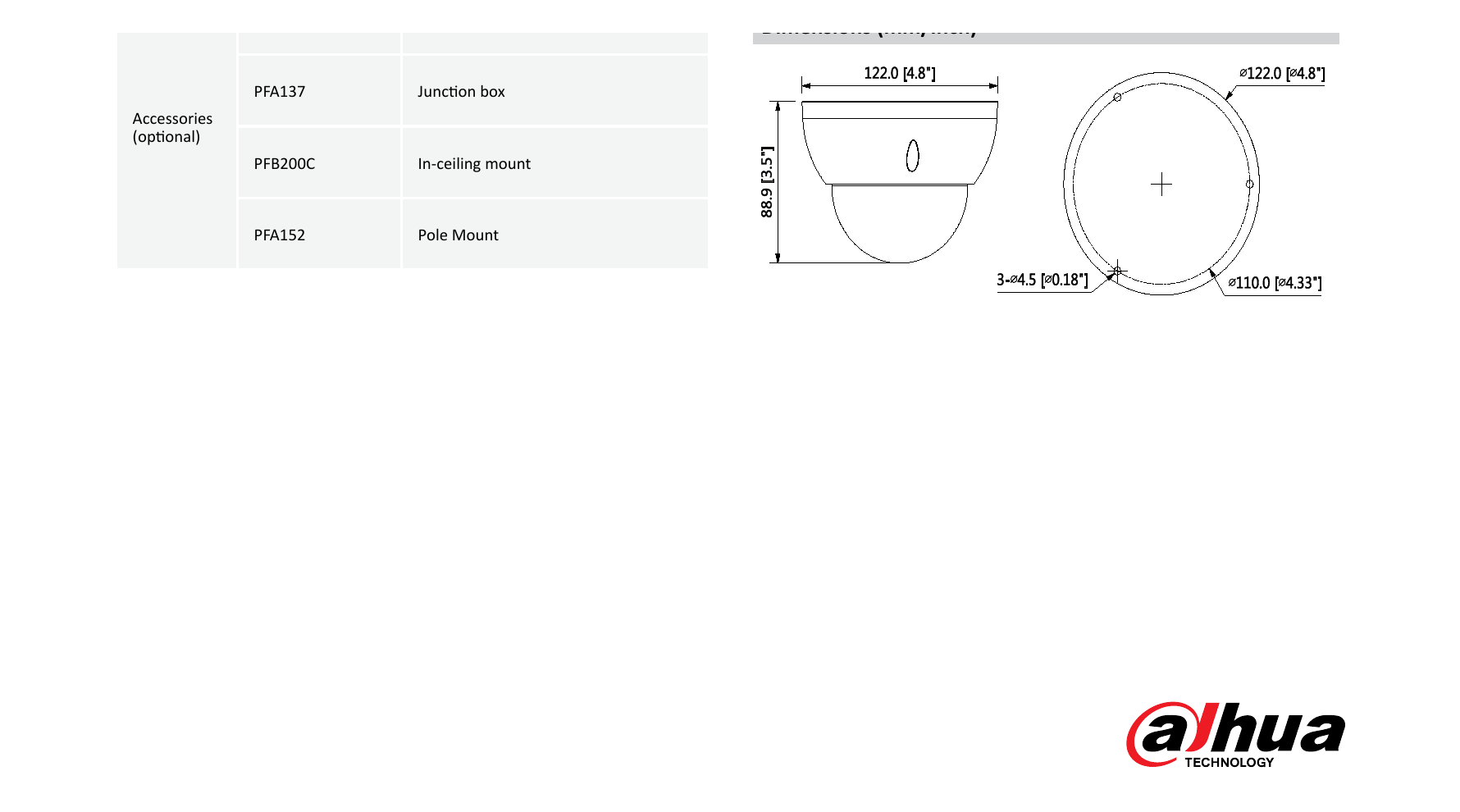

| 尺寸 | Φ122mm×88.9mm (4.8”×3.5”) |
|---|
| Juncon Mount | Inceiling Mount |
|---|
| 淨重 | 0.5kg (1.1lb) |
|---|
| 毛重 | 0.58kg (1.29lb) Ordering Information |
|---|
| 類型 | Part Number Description DH-IPC- 8MP IR Dome Network Camera, PAL HDBW5830RP-Z |
|---|
| Wall Mount | Pole Mount |
|---|
| PFB203W | PFB203W + PFA152 DH-IPC- 8MP IR Dome Network Camera, NTSC HDBW5830RN-Z 8MP camera |
|---|
| IPC-HDBW5830RP-Z | 8MP IR Dome Network Camera, PAL |
|---|
| IPC-HDBW5830RN-Z | 8MP IR Dome Network Camera, NTSC |
|---|
| PFB200C | In-ceiling mount |
|---|
| PFA152 | Pole Mount www.dahuasecurity.com |
|---|
