| Camera | BLC Mode BLC / HLC / WDR(140dB)/ SSA |
|---|
| 影像感測器 | 1/2.8” 3Megapixel progressive scan CMOS White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Effective Pixels | 2048(H)x1536(V) Gain Control Auto/Manual |
|---|
| RAM/ROM | 1024MB/128MB Noise Reduction 3D DNR |
|---|
| Scanning System | Progressive Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Region of Interest Off / On (4 Zone) 0.005Lux/F1.4 (Color,1/3s,30IRE) 0.03Lux/F1.4 (Color,1/30s,30IRE) Electronic Image |
|---|
| Minimum Illumination | Support 0Lux/F1.4(IR on) Stabilization(EIS) |
|---|
| S/N Ratio | More than 50dB Smart IR Support |
|---|
| IR Distance | Distance up to 50m(164ft) Defog Support |
|---|
| IR On/Off Control | Auto/ Manual Digital Zoom 16x |
|---|
| IR LEDs | 3 Flip 0°/90°/180°/270° |
|---|
| 鏡頭 | Mirror Off / On |
|---|
| 鏡頭類型 | Motorized /Auto Iris(HALL) Privacy Masking Off / On (4 Area, Rectangle) |
|---|
| Mount Type | Board-in Audio |
|---|
| 焦距 | 2.7~13.5mm motorized Compression G.711a/G.711Mu/AAC/ G.726 |
|---|
| Max. Aperture | F1.4 Network |
|---|
| Angle of View | H: 110 ˚~31 ˚ V:57 ˚ ~17 ˚ Ethernet RJ-45 (100/1000Base-T) |
|---|
| Optical Zoom | 5x HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; |
|---|
| Protocol | DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP |
|---|
| Focus Control | Motorized |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| Close Focus Distance | 0.3m(0.98ft) |
|---|
| W | 54m(177ft) 22m(72ft) 11m(36ft) 5m(16ft) Max. User Access 10 Users/20 Users Distance |
|---|
| T | 166m(545ft) 66m(217ft) 33m(108ft) 17m(56ft) NAS |
|---|
| Pan/Tilt/Rotation | Edge Storage Local PC for instant recording Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚ |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari Intelligence |
|---|
| Management Software | Smart PSS, DSS, Easy4ip |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing |
|---|
| Smart Phone | IOS, Android Advanced Intelligent Functions Face Detection, People Counting, Heat Map Certifications |
|---|
| Video | CE (EN 60950:2000) |
|---|
| Certifications | UL:UL60950-1 |
|---|
| Compression | H.265+/H.265/H.264+/H.264 FCC: FCC Part 15 Subpart B |
|---|
| Streaming Capability | 3 Streams Interface 3M(2048x1536)/ 1080P(1920×1080)/ Video Interface 1 Port(For adjustment only) 1.3M(1280x960)/ 720P(1280x720)/ Resolution D1(704×576/704x480)/ VGA(640x480)/ |
|---|
| Audio Interface | 1/1 channel In/Out CIF(352×288/342x240) |
|---|
| Main Stream: 3M(1~50/60fps) | RS485 N/A 1 channel In: 5mA 5VDC |
|---|
| Frame Rate | Sub Stream: D1 (1 ~ 50/60fps) Alarm 1 channel Out: 1A 30VDC / 0.5A 50VAC |
|---|
| Third Stream: 1080P(1~50/60fps) | Electrical |
|---|
| 碼率控制 | CBR/VBR Power Supply DC12V,AC24V, PoE+ (802.3at)(Class 4) H.264: 24~ 10240Kbps |
|---|
| Bit Rate | Power Consumption <18W H.265: 14~ 9216Kbps www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 |
|---|
| PFB302S | PFA138 PFB201C |
|---|
| Construction | Wall mount Jun on Box In-ceiling mount |
|---|
| Casing | Metal |
|---|

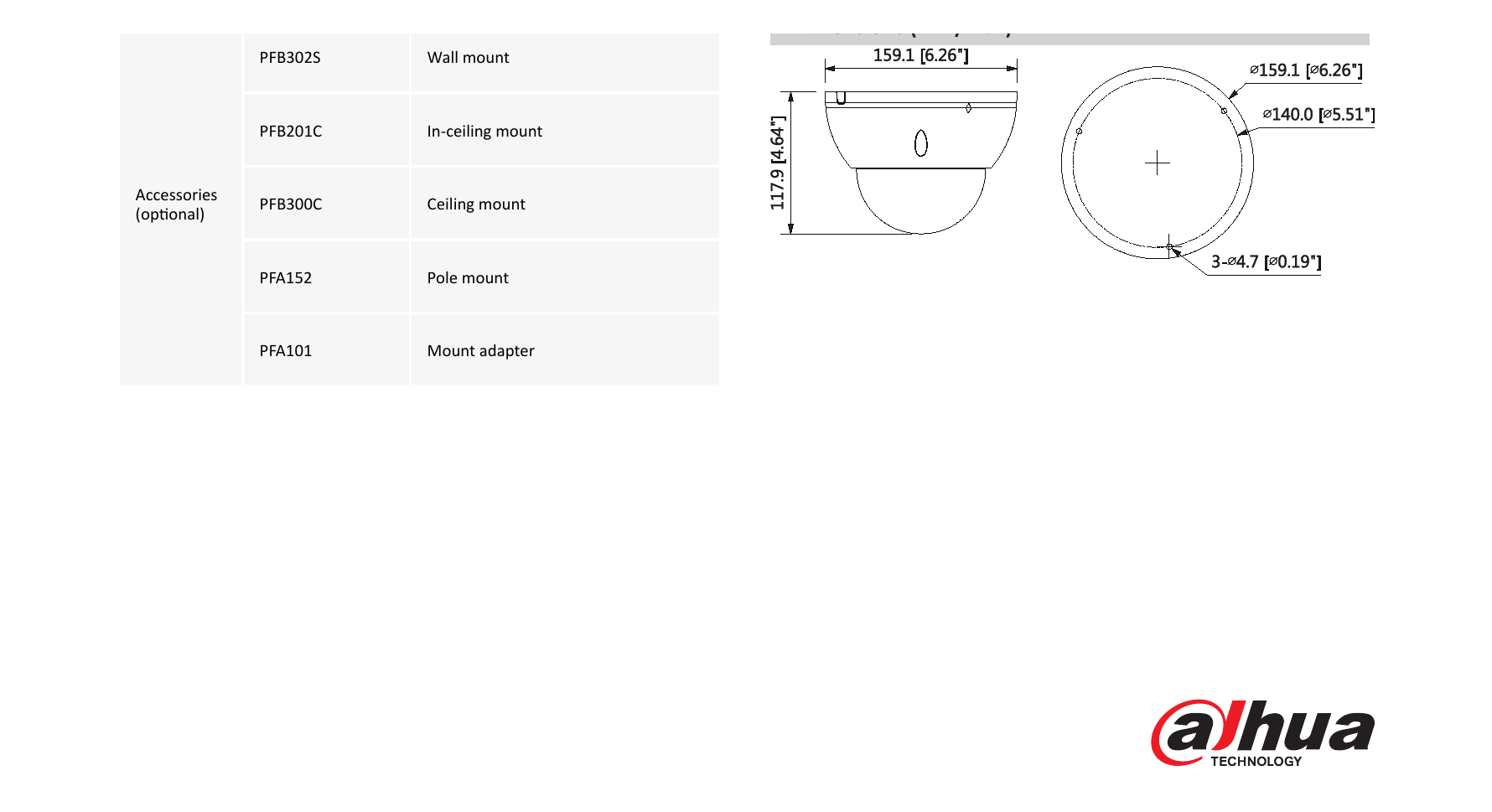

| 尺寸 | Φ159.1mm×117.9mm(Φ6.26”×4.64”) |
|---|
| 淨重 | 0.96kg(2.12lb) |
|---|
| 毛重 | 1.75 kg(3.56lb) |
|---|
| PFB300C | PFA152 PFA101 |
|---|
| Ceiling mount | Pole mount Mount adapter Ordering Information |
|---|
| In-ceiling Mount | Juncon Mount Pole Mount |
|---|
| 類型 | Part Number Description PFB201C PFA138 PFA101 + PFB302S + PFA152 |
|---|
| DH-IPC- | 3MP WDR IR Dome Network |
|---|
| HDBW8331EP-Z | Camera,PAL |
|---|
| HDBW8331EN-Z | Camera,NTSC 3MP camera Ceiling Mount Wall Mount 3MP WDR IR Dome Network PFA101 + PFB300C PFA101 + PFB302S IPC-HDBW8331EP-Z Camera,PAL 3MP WDR IR Dome Network IPC-HDBW8331EN-Z Camera,NTSC Accessories |
|---|
| PFA138 | Junction Box (included) Dimensions (mm/inch) |
|---|
| PFB201C | In-ceiling mount Accessories |
|---|
| PFA152 | Pole mount |
|---|
| PFA101 | Mount adapter www.dahuasecurity.com |
|---|
