| 解像度 | 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 |
|---|
| Camera | × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240) |
|---|
| 影像感測器 | 1/3” 4Megapixel progressive CMOS |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 最大解像度 | 2688 (H) × 1520 (V) H.264: 32 kbps–6144 kbps Video Bit Rate |
|---|
| ROM | 128 MB H.265: 12 kbps–6144 kbps 128 MB Day/Night Auto(ICR)/Color/B/W RAM |
|---|
| Progressive | BLC Yes Scanning System |
|---|
| Auto/Manual 1/3 s–1/100000 s | HLC Yes Electronic Shutter Speed 0.008 Lux @ F1.6 WDR 120 dB Min. Illumination Auto/natural/street lamp/outdoor/manual/regional |
|---|
| S/N Ratio | >56 dB White Balance custom |
|---|
| Illumination Distance | 30 m (98.43 ft) Gain Control Auto/Manual |
|---|
| Illuminator On/Off Control | Auto/Manual Noise Reduction 3D NR |
|---|
| Illuminator Number | 2 (IR LED) Motion Detection Disable/Enable (4 areas, rectangle) |
|---|
| Pan: 0°–360° | Region of Interest(RoI) Yes (4 areas) |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–78° |
|---|
| Rotation: 0°–360° | Smart Illumination Yes |
|---|
| 鏡頭 | Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution.) |
|---|
| 鏡頭類型 | Fixed-focal |
|---|
| Mirror | Yes |
|---|
| Mount Type | M12 |
|---|
| Privacy Masking | 4 areas 2.8 mm Focal Length 3.6 mm Audio F1.6 |
|---|
| Max. Aperture | Built-in MIC Yes F1.6 |
|---|
| 音訊壓縮 | G.711A; G.711Mu; G.726 2.8 mm: Horizontal 102.0° × Vertical 55.0° × Diagonal 121.0° Field of View 3.6 mm : Alarm Horizontal 84.0° × Vertical 45.0° × Diagonal 100.0° No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion Alarm Event |
|---|
| 光圈類型 | Fixed detection; video tampering; tripwire; intrusion; voltage detection; security exception 2.8 mm: 0.9 m (2.95 ft) |
|---|
| Close Focus Distance | Network 3.6 mm: 1.6 m (3.61 ft) |
|---|
| DORI 偵測距離 | 56 m 22.4 m 11.2 m 5.6 m SDK and API Yes 2.8 mm |
|---|
| Distance | (183.73 ft) (73.49 ft) (36.75 ft) (18.37 ft) 80 m 32.0 m 16.0 m 8.0 m Video encryption; firmware encryption; configuration 3.6 mm encryption; Digest; WSSE; account lockout; security (262.47 ft) (104.99 ft) (52.49 ft) (26.25 ft) |
|---|
| Cyber Security | logs; IP/MAC filtering; generation and importing of |
|---|
| 智能事件 | X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
|---|
| IVS | Tripwire; intrusion IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; |
|---|
| Video | Protocol UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; H.265; H.264; H.264B; MJPEG(only supported Bonjour Video Compression by sub stream) ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Interoperability Milestone; Genetec |
|---|
| Smart Codec | Smart H.265+/ Smart H.264+ |
|---|
| 用戶管理 | 20 Main stream: 2688 × 1520 (1 fps-20 fps) 2560 × 1440 (1 fps-25/30 fps) |
|---|
| Storage | FTP; Micro SD card (support max. 256 G); NAS; SFTP Video Frame Rate |
|---|
| 子碼流 | IE 704 × 576 (1 fps-25 fps) |
|---|
| Browser | Google 704 × 480 (1 fps-30 fps) Firefox |
|---|
| Stream Capability | 2 streams Management Software Smart PSS; DSS; DMSS www.dahuasecurity.com |
|---|
| Mobile Phone | IOS; Android Accessories |
|---|
| Certification | Optional: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive |
|---|
| Certifications | 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
|---|
| PFA130-E | PFB203W PFA152-E |
|---|
| Junction Box | Wall Mount Pole Mount Power |
|---|
| 供電 | 12V DC/PoE Basic power consumption: 2.1W (12V DC), 2.5W (POE) Max power consumption (H.265, Max resolution, Max Power Consumption stream, WDR, IR full intensity, IVS): 5.7W (12V DC), 6.6W (POE) PFM321D LR1002-1ET/1EC PFM900-E |
|---|
| DC12V1A | Single-port Long Integrated Mount |
|---|
| Power Adapter | Reach Ethernet over Tester |
|---|
| Environment | Coax Extende |
|---|
| 工作溫度 | -40°C to +60°C (-40°F to +140°F) |
|---|
| 工作濕度 | ≤95% |
|---|
| 儲存溫度 | -40°C to +60°C (-40°F to +140°F) PFM114 TLC SD card |
|---|
| Storage Humidity | ≤95% |
|---|
| 防護等級 | IP67 Junction Mount Wall Mount Pole Mount |
|---|
| Casing | Metal + Plastic |
|---|

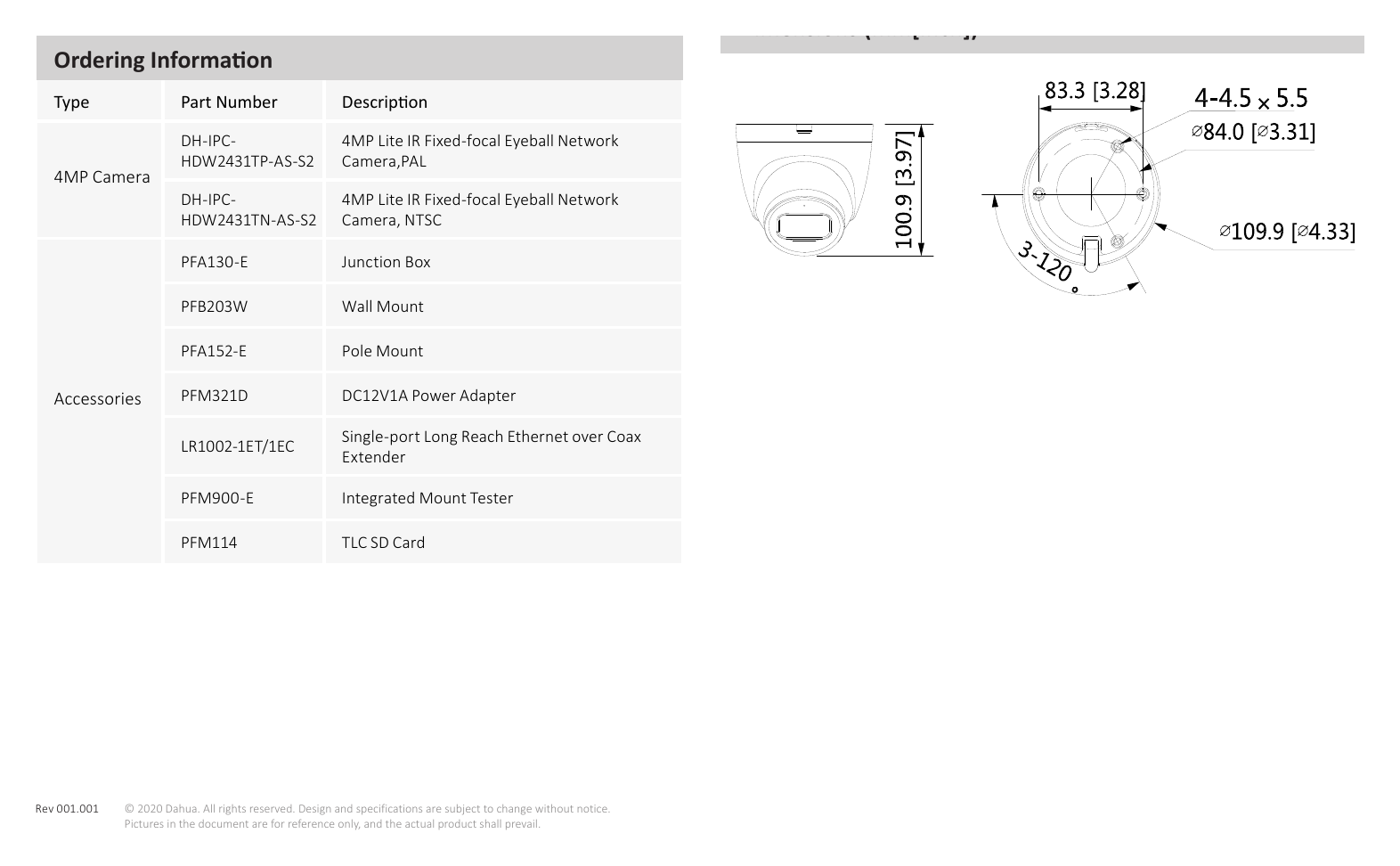

| 尺寸 | 100.9 mm × Φ109.9 mm (3.97" × Φ4.33") |
|---|
| 淨重 | 0.39 kg (0.86 lb) |
|---|
| 毛重 | 0.52 kg (1.15 lb) Dimensions (mm[inch]) Ordering Information |
|---|
| 類型 | Part Number Description |
|---|
| DH-IPC- | 4MP Lite IR Fixed-focal Eyeball Network |
|---|
| HDW2431TP-AS-S2 | Camera,PAL 4MP Camera |
|---|
| HDW2431TN-AS-S2 | Camera, NTSC |
|---|
| PFB203W | Wall Mount |
|---|
| PFA152-E | Pole Mount |
|---|
| Accessories | PFM321D DC12V1A Power Adapter Single-port Long Reach Ethernet over Coax LR1002-1ET/1EC Extender |
|---|
| PFM900-E | Integrated Mount Tester |
|---|
| PFM114 | TLC SD Card |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
