| Camera | 3840 × 2160 @(1–25/30 fps when AI function disabled) |
|---|
| Video Frame Rate | sub stream: |
|---|
| 影像感測器 | 1/2.8”8Megapixel progressive CMOS 704 × 576 @(1–25 fps)/704 × 480 @ (1–30 fps) third stream: 3840 (H) × 2160 (V) 1920 × 1080 @(1–25/30 fps) |
|---|
| ROM | 128 MB Stream Capability 3 streams 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × |
|---|
| RAM | 512 MB 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × |
|---|
| 解像度 | 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × |
|---|
| Scanning System | Progressive 960); 720p (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.007 Lux@F1.4 (Color, 30IRE) Bit Rate Control CBR/VBR |
|---|
| 最低照度 | 0.0007 Lux@F1.4 (B/W, 30IRE) H.264: 3 kbps–8192 kbps 0 Lux (Illuminator on) Video Bit Rate H.265: 3 kbps–8192 kbps |
|---|
| S/N Ratio | > 56 dB |
|---|
| Day/Night | Auto (ICR)/Color/B/W |
|---|
| Illumination Distance | 30 m (98.4 ft) |
|---|
| BLC | Yes |
|---|
| Illuminator On/Off Control | Auto/Manual |
|---|
| HLC | Yes |
|---|
| Illuminator Number | 2 (IR LED) |
|---|
| WDR | 120 dB Pan: 0°–360° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–78° Scene Self-adaptation (SSA) Yes Rotation: 0°–360° Auto/natural/street lamp/outdoor/manual/regional White Balance custom |
|---|
| Gain Control | Auto/Manual |
|---|
| 鏡頭類型 | Fixed-focal |
|---|
| Noise Reduction | 3D DNR |
|---|
| Mount Type | M12 |
|---|
| Motion Detection | OFF/ON (4 areas, rectangular) 2.8 mm 3.6 mm |
|---|
| 感興趣區域 ROI | Yes (4 areas) |
|---|
| Max. Aperture | F1.4 |
|---|
| Smart Illumination | Yes 2.8 mm: Horizontal 108° × Vertical 58° × Diagonal 127° 0°/90°/180°/270° (Support 90°/270° with 1080p |
|---|
| Field of View | Image Rotation 3.6 mm: Horizontal 85° × Vertical 45° × Diagonal 100° resolution and lower.) |
|---|
| 光圈類型 | Fixed |
|---|
| Mirror | Yes 2.8 mm: 1.4 m (4.6 ft) |
|---|
| Close Focus Distance | Privacy Masking 4 areas 3.6 mm: 2.4 m (7.9 ft) |
|---|
| 鏡頭 | Detect Observe Recognize Identify Audio 85.5 m 34.2 m 17.1 m 8.6 m Built-in MIC Yes |
|---|
| DORI Distance | 2.8 mm (280.5 ft) (112.2 ft) (56.1 ft) (28.2 ft) 110.3 m 44.1 m 22.1 m 11.0 m Audio Compression G.711a; G.711Mu; G726 3.6 mm (361.9 ft) (144.7 ft) (72.5 ft) (36.1 ft) Alarm Tripwire; intrusion (support the classification and No SD card; SD card full; SD card error; service life |
|---|
| 周界防護 | warning (only supported by Dahua card); network accurate detection of vehicle and human) disconnection; IP conflict; illegal access; motion Alarm Event Work together with Smart NVR to perform refine detection; video tampering; intrusion; tripwire; scene |
|---|
| Intelligent Search | intelligent search, event extraction and merging to event changing; audio detection; voltage detection;SMD; safety |
|---|
| videos. | exception H.265; H.264; H.264H; H.264B; MJPEG (only supported |
|---|
| by the sub stream) | Network RJ-45 (10/100 Base-T) |
|---|
| Smart Codec | Smart H.265+/ Smart H.264+ SDK and API Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
|---|
| Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP www.dahuasecurity.com Video encryption; firmware encryption; configuration PFA130-E Junction Box encryption; Digest; WSSE; account lockout; security logs; |
|---|
| Cyber Security | IP/MAC filtering; generation and importing of X.509 PFM114 TLC SD Card certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
|---|
| PFB203W | Wall Mount ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; |
|---|
| Interoperability | PFA152-E Pole Mount Genetec |
|---|
| 用戶管理 | 20 (Total bandwidth: 72 M) Accessories PFA106 Mount Adapter (optional) |
|---|
| PFB220C | Celling Mount |
|---|
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
|---|
| PFM321D | DC12V1A Power Adapter IE: IE8; IE9; IE11 |
|---|
| Browser | Chrome Single-port Long Reach Ethernet |
|---|
| Firefox | LR1002-1ET/1EC over Coax Extender |
|---|
| Management Software | Smart PSS; DSS; DMSS PFM900-E Integrated Mount Tester |
|---|
| Mobile Phone | IOS; Android Accessories CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive Optional: |
|---|
| Certifications | 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
|---|
| 供電 | 12V DC/PoE (802.3af) Basic power consumption: 2.6W (12V DC); 3.3W (PoE) PFA130-E PFM114 PFB203W |
|---|
| 功耗 | Max. power consumption (WDR + H.265 + IR LED Junction Box TLC SD Card Wall Mount intensity): 6.9W (12V DC); 7.9W (PoE) |
|---|
| Operating Conditions | –40°C to +60°C (–40°F to +140°F)/Less than 95% RH |
|---|
| 儲存環境 | –40°C to +60°C (–40°F to +140°F) |
|---|
| PFA152-E | PFA106 PFB220C |
|---|
| Protection Grade | IP67 Pole Mount Mount Adapter Celling Mount Inner core: Metal |
|---|
| Casing | Cover: Metal Decoration ring: Plastic |
|---|
| DC12V1A Power | Single-port Long Integrated Mount |
|---|
| 尺寸 | 99.1 mm × Φ121.9 mm (3.9" × Φ4.8") Reach Ethernet over |
|---|
| Adapter | Tester Coax Extender |
|---|
| 淨重 | 500 g (1.1 lb) |
|---|
| 毛重 | 770 g (1.7 lb) |
|---|
| 類型 | Model Description 8MP IR Fixed focal Eyeball WizSense DH-IPC-HDW3841TMP-AS Network Camera, PAL 8MP IR Fixed focal Eyeball WizSense DH-IPC-HDW3841TMN-AS Network Camera, NTSC |
|---|

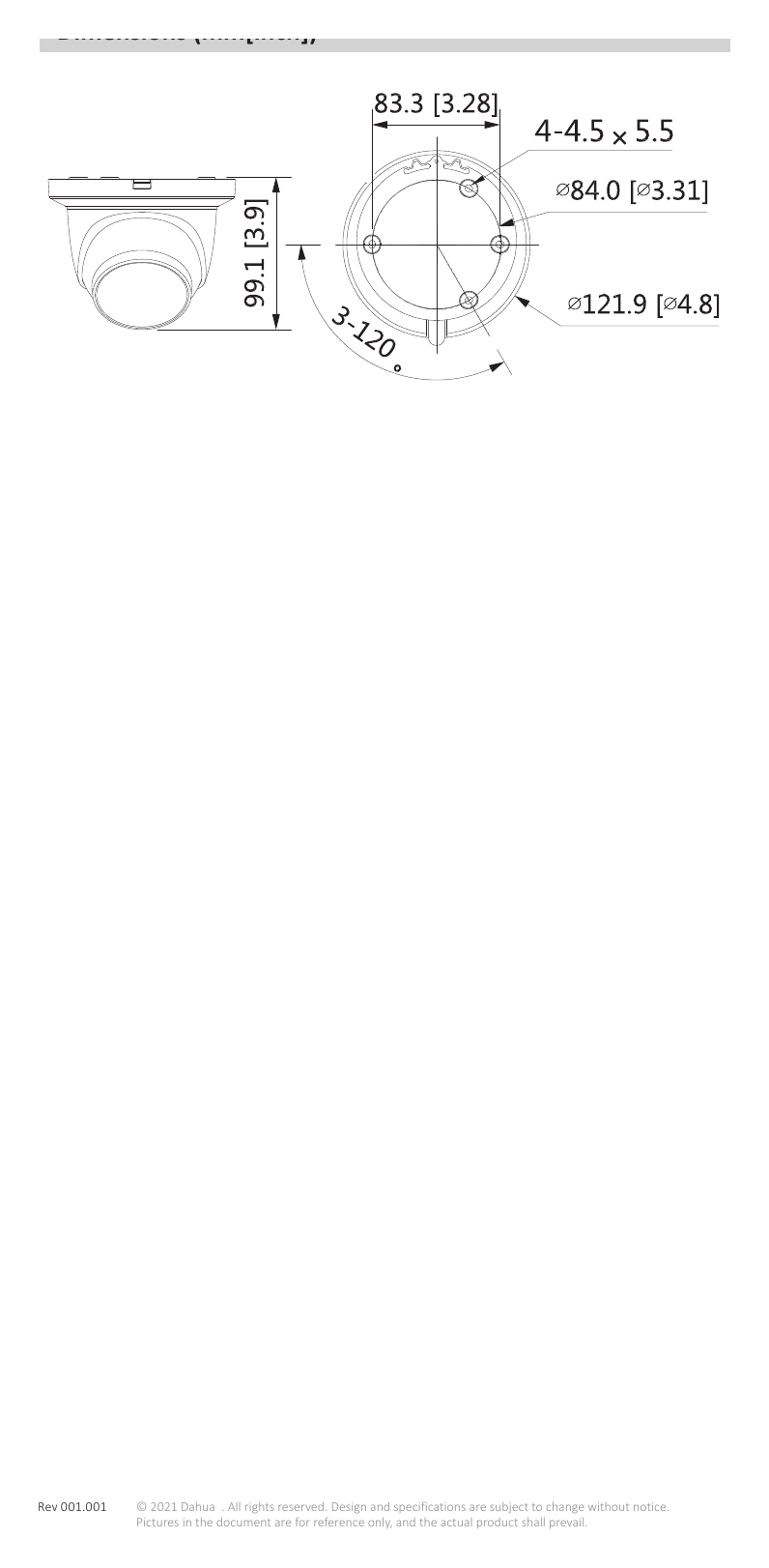

| Junction Box | Wall Mount Pole Mount Dimensions (mm[inch]) |
|---|
| Rev 001.001 | © 2021 Dahua . All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
