| Camera | Day/Night Auto(ICR) / Color / B/W |
|---|
| 影像感測器 | 1/2.5” 8Megapixel progressive scan CMOS BLC Mode BLC / HLC / DWDR |
|---|
| Effective Pixels | 3840(H)x2160(V) White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| RAM/ROM | 512MB/32MB Gain Control Auto/Manual |
|---|
| Scanning System | Progressive Noise Reduction 3D DNR |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Motion Detetion Off / On (4 Zone, Rectangle) 0.05Lux/F1.4 (Color,1/3s,30IRE) Region of Interest Off / On (4 Zone) |
|---|
| Minimum Illumination | 0.2Lux/F1.4 (Color,1/30s,30IRE) 0Lux/F1.4(IR on) Electronic Image Stabilization N/A (EIS) |
|---|
| S/N Ratio | More than 50dB |
|---|
| Smart IR | Support |
|---|
| IR Distance | Distance up to 50m (164ft) |
|---|
| 除霧 | N/A |
|---|
| IR On/Off Control | Auto/ Manual |
|---|
| Digital Zoom | 16x |
|---|
| IR LEDs | 2 |
|---|
| Flip | 0°/90°/180°/270° |
|---|
| Mirror | Off / On |
|---|
| 鏡頭類型 | Motorized/ Auto Iris(DC) |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| Mount Type | Board-in |
|---|
| 焦距 | 2.7mm~12mm |
|---|
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| Max. Aperture | F1.4 |
|---|
| Angle of View | H:102°~39° , V:55°~22° |
|---|
| Ethernet | RJ-45 (10/100Base-T) |
|---|
| Optical Zoom | 4x HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; |
|---|
| Focus Control | Motorized Protocol DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
|---|
| Close Focus Distance | 0.3m |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| W | 91m(299ft) 36m(118ft) 18m(59ft) 9m(30ft) |
|---|
| Distance | Max. User Access 10 Users /20 Users |
|---|
| T | 228m(748ft) 91m(299ft 46m(151ft) 23m(75ft) NAS |
|---|
| Edge Storage | Local PC for instant recording |
|---|
| Pan/Tilt/Rotation | Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚ Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Intelligence | Management Software Smart PSS, DSS, Easy4ip |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing Smart Phone IOS, Android Advanced Intelligent Functions Face Detection Certifications |
|---|
| Video | CE (EN 60950:2000) |
|---|
| Certifications | UL:UL60950-1 |
|---|
| Streaming Capability | 3 Streams |
|---|
| Video Interface | N/A 4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/ 3M(2048x1536)/3M(2304×1296)/ |
|---|
| 解像度 | 1080P(1920×1080)/1.3M(1280x960)/ Audio Interface Built-in Mic 720P(1280×720)/D1(704×576/704×480) / |
|---|
| VGA(640×480)/CIF(352×288/352×240) | RS485 N/A |
|---|
| Main Stream: 4K(1~15fps)/3M(1~25/30fps) | Alarm N/A |
|---|
| Frame Rate | Sub Stream: D1(1~25/30fps) Electrical |
|---|
| Third Stream: 720P(1~25/30fps) | Power Supply DC12V, PoE(802.3af)(Class 0) |
|---|
| 碼率控制 | CBR/VBR Power Consumption <8.5W www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | N/A Construction |
|---|
| Casing | Metal PFA137 PFB203W PFA152 |
|---|
| Junction Box | Wall Mount Pole Mount |
|---|

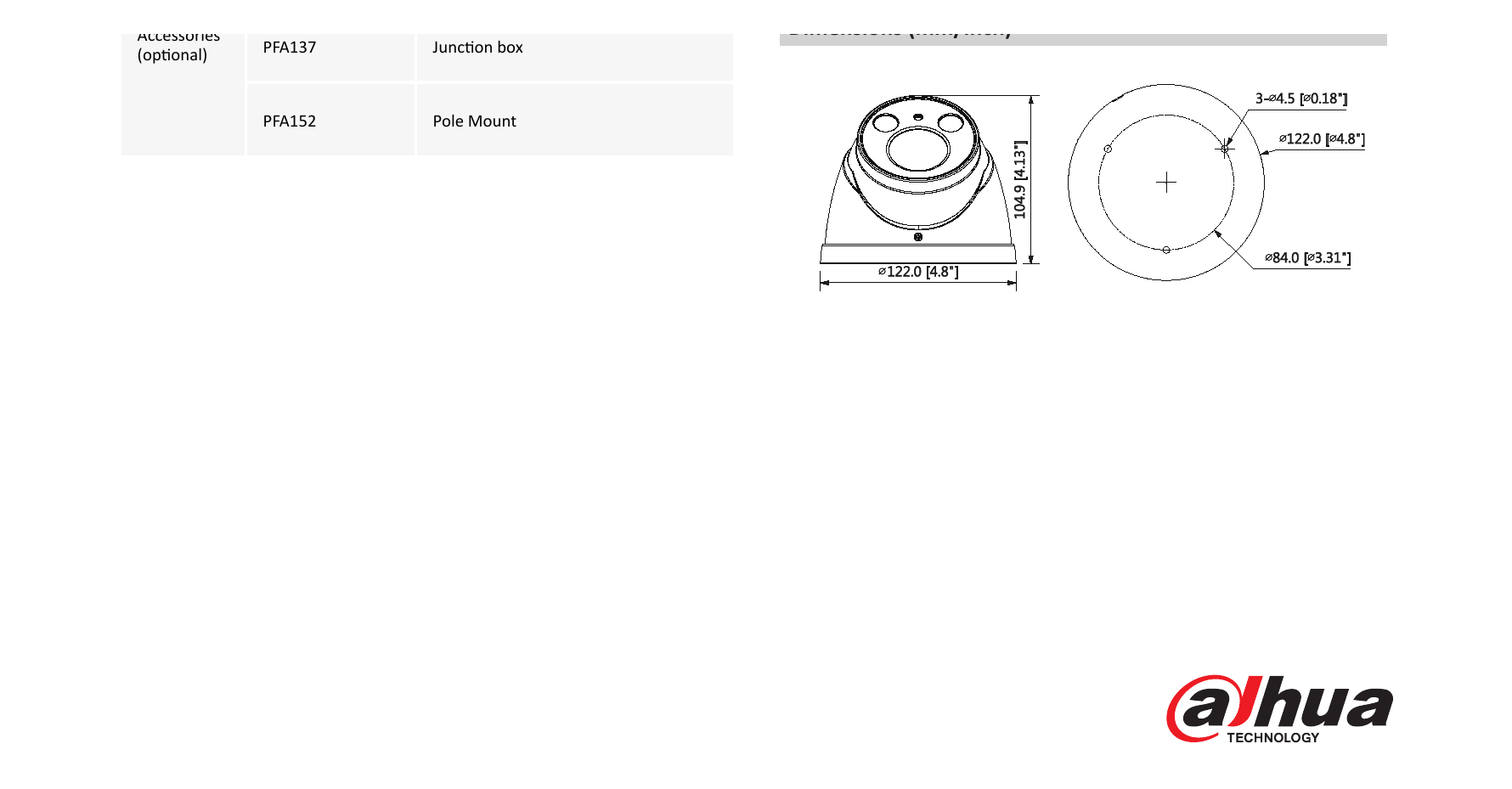

| 尺寸 | Φ122mm×104.9mm (4.8”×4.13”) |
|---|
| 淨重 | 0.6Kg (1.32lb) |
|---|
| Juncon Mount | Pole Mount |
|---|
| 毛重 | 0.71Kg (1.57lb) |
|---|
| PFA137 | PFB203W + PFA152 Ordering Information |
|---|
| 類型 | Part Number Description DH-IPC- 8MP IR Eyeball Network Camera, PAL HDW5830RP-Z DH-IPC- 8MP IR Eyeball Network Camera, NTSC Wall Mount |
|---|
| HDW5830RN-Z | PFB203W 8MP camera |
|---|

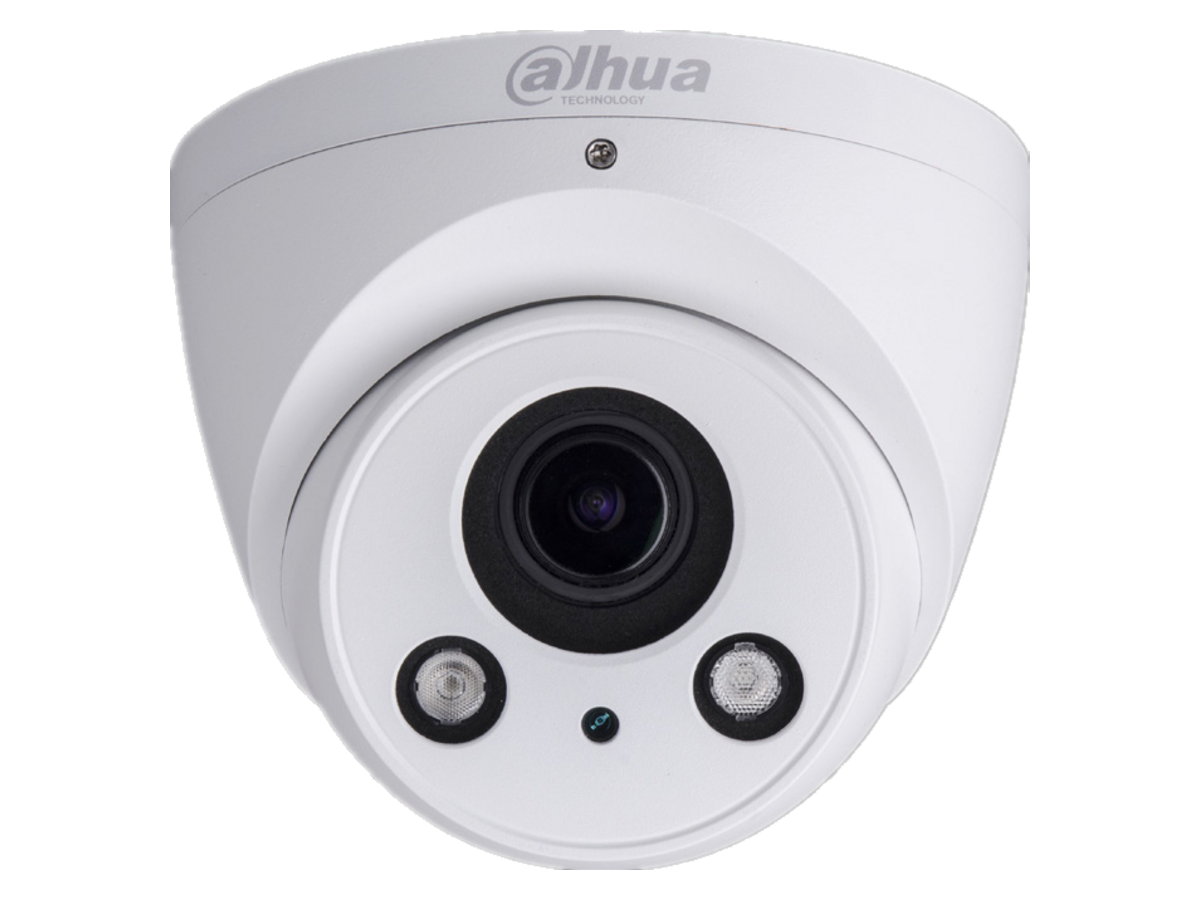

| IPC-HDW5830RP-Z | 8MP IR Eyeball Network Camera, PAL |
|---|
| IPC-HDW5830RN-Z | 8MP IR Eyeball Network Camera, NTSC |
|---|
| PFB203W | Wall mount |
|---|
| Accessories | Dimensions (mm/inch) (optional) PFA137 Junction box |
|---|
| PFA152 | Pole Mount www.dahuasecurity.com |
|---|
