| Camera | Frame Rate Sub Stream: D1 (1 fps–25/30 fps) |
|---|
| 影像感測器 | 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS Third Stream: 1080P (1 fps–6 fps) |
|---|
| Effective Pixels | 1920 (H) × 1080 (V) Bit Rate Control CBR/VBR |
|---|
| RAM/ROM | 512 MB/128 MB H.264: 32 Kbps–8192 Kbps Bit Rate H.265: 19 Kbps–7424 Kbps |
|---|
| Scanning System | Progressive |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3 s–1/100000 s |
|---|
| BLC Mode | BLC/HLC/WDR (120 dB) |
|---|
| Minimum Illumination | 0.002 Lux@F1.7 |
|---|
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| LED Distance | N/A |
|---|
| Gain Control | Auto/Manual |
|---|
| LED On/Off Control | N/A |
|---|
| Noise Reduction | 3D DNR |
|---|
| LEDs | N/A |
|---|
| Motion Detection | Off/On (4 Zone, Rectangle) |
|---|
| Region of Interest | Off/On (4 Zone) |
|---|
| 鏡頭類型 | N/A Electronic Image Stabilization Support |
|---|
| Mount Type | C/CS (EIS) |
|---|
| 焦距 | N/A Smart IR N/A |
|---|
| Max. Aperture | N/A |
|---|
| 除霧 | Support |
|---|
| Angle of View | N/A |
|---|
| Digital Zoom | N/A |
|---|
| Optical Zoom | N/A |
|---|
| Aperture Type | N/A Flip 0°/90°/180°/270° |
|---|
| Close Focus Distance | N/A |
|---|
| Mirror | Off/On Pan/Tilt/Rotation |
|---|
| Privacy Masking | Off/On (4 Area, Rectangle) |
|---|
| Pan/Tilt/Rotation Range | N/A Artificial Intelligence |
|---|
| Compression | G.711a, G.711Mu, G.726, AAC, G.723 |
|---|
| 人臉抓拍 | Support face image capture Support 6 kinds of face attributes extraction: Age, Gender,Expression (Jolly, Surprise, Normal, Rage, Sad, |
|---|
| Ethernet | RJ-45 (10/100 Base-T) Face Attributes Disgusted, Confused, Frightened), Glasses, Mouth HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, Mask, Moustache & Beard |
|---|
| Protocol | FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x |
|---|
| 周界防護 | Tripwire, Intrusion(Human & Vehicle classification) ONVIF (Profile S/Profile G), CGI, Milstone, Genetec, Support Line crossing/Region/Queueing people Interoperability P2P |
|---|
| People Counting | counting; Support 4 accesses independent detection, 4 |
|---|
| areas independent detection | Streaming Method Unicast / Multicast |
|---|
| Max. User Access | 20 Users General Intelligence NAS |
|---|
| Edge Storage | FTP Motion detection, Video tampering , Scene changing, Micro SD card 256 GB |
|---|
| Event Trigger | Network disconnection , IP address conflict, Illegal |
|---|
| Access,Storage anomaly | IE (versions newer than IE8), Chrome, Web Viewer Firefox, Safari (versions newer than Safari 12) |
|---|
| General Intelligence | Object Abandoned/Missing Management Software Smart PSS, DSS, P2P |
|---|
| Video | Smart Phone iOS, Android H.265+, H.265, H.264+, H.264, H.264B, H.264H, Certifications Compression MJPEG (sub stream) |
|---|
| Streaming Capability | 3 Streams CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 Certifications 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
|---|
| 解像度 | × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 (352 × 288/352 × 240) www.dahuasecurity.com |
|---|
| 接口 | Accessories |
|---|
| Video Interface | 1 port (BNC, 1Vp-p, 75Ω ) Optional: |
|---|
| Audio Interface | 1/1 channel In/Out, Built-in MIC |
|---|
| RS485 | 1 port 2 channel In: 5mA 5V DC Alarm 1 channel Out: 300mA 12V DC |
|---|
| Electrical | PFB110W PFB121W LR1002 |
|---|
| Wall Mount | Wall Mount ePoE Over Coax Converter DC 12V (±25%), AC 24V (±25%), PoE (802.3af) Power Supply (Class 0) |
|---|
| 功耗 | <9.5W |
|---|
| Environmental | PFB121W PFB110W |
|---|
| Operating Conditions | -30° C to +60° C (-22° F to +140° F)/10%RH–95%RH |
|---|
| 儲存環境 | -30° C to +60° C (-22° F to +140° F) |
|---|
| 防護等級 | N/A |
|---|
| Vandal Resistance | N/A Construction |
|---|

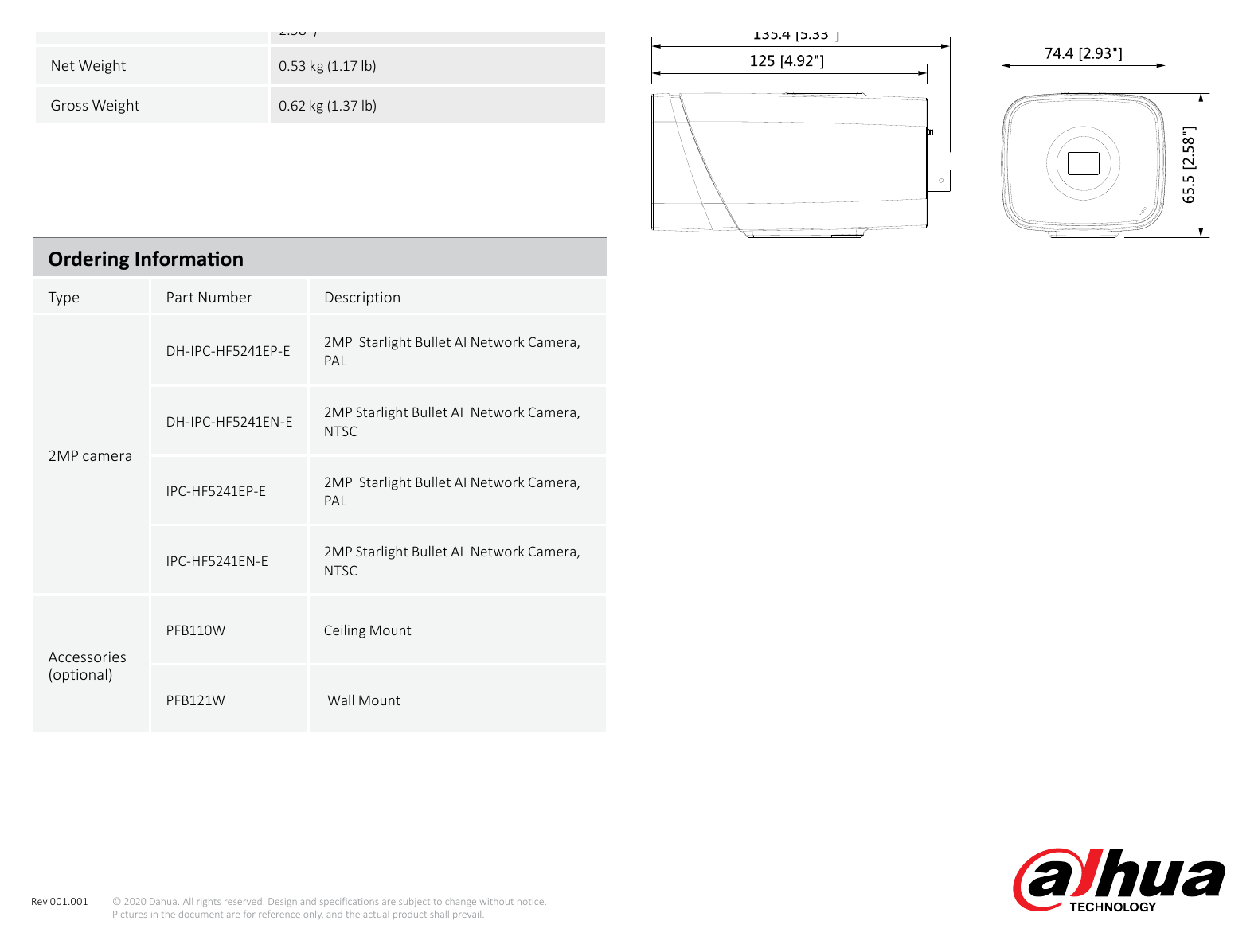

| Casing | Metal Dimensions (mm[inch]) 135.4 mm × 74.4 mm × 65.5 mm(5.33” × 2.93” × Dimensions 2.58”) |
|---|
| 淨重 | 0.53 kg (1.17 lb) |
|---|
| 毛重 | 0.62 kg (1.37 lb) Ordering Information |
|---|
| 類型 | Part Number Description 2MP Starlight Bullet AI Network Camera, DH-IPC-HF5241EP-E PAL 2MP Starlight Bullet AI Network Camera, DH-IPC-HF5241EN-E NTSC 2MP camera 2MP Starlight Bullet AI Network Camera, IPC-HF5241EP-E PAL 2MP Starlight Bullet AI Network Camera, IPC-HF5241EN-E NTSC |
|---|
| PFB110W | Ceiling Mount Accessories (optional) |
|---|
| PFB121W | Wall Mount |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
