| Camera | BLC Mode BLC / HLC / DWDR/ SSA |
|---|
| 影像感測器 | 1/1.7” 12Megapixel progressive scan CMOS White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Effective Pixels | 4000(H)x3000(V) Gain Control Auto/Manual |
|---|
| RAM/ROM | 1024MB/128MB Noise Reduction 3D DNR |
|---|
| Scanning System | Progressive Motion Detection Off / On (4 Zone, Rectangle) |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Region of Interest Off / On (4 Zone) 0.005Lux/F1.2(Color,1/3s,30IRE) Electronic Image Stabilization Support 0.05Lux/F1.2(Color,1/30s,30IRE) (EIS) |
|---|
| Minimum Illumination | 0.003Lux/F1.2(B/W,1/3s,30IRE) 0.03Lux/F1.2(B/W,1/30s,30IRE) Smart IR N/A |
|---|
| S/N Ratio | More than 50dB Defog Support |
|---|
| IR Distance | N/A |
|---|
| Digital Zoom | 16x |
|---|
| IR On/Off Control | N/A |
|---|
| Flip | 0°/90°/180°/270° |
|---|
| IR LEDs | N/A |
|---|
| Mirror | Off / On |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| 鏡頭類型 | N/A |
|---|
| Mount Type | C/CS |
|---|
| 焦距 | N/A Compression G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| Max. Aperture | N/A |
|---|
| Angle of View | N/A |
|---|
| Ethernet | RJ-45 (100/1000Base-T) |
|---|
| Optical Zoom | N/A HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; |
|---|
| Focus Control | N/A FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S |
|---|
| Close Focus Distance | N/A NMP;TLS |
|---|
| Pan/Tilt/Rotation | Interoperability ONVIF Profile S&G, API |
|---|
| Pan/Tilt/Rotation Range | N/A Streaming Method Unicast / Multicast |
|---|
| Intelligence | Max. User Access 10 Users/20 Users |
|---|
| Motion detection, Video tampering , Scene | NAS |
|---|
| Event Trigger | changing, Network disconnection , IP address Edge Storage Local PC for instant recording |
|---|
| conflict, Illegal Access,Storage anomaly | Mirco SD card 128GB |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Video | Smart Phone IOS, Android |
|---|
| Compression | H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream) Certifications |
|---|
| Smart Codec | Support H.265+/H.264+ CE (EN 60950:2000) |
|---|
| Certifications | UL:UL60950-1 |
|---|
| Streaming Capability | 3 Streams FCC: FCC Part 15 Subpart B 12M(4000x3000)/ 4K(3840x2160)/ Interface 6M(3072x2048)/ 5M(2560x1920)/ 3M(2048x1536)/ 3M(2304x1296)/ Video Interface 1 port(BNC,1Vp-p,75Ω) 1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480) / |
|---|
| Audio Interface | 1/1 channel In/Out, 1 Built-in Mic VGA(640x480)/ CIF(352×288/342x240) |
|---|
| Main Stream: 12M(1~20fps)/ 4K(1~25/30fps) | RS485 1 port |
|---|
| Frame Rate | Sub Stream: D1 (1 ~ 25/30fps) 2 channel In: 5mA 5VDC Alarm 1 channel Out: 1A 30VDC / 0.5A 50VAC Third Stream: 1080P(1~25/30fps) Electrical |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 供電 | DC12V, AC24V, PoE(802.3af)(Class 0) H.264: 24~ 16384Kbps |
|---|
| H.265: 14~ 9984Kbps | Power Consumption <8W www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| 儲存環境 | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | N/A |
|---|
| Vandal Resistance | N/A Construction |
|---|
| Casing | Metal PFB110W PFB121W PLZ20C0-D |
|---|
| Wall mount | Wall mount |
|---|

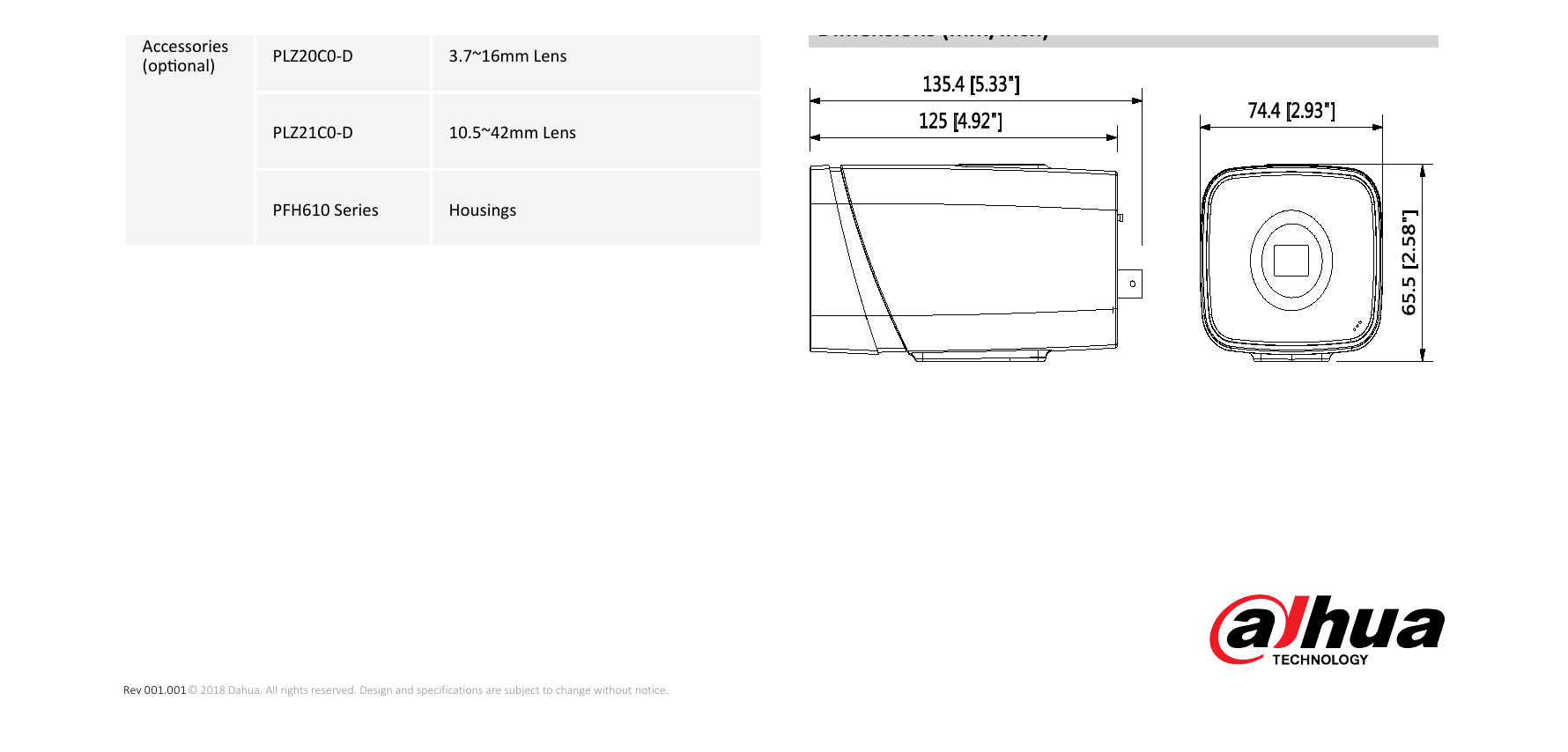

| 尺寸 | 135.4mm×74.4mm×65.5mm (5.33”×2.93”×2.58”) |
|---|
| 淨重 | 0.66Kg (1.46lb) |
|---|
| 毛重 | 0.77Kg (1.7lb) Ordering Information |
|---|
| PLZ21C0-D | PFH610 Series |
|---|
| 類型 | Part Number Description |
|---|

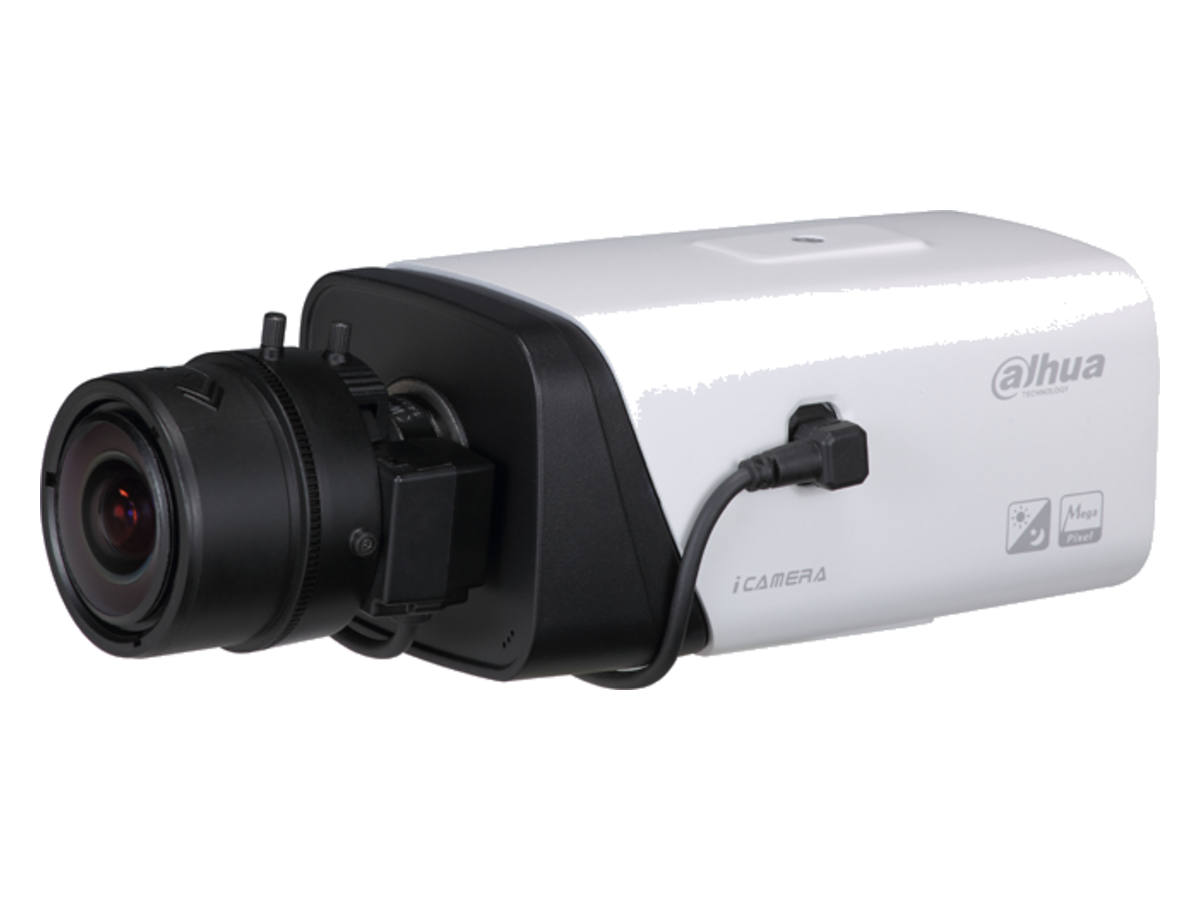

| DH-IPC- | 12MP Box Network Camera, |
|---|
| HF81230EP-E | PAL DH-IPC- HF81230EN-E 12MP Box Network Camera, NTSC Wall Mount Wall/Ceiling/Plane Mount 12MP camera PFB121W PFB110W 12MP Box Network Camera, IPC-HF81230EP-E PAL |
|---|
| IPC-HF81230EN-E | 12MP Box Network Camera, NTSC |
|---|
| PFB110W | Wall mount |
|---|
| PFB121W | Wall mount Dimensions (mm/inch) Accessories |
|---|
| PLZ20C0-D | 3.7~16mm Lens (optional) |
|---|
| PFH610 Series | Housings www.dahuasecurity.com |
|---|
