| Camera | White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| 影像感測器 | 1/2.8” 3Megapixel progressive scan CMOS Gain Control Auto/Manual |
|---|
| Effective Pixels | 2048(H)x1536(V) Noise Reduction 3D DNR |
|---|
| RAM/ROM | 1024MB/128MB |
|---|
| Motion Detection | Off / On (4 Zone, Rectangle) |
|---|
| Scanning System | Progressive |
|---|
| Region of Interest | Off / On (4 Zone) 0.002Lux/F1.2(Color,1/3s,30IRE) 0.02Lux/F1.2(Color,1/30s,30IRE) Electronic Image Stabilization |
|---|
| Minimum Illumination | 0.001Lux/F1.2(B/W,1/3s,30IRE) Support (EIS) 0.01Lux/F1.2(B/W,1/30s,30IRE) |
|---|
| Smart IR | N/A |
|---|
| S/N Ratio | More than 50dB |
|---|
| IR Distance | N/A Defog Support |
|---|
| IR On/Off Control | N/A Digital Zoom 16x |
|---|
| IR LEDs | N/A Flip 0°/90°/180°/270° |
|---|
| 鏡頭 | Mirror Off / On |
|---|
| 鏡頭類型 | N/A Privacy Masking Off / On (4 Area, Rectangle) |
|---|
| Mount Type | C/CS Audio |
|---|
| 焦距 | N/A Compression G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| Max. Aperture | N/A |
|---|
| Angle of View | N/A |
|---|
| Ethernet | RJ-45 (100/1000Base-T) |
|---|
| Optical Zoom | N/A HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; |
|---|
| Focus Control | N/A Protocol NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S NMP;TLS |
|---|
| Close Focus Distance | N/A |
|---|
| Interoperability | ONVIF Profile S&G, API |
|---|
| Pan/Tilt/Rotation | Streaming Method Unicast / Multicast |
|---|
| Pan/Tilt/Rotation Range | N/A |
|---|
| Max. User Access | 10 Users/20 Users |
|---|
| Intelligence | NAS |
|---|
| Motion detection, Video tampering , Scene | Edge Storage Local PC for instant recording |
|---|
| Event Trigger | changing, Network disconnection , IP address Mirco SD card 128GB conflict, Illegal Access,Storage anomaly |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing |
|---|
| Management Software | Smart PSS, DSS, DMSS Advanced Intelligent Functions Face Detection, People Counting, Heat Map |
|---|
| Smart Phone | IOS, Android Certifications |
|---|
| Compression | H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream) CE (EN 60950:2000) |
|---|
| Smart Codec | Support H.265+/H.264+ Certifications UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|---|
| Streaming Capability | 3 Streams 3M(2048x1536)/ 1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ Video Interface 1 port(BNC,1Vp-p,75Ω) Resolution D1(704×576/704x480)/ VGA(640x480)/ |
|---|
| CIF(352×288/342x240) | Audio Interface 2/1 channel In/Out, 1 Built-in Mic |
|---|
| Main Stream: 3M(1~50/60fps) | RS485 1 port |
|---|
| Frame Rate | Sub Stream: D1 (1 ~ 50/60fps) 2 channel In: 5mA 5VDC Alarm 2 channel Out: 1A 30VDC / 0.5A 50VAC Third Stream: 1080P(1~50/60fps) Electrical |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 供電 | DC12V, AC24V, PoE(802.3af)(Class 0) H.264: 24~ 10240Kbps Bit Rate |
|---|
| H.265: 14~ 9216Kbps | Power Consumption <6.6W |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| Power Out | 165mA 12VDC www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| 儲存環境 | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | N/A |
|---|
| Vandal Resistance | N/A Construction |
|---|
| Casing | Metal PFB110W PFB121W PLZ1040-D |
|---|
| Wall mount | Wall mount |
|---|

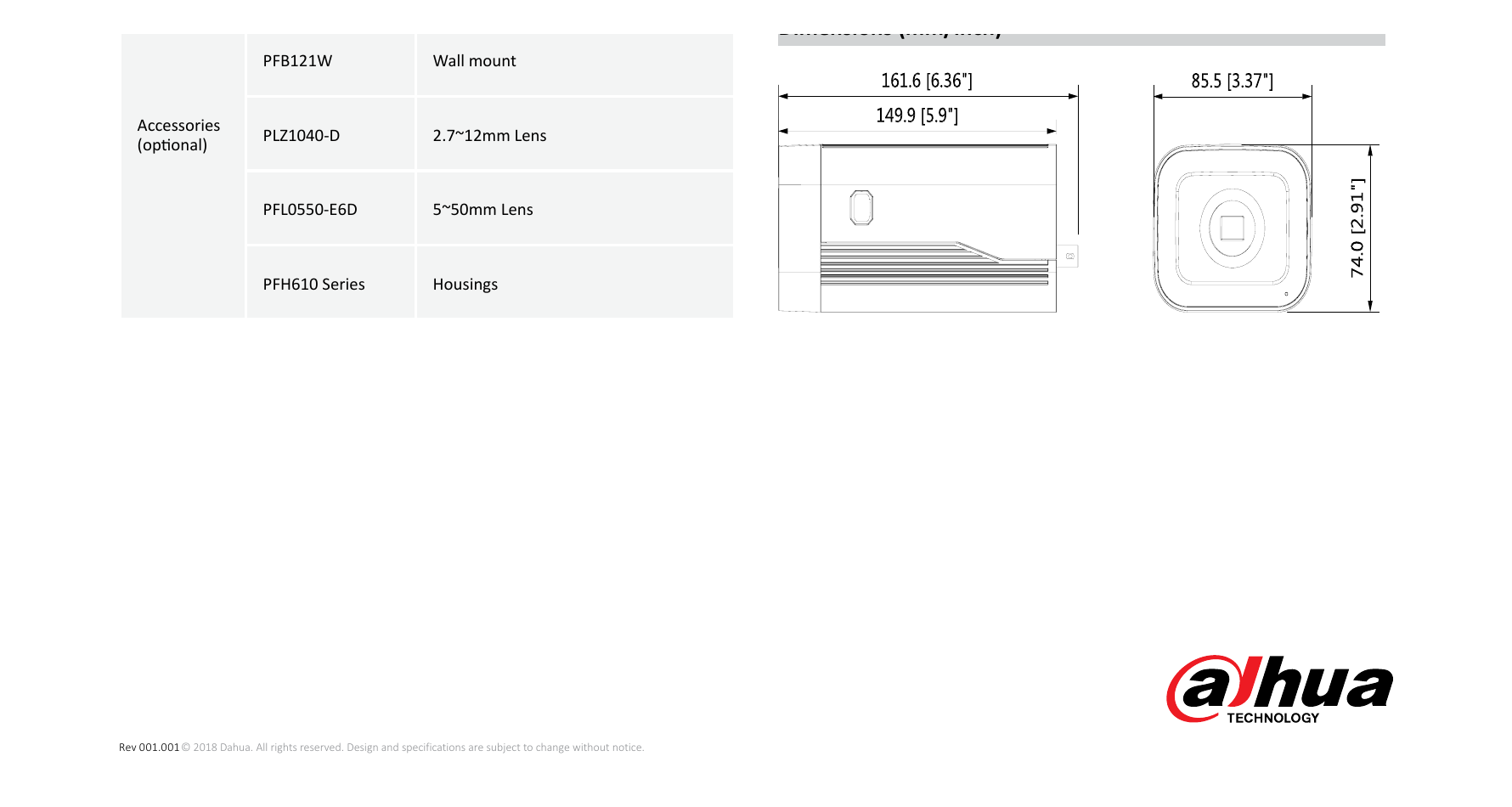

| 尺寸 | 161.6mm×85.5mm×74.0mm (6.36”×3.37”×2.91”) |
|---|
| 淨重 | 0.72Kg (1.59lb) |
|---|
| 毛重 | 0.92Kg (2.03lb) Ordering Information |
|---|
| PFL0550-E6D | PFH610 Series |
|---|
| 類型 | Part Number Description |
|---|
| DH-IPC-HF8331FP-E | 3MP WDR Box Network Camera, PAL Wall Mount Wall/Ceiling/Plane Mount |
|---|
| PFB121W | PFB110W |
|---|
| DH-IPC-HF8331FN-E | 3MP WDR Box Network Camera, NTSC 3MP camera |
|---|
| IPC-HF8331FP-E | 3MP WDR Box Network Camera, PAL |
|---|
| IPC-HF8331FN-E | 3MP WDR Box Network Camera, NTSC |
|---|
| PFB110W | Wall mount Dimensions (mm/inch) |
|---|
| PLZ1040-D | 2.7~12mm Lens (optional) |
|---|
| PFH610 Series | Housings www.dahuasecurity.com |
|---|
