| Camera | Gain Control Auto/Manual |
|---|
| 影像感測器 | 1/1.8” 6Megapixel progressive scan CMOS Noise Reduction 3D DNR |
|---|
| Effective Pixels | 3072(H)x2048(V) Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| RAM/ROM | 1024MB/128MB Region of Interest Off / On (4 Zone) |
|---|
| Scanning System | Progressive Electronic Image Stabilization Support (EIS) |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s |
|---|
| Smart IR | N/A 0.005Lux/F1.2(Color,1/3s,30IRE) 0.05Lux/F1.2(Color,1/30s,30IRE) Defog Support |
|---|
| Minimum Illumination | 0.003Lux/F1.2(B/W,1/3s,30IRE) 0.03Lux/F1.2(B/W,1/30s,30IRE) Digital Zoom 16x |
|---|
| S/N Ratio | More than 50dB Flip 0°/90°/180°/270° |
|---|
| IR Distance | N/A Mirror Off / On |
|---|
| IR On/Off Control | N/A Privacy Masking Off / On (4 Area, Rectangle) |
|---|
| IR LEDs | N/A Audio |
|---|
| 鏡頭 | Compression G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| 鏡頭類型 | N/A |
|---|
| Mount Type | C/CS |
|---|
| Ethernet | RJ-45 (100/1000Base-T) |
|---|
| 焦距 | N/A HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; |
|---|
| Protocol | DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; |
|---|
| Max. Aperture | N/A Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP |
|---|
| Angle of View | N/A Interoperability ONVIF, PSIA, CGI |
|---|
| Optical Zoom | N/A Streaming Method Unicast / Multicast |
|---|
| Focus Control | N/A Max. User Access 10 Users/20 Users |
|---|
| Close Focus Distance | N/A NAS |
|---|
| Edge Storage | Local PC for instant recording |
|---|
| Pan/Tilt/Rotation | Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation Range | N/A Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Intelligence | Management Software Smart PSS, DSS, Easy4ip |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing Smart Phone IOS, Android Advanced Intelligent Functions Face Detection, People Counting, Heat Map Certifications |
|---|
| Video | CE (EN 60950-1: 2006) |
|---|
| Certifications | UL:UL60950-1 |
|---|
| Compression | H.265+/H.265/H.264+/H.264 FCC: FCC Part 15 Subpart B |
|---|
| Streaming Capability | 3 Streams 6M(3072x2048)/ 5M(2560x1920)/ 3M(2048x1536)/ 3M(2304x1296)/ 1080P(1920×1080)/1.3M(128 Video Interface 1 port(BNC,1Vp-p,75Ω) Resolution 0x960)/ 720P(1280x720)/ D1(704×576/704x480) / |
|---|
| VGA(640x480)/ CIF(352×288/342x240) | Audio Interface 2/1 channel In/Out, 1 Built-in Mic |
|---|
| Main Stream: 6M(1~25/30fps) | RS485 1 port |
|---|
| Frame Rate | Sub Stream: D1 (1 ~ 25/30fps) 2 channel In: 5mA 5VDC Alarm 2 channel Out: 1A 30VDC / 0.5A 50VAC Third Stream: 1080P(1~25/30fps) Electrical |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 供電 | DC12V, AC24V, PoE(802.3af)(Class 0) H.264: 24~ 16384Kbps Bit Rate H.265: 14~ 9984Kbps |
|---|
| 功耗 | <7W |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| BLC Mode | BLC / HLC / DWDR/ SSA www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | N/A |
|---|
| Vandal Resistance | N/A Construction |
|---|
| Casing | Metal |
|---|
| PFB110W | PFB121W |
|---|
| 尺寸 | 161.6mm×85.5mm×74.0mm (6.36”×3.37”×2.91”) Wall mount Wall mount |
|---|
| 淨重 | 0.72Kg (1.59lb) |
|---|
| Wall Mount | Wall/Ceiling/Plane Mount |
|---|
| 毛重 | 0.92Kg (2.03lb) |
|---|
| PFB121W | PFB110W Ordering Information |
|---|
| 類型 | Part Number Description 6MP Box Network Camera, DH-IPC-HF8630FP PAL |
|---|
| DH-IPC-HF8630FN | 6MP Box Network Camera, NTSC 6MP camera 6MP Box Network Camera, IPC-HF8630FP |
|---|

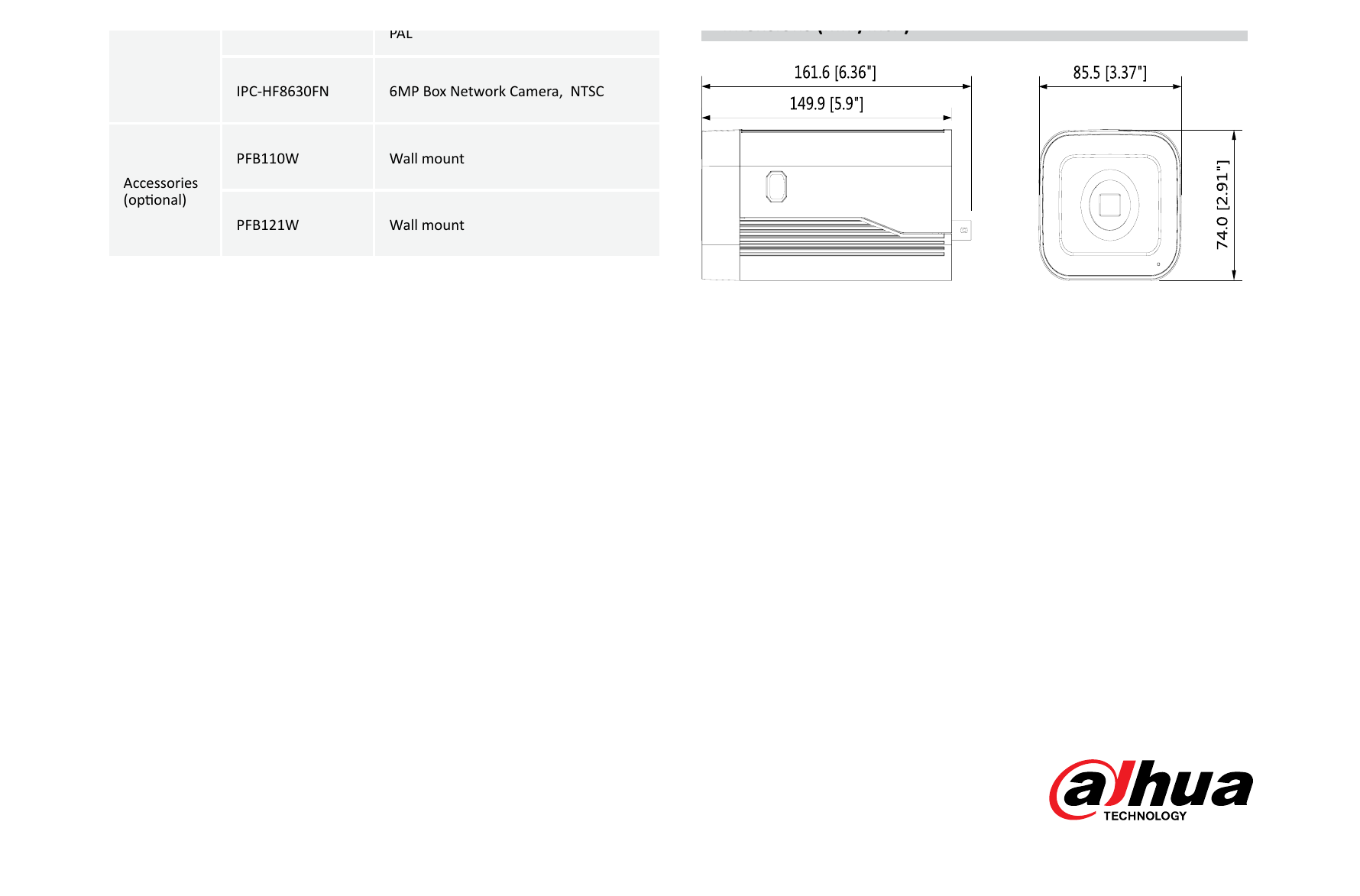

| PAL | Dimensions (mm/inch) |
|---|
| IPC-HF8630FN | 6MP Box Network Camera, NTSC |
|---|
