DAHUA DH-IPC-HFW2439M-AS-LED-B-S2 CCTV攝影機安裝・保養

Name: DAHUA DH-IPC-HFW2439M-AS-LED-B-S2 DH-IPC-HFW2439M-AS-LED-B-S2
Brand: Dahua
SKU: DH-IPC-HFW2439M-AS-LED-B-S2

產品簡介

Dahua DH-IPC-HFW2439M-AS-LED-B-S2 為DH-IPC-HFW2439M-AS-LED-B-S2，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DH-IPC-HFW2439M-AS-LED-B-S2 香港價格連安裝報價。

Camera：H.264: 32 kbps–6144 kbps Video Bit Rate H.265: 12 kbps–6144
影像感測器：1/3”4Megapixel progressive CMOS
Day/Night：Color/B/W
最大解像度：2688 (H) × 1520 (V)
BLC：Yes

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DH-IPC-HFW2439M-AS-LED-B-S2 Dahua DH-IPC-HFW2439M-AS-LED-B-S2 產品圖片

詳細規格

Camera	H.264: 32 kbps–6144 kbps Video Bit Rate H.265: 12 kbps–6144 kbps
影像感測器	1/3”4Megapixel progressive CMOS
Day/Night	Color/B/W
最大解像度	2688 (H) × 1520 (V)
BLC	Yes
ROM	128 MB
HLC	Yes
RAM	128 MB
WDR	120 dB
Scanning System	Progressive Auto/natural/street lamp/outdoor/manual/regional White Balance custom
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Gain Control	Auto/Manual
Minimum Illumination	0.004 Lux@F1.0
Noise Reduction	3D NR
S/N Ratio	> 56 dB
Motion Detection	OFF/ON (4 areas, rectangular)
Illumination Distance	40 m (131.2 ft)
Region of Interest(RoI)	Yes (4 areas)
Illuminator On/Off Control	Auto/Manual
Smart Illumination	Yes
Illuminator Number	2 (Warm light) 0°/90°/180°/270° (Support 90°/270° with 2688×1520
鏡頭	Image Rotation resolution and lower.)
鏡頭類型	Fixed-focal
Mirror	Yes
Mount Type	M12
Privacy Masking	4 areas 3.6 mm Focal Length 6 mm Audio 3.6 mm: F1.0 Audio Compression G.711A; G.711Mu; G.726 Max. Aperture 6 mm: F1.0 3.6 mm: Horizontal 91° × Vertical 47° × Diagonal 109° Alarm Field of View 6 mm: Horizontal 55° × Vertical 30° × Horizontal 64° No SD card; SD card full; SD card error; network
光圈類型	Fixed disconnection; IP conflict; motion detection; video Alarm Event tampering; tripwire; intrusion; illegal access; voltage 3.6 mm: 1.8 m (5.9 ft) detection; audio detection; safety exception Close Focus Distance 6 mm: 4.5 m (14.8 ft)
DORI Distance	(236.2 ft) (94.5 ft) (47.2 ft) (23.6 ft) 120.0m 48.0m 24.0 m 12.0 m SDK and API Yes 6 mm (393.7 ft) (157.5 ft) (78.7 ft) (39.4 ft) Video encryption; firmware encryption; configuration
智能事件	encryption; Digest; WSSE; account lockout; security logs;
Cyber Security	IP/MAC filtering; generation and importing of X.509
General IVS Analytics	Tripwire; intrusion certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; H.265; H.264; H.264B; MJPEG (only supported by the Protocol RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
視頻壓縮	NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour sub stream)
Smart Codec	Smart H.265+/Smart H.264+ ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Interoperability Genetec Main stream: 2688 × 1520 (1 fps–20 fps) User/Host 20 (Total bandwidth: 72 M.) 2560 × 1440 (1 fps–25/30 fps) Video Frame Rate
子碼流	Dahua Cloud; FTP; Micro SD card (support max. 256 G); 704 × 576 (1 fps–20/25 fps); 704 × 480 (1 fps–20/30 fps) Storage NAS; SFTP Third stream: CIF@1fps
Stream Capability	3 streams IE
Browser	Chrome Firefox 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M Management Software Smart PSS; DSS; DMSS Resolution (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Mobile Phone	IOS; Android www.dahuasecurity.com
Certification	Accessories Optional: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive Certifications 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
PFM321D	PFM114
Port	12V DC 1A Power TLC SD Card Adapter
音訊輸入	1 channel (RCA port)
音訊輸出	1 channel (RCA port) Wall Mount
警報輸入	2 channels in: 5mA 3V–5V DC
警報輸出	2 channels out: 300mA 12V DC Power
供電	12V DC/PoE (802.3af)
功耗	<10.2W
Operating Conditions	-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH
儲存溫度	-40°C to +60°C (-40°F to +140°F)
Protection Grade	IP67
Structure	Dimensions (mm[inch])
Casing	Metal + plastic 194.1 mm × 96.4 mm × 89.5 mm (7.6" × 3.8" × 3.5") (L Dimensions × W × H)
淨重	0.725 kg (1.6 lb)
毛重	1.215 kg (2.7 lb) Ordering Information
類型	Part Number Description
DH-IPC-HFW2439MP-AS-	4MP Lite Full-color Fixed-focal
LED-B-S2	Bullet Network Camera,PAL 4MP
PFB122W	Wall Mount (Standard)
PFM114	TLC SD Card Accessories Standard: PFB122W Wall Mount
Rev 001.001	© 2021 Dahua . All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

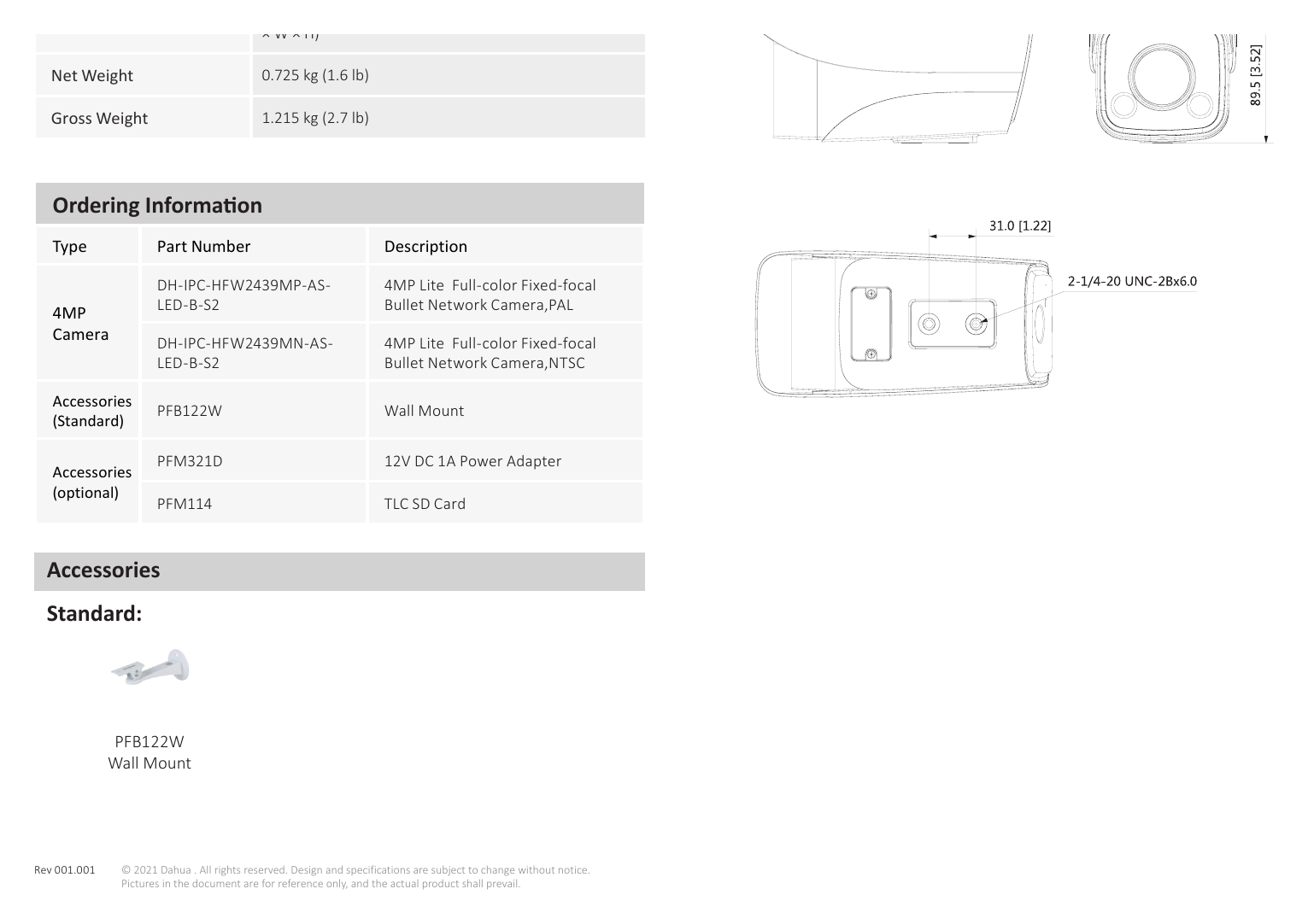

外形尺寸

詳見圖示｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，DH-IPC-HFW2439M-AS-LED-B-S2 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

DH-IPC-HFW2439M-AS-LED-B-S2 Dahua DH-IPC-HFW2439M-AS-LED-B-S2亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

獸醫診所

手術室同住院動物籠舍監控，主人可遠端查看住院寵物，醒晚更觀察狀態。

WhatsApp 查詢 →

保險經紀行

客戶會面室簽單過程存證，減少銷售爭議，配合保監局合規要求。

WhatsApp 查詢 →

兒科診所

候診區同診症室監控兼顧家長安心同私隱，貴重醫療儀器防盜。

WhatsApp 查詢 →

測量師行／則師樓

現場勘察資料同客戶物業圖則屬機密，辦公室網絡同門禁保安係基本要求。

WhatsApp 查詢 →

婦產科診所

診症室及超聲波室私隱要求極高，出入口記錄配合門禁分級管理。

WhatsApp 查詢 →

建築工程顧問公司

圖則模型檔案室保密，配合工地現場監控延伸管理，項目資料防外洩。

WhatsApp 查詢 →

常見問題

DH-IPC-HFW2439M-AS-LED-B-S2 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，DH-IPC-HFW2439M-AS-LED-B-S2 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 gDMSS/DMSS App 可隨時遠程實時監看及回放，無需固定 IP。

DH-IPC-HFW2439M-AS-LED-B-S2 定 IPC-HFW1230S1-S5 邊個好？

兩者主要規格分別：影像感測器方面，DH-IPC-HFW2439M-AS-LED-B-S2 係 1/3”4Megapixel progressive CMOS，IPC-HFW1230S1-S5 係 1/2.8" CMOS；Day/Night方面，DH-IPC-HFW2439M-AS-LED-B-S2 係 Color/B/W，IPC-HFW1230S1-S5 係 Auto (ICR)/Color/B/W；最大解像度方面，DH-IPC-HFW2439M-AS-LED-B-S2 係 2688 (H) × 1520 (V)，IPC-HFW1230S1-S5 係 1920 (H) × 1080 (V)。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 IPC-HFW1230S1-S5 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
