DAHUA DH-IPC-HFW3241T-ZAS CCTV攝影機安裝・保養

Name: DAHUA DH-IPC-HFW3241T-ZAS DH-IPC-HFW3241T-ZAS
Brand: Dahua
SKU: DH-IPC-HFW3241T-ZAS

產品簡介

Dahua DH-IPC-HFW3241T-ZAS 為DH-IPC-HFW3241T-ZAS，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DH-IPC-HFW3241T-ZAS 香港價格連安裝報價。

Camera：HLC Yes
影像感測器：1/2.8”2Megapixel progressive CMOS WDR 120 dB
Effective Pixels：1920 (H) ×1080 (V) Auto/natural/street lamp/outdoor/manual/r
ROM：128 MB
Gain Control：Auto/Manual

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DH-IPC-HFW3241T-ZAS Dahua DH-IPC-HFW3241T-ZAS 產品圖片

詳細規格

Camera	HLC Yes
影像感測器	1/2.8”2Megapixel progressive CMOS WDR 120 dB
Effective Pixels	1920 (H) ×1080 (V) Auto/natural/street lamp/outdoor/manual/regional White Balance custom
ROM	128 MB
Gain Control	Auto/Manual
RAM	256 MB
Noise Reduction	3D DNR
Scanning System	Progressive
Motion Detection	OFF/ON (4 areas, rectangular)
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100000 s
Region of Interest(RoI)	Yes (4 areas)
最低照度	0.002 Lux@F1.5
Smart IR	Yes
IR Distance	60 m (197 ft) 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 Image Rotation resolution.)
IR On/Off Control	Auto/Manual
Mirror	Yes
IR LEDs Number	4 (IR LEDs)
Privacy Masking	4 areas
Pan/Tilt/Rotation Range	Horizontal: 0°–360°; vertical: 0°–90°; rotation: 0°–360°
鏡頭類型	Motorized vari-focal Audio Compression G.711a; G.711Mu; G726; AAC
Mount Type	φ14 Network
焦距	2.7 mm–13.5 mm Network RJ-45 (10/100 Base-T) IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;
Max. Aperture	F1.5
Protocol	RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;
Horizontal: 108°–28°	Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Field of View	Vertical: 57° –16°
Interoperability	ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec Diagonal: 130° –33°
光圈類型	Fixed aperture Scene Self-adaptation Yes
Close Focus Distance	0.8 m (2.6 ft) User/Host 20 (Total bandwidth: 64 M) FTP; SFTP; Micro SD Card (support max. 256 G); Dahua
鏡頭	Detect Observe Recognize Identify Edge Storage Cloud; NAS 44.1 m 17.6 m 8.8 m 4.4 m IE: IE8, IE9, IE11
DORI Distance	W (144.7 ft) (57.7 ft) (28.9 ft) (14.4 ft) Browser Chrome 153.1 m 61.2 m 30.6 m 15.3 m Firefox (502.3 ft) (200.8 ft) (82.9 ft) (50.2 ft)
Management Software	Smart PSS, DSS, DMSS Professional, Intelligent
Mobile Phone	IOS; Android
周界防護	Tripwire; intrusion (Recognition of human and vehicle) Work together with Smart NVR to perform refine
Intelligent Search	intelligent search, event extraction and merging to event CE-LVD: EN60950-1
videos	CE-EMC: Electromagnetic Compatibility Directive
Certifications	2014/30/EU
Video	FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
視頻壓縮	H.265; H.264; H.264H; H.264B; MJPEG
Smart Codec	Yes Port Main stream (1920 × 1080@1–25/30 fps)
音訊輸入	1-channel (RCA port)
Video Frame Rate	sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps)
third stream (1280 × 720@1–25/30 fps)	Audio Output 1-channel (RCA port)
Stream Capability	3 streams Alarm Input 1 channel in: 5mA 3V–5V DC 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 Alarm Output 1 channel out: 300mA 12V DC
解像度	× 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Power
碼率控制	CBR/VBR
供電	12V DC/PoE (802.3af) H.264: 3 Kbps–8192 Kbps
視頻碼率	Power Consumption <9.4W H.265: 3 Kbps–8192 Kbps
Day/Night	Auto(ICR)/Color/B/W Environment www.dahuasecurity.com
Operating Conditions	-30°C to +60°C (-22°F to +140°F)/less than≤95% Pole Mount Junction Box
PFA130+PFA152-E	PFB130-E
Strorage Conditions	-40°C to +60°C (-40°F to +140°F)
防護等級	IP67 Structure
Casing	Metal 244.1 mm × 79.0 mm × 75.9 mm Dimensions (9.6" × 3.1" × 3.0") (L × W × H)
淨重	820 g (1.8lb)
毛重	1090 g (2.4lb) Dimensions (mm[inch]) Ordering Information
類型	Part Number Description 2MP Lite AI IR Vari-focal Bullet DH-IPC-HFW3241TP-ZAS Network Camera,PAL 2MP
PFA130-E	Junction Box
PFA152-E	Pole Mount
PFM321D	DC12V1A Power Adapter Accessories (optional) Single-port Long Reach Ethernet LR1002-1ET/1EC Over Coax Extender
PFM900-E	Integrated Mount Tester
PFM114	TLC SD Card Accessories Optional: PFM321D
Junction Box	Pole Mount Adapter
LR1002-1ET/1EC	PFM114
Single-port long	PFM900-E
Integrated Mount	TLC SD card reach ethernet over
coax extender	tester
Rev 001.001	© 2019 Dahua . All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

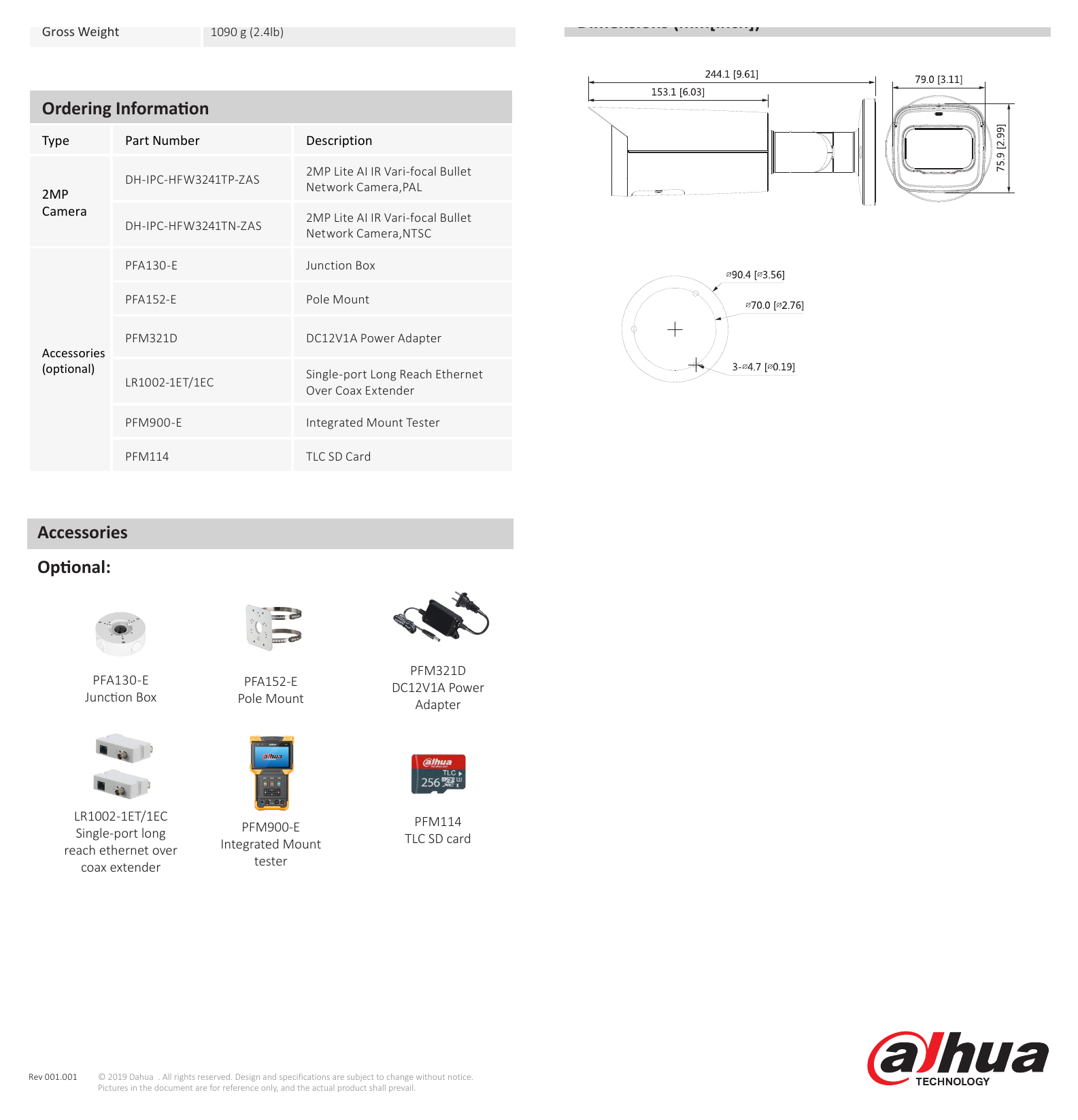

外形尺寸

詳見圖示｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，DH-IPC-HFW3241T-ZAS 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

DH-IPC-HFW3241T-ZAS Dahua DH-IPC-HFW3241T-ZAS亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

牙科診所

診症室私隱合規佈點、X光及貴重牙科儀器防盜，配合預約系統減少候診糾紛。

WhatsApp 查詢 →

獸醫診所

手術室同住院動物籠舍監控，主人可遠端查看住院寵物，醒晚更觀察狀態。

WhatsApp 查詢 →

保險經紀行

客戶會面室簽單過程存證，減少銷售爭議，配合保監局合規要求。

WhatsApp 查詢 →

兒科診所

候診區同診症室監控兼顧家長安心同私隱，貴重醫療儀器防盜。

WhatsApp 查詢 →

測量師行／則師樓

現場勘察資料同客戶物業圖則屬機密，辦公室網絡同門禁保安係基本要求。

WhatsApp 查詢 →

婦產科診所

診症室及超聲波室私隱要求極高，出入口記錄配合門禁分級管理。

WhatsApp 查詢 →

常見問題

DH-IPC-HFW3241T-ZAS 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，DH-IPC-HFW3241T-ZAS 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 gDMSS/DMSS App 可隨時遠程實時監看及回放，無需固定 IP。

DH-IPC-HFW3241T-ZAS 定 PSDW82442M-A270-D440-S3 邊個好？

兩者主要規格分別：ROM方面，DH-IPC-HFW3241T-ZAS 係 128 MB，PSDW82442M-A270-D440-S3 係 PTZ camera: 8 GB；Gain Control方面，DH-IPC-HFW3241T-ZAS 係 Auto/Manual，PSDW82442M-A270-D440-S3 係 Manual;Auto；RAM方面，DH-IPC-HFW3241T-ZAS 係 256 MB，PSDW82442M-A270-D440-S3 係 PTZ camera: 2 GB Pattern 5。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PSDW82442M-A270-D440-S3 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
