DAHUA DH-IPC-HFW3441E-AS CCTV攝影機安裝・保養

Name: DAHUA DH-IPC-HFW3441E-AS DH-IPC-HFW3441E-AS
Brand: Dahua
SKU: DH-IPC-HFW3441E-AS

產品簡介

Dahua DH-IPC-HFW3441E-AS 為DH-IPC-HFW3441E-AS，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DH-IPC-HFW3441E-AS 香港價格連安裝報價。

Camera：H.264: 3 Kbps–8192 Kbps Video Bit Rate H.265: 3 Kbps–8192 Kb
影像感測器：1/3”4Megapixel progressive CMOS
Day/Night：Auto(ICR)/Color/B/W
Effective Pixels：2688 (H) ×1520 (V)
BLC：Yes

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DH-IPC-HFW3441E-AS Dahua DH-IPC-HFW3441E-AS 產品圖片

詳細規格

Camera	H.264: 3 Kbps–8192 Kbps Video Bit Rate H.265: 3 Kbps–8192 Kbps
影像感測器	1/3”4Megapixel progressive CMOS
Day/Night	Auto(ICR)/Color/B/W
Effective Pixels	2688 (H) ×1520 (V)
BLC	Yes
ROM	128 MB
HLC	Yes
RAM	512 MB
WDR	120 dB
Scanning System	Progressive Auto/natural/street lamp/outdoor/manual/regional White Balance custom
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100000 s
Gain Control	Auto/Manual
最低照度	0.005 Lux@F1.6
Noise Reduction	3D DNR
IR Distance	50 m (164.0 ft)
Motion Detection	OFF/ON (4 areas, rectangular)
IR On/Off Control	Auto/Manual
Region of Interest(RoI)	Yes (4 areas)
IR LEDs Number	1 (IR LED)
Smart IR	Yes
Pan/Tilt/Rotation Range	Horizontal: 0°–360°; vertical: 0°–90°; rotation: 0°–360° 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080
鏡頭	Image Rotation resolution.)
鏡頭類型	Fixed focal
Mirror	Yes
Mount Type	M12
Privacy Masking	4 areas
焦距	2.8 mm; 3.6 mm; 6 mm
Max. Aperture	F1.6
Built-in MIC	Yes 2.8 mm: Horizontal:103°; vertical: 55°; diagonal: 122°
Field of View	3.6 mm: Horizontal:84°; vertical: 45° ; diagonal: 100° Audio Compression G.711a; G.711Mu; G726; AAC 6 mm: Horizontal:52°; vertical: 28°; diagonal: 61°
光圈類型	Fixed aperture
Network	RJ-45 (10/100 Base-T) 2.8 mm: 0.9 m (3.0 ft)
Close Focus Distance	3.6 mm: 1.6 m (5.3 ft) IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; 6 mm: 3.2 m (10.5 ft)
Protocol	RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP; Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
DORI Distance	Scene Self-adaptation Yes 80.0 m 32.0 m 16.0 m 8.0 m 3.6mm (262.5 ft) (105.0 ft) (52.5 ft) (26.3 ft) User/Host 20 (Total bandwidth: 64 M) 120.0 m 48.0 m 24.0 m 12.0 m 6mm FTP; SFTP; Micro SD Card (support max. 256 G); Dahua (393.7 ft) (157.5 ft) (78.7 ft) (39.4ft) Edge Storage Cloud; NAS
Professional, Intelligent	IE: IE8, IE9, IE11
Browser	Chrome
周界防護	Tripwire; intrusion (Recognition of human and vehicle) Firefox Work together with Smart NVR to perform refine Management Software Smart PSS, DSS, DMSS
Intelligent Search	intelligent search, event extraction and merging to event
videos	Mobile Phone IOS; Android
Video	Certification
視頻壓縮	H.265; H.264; H.264H; H.264B; MJPEG CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive
Smart Codec	Yes Certifications 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
Main stream (2688 × 1520@1–25/30 fps)	UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Video Frame Rate	sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps)
third stream (1280 × 720@1–25/30 fps)	Port
Stream Capability	3 streams Audio Input 1-channel (RCA port) 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704
音訊輸出	1-channel (RCA port) Resolution × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352
× 240)	Alarm Input 1 channel in: 5mA 3V–5V DC www.dahuasecurity.com
警報輸出	1 channel out: 300mA 12V DC Pole Mount Junction Box
PFA130-E+PFA152-E	PFA130-E Power
供電	12V DC/PoE (802.3af)
功耗	<5.4W
Operating Conditions	-40°C to +60°C (-40°F to +140°F)/less than≤95%
Strorage Conditions	-40°C to +60°C (-40°F to +140°F) Dimensions (mm[inch])
防護等級	IP67 Structure
Casing	Metal 192.7 mm × 70.5 mm × 66.4 mm Dimensions (632.2" × 231.3" × 217.8") (L × W × H)
淨重	590 g (1.3lb)
毛重	780 g (1.7lb) Ordering Information
類型	Part Number Description 4MP Lite AI IR Fixed focal Bullet DH-IPC-HFW3441EP-AS Network Camera,PAL 4MP
PFA130-E	Junction Box
PFA152-E	Pole Mount
PFM321D	DC12V1A Power Adapter Accessories (optional) Single-port Long Reach Ethernet LR1002-1ET/1EC Over Coax Extender
PFM900-E	Integrated Mount Tester
PFM114	TLC SD Card Accessories Optional: PFM321D
Junction Box	Pole Mount Adapter
LR1002-1ET/1EC	PFM114
Single-port long	PFM900-E
Integrated Mount	TLC SD card reach ethernet over
coax extender	tester
Rev 001.001	© 2019 Dahua . All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

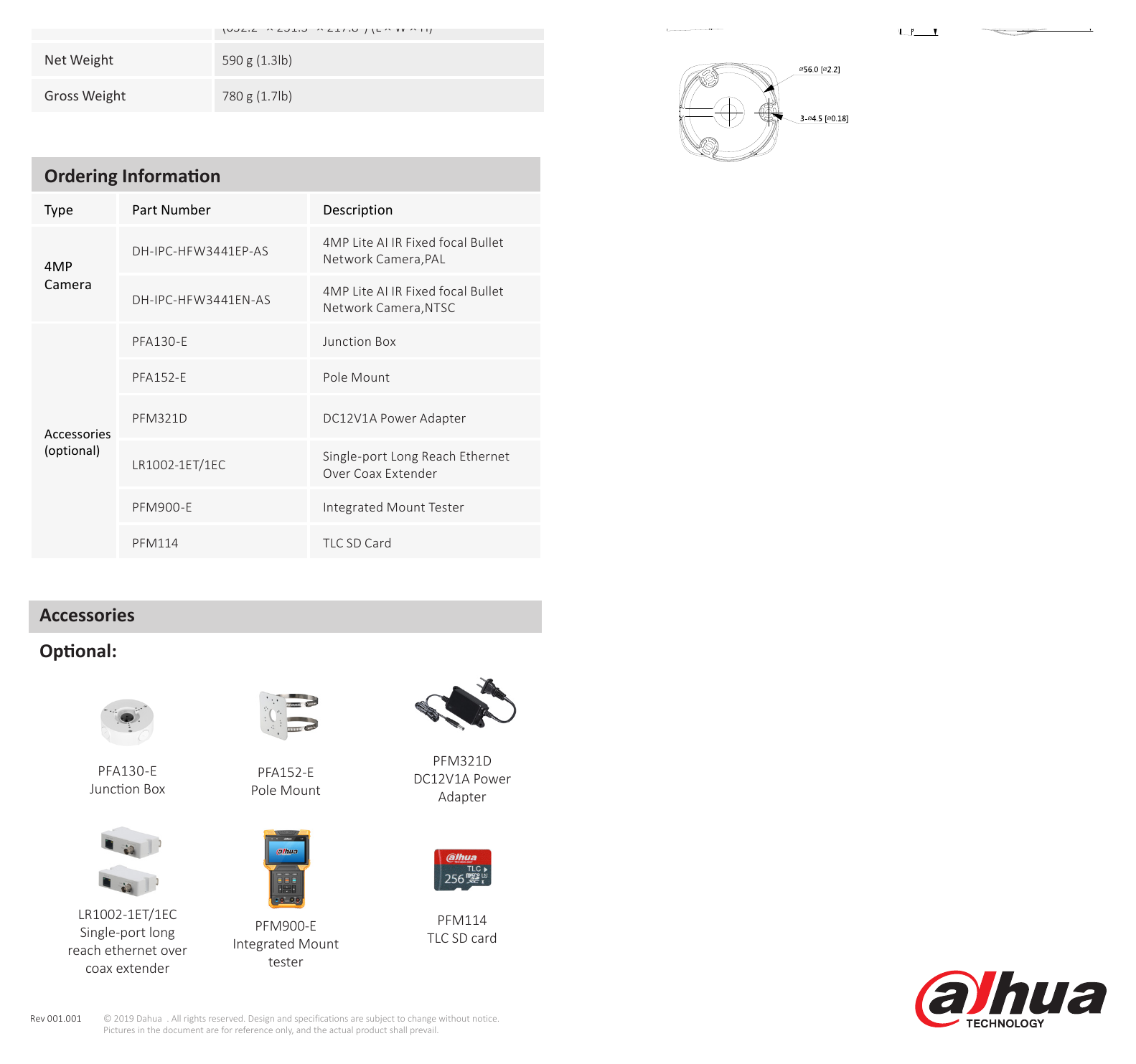

外形尺寸

詳見圖示｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，DH-IPC-HFW3441E-AS 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

DH-IPC-HFW3441E-AS Dahua DH-IPC-HFW3441E-AS亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

律師事務所

客戶機密文件與會議記錄保安需求高，門禁分級、CCTV存證、通話錄音缺一不可。

WhatsApp 查詢 →

私人銀行／財富管理

貴賓客戶室高保安等級佈點，配合監管合規存證，出入口身份記錄嚴謹。

WhatsApp 查詢 →

牙科診所

診症室私隱合規佈點、X光及貴重牙科儀器防盜，配合預約系統減少候診糾紛。

WhatsApp 查詢 →

獸醫診所

手術室同住院動物籠舍監控，主人可遠端查看住院寵物，醒晚更觀察狀態。

WhatsApp 查詢 →

保險經紀行

客戶會面室簽單過程存證，減少銷售爭議，配合保監局合規要求。

WhatsApp 查詢 →

兒科診所

候診區同診症室監控兼顧家長安心同私隱，貴重醫療儀器防盜。

WhatsApp 查詢 →

常見問題

DH-IPC-HFW3441E-AS 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，DH-IPC-HFW3441E-AS 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 gDMSS/DMSS App 可隨時遠程實時監看及回放，無需固定 IP。

DH-IPC-HFW3441E-AS 定 IPC-HFW1230S1-S5 邊個好？

兩者主要規格分別：影像感測器方面，DH-IPC-HFW3441E-AS 係 1/3”4Megapixel progressive CMOS，IPC-HFW1230S1-S5 係 1/2.8" CMOS；Day/Night方面，DH-IPC-HFW3441E-AS 係 Auto(ICR)/Color/B/W，IPC-HFW1230S1-S5 係 Auto (ICR)/Color/B/W；ROM方面，DH-IPC-HFW3441E-AS 係 128 MB，IPC-HFW1230S1-S5 係 16 MB。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 IPC-HFW1230S1-S5 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
