| Camera | Gain Control Auto/Manual |
|---|
| 影像感測器 | 1/2.8” 2Megapixel progressive scan CMOS Noise Reduction 3D DNR |
|---|
| Effective Pixels | 1920(H) x 1080(V) Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| RAM/ROM | 256MB/32MB Region of Interest Off / On (4 Zone) |
|---|
| Scanning System | Progressive Electronic Image Stabilization N/A (EIS) |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s |
|---|
| Smart IR | Support 0.009Lux/F2.0( Color,1/3s,30IRE) |
|---|
| Minimum Illumination | 0.07Lux/2.0( Color,1/30s,30IRE) Defog N/A 0Lux/F2.0(IR on) |
|---|
| Digital Zoom | 16x |
|---|
| S/N Ratio | More than 50dB |
|---|
| Flip | 0°/90°/180°/270° |
|---|
| IR Distance | Distance up to 50m (164ft) Auto/ Manual |
|---|
| Mirror | Off / On IR On/Off Control |
|---|
| IR LEDs | 1 Privacy Masking Off / On (4 Area, Rectangle) |
|---|
| 鏡頭 | Audio |
|---|
| 鏡頭類型 | Fixed Compression G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| Mount Type | Board-in |
|---|
| 焦距 | 3.6mm (6mm optional) |
|---|
| Ethernet | RJ-45 (10/100Base-T) |
|---|
| Max. Aperture | F2.0 (F2.0) HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; |
|---|
| Angle of View | H: 87° (51°), V: 48°(30°) Protocol UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
|---|
| Optical Zoom | N/A |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| Focus Control | Fixed |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Close Focus Distance | N/A |
|---|
| Max. User Access | 10 Users /20 Users |
|---|
| DORI Distance | 3.6 mm 55m(180ft) 22m(72ft) 11m(36ft) 6m(20ft) |
|---|
| Edge Storage | Local PC for instant recording 6.0 mm 81m(266ft) 32m(105ft) 16m(52ft) 8m(26ft) Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation | Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~360˚; Tilt:0˚~87˚; Rotation:0˚~360˚ Management Software Smart PSS, DSS, Easy4ip |
|---|
| Intelligence | Smart Phone IOS, Android |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing Certifications Advanced Intelligent Functions Face Detection CE (EN 60950:2000) |
|---|
| Certifications | UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|---|
| Compression | H.265+/H.265/H.264+/H.264 |
|---|
| Streaming Capability | 3 Streams Video Interface N/A 1080P(1920x1080)/1.3M(1280x960)/ Audio Interface 1/1 channel In/Out |
|---|
| 解像度 | 720P(1280×720)/D1(704×576/704×480)/ |
|---|
| VGA(640×480)/CIF(352×288/352×240) | RS485 N/A Main Stream: 1080P (1~50/60fps) 1 channel In: 5mA 5VDC Alarm |
|---|
| Frame Rate | Sub Stream: D1(1~50/60fps) 1 channel Out: 300mA 12VDC |
|---|
| Third Stream: 1080P(1~25/30fps) | Electrical |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 供電 | DC12V, PoE (802.3af)(Class 0) H.264: 24~9472Kbps Bit Rate H.265: 14~5632Kbps |
|---|
| 功耗 | <6.5W |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| BLC Mode | BLC / HLC / WDR(120dB) www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | N/A Construction |
|---|
| PFA135 | PFA150 |
|---|
| Casing | Metal |
|---|
| Junction box | Pole Mount |
|---|

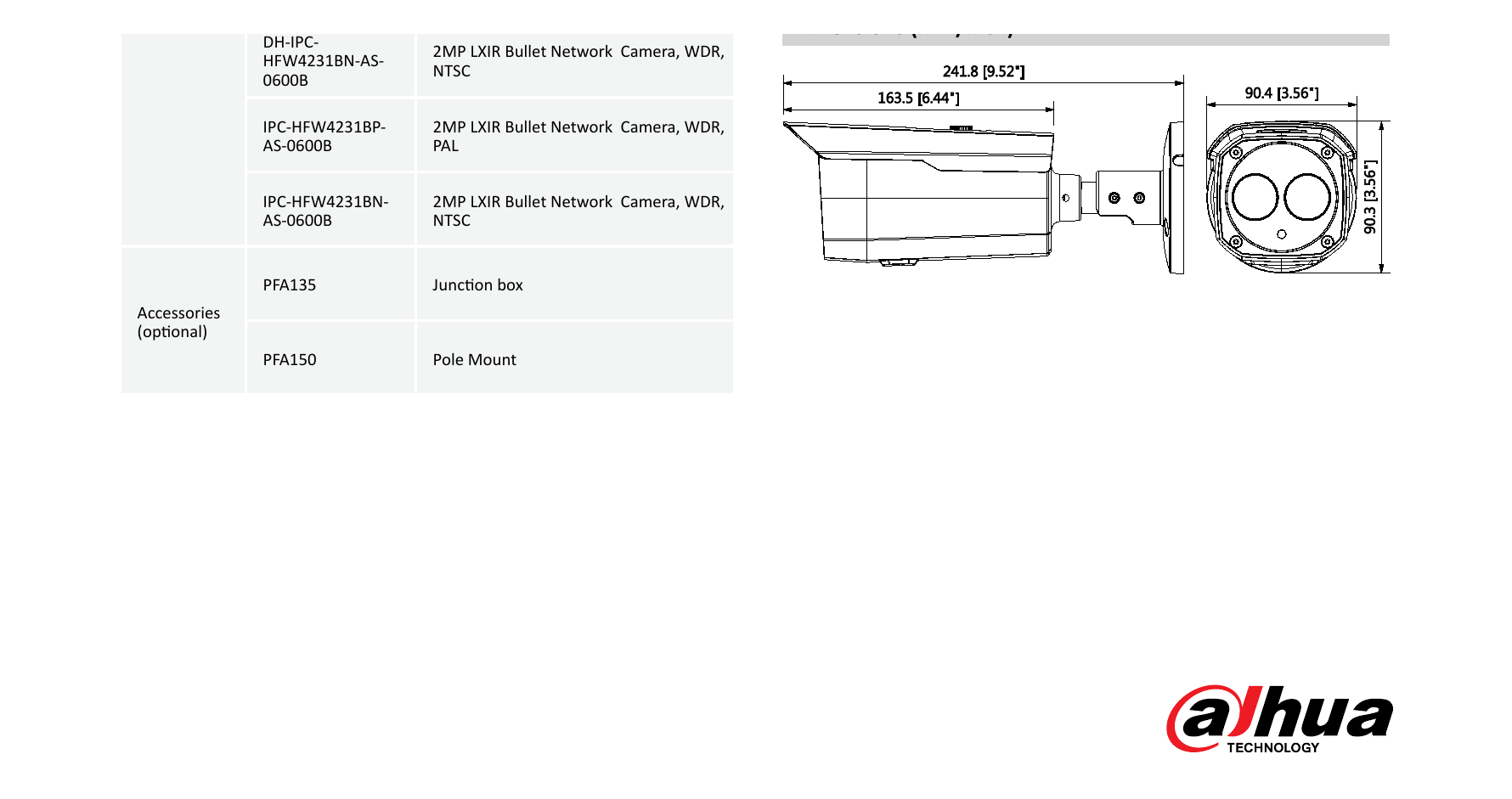

| 尺寸 | 241.8mm×90.4mm×90.3mm (9.52”×3.56”×3.56”) |
|---|
| 淨重 | 0.61Kg (1.35lb) |
|---|
| 毛重 | 0.8kg (1.77lb) |
|---|
| Juncon Mount | Pole Mount |
|---|
| 類型 | Part Number Description DH-IPC- 2MP LXIR Bullet Network Camera, WDR, HFW4231BP-AS- PAL 0360B DH-IPC- 2MP LXIR Bullet Network Camera, WDR, HFW4231BN-AS- NTSC 0360B |
|---|
| IPC-HFW4231BP- | 2MP LXIR Bullet Network Camera, WDR, |
|---|
| AS-0360B | PAL |
|---|
| IPC-HFW4231BN- | 2MP LXIR Bullet Network Camera, WDR, |
|---|
| AS-0600B | PAL |
|---|
| PFA150 | Pole Mount www.dahuasecurity.com |
|---|
