| Camera | Support the counting of number in area, and 4 rules People Counting configuration. Count number of people or stay time and |
|---|
| 影像感測器 | 1/1.8” CMOS link alarm Support queue management, and 4 rules configuration. |
|---|
| 最大解像度 | 1920 (H) × 1080 (V) Count number of people or stay time and link alarm Work together with Smart NVR to perform refine |
|---|
| ROM | 128 MB Intelligent Search intelligent search, event extraction and merging to event videos |
|---|
| RAM | 1 GB |
|---|
| Scanning System | Progressive H.265; H.264; H.264H; H.264B; MJPEG (only supported Video Compression by the sub stream) |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
|---|
| Smart Codec | Smart H.265+/H.264+ 0.002 Lux@F1.6 (Color, 30IRE) |
|---|
| 最低照度 | 0.0002 Lux@F1.6 (B/W, 30IRE) Main stream: 1920 × 1080 (1 fps–50/60 fps) 0 Lux (Illuminator on) Sub stream: D1 (1 fps–50/60 fps) Third stream: 1080p (1 fps–25/30 fps) |
|---|
| S/N Ratio | >56 dB Video Frame Rate *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected |
|---|
| Illumination Distance | 140 m (459.3 ft) (IR LED) to the total encoding capacity. |
|---|
| Illuminator On/Off Control | Auto/Manual Stream Capability 3 streams 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 |
|---|
| Illuminator Number | 4 (IR LED) Resolution × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240) Pan: 0°–360° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Bit Rate Control CBR/VBR Rotation: 0°–360° H.264: 32 kbps–8192 kbps Video Bit Rate H.265: 19 kbps–8192 kbps |
|---|
| Day/Night | Auto (ICR)/Color/B/W |
|---|
| 鏡頭類型 | Motorized vari-focal |
|---|
| BLC | Yes |
|---|
| Mount Type | Module |
|---|
| HLC | Yes |
|---|
| 焦距 | 8 mm–48 mm |
|---|
| WDR | 140 dB |
|---|
| Max. Aperture | F1.6 (Constant) Auto/natural/street lamp/outdoor/manual/regional White Balance |
|---|
| Horizontal: 42°–10.9° | custom |
|---|
| Field of View | Vertical: 23°–6° |
|---|
| Gain Control | Auto/Manual Diagonal: 49°–12° |
|---|
| Noise Reduction | 3D NR |
|---|
| 光圈類型 | Auto |
|---|
| Motion Detection | OFF/ON (4 areas, rectangular) |
|---|
| Close Focus Distance | 2.5 m–6 m (8.2 ft–19.7 ft) |
|---|
| 感興趣區域 ROI | Yes (4 areas) |
|---|
| 鏡頭 | Detect Observe Recognize Identify Electronic Image 107.0 m 40.0 m 21.0 m 10.0 m Yes |
|---|
| DORI 偵測距離 | W Stabilization (EIS) (351.0 ft) (131.2 ft) (68.9 ft) (32.8 ft) |
|---|
| Smart Illumination | Yes 400.0 m 160 m 80.0 m 40.0 m (1312.3 ft) (524.9 ft) (262.5 ft) (131.2 ft) |
|---|
| 除霧 | Yes |
|---|
| 智能事件 | Image Rotation 0°/90°/180°/270° |
|---|
| IVS | Abandoned object; missing object |
|---|
| Mirror | Yes |
|---|
| Heat Map | Yes |
|---|
| Privacy Masking | 4 areas |
|---|
| Professional, intelligent | Audio Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection Audio Compression PCM; G.711a; G.711Mu; G.726; G.723 of vehicle and human); loitering detection; people |
|---|
| gathering; parking detection | Alarm Face detection; track; optimization; snapshot; report high No SD card; SD card full; SD card error; network quality picture; face enhancement; face exposure; face disconnection; IP conflict; illegal access; motion attribute extract, 6 attributes and 8 expressions: Gender, detection; video tampering; defocus detection; scene age, glasses, expressions (anger, calm, happiness, changing; intrusi |
|---|
| Face Detection | sadness, disgust, surprise, confusion and fear), mask, missing object; fast moving; parking detection; loitering Alarm Event beard; face matting setting: face, single inch photo; three detection; people gathering; input abnormal detection; snapshot methods: real-time snapshot, optimization intensity change detection; people counting; face snapshot, quality priority; face angle filter; optimization |
|---|
| time setting | stay alarm; people No. exception detection, queue management www.dahuasecurity.com |
|---|
| Network | Ordering Information |
|---|
| SDK and API | Yes 2MP Vari-focal Bullet WizMind DH-IPC-HFW5242HP-Z6E-MF Network Camera , PAL Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; 2MP Vari-focal Bullet WizMind DH-IPC-HFW5242HN-Z6E-MF |
|---|
| Cyber Security | IP/MAC filtering; generation and importing of X.509 Network Camera , NTSC 2MP certification; syslog; HTTPS; 802.1x; trusted boot; trusted Camera |
|---|
| execution; trusted upgrade | 2MP Vari-focal Bullet WizMind IPC-HFW5242HP-Z6E-MF Network Camera , PAL IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
|---|
| Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; 2MP Vari-focal Bullet WizMind Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP IPC-HFW5242HN-Z6E-MF Network Camera , NTSC ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; |
|---|
| Interoperability | Accessories |
|---|
| Genetec; P2P | PFA154 Pole Mount (Optional) |
|---|
| 用戶管理 | 20 (Total bandwidth: 88 M) |
|---|
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); NAS Accessories IE: IE8 and later Browser |
|---|
| Chrome | Optional Firefox Safari: Safari 12 and later |
|---|
| Management Software | Smart PSS; DSS; DMSS |
|---|
| Mobile Phone | IOS; Android |
|---|
| PFA154 | LR1002 |
|---|
| Certification | Pole Mount ePoE Over Coax Converter CE-LVD: EN62368-1, EN60950-22 (optional) CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07, UL 50E NEMA Type 4X (optional) Port |
|---|
| 音訊輸入 | 1 channel (3.5mm JACK port) |
|---|
| 音訊輸出 | 1 channel (3.5mm JACK port) |
|---|
| 警報輸入 | 3 channels in: 5mA 3V–5V DC |
|---|
| 警報輸出 | 2 channels out: 300mA 12V DC Dimensions (mm[inch]) Power |
|---|
| 供電 | 12V DC (±30%)/PoE (802.3af)/ePoE Basic power consumption: 2.5W (12V DC); 3.3W (PoE) |
|---|
| 功耗 | Max. power consumption (max. stream + intelligent function + IR LED + focus): 9.7W (12V DC); 11.6W (PoE) |
|---|
| Operating Conditions | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
|---|
| 儲存環境 | –40°C to +60°C (–40°F to +140°F) |
|---|
| Protection Grade | IP67, IK10, Anti-Corrosion Protection: NEMA 4X (optional) Structure |
|---|
| Casing | Metal + Plastic 340.1 mm × 108.5 mm × 92.9 mm (13.4" × 4.3" × 3.7") Dimensions (L × W × H) |
|---|

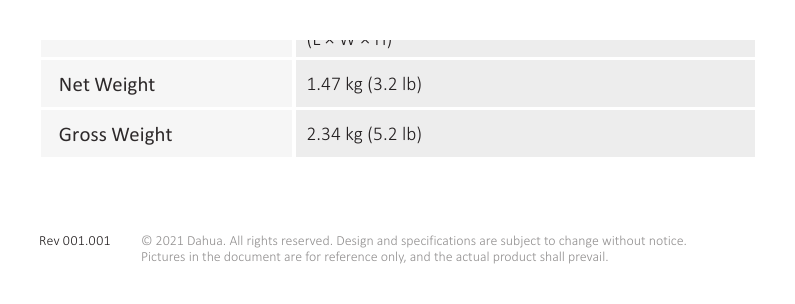

| 淨重 | 1.47 kg (3.2 lb) |
|---|
| 毛重 | 2.34 kg (5.2 lb) |
|---|
| Rev 001.001 | © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
