| Camera | Support the counting of number in area, and 4 rules People Counting configuration. Count number of people or stay time and |
|---|
| 影像感測器 | 1/1.8" CMOS link alarm Support queue management, and 4 rules configuration. |
|---|
| 最大解像度 | 2688 (H) × 1520 (V) Count number of people or stay time and link alarm Work together with Smart NVR to perform refine |
|---|
| ROM | 128 MB |
|---|
| Intelligent Search | intelligent search, event extraction and merging to event videos |
|---|
| RAM | 1 GB |
|---|
| Scanning System | Progressive H.265; H.264; H.264H; H.264B; MJPEG (only supported Video Compression by the sub stream) |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
|---|
| Smart Codec | Smart H.265+/H.264+ 0.003 Lux@F1.8 (Color, 30IRE) |
|---|
| 最低照度 | 0.0003 Lux@F1.8 (B/W, 30IRE) Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 0 Lux (Illuminator on) 1080 (1 fps–50/60 fps) Sub stream: D1 (1 fps–50/60 fps) |
|---|
| S/N Ratio | ＞56 dB Video Frame Rate Third stream: 1080p (1 fps–25/30 fps) *The values above are the max. frame rates of each |
|---|
| Illumination Distance | 60 m (196.9 ft) (IR LED) stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|---|
| Illuminator On/Off Control | Auto/Manual |
|---|
| Stream Capability | 3 streams |
|---|
| Illuminator Number | 4 (IR LED) 2688 × 1520; 2560 × 1440; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 Resolution |
|---|
| Pan: 0°–360° | × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–90° × 240) Rotation: 0°–360° |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 鏡頭 | Video Bit Rate H.264: 32 kbps–8192 kbps H.265: 19 kbps–8192 kbps |
|---|
| 鏡頭類型 | Motorized vari-focal |
|---|
| Day/Night | Auto (ICR)/Color/B/W |
|---|
| Mount Type | φ14 |
|---|
| BLC | Yes |
|---|
| 焦距 | 2.7 mm–12 mm |
|---|
| HLC | Yes |
|---|
| Max. Aperture | F1.8 WDR 140 dB |
|---|
| Horizontal: 107°–44° | Auto/natural/street lamp/outdoor/manual/regional |
|---|
| Field of View | Vertical: 69°–29° White Balance custom Diagonal: 134°–53° |
|---|
| Gain Control | Auto/Manual |
|---|
| 光圈類型 | Auto |
|---|
| Noise Reduction | 3D NR |
|---|
| Close Focus Distance | W/T: 1.2 m (3.9 ft) |
|---|
| Motion Detection | OFF/ON (4 areas, rectangular) |
|---|
| 感興趣區域 ROI | Yes (4 areas) |
|---|
| DORI 偵測距離 | 57.0 m 23.0 m 11.0 m 5.7 m |
|---|
| Distance | (187.0 ft) (75.5 ft) (36.1 ft) (18.7 ft) Electronic Image Yes Stabilization (EIS) 130.7 m 52.0 m 26.0 m 13.0 m (428.8 ft) (170.6 ft) (85.3 ft) (42.7 ft) Smart Illumination Yes |
|---|
| 智能事件 | Defog Yes |
|---|
| IVS | Abandoned object; missing object Image Rotation 0°/90°/180°/270° |
|---|
| Heat Map | Yes Mirror Yes |
|---|
| Professional, intelligent | Privacy Masking 8 areas Tripwire; intrusion; fast moving (the three functions Audio support the classification and accurate detection of vehicle and human); loitering detection; people Audio Compression PCM; G.711a; G.711Mu; G.726; G.723 gathering; parking detection Face detection; track; optimization; snapshot; report high Alarm quality picture; face enhancement; face exposure; face No SD card; S |
|---|
| Face Detection | sadness, disgust, surprise, confusion and fear), mask, changing; intrusion; tripwire; abandoned object; beard; face matting setting: face, single inch photo; three missing object; fast moving; parking detection; loitering snapshot methods: real-time snapshot, optimization Alarm Event detection; people gathering; input abnormal detection; snapshot, quality priority; face angle filter; optimization |
|---|
| Network | Ordering Information |
|---|
| SDK and API | Yes 4MP Vari-focal Bullet WizMind DH-IPC-HFW5442HP-ZE Network Camera , PAL Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; 4MP Vari-focal Bullet WizMind DH-IPC-HFW5442HN-ZE |
|---|
| Cyber Security | IP/MAC filtering; generation and importing of X.509 Network Camera , NTSC 4MP certification; syslog; HTTPS; 802.1x; trusted boot; trusted Camera |
|---|
| execution; trusted upgrade | 4MP Vari-focal Bullet WizMind IPC-HFW5442HP-ZE Network Camera , PAL IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
|---|
| Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; 4MP Vari-focal Bullet WizMind IPC-HFW5442HN-ZE Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP Network Camera , NTSC ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; PFA154 Pole Mount |
|---|
| Interoperability | Accessories Genetec; P2P (Optional) |
|---|
| TF-P100 | MicroSD Memory Card |
|---|
| 用戶管理 | 20 (Total bandwidth: 80 M) |
|---|
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); NAS Accessories IE: IE8 and later |
|---|
| Browser | Chrome Firefox |
|---|
| Management Software | Smart PSS; DSS; DMSS |
|---|
| Mobile Phone | IOS; Android |
|---|
| PFA154 | TF-P100 |
|---|
| CE-LVD: EN62368-1, EN60950-22 (optional) | MicroSD Pole Mount CE-EMC: Electromagnetic Compatibility Directive Memory Card 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07, UL 50E NEMA Type 4X (optional) Port |
|---|
| 音訊輸入 | 1 channel (3.5mm JACK port) |
|---|
| 音訊輸出 | 1 channel (3.5mm JACK port) |
|---|
| 警報輸入 | 3 channels in: 5mA 3V–5V DC |
|---|
| 警報輸出 | 2 channels out: 300mA 12V DC Power |
|---|
| 供電 | 12V DC (±30%)/PoE (802.3af)/ePoE Dimensions (mm[inch]) Basic power consumption: 2.5W (12V DC); 3.3W (PoE) |
|---|
| 功耗 | Max. power consumption (max. stream + intelligent function + IR LED + focus): 9.7W (12V DC); 11.6W (PoE) |
|---|
| Operating Conditions | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
|---|
| 儲存環境 | –40°C to +60°C (–40°F to +140°F) |
|---|
| Protection Grade | IP67, IK10, Anti-Corrosion Protection: NEMA 4X (optional) Structure |
|---|
| Casing | Metal + Plastic 340.1 mm × 108.5 mm × 92.9 mm (13.4" × 4.3" × 3.7") Dimensions (L × W × H) |
|---|

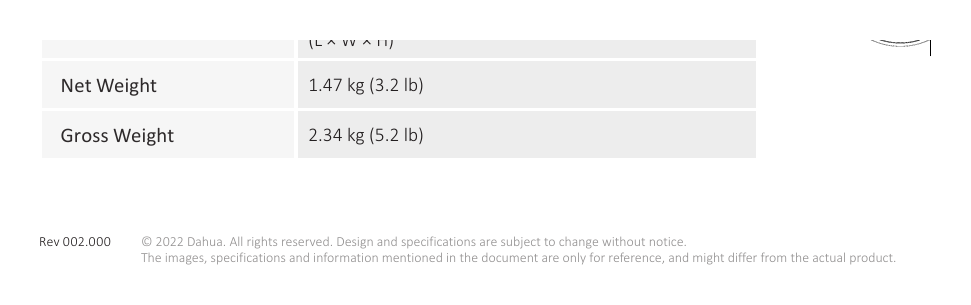

| 淨重 | 1.47 kg (3.2 lb) |
|---|
| 毛重 | 2.34 kg (5.2 lb) |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
