| Camera | filter; optimization time setting. Support the counting of enter number, leave number |
|---|
| 影像感測器 | 1/1.8”CMOS and pass number, and displaying and outputting yearly/ monthly/daily reports. |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) Support the counting of number in area, and 4 rules People Counting configuration. Count number of people or stay time and |
|---|
| ROM | 128 MB link alarm. Support queue management, and 4 rules configuration. |
|---|
| RAM | 1 GB Count number of people or stay time and link alarm. |
|---|
| Scanning System | Progressive Work together with Smart NVR to perform refine |
|---|
| Intelligent Search | intelligent search, event extraction and merging to event |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s videos. 0.004 lux@F1.4 (Color, 30 IRE) Video |
|---|
| 最低照度 | 0.0004 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) H.265; H.264; H.264H; H.264B; MJPEG (Only supported Video Compression by the sub stream) |
|---|
| S/N Ratio | >56 dB |
|---|
| Smart Codec | Smart H.265+;Smart H.264+ |
|---|
| Illumination Distance | 120 m (393.7 ft) |
|---|
| AI Coding | AI H.265; AI H.264 |
|---|
| Illuminator On/Off Control | Auto; manual; zoomprio Main stream: 3840× 2160 (1 fps–25/30 fps) |
|---|
| Illuminator Number | 4 (IR LED) Sub stream: D1 (1 fps–25/30 fps) Third stream: 1080p (1 fps–25/30 fps) Pan: 0-360° Video Frame Rate *The values above are the max. frame rates of each |
|---|
| Pan/Tilt/Rotation Range | Tilt:0-90° stream; for multiple streams, the values will be subjected |
|---|
| Rotation:0-360° | to the total encoding capacity. |
|---|
| 鏡頭 | Stream Capability 3 streams |
|---|
| 鏡頭類型 | Motorized vari-focal 3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944; 2688 × 1520; 2048 × 1536; 2304 × 1296; 1080p (1920 × |
|---|
| Mount Type | Module Resolution 1080); 1.3 MB (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 |
|---|
| 焦距 | 8 mm–32 mm × 240) |
|---|
| Max. Aperture | F1.4 Bit Rate Control CBR/VBR |
|---|
| Horizontal: 42°–14.9° | H.264:3 kbps -20480 kbps Video Bit Rate |
|---|
| Field of View | Vertical: 23.3°–8.6° H.265:3 kbps-20480 kbps Diagonal: 48.5°–16.9° |
|---|
| Day/Night | Auto (ICR)/Color/B/W |
|---|
| Iris Control | Auto |
|---|
| BLC | Yes W: 3 m (9.84 ft) Close Focus Distance |
|---|
| T: 5.5 m (18.04 ft) | HLC Yes |
|---|
| DORI 偵測距離 | 213.6 m 85.4 m 42.7 m 21.4 m Auto; natural; street lamp; outdoor; manual; regional |
|---|
| W | White Balance |
|---|
| Distance | (700.8 ft) (280.2 ft) (140.1 ft) (70.2 ft) custom 572.8 m 229.1 m 114.6 m 70.2 m |
|---|
| T | Gain Control Auto; manual (1879.3 ft) (751.6 ft) (376.0 ft) (188.0 ft) |
|---|
| 智能事件 | Noise Reduction 3D NR |
|---|
| IVS | Abandoned object; missing object Motion Detection OFF/ON (4 areas, rectangular) |
|---|
| Heat Map | Yes Region of Interest (RoI) Yes (4 areas) www.dahuasecurity.com |
|---|
| 防抖 | Electronic Image Stabilization (EIS) Basic: 5.5 W (12 VDC); 6.0 W (24 VAC); 6.2 W (PoE) Max(max. stream + intelligent function + IR LED + focus): |
|---|
| 除霧 | Yes Power Consumption 15.9 W (12 VDC); 18.1 W (24 VAC); 18.7 W (PoE) Heating: 3.3 W ( 12 VDC); 4.4 W (24 VAC); 3.9 W (PoE) 0°/90°/180°/270° (Support 90°/270° with 4 M resolution and lower) |
|---|
| Mirror | Yes |
|---|
| 工作溫度 | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH |
|---|
| Privacy Masking | 8 areas |
|---|
| 儲存溫度 | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| 防護等級 | IP67, IK10 |
|---|
| 音訊壓縮 | PCM; G.711a; G.711Mu; G.726; G.723 Structure |
|---|
| Casing | Metal + plastic No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion 340.1 mm × 138.3 mm × 134.0 mm (13.39" × 5.44" × detection; video tampering; defocus detection; scene Product Dimensions 5.28") (L × W × H) changing; intrusion; tripwire; abandoned object; |
|---|
| Alarm Event | missing object; fast moving; parking detection; loitering Net Weight 1.6 kg (3.5 lb) detection; people gathering; input abnormal detection; intensity change detection; people counting; face Gross Weight 2.4 kg (5.3 lb) detection; people counting in area; stay alarm; people No. exception detection; queue management Ordering Information |
|---|
| Network Port | RJ-45 (10/100 Base-T) |
|---|
| 類型 | Model Description |
|---|
| SDK and API | Yes 8 MP IR Vari-focal Bullet WizMind DH-IPC-HFW5842H-Z4HE-S2 Network Camera Video encryption; configuration encryption; Digest; 8MP WSSE; account lockout; security logs; generation and Camera |
|---|
| Cyber Security | 8 MP IR Vari-focal Bullet WizMind importing of X.509 certification; HTTPS; trusted boot; IPC-HFW5842H-Z4HE-S2 Network Camera trusted execution; trusted upgrade IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; PFA154 Pole Mount Bracket RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; PFA155A Anti-corrosion Pole Mount Bracket 802.1x; SNMP |
|---|
| Accessories | PFM320D 12 VDC 2A Power Adapter |
|---|
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P |
|---|
| PFM900-E | Integrated Mount Tester |
|---|
| 用戶管理 | 20 (Total bandwidth: 80 M) |
|---|
| TF-P100 | MicroSD Memory Card |
|---|
| Storage | FTP; SFTP; Micro SD card (Support max. 256 G); NAS IE: IE8 and later |
|---|
| Browser | Chrome Firefox Accessories |
|---|
| Management Software | Smart PSS; DSS; DMSS |
|---|
| Mobile Client | iOS; Android Optional: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07,UL PFA154 PFA155A PFM320D Series 50E NEMA Type 4X (optional) Pole Mount Anti-corrosion Pole 12 VDC 2A |
|---|
| Bracket | Mount Bracket Power Adapter |
|---|
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
|---|
| 音訊輸入 | 1 channel (3.5 mm JACK port) |
|---|
| 音訊輸出 | 1 channel (3.5 mm JACK port) |
|---|
| 警報輸入 | 3 channels in: 5 mA 3–5 VDC PFM900-E TF-P100 |
|---|
| Integrated Mount | MicroSD |
|---|
| 警報輸出 | 2 channels out: 1,000 mA 30 VDC/500 mA 50 VDC Tester Memory Card |
|---|

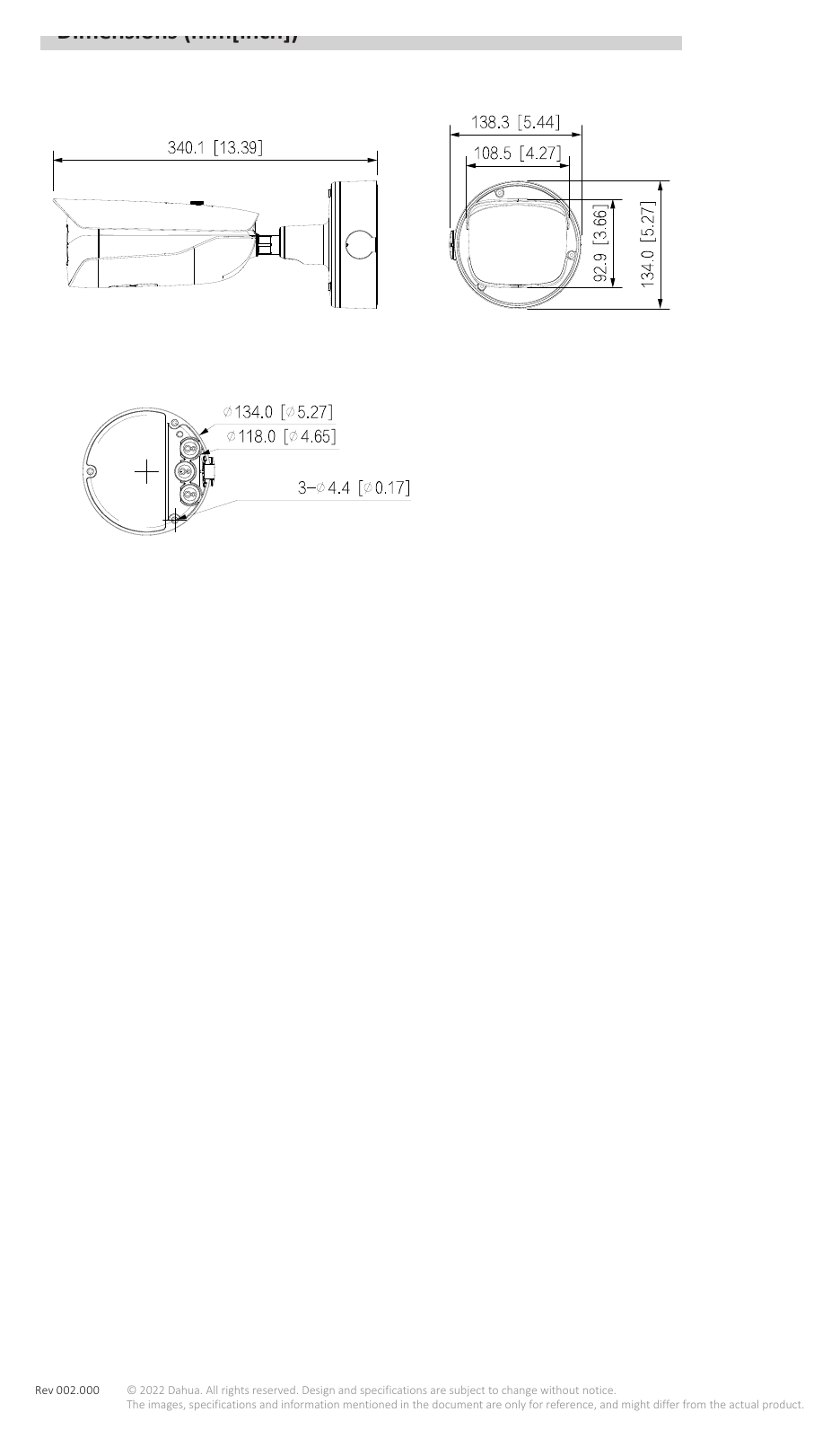

| 供電 | 12 VDC (±25%)/24 VAC (±30%)/PoE (802.3at)/ePoE www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
