| Camera | color,vehicle brand ANPR Other attributes: sun visor, seat belt, smoking, |
|---|
| 影像感測器 | 1/1.8”8Megapixel progressive CMOS phoning, in-car accessories, annual vehicle inspection mark |
|---|
| Effective Pixels | 3840 (H) × 2160 (V) Support human body, human face, motor vehicle |
|---|
| ROM | 4 GB Video Metadata and non-motor vehicle image capture and attributes extraction. |
|---|
| RAM | 2 GB Support tripwire number counting, people counting in |
|---|
| Scanning System | Progressive area, and displaying and outputting yearly/monthly/ daily reports.Support queue management, and |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s People Counting displaying and outputting monthly/daily reports. Support 4 tripwire rules configuration, people |
|---|
| 最低照度 | 0.003 Lux@F1.2 counting in 4 areas, and 4 queue management functions |
|---|
| S/N Ratio | > 56 dB Work together with Smart NVR to perform refine |
|---|
| Illumination Distance | 60m (196.85 ft) Intelligent Search intelligent search, event extraction and merging to event videos. |
|---|
| Illuminator On/Off Control | Auto/Manual |
|---|
| Illuminator Number | 4 (IR LED) H.265, H.264,H.264H,H.264B, MJPEG(only supported Video Compression |
|---|
| Pan: 0°–360° | by sub stream) |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–90° |
|---|
| Smart Codec | Smart H.265+/ Smart H.264+ Rotation: 0°–360° |
|---|
| 鏡頭 | Main Stream: 3840 × 2160 (1–25/30 fps) Sub stream: 704 × 576 (1–25fps);704 × 480 (1–30fps) |
|---|
| 鏡頭類型 | Motorized vari-focal Video Frame Rate Third stream: 1920 × 1080 (1–25/30 fps) Fourth stream: 1920 × 1080 (1–25/30 fps) Fifth stream: 704 × 576 (1–25fps);704 × 480 (1–30fps) |
|---|
| Mount Type | Module interface |
|---|
| 焦距 | 2.7mm–12 mm Stream Capability 5 streams 8M (3840 × 2160), 6M (3072 × 2048/3072 × 1728), |
|---|
| Max. Aperture | F1.2 5M (2592 × 1944), 4M (2688 × 1520), 3M (2048 × |
|---|
| Horizontal: 114°(W)–47°(T) | Resolution 1536/2304 × 1296), 1080p(1920 × 1080), 1.3M (1280 |
|---|
| Field of View | Vertical: 59°(W)–27°(T) × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), |
|---|
| Diagonal: 141° (W–55°(T) | VGA (640 × 480), CIF (352 × 288/352 × 240) |
|---|
| 光圈類型 | Auto;Precise iris control Bit Rate Control CBR/VBR |
|---|
| W: 1 m (3.28ft) | H.264: 32 kbps-16384 kbps |
|---|
| Close Focus Distance | Video Bit Rate |
|---|
| T: 2.5 m (8.20ft) | H.265: 12 kbps-16384 kbps |
|---|
| DORI 偵測距離 | 87.2 m 34.9 m 17.4 m 8.7 m |
|---|
| W | BLC Yes (286.09 ft) (114.50 ft) (57.09 ft) (28.54 ft) 186.7 m 74.7 m 37.3 m 18.6 m HLC Yes (612.53 ft) (245.07 ft) (122.38 ft) (61.02 ft) |
|---|
| WDR | 120 dB |
|---|
| Scene Self-adaptation | Yes |
|---|
| IVS | Abandoned object, moving object Auto/natural/street lamp/outdoor/manual/regional White Balance |
|---|
| Professional, intelligent | Custom Tripwire, intrusion, fast moving (the three functions Gain Control Auto/Manual support the classification and accurate detection of vehicle and human); parking detection, loitering Noise Reduction 3D NR detection, and people gathering. |
|---|
| Motion Detection | OFF/ON (4 areas, rectangular) Face detection, track, priority, snapshot,Upload |
|---|
| Optimized snapshot picture; face | Region of Interest(RoI) Yes (4 areas) enhancement, face exposure, face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, Electronic Image expressions (anger, sadness, disgust, fear, surprise, Yes Stabilization(EIS) calm, happiness and confusion), Mouth mask, beard; Face matting setting: face, single inch photo Three Smart Illumination Yes snapshot; methods: real-time snapsho |
|---|
| Face angle filter Priority time setting; | 0°/90°/180°/270° (Support 90°/270° with 1080p Support Duration Optimal,Non-living Filtering; Image Rotation resolution or below.) www.dahuasecurity.com |
|---|
| Mirror | Yes 340.1 mm × 108.5 mm × 92.9 mm (13.39" × 4.27" × Dimensions 3.66") (L × W × H) |
|---|
| Privacy Masking | 4 areas |
|---|
| 淨重 | 1600g (3.53 lb) |
|---|
| Audio | Gross Weight 2400g (5.29 lb) |
|---|
| 音訊壓縮 | G.711a; G.711Mu; G726; AAC; G.723 |
|---|
| 警報 | Ordering Information No SD card; SD card full; SD card error; network Type Part Number Description disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast DH-IPC- moving; abandoned object; missing object; loitering 8MP IR Bullet WizMind Network Camera,PAL HFW7842HP-Z |
|---|
| Alarm Event | detection; people gathering; parking detection; scene changing; audio detection; defocus detection; external alarm; face detection; people counting in area; stay alarm; people counting; people counting exception IPC-HFW7842HP-Z 8MP IR Bullet WizMind Network Camera,PAL detection; safety exception, Queue Management 8MP Camera |
|---|
| Network | DH-IPC- 8MP IR Bullet WizMind Network Camera,NTSC HFW7842HN-Z |
|---|
| SDK and API | Yes IPC-HFW7842HN-Z 8MP IR Bullet WizMind Network Camera,NTSC HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; |
|---|
| Protocol | SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; Accessories QoS; UPnP; NTP; SFTP; RTMP; Genetec;Bonjour ; PFA154 Pole Mount |
|---|
| Multicast | (optional) ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Interoperability |
|---|
| Genetec; P2P;RTMP | Accessories |
|---|
| 用戶管理 | 20(Total bandwidth: 160M) Optional: |
|---|
| Storage | FTP; Micro SD card (256 G); NAS; SFTP;Dahua Cloud IE: IE9 and later |
|---|
| Browser | Chrome: Chrome 42 and later Firefox: Firefox 48.0.2 and later |
|---|
| Management Software | Smart PSS; DSS; DMSS PFA154 |
|---|
| Mobile Phone | IOS, Android |
|---|
| Pole Mount | Wall-Mount Junction Mount |
|---|
| CE-LVD: EN62368-1 | DH-PFA154 CE-EMC: Electromagnetic Compatibility Directive |
|---|
| Certifications | 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 Port |
|---|
| RS-485 | 1 (baud rate range: 1200 bps-115200 bps) Audio Input Audio Interface: 1/1 channel In/Out |
|---|

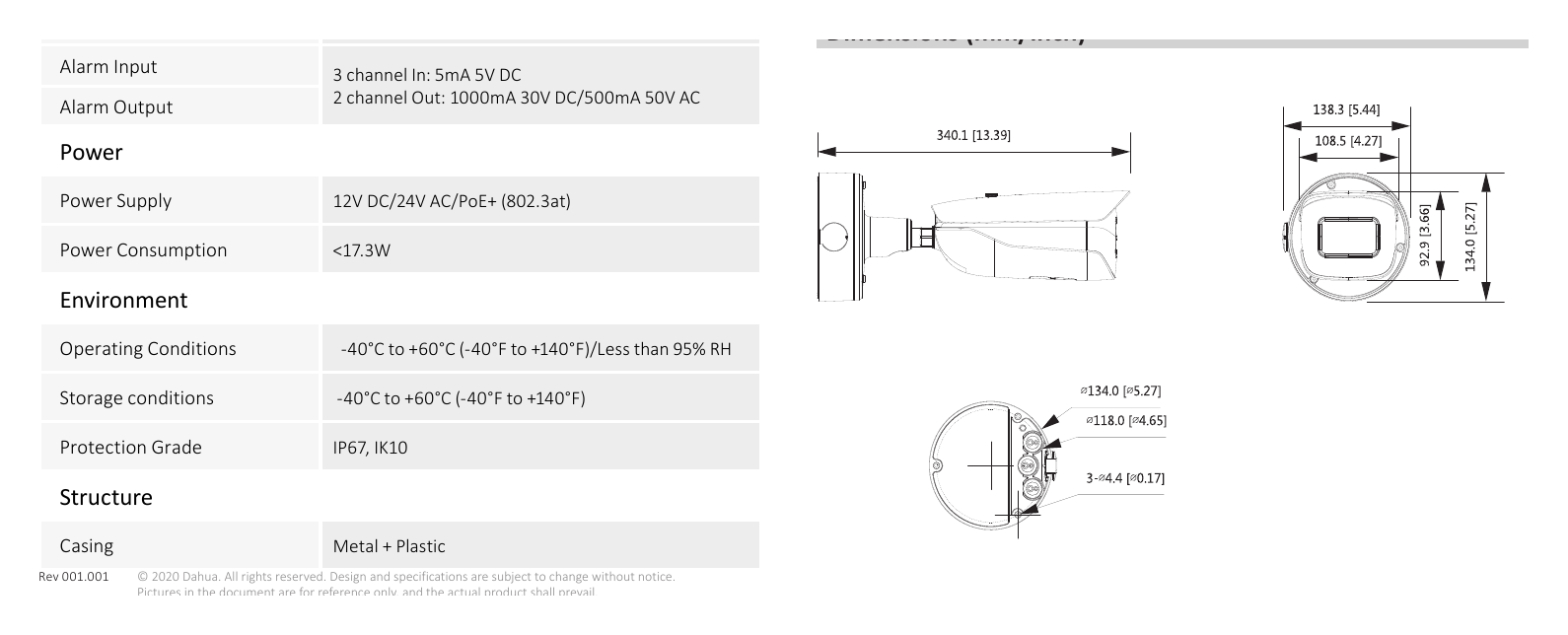

| 音訊輸出 | Dimensions (mm/inch) |
|---|
| 警報輸入 | 3 channel In: 5mA 5V DC 2 channel Out: 1000mA 30V DC/500mA 50V AC Alarm Output Power |
|---|
| 供電 | 12V DC/24V AC/PoE+ (802.3at) |
|---|
| 功耗 | <17.3W |
|---|
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/Less than 95% RH |
|---|
| 儲存環境 | -40°C to +60°C (-40°F to +140°F) |
|---|
| Protection Grade | IP67, IK10 Structure |
|---|
| Casing | Metal + Plastic |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
