| Camera | Bit Rate H.264: 24~ 10240Kbps H.265: 14~ 6144Kbps |
|---|
| 影像感測器 | 1/2.8”2Megapixel progressive scan CMOS Day/Night Auto(ICR) / Color / B/W |
|---|
| Effective Pixels | 1920(H)x1080(V) BLC Mode BLC / HLC / WDR(140dB)/ SSA |
|---|
| RAM/ROM | 1024MB/128MB White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Scanning System | Progressive Gain Control Auto/Manual |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Noise Reduction 3D DNR 0.005Lux/F1.4 (Color,1/3s,30IRE) |
|---|
| Motion Detection | Off / On (4 Zone, Rectangle) |
|---|
| Minimum Illumination | 0.03Lux/F1.4 (Color,1/30s,30IRE) 0Lux/F1.4(IR on) |
|---|
| Region of Interest | Off / On (4 Zone) |
|---|
| S/N Ratio | More than 50dB Electronic Image Stabilization Support |
|---|
| Distance up to 100m(328ft) | (EIS) IR Distance |
|---|
| Smart IR | Support |
|---|
| IR On/Off Control | Auto/ Manual |
|---|
| 除霧 | Support |
|---|
| IR LEDs | 4 |
|---|
| Digital Zoom | 16x |
|---|
| Flip | 0°/90°/180°/270° |
|---|
| 鏡頭類型 | Motorized /Auto Iris(HALL) |
|---|
| Mirror | Off / On |
|---|
| Mount Type | Board-in |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| 焦距 | 7~35mm motorized |
|---|
| Max. Aperture | F1.4 |
|---|
| Compression | G.711a/G.711Mu/AAC/ G.726 |
|---|
| Angle of View | H: 34°~11°, V:19°~6.4° |
|---|
| Optical Zoom | 5x Network |
|---|
| Focus Control | Motorized Ethernet RJ-45 (100/1000Base-T) |
|---|
| Predictive Focus Algorithm | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; Support (PFA) FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S |
|---|
| Close Focus Distance | 0.3m(0.98ft) NMP;TLS |
|---|
| 鏡頭 | Detect Observe Recognize Identify Interoperability ONVIF Profile S&G, API |
|---|
| W | 131m(430ft) 52m(170ft) 26m(85ft) 13m(42ft) |
|---|
| Distance | Streaming Method Unicast / Multicast |
|---|
| T | 427m(1400ft) 171m(561ft) 85m(280ft) 42m(140ft) |
|---|
| Max. User Access | 10 Users/20 Users Pan/Tilt/Rotation NAS |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚ Edge Storage Local PC for instant recording Mirco SD card 128GB Intelligence |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari Motion detection, Video tampering , Scene changing, |
|---|
| Event Trigger | Network disconnection , IP address conflict, Illegal |
|---|
| Management Software | Smart PSS, DSS, DMSS Access,Storage anomaly |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing Smart Phone IOS, Android Advanced Intelligent Functions Face Detection, People Counting, Heat Map Certifications |
|---|
| Video | CE (EN 60950:2000) |
|---|
| Certifications | UL:UL60950-1 |
|---|
| Smart Codec | Support H.265+/H.264+ Interface |
|---|
| Streaming Capability | 3 Streams Video Interface 1 Port(For adjustment only) 1080P(1920×1080)/ 1.3M(1280x960)/ |
|---|
| Audio Interface | 1/1 channel In/Out |
|---|
| 解像度 | 720P(1280x720)/ D1(704×576/704x480) / VGA(640x480)/ CIF(352×288/342x240) |
|---|
| RS485 | N/A Main Stream: 1080P(1~50/60fps) 2 channel In: 5mA 5VDC |
|---|
| Frame Rate | Sub Stream: D1 (1 ~ 50/60fps) Alarm 1 channel Out: 1A 30VDC / 0.5A 50VAC Third Stream: 1080P(1~50/60fps) www.dahuasecurity.com |
|---|
| Electrical | Accessories |
|---|
| 供電 | DC12V, PoE+(802.3at)(Class 4) Optional: |
|---|
| 功耗 | <13W Environmental |
|---|
| Operating Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
|---|
| 儲存環境 | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| PFA121 | PFA152-E LR1002 |
|---|
| Vandal Resistance | IK10 Junction box Pole Mount ePoE Over Coax Converter Construction |
|---|
| t | Pole Mount |
|---|
| Casing | Metal |
|---|

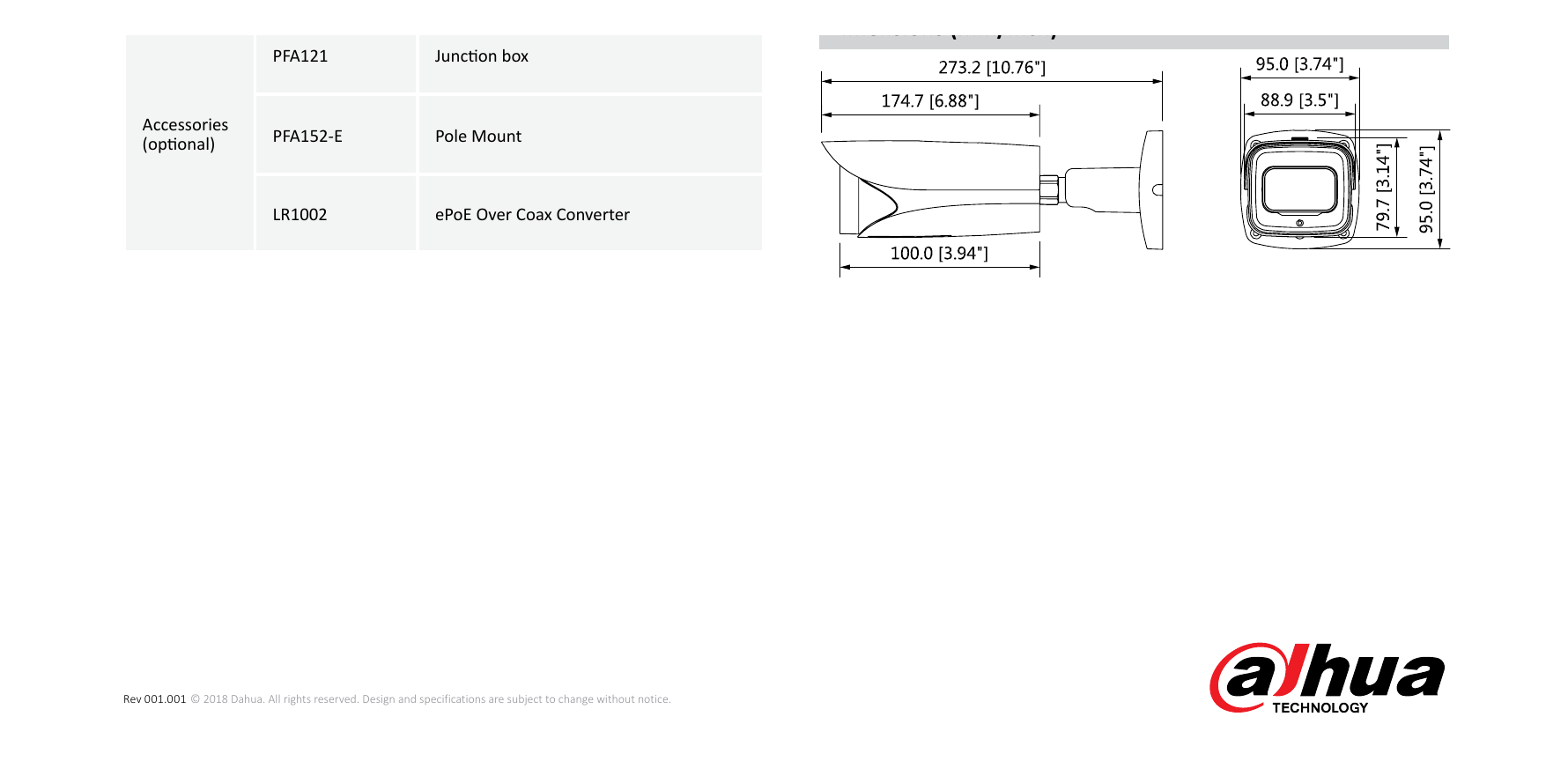

| 尺寸 | 273.2mm×95.0mm×95.0mm (10.76”×3.74”×3.74”) |
|---|
| 淨重 | 1.12Kg (2.47lb) |
|---|
| 毛重 | 1.52Kg (3.35lb) Ordering Information |
|---|
| 類型 | Part Number Description DH-IPC- 2MP WDR IR Bullet Network Camera,PAL HFW8231EP-Z5E DH-IPC- 2MP WDR IR Bullet Network Camera,NTSC HFW8231EN-Z5E 2MP camera IPC-HFW8231EP- 2MP WDR IR Bullet Network Camera,PAL Z5E IPC-HFW8231EN- 2MP WDR IR Bullet Network Camera,NTSC Z5E Dimensions (mm/inch) |
|---|
| LR1002 | ePoE Over Coax Converter www.dahuasecurity.com |
|---|
