| Camera | Gain Control Auto/Manual |
|---|
| 影像感測器 | 1/2.8” 2Megapixel progressive scan CMOS Noise Reduction 3D DNR |
|---|
| Effective Pixels | 1920(H)x1080(V) Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| RAM/ROM | 256MB/32MB Region of Interest Off / On (4 Zone) |
|---|
| Scanning System | Progressive Electronic Image Stabilization N/A (EIS) L1: 0.07Lux/F2.4 (Color), 0.007Lux/F2.4 (B/W) |
|---|
| Minimum Illumination | L3: 0.009Lux/F1.8 (Color), 0.001Lux/F1.8 (B/W) Smart IR N/A |
|---|
| S/N Ratio | More than 50dB Defog N/A |
|---|
| IR Distance | N/A Digital Zoom 16x |
|---|
| IR On/Off Control | N/A Flip 0°/90°/180°/270° |
|---|
| IR LEDs | N/A Mirror Off / On |
|---|
| 鏡頭 | Privacy Masking Off / On (4 Area, Rectangle) |
|---|
| 鏡頭類型 | Fixed Audio |
|---|
| Mount Type | Board-in Compression G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| 焦距 | 2.8mm Sensor Unit L1:F2.4 |
|---|
| Max. Aperture | Ethernet RJ-45 (10/100Base-T) Sensor Unit L3:F1.8 |
|---|
| Sensor Unit L1 H:104° ,V:57° | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; |
|---|
| Angle of View | Protocol DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Sensor Unit L3 H:118° ,V:60° Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP |
|---|
| Optical Zoom | N/A |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| Focus Control | Fixed |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Close Focus Distance | N/A |
|---|
| Max. User Access | 10 Users/20 Users |
|---|
| Pan/Tilt/Rotation | NAS |
|---|
| Edge Storage | Local PC for instant recording |
|---|
| Pan/Tilt/Rotation Range | N/A Mirco SD card 128GB |
|---|
| Intelligence | Web Viewer IE, Chrome, Firefox, Safari |
|---|
| IVS (optional) | Tripwire, Intrusion, Object Abandoned/Missing Management Software Smart PSS, DSS, Easy4ip Advanced Intelligent Functions Face Detection Smart Phone IOS, Android |
|---|
| Video | Certifications |
|---|
| Compression | H.265+/H.265/H.264+/H.264 CE (EN 60950:2000) |
|---|
| Certifications | UL:UL60950-1 |
|---|
| Streaming Capability | 3 Streams FCC: FCC Part 15 Subpart B 1080P(1920×1080)/ 1.3M(1280x960)/ Interface |
|---|
| 解像度 | 720P(1280x720)/ D1(704×576/704x480)/ |
|---|
| VGA(640x480)/ CIF(352×288/342x240) | Video Interface N/A Main Stream: 1080P(1~25/30fps) |
|---|
| Audio Interface | 1/1 channel In/Out |
|---|
| Frame Rate | Sub Stream: D1 (1 ~ 25/30fps) RS232 1 port |
|---|
| Third Stream: 1080P(1~25/30fps) | Alarm 2/2 channel In/Out |
|---|
| 碼率控制 | CBR/VBR Electrical |
|---|
| H.264: 24Kbps~ 9472Kbps | Power Supply DC12V, PoE(802.3af)(Class 0) Bit Rate H.265: 14Kbps~ 5632Kbps |
|---|
| 功耗 | <6W |
|---|
| Day/Night | Electronic |
|---|
| BLC Mode | BLC / HLC / DWDR www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| Wall/Ceiling Mount | Plane Mount |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | N/A |
|---|
| Vandal Resistance | N/A Construction |
|---|

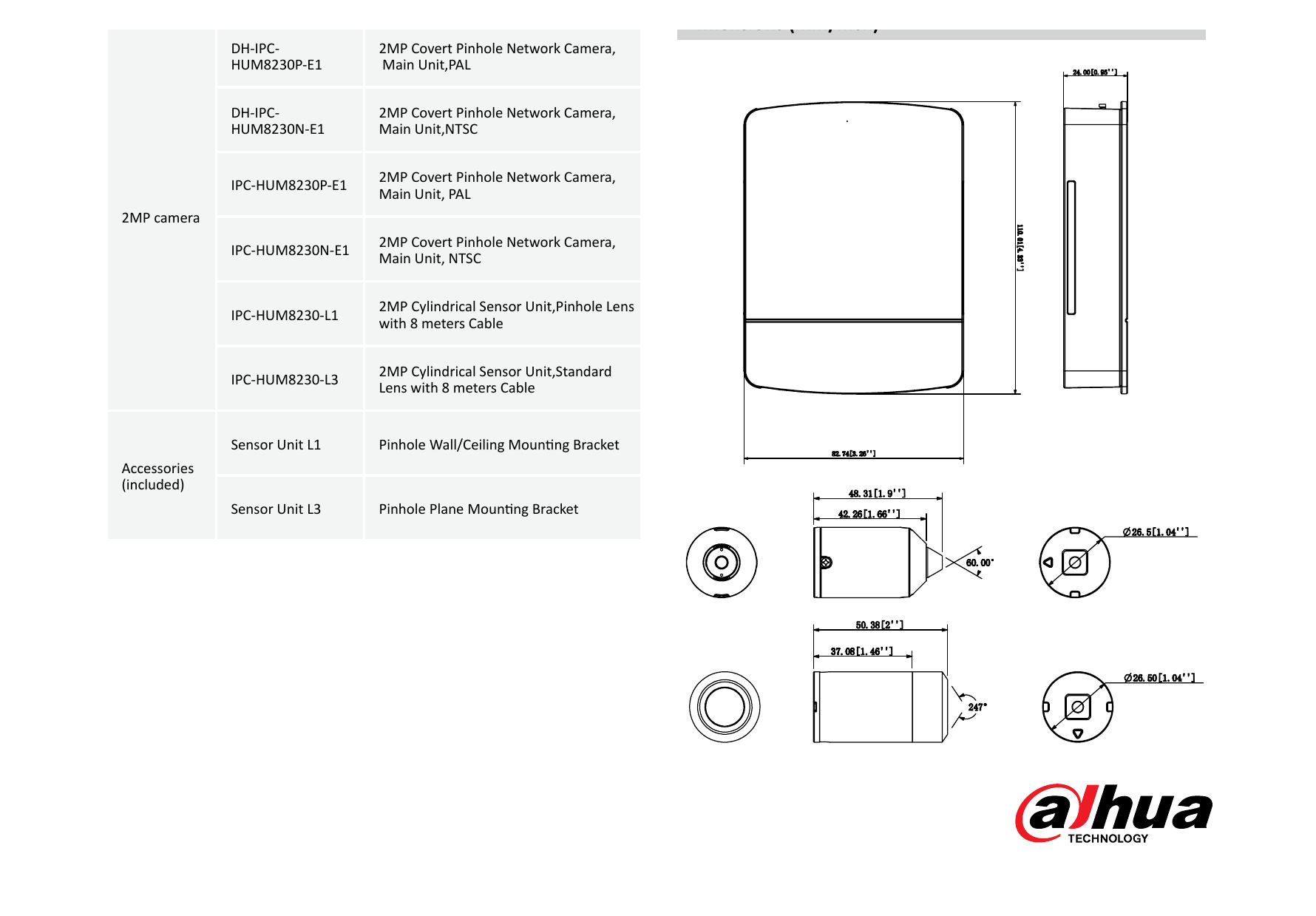

| Casing | Metal Main Unit:110.0mm×82.7mm×24.0mm (4.33”×3.26”×0.95”) Dimensions Sensor Unit L1:Φ26.5mm×48.31mm(Φ1.04”×1.9”) Sensor Unit L3:Φ26.5mm×50.38mm(Φ1.04”×2.0”) Main Unit:0.2Kg (lb) |
|---|
| 淨重 | Sensor Unit L1:0.22Kg (lb) Sensor Unit L3:0.235Kg (lb) Main Unit:0.36Kg (lb) |
|---|
| 毛重 | Sensor Unit L1:0.31Kg (lb) Sensor Unit L3:0.325Kg (lb) Ordering Information |
|---|
| 類型 | Part Number Description Dimensions (mm/inch) |
|---|
| DH-IPC- | 2MP Covert Pinhole Network Camera, |
|---|
| HUM8230P-E1 | Main Unit,PAL |
|---|
| HUM8230N-E1 | Main Unit,NTSC 2MP Covert Pinhole Network Camera, IPC-HUM8230P-E1 Main Unit, PAL 2MP camera 2MP Covert Pinhole Network Camera, IPC-HUM8230N-E1 Main Unit, NTSC 2MP Cylindrical Sensor Unit,Pinhole Lens IPC-HUM8230-L1 with 8 meters Cable 2MP Cylindrical Sensor Unit,Standard IPC-HUM8230-L3 Lens with 8 meters Cable |
|---|
| Sensor Unit L1 | Pinhole Wall/Ceiling Mounting Bracket Accessories (included) |
|---|
| Sensor Unit L3 | Pinhole Plane Mounting Bracket www.dahuasecurity.com |
|---|
