| Camera | Gain Control Auto/Manual |
|---|
| 影像感測器 | 1/3” 1.3Megapixel progresive CMOS Noise Reduction 3D DNR |
|---|
| Effective Pixels | 1280(H) x960(V) Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| RAM/ROM | 256MB/16MB Region of Interest Off / On (4 Zone) |
|---|
| Scanning System | Progressive Electronic Image Stabilization N/A (EIS) |
|---|
| Minimum Illumination | 0.5Lux/F2.2(Color), 0Lux/F2.2(IR on) |
|---|
| Smart IR | Support |
|---|
| S/N Ratio | More than 50dB |
|---|
| Digital Zoom | 16x |
|---|
| IR Distance | Distance up to 10m(33ft) |
|---|
| Flip | 0°/90°/180°/270° |
|---|
| IR On/Off Control | Auto/ Manual |
|---|
| Mirror | Off / On |
|---|
| IR LEDs | 1 |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| 鏡頭類型 | Fixed |
|---|
| Compression | G.711A;G.711Mu;AAC |
|---|
| Mount Type | Board-in |
|---|
| 焦距 | 2.8mm |
|---|
| Ethernet | RJ-45 (10/100Base-T) |
|---|
| Max. Aperture | F2.2 |
|---|
| WiFi | Wi-Fi(IEEE802.11a/b/g/n/ac),50m(open field) |
|---|
| Angle of View | H:92°;V:66° HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; |
|---|
| Focus Control | Fixed Protocol DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP; |
|---|
| Close Focus Distance | N/A |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Pan/Tilt Range | Pan:0° ~360° ;Tilt:-10° ~90° ;Rotation:0° ~360° |
|---|
| Max. User Access | 10 Users/20 Users NAS(Network Attached Storage) |
|---|
| Streaming Capability | 2 Streams Web Viewer IE, Chrome, Firefox, Safari 1.3M(1280×960)/720P(1280×720)/ Management Software Smart PSS, DSS,Easy4ip Resolution VGA(640 ×480)/QVGA(320×240) |
|---|
| Smart Phone | iPhone, iPad, Android Phone 1.3M(1~25/30fps) |
|---|
| Frame Rate | Certifications VGA/QVGA(1~25/30fps) CE (EN 60950:2000) |
|---|
| Certifications | UL:UL60950-1 |
|---|
| 碼率控制 | CBR/VBR FCC: FCC Part 15 Subpart B |
|---|
| Bit Rate | H264:32K ~ 10240Kbps Interface |
|---|
| Day/Night | Auto(ICR) / Color / B/W Video Interface N/A |
|---|
| BLC Mode | BLC / HLC / DWDR Audio Interface Built-in Mic & Speaker |
|---|
| RS485 | N/A |
|---|
| 警報 | 1/1,PIR Electrical |
|---|
| 供電 | DC12V |
|---|
| 功耗 | <4.5W www.dahuasecurity.com |
|---|
| Environmental | Dimensions (mm/inch) |
|---|
| Operating Conditions | -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH |
|---|
| Strorage Conditions | -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH |
|---|
| 防護等級 | N/A |
|---|
| Vandal Resistance | N/A Construction |
|---|
| Casing | Plastic |
|---|

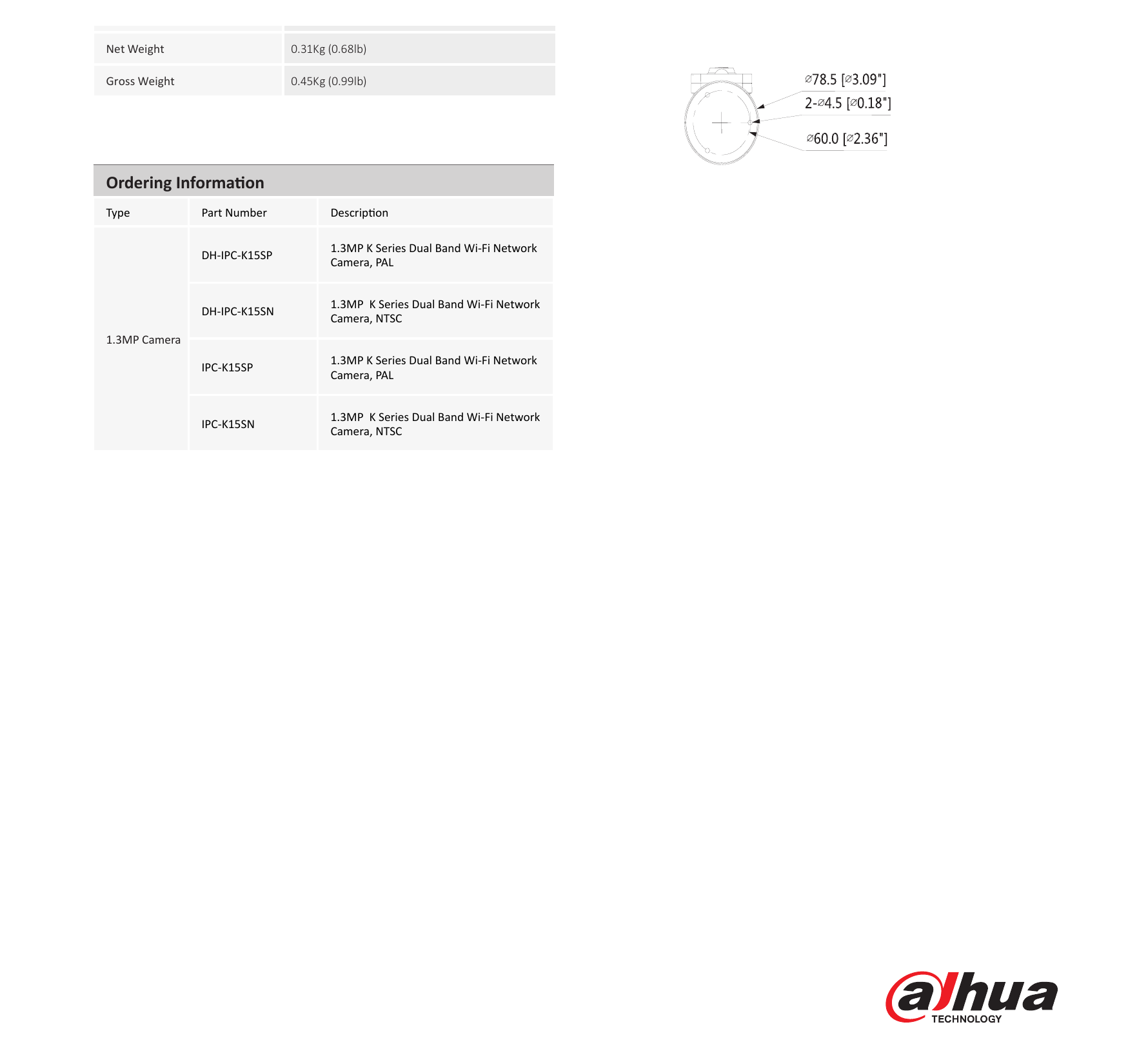

| 尺寸 | Φ78.5mm×127.8mm(3.09'’ x5.03’’) |
|---|
| 淨重 | 0.31Kg (0.68lb) |
|---|
| 毛重 | 0.45Kg (0.99lb) Ordering Information |
|---|
| 類型 | Part Number Description 1.3MP K Series Dual Band Wi-Fi Network DH-IPC-K15SP Camera, PAL 1.3MP K Series Dual Band Wi-Fi Network DH-IPC-K15SN Camera, NTSC 1.3MP Camera 1.3MP K Series Dual Band Wi-Fi Network IPC-K15SP Camera, PAL 1.3MP K Series Dual Band Wi-Fi Network IPC-K15SN Camera, NTSC www.dahuasecurity.com |
|---|
