| Camera | Intelligent Search intelligent search, event extraction and merging to event videos. |
|---|
| 影像感測器 | 1/2.7”5Megapixel progressive CMOS |
|---|
| 最大解像度 | 2592 (H) × 1944 (V) H.265; H.264; H.264H; H.264B; MJPEG (only supported Video Compression |
|---|
| ROM | 32 GB by the sub stream) |
|---|
| RAM | 4 GB Smart Codec Smart H.265+/Smart H.264+ |
|---|
| Scanning System | Progressive Single Stream: Main stream: 5MP (1–25/30 fps) |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s Sub stream: D1 (1–25/30 fps) Third stream: 2MP (1–25/30 fps) 0.005 Lux@F1.7(Color,30IRE) Video Frame Rate FlexStream: |
|---|
| 最低照度 | 0.0005 Lux@F1.7(B/W,30IRE) Main stream: 2MP (1–25/30 fps) 0 lux (Illuminator on) Sub stream: D1 (1–25/30 fps) Third stream: 8MP (1–25/30 fps) |
|---|
| S/N Ratio | > 56 dB |
|---|
| Illumination Distance | 30 m (98.4 ft) (IR LED) Stream Capability 3 streams |
|---|
| Illuminator On/Off Control | Auto/Manual Single Stream: 5M(2592×1944); 4M(2688×1520); 3M(2048×1536);2M(1920×1080);720P(1280×720); |
|---|
| Illuminator Number | 8 (IR LED) D1(704× 576/704×480);CIF(352×288/352×240) Resolution FlexStream:8M(3296×2472);5M(2592×1944); |
|---|
| Pan: 0°–360° | 2M(1600×1200);1.3M(1280×960); |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–80° D1(704× 576/704×480);CIF(352×288/352×240) Rotation: 0°–355° |
|---|
| 碼率控制 | CBR/VBR H.264: 3 kbps–19456 kbps Video Bit Rate |
|---|
| 鏡頭類型 | Motorized vari-focal H.265: 3 kbps–19456 kbps |
|---|
| Day/Night | Auto (ICR)/Color/B/W |
|---|
| Mount Type | φ14 |
|---|
| BLC | Yes |
|---|
| 焦距 | 2.8 mm–12 mm |
|---|
| HLC | Yes |
|---|
| Max. Aperture | F1.7 |
|---|
| Horizontal: 100°–36° | WDR 4 × 120 dB |
|---|
| Field of View | Vertical: 74°–27° |
|---|
| Diagonal: 133°–45° | Auto/natural/street lamp/outdoor/manual/regional White Balance custom |
|---|
| 光圈類型 | Fixed |
|---|
| Gain Control | Auto/Manual |
|---|
| Close Focus Distance | 0.8 m (2.6 ft) |
|---|
| Noise Reduction | 3D NR |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| Motion Detection | OFF/ON (4 areas, rectangular) |
|---|
| DORI 偵測距離 | 66 m 26.4 m 13.2 m 6.6 m |
|---|
| Distance | (216.5 ft) (86.6 ft) (43.3 ft) (21.7ft) |
|---|
| 感興趣區域 ROI | Yes (4 areas) 140.4 m 56.1 m 28 m 14 m (460.6 ft) (184.1 ft) (91.9 ft) (45.9 ft) Smart Illumination Yes |
|---|
| 智能事件 | Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
|---|
| IVS | Abandoned object; missing object |
|---|
| Mirror | Yes |
|---|
| Privacy Masking | 4 areas www.dahuasecurity.com |
|---|
| Audio | Structure |
|---|
| 音訊壓縮 | G.711a; G.711Mu; PCM; G.726; G.723 Casing Metal + Plastic |
|---|
| 警報 | Dimensions 286.1 mm × 111.3 mm (11.3" × 4.4") No SD card; SD card full; SD card error; network Net Weight 2.75 kg (8.9 lb) disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; fast |
|---|
| 毛重 | 4.5 kg (11.0 lb) moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; safety exception; voltage detection |
|---|
| Network | Ordering Information |
|---|

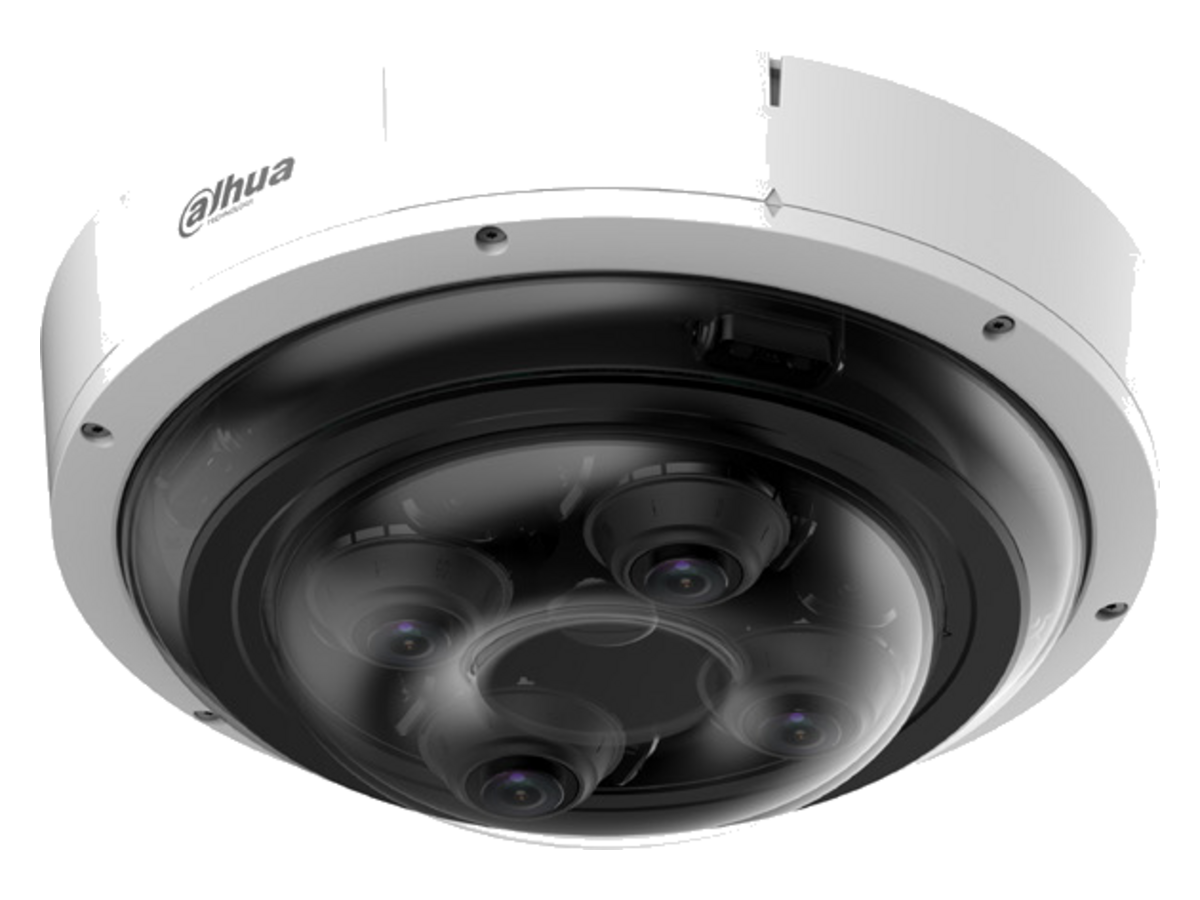

| SDK and API | Yes 4 × 5MP WizMind Multi-Sensor No- |
|---|
| DH-IPC-PDBW82041P-B360 | Splicing Panoramic Dome Network Video encryption; firmware encryption; configuration Camera , PAL encryption; Digest; WSSE; account lockout; security logs; |
|---|
| Cyber Security | 4 × 5MP WizMind Multi-Sensor No- IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted DH-IPC-PDBW82041N-B360 Splicing Panoramic Dome Network Camera , NTSC |
|---|
| execution; trusted upgrade | 4 × 5MP |
|---|
| Protocol | RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; Camera, PAL NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP 4 × 5MP WizMind Multi-Sensor No- ONVIF(Profile S/Profile G/Profile T); CGI; Milestone; IPC-PDBW82041N-B360 Splicing Panoramic Dome Network |
|---|
| Genetec; RTMP; P2P | Camera, NTSC |
|---|
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS PFB303W Wall Mount Bracket |
|---|
| IE: IE9 and later | PFB300C Ceiling Mount Bracket |
|---|
| Browser | Chrome: 41.0 and later Accessories No-plug version: Safari and edge |
|---|
| PFA111 | Mount Adapter |
|---|
| Management Software | Smart PSS; DSS |
|---|
| PFA108 | Mount Adapter |
|---|
| Mobile Phone | IOS; Android CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive Accessories |
|---|
| Certification | 2014/30/EU |
|---|
| FCC: 47 CFR FCC Part 15, Subpart B | Optional UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
|---|
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
|---|
| PFB303W | PFB300C PFA111 |
|---|
| 音訊輸入 | 1 channel (RCA port) Wall Mount Bracket Ceiling Mount Bracket Mount Adapter |
|---|
| 音訊輸出 | 1 channel (RCA port) |
|---|
| 警報輸入 | 3 channel in: 5mA 3V–5V DC |
|---|
| 警報輸出 | 2 channel out: 300mA 12V DC PFA108 |
|---|
| 供電 | Mount Adapter |
|---|
| 功耗 | Max. power consumption (ICR + IR intensity): 21.5W (12V DC); 22.2W (POE+) |
|---|
| Operating Conditions | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
|---|
| 儲存環境 | –30°C to +60°C (–22°F to +140°F) |
|---|
| Protection Grade | IP67; IK10 www.dahuasecurity.com Dimensions (mm [inch]) |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
