DAHUA DH-PFM888S-AC CCTV攝影機安裝・保養

Name: DAHUA DH-PFM888S-AC DH-PFM888S-AC
Brand: dahua
SKU: DH-PFM888S-AC

產品簡介

dahua DH-PFM888S-AC 為DH-PFM888S-AC，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DH-PFM888S-AC 香港價格連安裝報價。

CPU：IPQ4028
RAM：256MB
ROM：256MB 10/100/1000M Base-TX *5
Interfaces：USB *1 Console *1

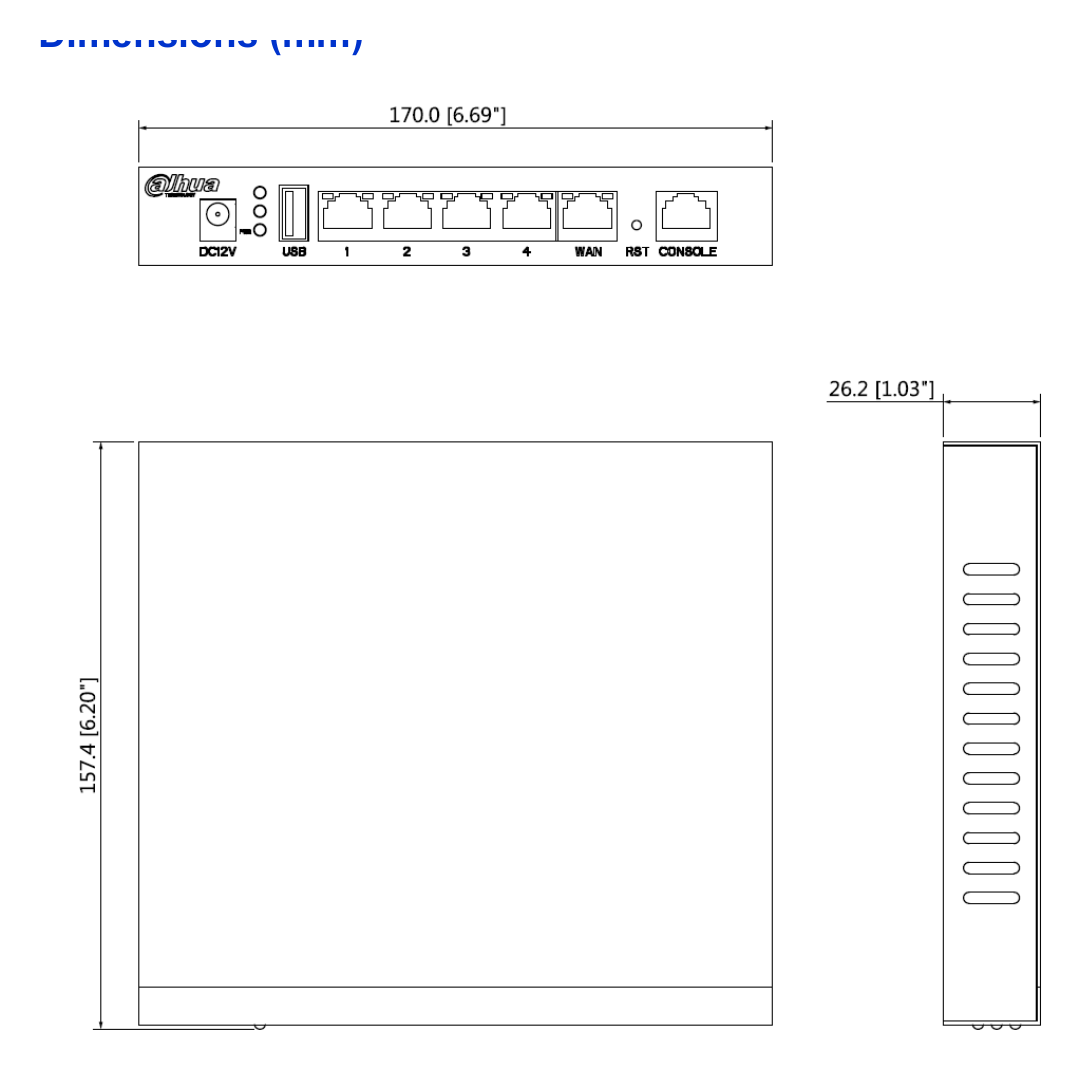

尺寸：170×160×34 (mm)

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

CPU	IPQ4028
RAM	256MB
ROM	256MB 10/100/1000M Base-TX *5
Interfaces	USB 1 Console 1
尺寸	170×160×34 (mm)
供電	DC 12V/2A
工作溫度	-10℃~55℃
工作濕度	5~95%RH
Devices managed	256
Performance	Templates 256
Clients	8192
IP	Supports modifying the login IP address Supports modifying the user name and password to login User name/password web
Access	Language English, Chinese
management	Only one user is allowed to login and the former user will Login limit be logged out if new user logins. For user who haven’t login, he will be redirected to login Access limit page if he visits any other URL. IP address, name of the platform, available memory, Platform running time, CPU, usage of the memory, system time
Devices	Total devices, online devices, offline devices
Display	online, offline, unregistered, upgrading, Status of access points configuring, fail to upgrade, etc.
Name of access points	Display device name of the access points
Model of access points	Display the model of the access points
IP address of access	Display the IP address of access points (Supports modify
points	the IP address of access points) MAC address of access
Device	Display the MAC address of the access points points Display the software version of access points and
Software	version of supports manual upgrade the software (need upload the access points software in advance) Run time of access Display the run time of access points points
Group name of access	Display the group name of access points (display empty
Template	name of now. When the device goes online for the first time, it access points shows unregistered and empty template name. Display the wireless parameters of access points: type,
Wireless	status of region, mode, transmit power, channel, bandwidth, access points SSID
Position	of access
Drop-down	menu of IP address, MAC address, software version, run time,
access points	signal strength, wireless speed, template name, wireless service, wireless mode, position, etc.
Client list	Display online clients
Client IP address	Display the IP addresses of clients
Client MAC address	Display the MAC addresses of clients
Client type	Display client type: Android/iPhone/PC
Client signal	Display the signal strength of clients
Client wireless standard	Display the wireless standard which clients adopt
Client connection rate	Display the connection rate of clients
Client management	SSID Display the SSID which client is connecting
Client’s user name	Display the user name of client used to authentication
Client traffic	Display the data traffic which clients have used
Client run time	Display the online time of clients Display the group that clients belong to (empty if there is Client group name no group)
Client’s AP	Display the AP that clients connect
Clients’ AP’s MAC	Display the MAC address of the AP that clients connect View, delete, modify group name and off-line clients Clients settings which have already authenticated Display the templates which have been saved, the details including: template name, region, channel, bandwidth, transmit power level, max transmit power, SSID, encryption type New, edit, display different templates according to
Modification	Modify the templates which have been saved New templates, available configurations are shown New below:
Region	China, USA, Test Mode
Channel	Select different channels according to regions
Bandwidth	Supports 20/40/80MHz (5G-11AC mode)
Transmit power	High/medium/low AP supports max 8 VAP configuration, no TDMA; Multi-VAPs Bridge supports 1 VAP configuration and TDMA.
SSID	Supports SSID configuration
Hidden SSID	Supports hidden SSID
Clients isolation	Supports clients isolation
TDMA	Support TDMA enable/disable
Max clients limit	Supports max clients limit from 1-127, default is 20 Authentication/encrypti Supports authentication and encryption configuration
Traffic control	Controlled by day/month
Client speed limit	Speed limit from 64-102400
Auto-matching	Auto-matching suitable template for each online clients Displayed by list: image name, version, information, file Image list size, update time, etc.
Upload	Supports upload the image If enable “auto-upgrade”, it will check whether the online
Auto-upgrade	AP matches and upgrade it automatically if it matches. It’s enabled by default. Select image version and the online devices need to upgrade. The device will check whether it matches itself. If unmatched, it’ll show version unmatched; Manual batch-upgrade If will show information when upgrading. It shows upgrading successfully when it goes online after upgrading. Check the status of upgrading devic
Basic settings	Including logs and alerts. View logs and alerts according to key words, module,
Log management	View logs level and time.
Clear log	Support clear logs. General setting: modify host name and password Time synchronization: Support select time zone, NTP
System setting	Basic setting server, NTP client, modify time manually Interface setting: Supports router mode and bridge mode
Upgrade/configuration	Back-up/recover: supports download and save
Access control	Authentication account management: Supports add authentication account Authentication summary: Supports record the information of authenticated clients Internet time control: It’s able to add forbidden time by week or date
Online map	Supports google map and baidu map Auto-positioning devices according to the location Auto-positioning information of the device;
Manual-positioning	Adjust the location manually. It shows MAC address, wireless mode, status, and more information will be showed after clicking: IP address,
Information	MAC address, device name, model, location, SSID, working frequency, associated clients, configuration status, run time By clicking the device in the map to modify parameters: device name, device location, etc. Modification It’s not allowed to edit or adjust the location of off-line devices but it’s allowed to delete them. Click off-line map to switch to switch to off-line map.
Off-line map	Modify the location of device manually. Multiple off-line maps are allowed;
Management protocol	CAPWAP
Network	and Supports discovery automatically
安全	Discovery Supports discovery manually
升級方式	Supports web upgrade
Out	of service time
configuration	Out of service time when upgrading average≤7 minutes when upgrading *Design and specifications are subject to change without notice. © 2016 Dahua Technology Co., Ltd.
