| Camera | IVS Tripwire, Intrusion, Abandoned/Missing |
|---|
| 影像感測器 | 1/1.9" CMOS Advanced Intelligent Functions Face Detection, Heat Map |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Video |
|---|
| RAM/ROM | 1024M/64M Compression H.264 / MJPEG |
|---|
| Scanning System | Progressive Streaming Capability 3 Streams |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s 1080P(1920×1080)/720P(1280×720)/D1(704×576/ Resolution 704×480)/CIF(352×288/352×240) Color: 0.002Lux@F1.5; B/W: 0.0002Lux@F1.5; Minimum Illumination 0Lux@F1.5 (IR on) Main stream: 1080P(1~25/30fps), 720P(1~50/60fps) |
|---|
| S/N Ratio | More than 55dB |
|---|
| Frame Rate | Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| IR Distance | Distance up to 300m(984ft) Sub stream2: 1080P/720P/D1/CIF (1 ~ 25/30fps) |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| 碼率控制 | CBR/VBR |
|---|
| IR LEDs | 4 |
|---|
| Bit Rate | H.264: 448K~8192Kbps, MJPEG: 4096K~20480Kbps |
|---|
| Wiper | Support |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| Backlight Compensation | BLC / HLC / WDR (120dB) |
|---|
| 焦距 | 6mm ~ 180mm |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Max. Aperture | F1.5~ F4.3 |
|---|
| Gain Control | Auto / Manual |
|---|
| Angle of View | H: 61.2° ~ 2.1° |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| Optical Zoom | 30x |
|---|
| Motion Detection | Support |
|---|
| Focus Control | Auto/Manual |
|---|
| Region of Interest | Support |
|---|
| Close Focus Distance | 100mm~ 1000mm Electronic Image Stabilization Support |
|---|
| DORI Distance | (EIS) *Note: The DORI distance is a “general proximity” of distance which makes it easy to Defog Support pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Digital Zoom 16x criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| Flip | 180° |
|---|
| Detect | Observe Recognize Identify |
|---|
| Privacy Masking | Up to 24 areas 1920m(6299ft) 768m(2520ft) 384m(1260ft) 192m(630ft) |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -90° ~ 45° Compression G.711a/G.711mu/G.726/AAC |
|---|
| Manual Control Speed | Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s Network |
|---|
| Preset Speed | Pan:160° /s; Tilt: 60° /s Ethernet RJ-45 (10Base-T/100Base-TX) |
|---|
| 預置位 | 300 IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation Interoperability ONVIF Profile S&G, API Auto restore to previous PTZ and lens status after Streaming Method Unicast / Multicast Power up Action power failure Activate Preset/ Scan/ Tour/ Pattern if there is no Max. User Access 20 users Idle Motion command in the specified period |
|---|
| Edge Storage | Local PC for instant recording, Micro SD card 128GB |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari Intelligence |
|---|
| Management Software | Smart PSS, DSS, DMSS Motion detection, Video tampering , Scene |
|---|
| Event Trigger | changing, Network disconnection, IP address Smart Phone IOS, Android conflict, Illegal Access, Storage anomaly www.dahuasecurity.com |
|---|
| Certifications | Accessories |
|---|
| CE: EN55032/EN55024/EN50130-4 | Included： |
|---|
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) |
|---|
| RS485 | 1 AC24V/5A Power Adapter |
|---|
| Audio I/O | 1/1 Optional： |
|---|
| Alarm I/O | 7/2 Electrical |
|---|
| 供電 | AC24V/5A(±25%) |
|---|
| 功耗 | 50W, 90W (IR on, Heater on) PFB712W Wall Mount Environmental |
|---|
| Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH Dimensions (mm) |
|---|
| 防護等級 | IP66 390.8mm |
|---|
| Vandal Resistance | N/A Construction |
|---|
| Casing | Metal |
|---|

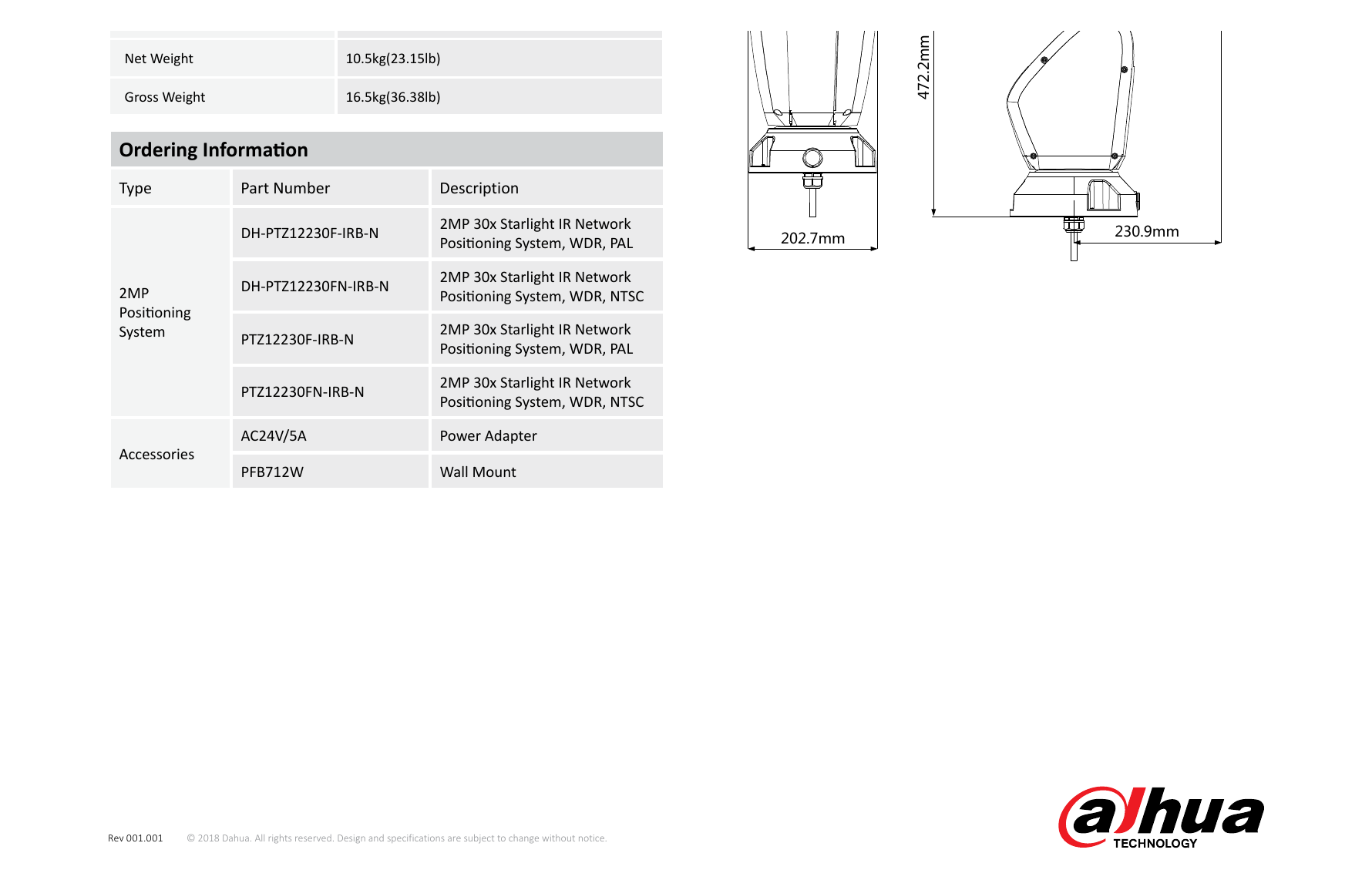

| 尺寸 | Φ202.7(mm)×390.8(mm)×472.2(mm) 472.2mm |
|---|
| 淨重 | 10.5kg(23.15lb) |
|---|
| 毛重 | 16.5kg(36.38lb) Ordering Information |
|---|

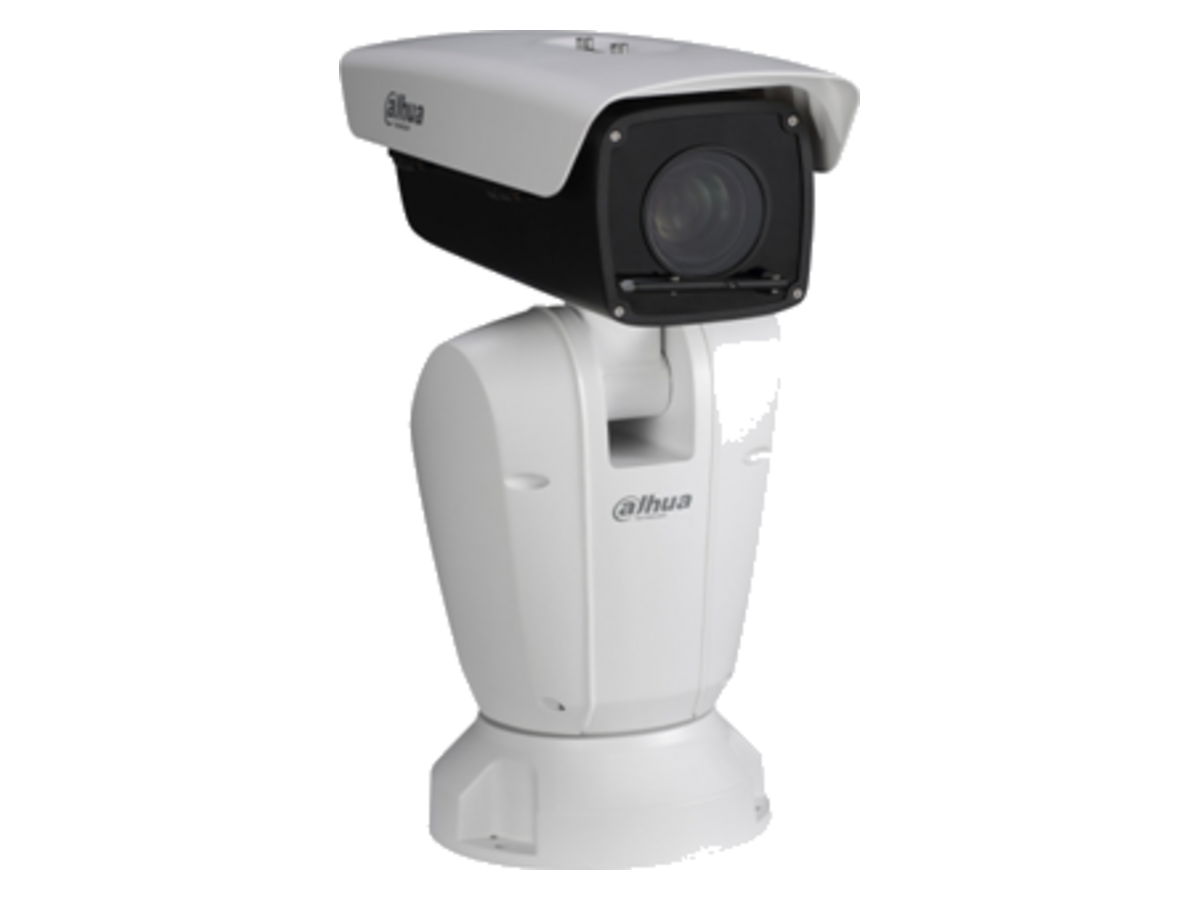

| 類型 | Part Number Description 2MP 30x Starlight IR Network 230.9mm |
|---|
| DH-PTZ12230F-IRB-N | 202.7mm Positioning System, WDR, PAL 2MP 30x Starlight IR Network 2MP DH-PTZ12230FN-IRB-N Positioning System, WDR, NTSC Positioning |
|---|
| System | 2MP 30x Starlight IR Network PTZ12230F-IRB-N Positioning System, WDR, PAL 2MP 30x Starlight IR Network PTZ12230FN-IRB-N Positioning System, WDR, NTSC |
|---|
| AC24V/5A | Power Adapter Accessories |
|---|
| PFB712W | Wall Mount |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
