| Sensor | 1/1.9", progressive scan, 2.0megapixel, CMOS |
|---|
| 鏡頭 | 5.7 ~ 216.6 mm (38x optical zoom) , AF automatic focusing and motorized zoom lens |
|---|
| Angle of View (H) | 58.4° (wide) ~ 2.08° (tele) |
|---|
| Shutter | Auto/Manual; shutter time: 1s ~ 1/100000 s Colour: 0.001Lux (F1.5, AGC ON) Minimum Illumination 0 Lux with IR |
|---|
| Iris | Auto/Manual; F1.5 ~ F4.5 |
|---|
| Day/Night | IR-cut filter with auto switch (ICR) |
|---|
| Digital noise reduction | 2D/3D DNR |
|---|
| S/N | >52dB |
|---|
| IR Range | UP to 250m (820ft) |
|---|
| | Defog Optical Defog & Digital Defog |
|---|
| WDR | 120dB |
|---|
| 視頻壓縮 | Ultra 265,H.265, H.264, MJPEG |
|---|
| H.264 code profile | Baseline profile, Main Profile, High Profile Main Stream:2MP (1920×1080):Max. 60 fps; |
|---|
| Frame Rate | Sub Stream:2MP (1920×1080):Max. 60 fps; Third Stream: D1 (720×576): Max. 60 fps |
|---|
| HLC | Supported |
|---|
| BLC | Supported |
|---|
| EIS | Supported |
|---|
| OSD | Up to 8 OSDs |
|---|
| 隱私遮蔽 | Up to 24 areas |
|---|
| ROI | Up to 8 areas |
|---|
| Motion Detection | Up to 4 areas Smart |
|---|
| Behavior Detection | Intrusion, cross line, motion detection, Auto tracking |
|---|
| Exception Detection | Audio detection |
|---|
| Intelligent Identification | Face detection |
|---|
| Statistical Analysis | People counting Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP General Function Authentication, User Authentication |
|---|
| 音訊壓縮 | G.711 |
|---|
| 雙向語音 | Supported |
|---|
| Suppression | Supported |
|---|
| 取樣率 | 8 KHZ Storage |
|---|
| Edge Storage | Micro SD, up to 128 GB |
|---|
| 網絡儲存 | ANR IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, Protocols SNMP |
|---|
| Compatible Integration | ONVIF(Profile S, Profile G), API Pan & Tilt |
|---|
| Pan Range | 360° (endless) 0.1°/s ~ 240°/s Pan Speed Preset speed: 300°/s |
|---|
| Tilt Range | –20° ~ +90° (auto reverse) 0.1° ~ 160°/s Tilt Speed Preset speed: 240°/s |
|---|
| Number of Presets | 1024 |
|---|
| Patrol | Preset patrol, route patrol, recorded patrol |
|---|
| Home Position | Supported Audio cable |
|---|
| Audio I/O | Input: impedance 35 kΩ; amplitude 2 V [p-p] Output: impedance 600 Ω; amplitude 2 V [p-p] |
|---|
| Alarm I/O | 2/1 |
|---|
| Serial Port | 1 RS485 |
|---|
| Network | 1 RJ45 10M/100M/1000M Base-TX Ethernet SFP Base-TX Ethernet |
|---|
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] 24 V AC (Default) ±25%, 24 V DC±25% Power Power consumption: 10.6~51W |
|---|

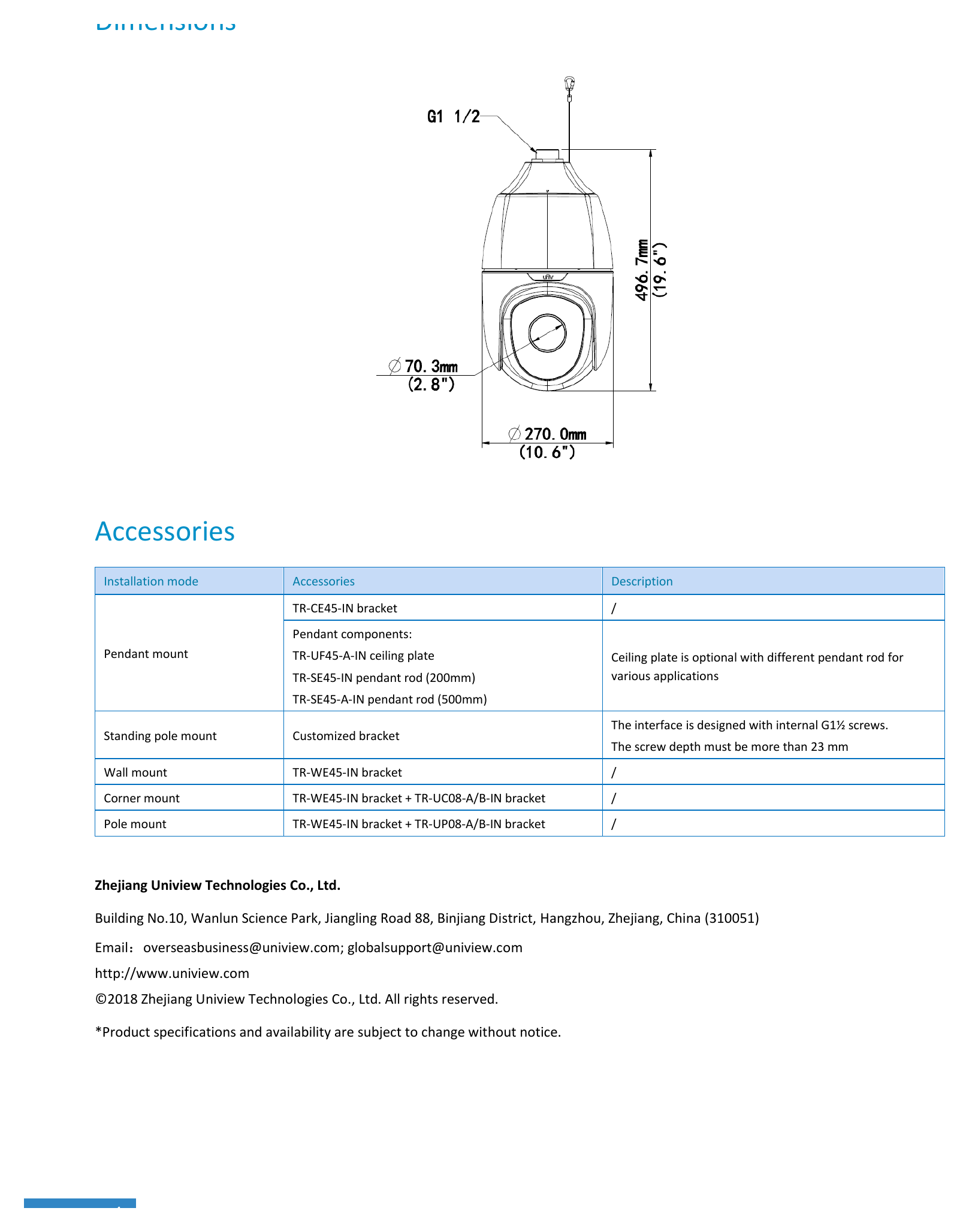

| Dimensions(Ø xH) | Φ270 x 496.7mm (Φ10.6” x 19.6”) |
|---|
| 重量 | 9.69 kg (21.4 lb) |
|---|
| Working Environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity:10%~ 90% RH(non-condensing) |
|---|
| 防護等級 | IP66 |
|---|
| Vandal Resistant | IK10 |
|---|
| 安裝方式 | Accessories Description |
|---|
| TR-CE45-IN bracket | / Pendant components: |
|---|
| Pendant mount | TR-UF45-A-IN ceiling plate Ceiling plate is optional with different pendant rod for |
|---|
| TR-SE45-IN pendant rod (200mm) | various applications TR-SE45-A-IN pendant rod (500mm) The interface is designed with internal G1½ screws. |
|---|
| Standing pole mount | Customized bracket The screw depth must be more than 23 mm |
|---|
| Wall mount | TR-WE45-IN bracket / |
|---|
| Corner mount | TR-WE45-IN bracket + TR-UC08-A/B-IN bracket / |
|---|
| Pole mount | TR-WE45-IN bracket + TR-UP08-A/B-IN bracket / |
|---|
