uniview IPC6624SR-X33-VF-MA 為4MP 33x Lighthunter Network PTZ Dome Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC6624SR-X33-VF-MA 香港價格連安裝報價。
| Sensor | 1/2.8", 4.0 megapixel, progressive scan, CMOS Colour: 0.003 Lux (F1.5, AGC ON) Min. Illumination 0 Lux with IR |
|---|---|
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >56dB |
| 鏡頭類型 | 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens |
| Digital Zoom | 16 |
| Optical Zoom | 33 |
| Iris | Auto; F1.5 ~ F4.0 |
| Angle of View (H) | 53.0° ~ 2.3° |
| Angle of View (V) | 31.0° ~ 1.3° |
| Angle of View (O) | 65.2° ~ 2.7° |
| Lens (mm) | Detect (m) Observe (m) Recognize (m) Identify (m) |
| DORI Distance | 4.5 105.8(346.9ft) 42.3(138.8ft) 21.2(69.4ft) 10.6(34.7ft) 148.5 3172.5(10408.5ft) 1269.0(4163.4ft) 634.5(2081.7ft) 317.3(1040.8ft) |
| IR Range | Up to 200m (492 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG Main Stream: 4MP(2688*1520),Max 30fps; |
| Frame Rate | Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; |
| 視頻碼率 | 128 Kbps~16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video stream | Triple streams |
| OSD | Up to 8 OSDs |
| 隱私遮蔽 | 24 areas, up to 4 areas per scene |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| 除霧 | Digital Defog Support false alarm filtering:Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection |
| 人臉抓拍 | Support |
| People Counting | Support people flow counting and crowd density monitoring |
| Basic Detection | Motion detection, Audio detection, Tampering Alarm |
| Auto Tracking | Support Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User |
| 音訊壓縮 | G.711U,G.711A |
| Audio Bitrate | 64 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 8 kHz |
| Edge Storage | Micro SD, up to 256 GB |
| 網絡儲存 | ANR,NAS(NFS) IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK |
| 用戶管理 | Up to 32 users. 2 user levels: administrator and common user Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF EZStation |
| 客戶端 | EZLive EZView |
| 瀏覽器 | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Pan Range | 360° (endless) 0.1°/s ~ 200°/s Preset speed: 300°/s |
| Tilt Range | –15° ~ 90° (auto reverse) 0.1°/s ~ 200°/s Preset speed: 240°/s |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s~1800s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1 RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC FCC CFR 47 Part 15 EN 55032:2015 |
| EMC | EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 IEC 62368-1 |
| Safety | EN 62368-1 UL 60950-1 |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) AC 24V±25%, DC 24V±25%, PoE+ (IEEE802.3 at) Power Power consumption: Max 25W |
| 電源接口 | Wires with cold-pressed terminal |
| Dimensions (Ø x H) | Ø227 x 384.8mm (Ø8.9” x 15.1”) |
| 重量 | 5.28kg(11.64lb) |
| Working Environment | -40°C ~70°C (-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40°C ~70°C (-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing) |
| 防雷 | 6KV |
| Reset button | Support Ingress Protection: IP66 Protection Vandal Resistant: N/A |
| TR-CE45-IN | TR-SE45-A-IN TR-SE45-IN TR-UF45-A-IN TR-WE45-IN |
| TR-WE45-A-IN | TR-UP08-A-IN/TR-UP08-B-IN TR-UC08-A-IN/ TR-UC08-B-IN TR-JB12-IN TR-WE45-B-IN |
| Pendent Mount (Indoor Use) | Pole Mount |
| TR-CE45-IN; | TR-WE45-IN/TR-WE45-A-IN+TR-UP08-A-IN/TR-UP08-B-IN+TR-JB12-IN TR-UF-45-A –IN +TR-SE45-A-IN/TR-SE45-IN |
| Corner Mount | / TR-WE45-IN/TR-WE45-A-IN+TR-UC08-A-IN/ TR-UC08-B-IN+TR-JB12-IN / |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

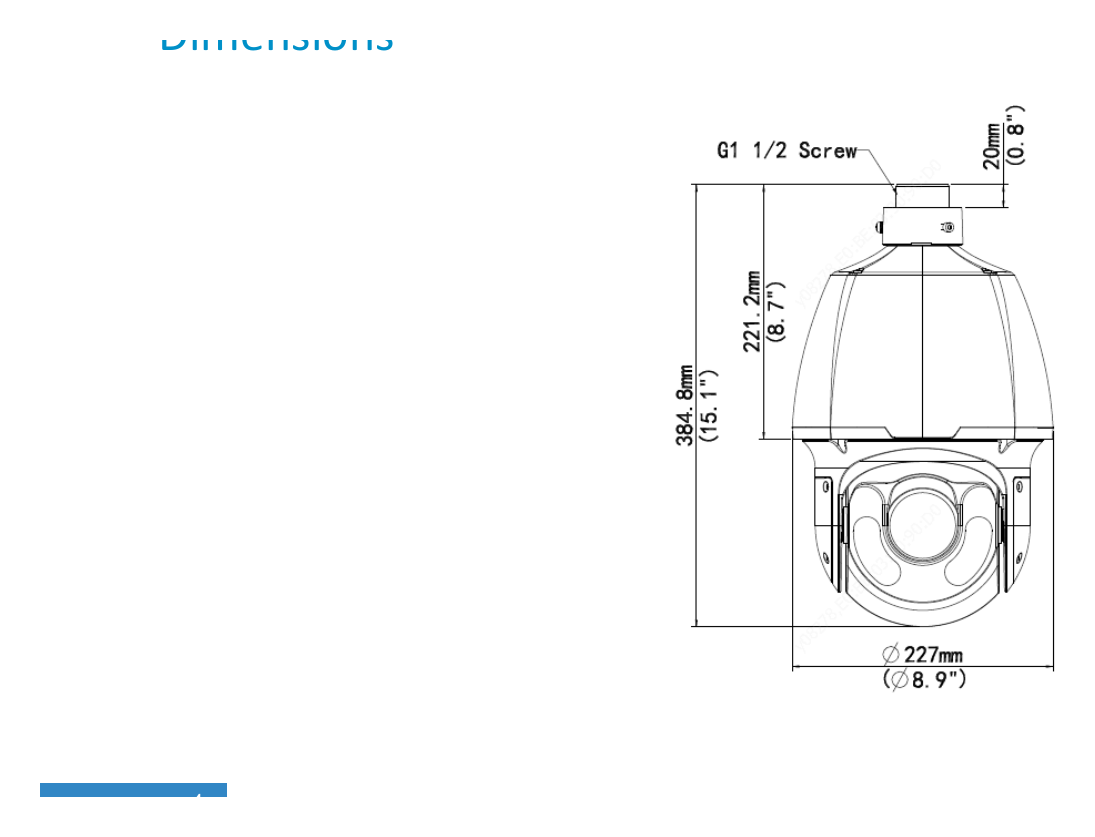

詳見圖示｜Unit: mm
IPC6624SR-X33-VF-MA uniview 4MP 33x Lighthunter Network PTZ Dome Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC6624SR-X33-VF-MA 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：重量方面，IPC6624SR-X33-VF-MA 係 5.28kg(11.64lb)，SLP-200W-B-US-PORTABLE-SOLAR-PANEL 係 8.9kg/19.6lbs。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 SLP-200W-B-US-PORTABLE-SOLAR-PANEL 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC6624SR-X33-VF-MA 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 IPC6624SR-X33-VF-MA uniview 4MP 33x Lighthunter Network PTZ Dome Camera供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：沙田CCTV 閉路電視安裝、油麻地CCTV 閉路電視安裝、深水埗CCTV 閉路電視安裝、灣仔CCTV 閉路電視安裝、筲箕灣CCTV 閉路電視安裝、紅磡CCTV 閉路電視安裝、荃灣CCTV 閉路電視安裝、葵涌CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 IPC6624SR-X33-VF-MA 香港價格連安裝報價。
IPC6624SR-X33-VF-MA uniview 4MP 33x Lighthunter Network PTZ Dome Camera適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
