| Sensor | 1/2.8", progressive scan, 2.0 megapixel, CMOS |
|---|
| 鏡頭 | 4.5~ 148.5mm (33x optical zoom), AF automatic focusing and motorized zoom lens |
|---|
| Angle of View (H) | 62.67° (wide) ~ 2.82° (tele) |
|---|
| Shutter | Auto/Manual; shutter time: 1s ~ 1/100000 s Colour: 0.001 lux (F1.5, AGC ON) B/W: 0.0001 lux(F1.5, AGC ON) |
|---|
| Iris | Auto/Manual; F1.5 ~ F4.0 |
|---|
| Day/Night | IR-cut filter with auto switch (ICR) |
|---|
| Digital noise reduction | 2D/3D DNR |
|---|
| S/N | >52dB |
|---|
| 除霧 | Digital Defog |
|---|
| WDR | 120dB |
|---|
| 視頻壓縮 | Ultra 265,H.265, H.264, MJPEG |
|---|
| H.264 code profile | Baseline profile, Main Profile, High Profile Main Stream:2MP (1920×1080):Max. 30 fps; |
|---|
| Frame Rate | Sub Stream:2MP (1920×1080):Max. 30 fps; Third Stream: D1 (720×576): Max. 30 fps |
|---|
| HLC | Supported |
|---|
| BLC | Supported |
|---|
| EIS | Supported |
|---|
| OSD | Up to 8 OSDs |
|---|
| 隱私遮蔽 | Up to 8 areas |
|---|
| ROI | Up to 8 areas |
|---|
| Motion Detection | Up to 4 areas |
|---|
| Behavior Detection | Intrusion, cross line, motion detection |
|---|
| Exception Detection | Audio detection |
|---|
| Intelligent Identification | Face detection |
|---|
| Statistical Analysis | People counting |
|---|
| Auto Tracking | Auto Tracking Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
|---|
| 音訊壓縮 | G.711 |
|---|
| 雙向語音 | Supported |
|---|
| Suppression | Supported |
|---|
| 取樣率 | 8 KHZ |
|---|
| Edge Storage | Micro SD, up to 128 GB |
|---|
| 網絡儲存 | ANR IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
|---|
| Compatible Integration | ONVIF(Profile S, Profile G), API |
|---|
| Pan Range | 360° (endless) 0.1°/s ~ 400°/s Preset speed:400°/s |
|---|
| Tilt Range | 1° ~ +90° 0.1° ~ 240°/s Preset speed: 240°/s |
|---|
| Number of Presets | 1024 |
|---|
| Patrol | Preset patrol, route patrol, recorded patrol |
|---|
| Home Position | Supported Audio cable |
|---|
| Audio I/O | 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] 1 Output: impedance 600 Ω; amplitude 2 V [p-p] |
|---|
| Alarm I/O | 2/ 1 |
|---|
| Serial Port | 1 RS485 |
|---|
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
|---|
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] 24 V AC±25%, 24 V DC±25%, PoE (IEEE802.3 at) Power consumption: MAX 16W |
|---|

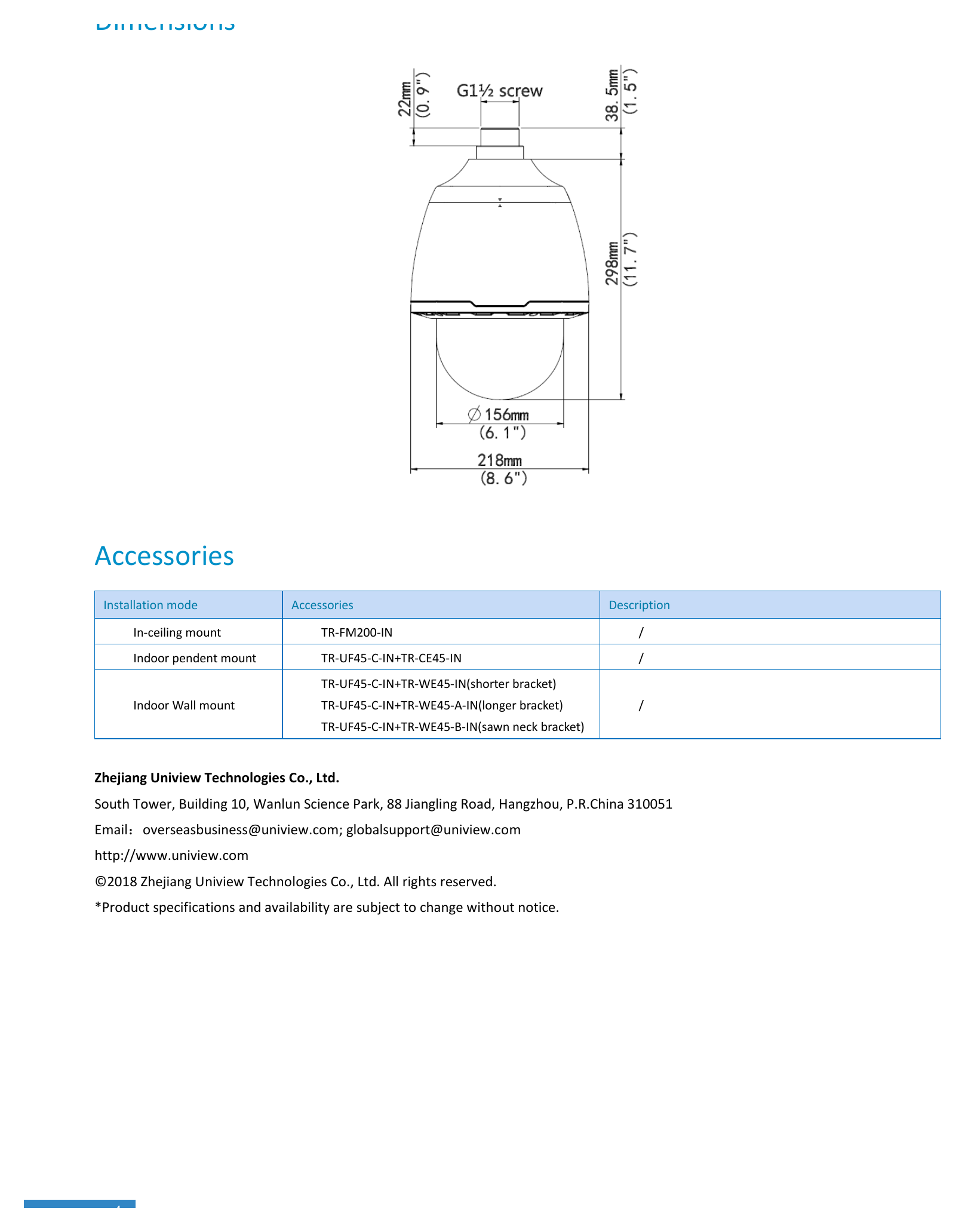

| Dimensions(Ø xH) | Φ218mm×298mm(Φ8.6” x 11.7”) |
|---|
| 重量 | 4.2 kg (9.3 lb) |
|---|
| Working Environment | –30°C ~ +70°C (-22°F ~ 158°F), Humidity:10%~ 90% RH(non-condensing) |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistant | IK10 |
|---|
| Reset Button | Supported |
|---|
| 安裝方式 | Accessories Description |
|---|
| In-ceiling mount | TR-FM200-IN / |
|---|
| Indoor pendent mount | TR-UF45-C-IN+TR-CE45-IN / TR-UF45-C-IN+TR-WE45-IN(shorter bracket) |
|---|
| Indoor Wall mount | TR-UF45-C-IN+TR-WE45-A-IN(longer bracket) / TR-UF45-C-IN+TR-WE45-B-IN(sawn neck bracket) |
|---|
