| Camera | IVS Tripwire, Intrusion, Abandoned/Missing |
|---|
| 影像感測器 | 1/2.8” STARVIS™ CMOS Advanced Intelligent Functions Face Detection, Heat Map |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Video |
|---|
| RAM/ROM | 1024M/128M Compression H.265+/H.265/H.264+/H.264 |
|---|
| Scanning System | Progressive Streaming Capability 3 Streams |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s 1080P(1920×1080)/1.3M(1280×960)/720P(1280× Resolution 720)/D1(704×576/704×480)/CIF(352×288/352×240) Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; Minimum Illumination 0Lux@F1.6 (IR on) Main stream: 1080P/1.3M/720P(1~50/60fps) |
|---|
| S/N Ratio | More than 55dB Sub stream1: D1/CIF(1 ~ 25/30fps) Frame Rate |
|---|
| IR Distance | Distance up to 150m (492ft) Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps) |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| 碼率控制 | CBR/VBR |
|---|
| IR LEDs | 4 |
|---|
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| 焦距 | 4.8mm~120mm |
|---|
| Backlight Compensation | BLC / HLC / WDR (120dB) |
|---|
| Max. Aperture | F1.6 ~ F4.4 |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Angle of View | H: 62.8° ~ 2.4° |
|---|
| Gain Control | Auto / Manual |
|---|
| Optical Zoom | 25x |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| Focus Control | Auto/Manual |
|---|
| Motion Detection | Support |
|---|
| Close Focus Distance | 100mm~ 1500mm |
|---|
| Region of Interest | Support |
|---|
| DORI Distance | Electronic Image Stabilization Support (EIS) *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Defog Support sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| Digital Zoom | 16x |
|---|
| Detect | Observe Recognize Identify |
|---|
| Flip | 180° 1613m(5292ft) 646m(2119ft) 323m(1060ft) 161m(528ft) |
|---|
| Privacy Masking | Up to 24 areas Pan: 0° ~ 360° endless; Tilt: -90° ~ 90°, effective Pan/Tilt Range |
|---|
| angle: -51° ~ 90°, auto flip 180° | G.711a/G.711Mu/AAC/G.722 / G.726/G.729/ Compression MPEG2-L2 |
|---|
| Manual Control Speed | Pan: 0.1° ~120° /s; Tilt: 0.1° ~75° /s |
|---|
| Preset Speed | Pan: 120° /s; Tilt: 75° /s |
|---|
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
|---|
| 預置位 | 300 IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan Protocol ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Interoperability | ONVIF Profile S&G, API Auto restore to previous PTZ and lens status after |
|---|
| Power up Action | Streaming Method Unicast / Multicast power failure Activate Preset/ Scan/ Tour/ Pattern if there is no Max. User Access 20 users Idle Motion command in the specified period NAS (Network Attached Storage),Local PC for Edge Storage |
|---|
| Protocol | DH-SD instant recording, Micro SD card 256GB |
|---|
| Intelligence | Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Motion detection, Video tampering , Scene | Management Software Smart PSS, DSS, DMSS |
|---|
| Event Trigger | changing, Network disconnection, IP address |
|---|
| conflict, Illegal Access, Storage anomaly | Smart Phone IOS, Android www.dahuasecurity.com |
|---|
| Certifications | Accessories |
|---|
| CE: EN55032/EN55024/EN50130-4 | Included: |
|---|
| Video Interface | N/A |
|---|
| RS485 | N/A |
|---|
| PFA730 | DC12V/4A |
|---|
| Junction Box | Power Adapter |
|---|
| Audio I/O | 1/1 |
|---|
| Alarm I/O | 2/1 Optional： Electrical |
|---|
| 供電 | DC12V/4A, PoE+(802.3at) |
|---|
| 功耗 | 22W (IR on) PFB730W Environmental Wall Mount |
|---|
| Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH Dimensions (mm) |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 161.0mm 153.4mm Construction |
|---|
| Casing | Metal |
|---|

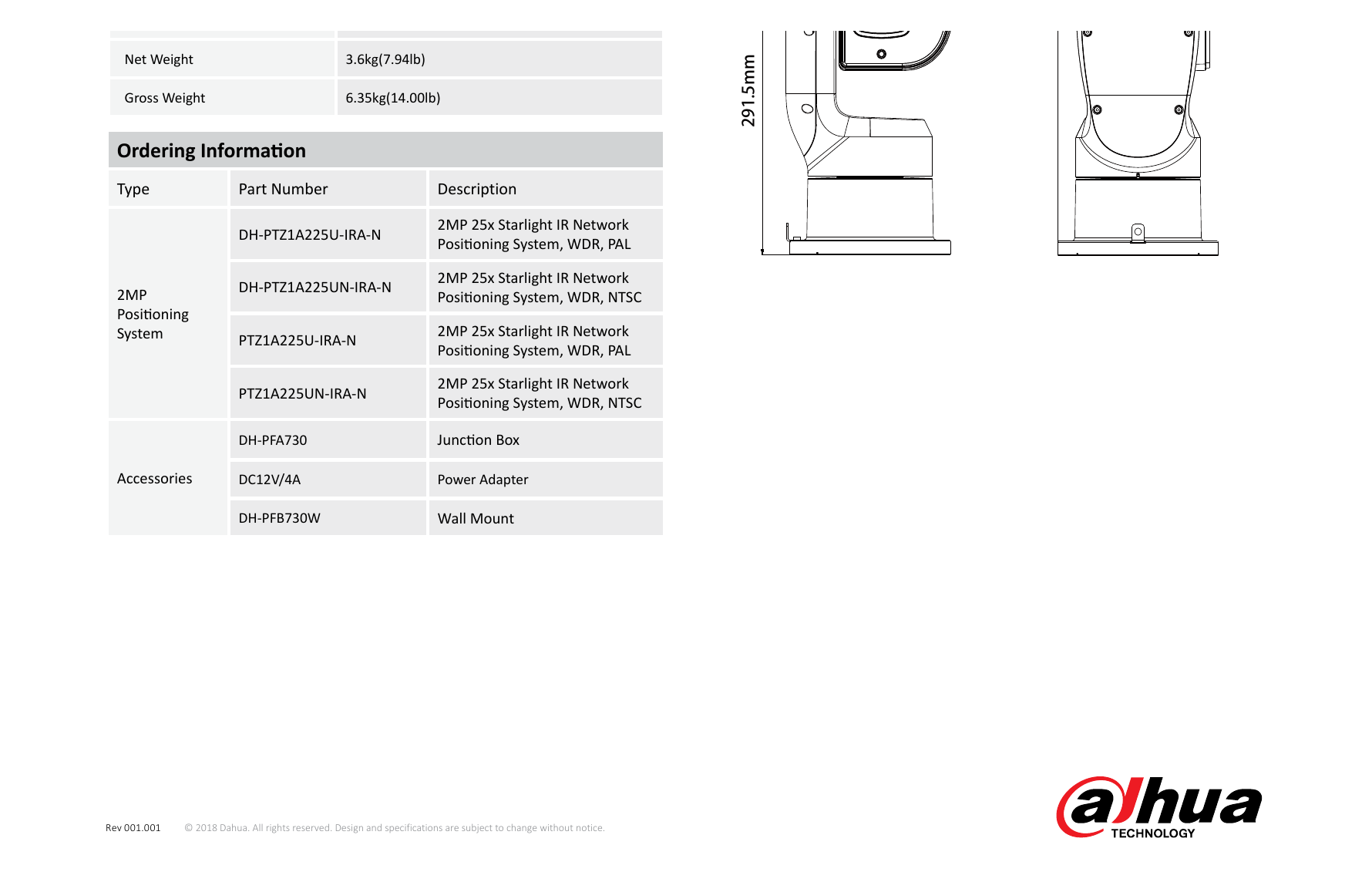

| 尺寸 | Φ291.5(mm) x 161(mm) x 153.4(mm) |
|---|
| 淨重 | 3.6kg(7.94lb) 291.5mm |
|---|
| 毛重 | 6.35kg(14.00lb) Ordering Information |
|---|

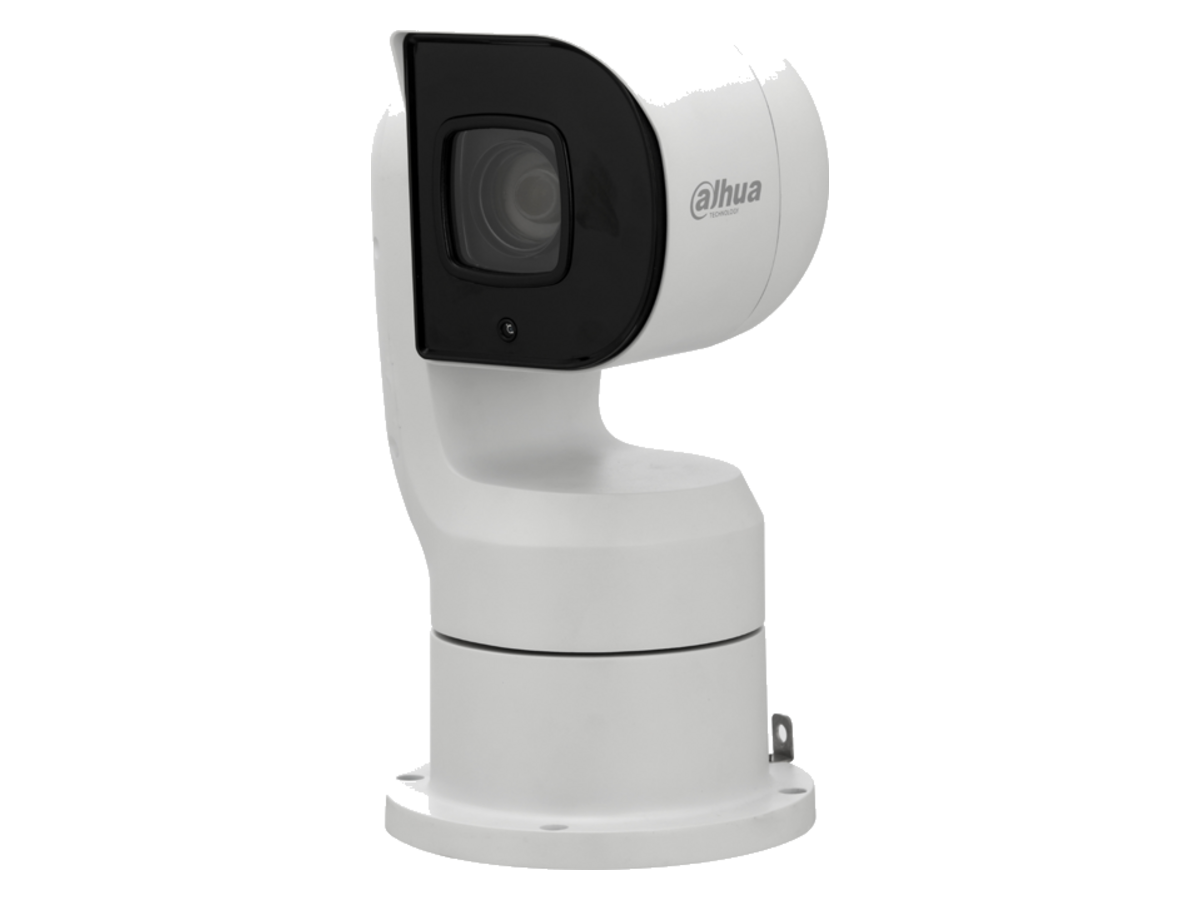

| 類型 | Part Number Description 2MP 25x Starlight IR Network DH-PTZ1A225U-IRA-N Positioning System, WDR, PAL 2MP 25x Starlight IR Network 2MP DH-PTZ1A225UN-IRA-N Positioning System, WDR, NTSC Positioning |
|---|
| System | 2MP 25x Starlight IR Network PTZ1A225U-IRA-N Positioning System, WDR, PAL 2MP 25x Starlight IR Network PTZ1A225UN-IRA-N Positioning System, WDR, NTSC |
|---|
| DH-PFA730 | Junction Box |
|---|
| Accessories | DC12V/4A Power Adapter |
|---|
| DH-PFB730W | Wall Mount |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
