| Auto-tracking | regardless of manufacturer. www.dahuasecurity.com |
|---|
| Technical Specification | Video |
|---|
| Camera | Compression H.264 / MJPEG |
|---|
| 影像感測器 | 1/2.8" CMOS Streaming Capability 3 Streams |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels 1080P(1920×1080)/720P(1280×720)/D1(704×576/ Resolution 704×480)/CIF(352×288/352×240) |
|---|
| RAM/ROM | 1024M/64M Main stream: 1080P (1 ~ 25/30fps), 720P(1~50/60fps) |
|---|
| Scanning System | Progressive |
|---|
| Frame Rate | Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s Sub stream2: 1080P/720P/D1/CIF (1 ~ 25/30fps) |
|---|
| Minimum Illumination | Color: 0.05Lux@F1.6; 0Lux@F1.6 (IR on) |
|---|
| 碼率控制 | CBR/VBR |
|---|
| S/N Ratio | More than 55dB Bit Rate H.264: 448K~8192Kbps, MJPEG: 4096K~20480Kbps |
|---|
| IR Distance | Distance up to 800m(2625ft) Day/Night Auto(ICR) / Color / B/W |
|---|
| IR On/Off Control | Auto/Manual Backlight Compensation BLC / HLC / DWDR |
|---|
| IR LEDs | Laser module White Balance Auto,ATW,Indoor,Outdoor,Manual |
|---|
| 鏡頭 | Gain Control Auto / Manual |
|---|
| 焦距 | 7.9mm ~ 316mm Noise Reduction Ultra DNR (2D/3D) |
|---|
| Max. Aperture | F1.6 ~ F6.1 Motion Detetion Support |
|---|
| Angle of View | H: 41.5° ~ 1.1° Region of Interest Support |
|---|
| Optical Zoom | 40x Electronic Image Support Stabilization (EIS) |
|---|
| Focus Control | Auto/Manual |
|---|
| 除霧 | Support |
|---|
| Close Focus Distance | 100mm~ 1000mm |
|---|
| Digital Zoom | 16x DORI Distance |
|---|
| Flip | 180° *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Privacy Masking Up to 24 areas sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Audio |
|---|
| Detect | Observe Recognize Identify |
|---|
| Compression | G.711a/G.711mu/G.726/AAC 3571m(11716ft) 1428m(4685t) 714m(2343ft) 357m(1171ft) |
|---|
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -90° ~ 45° IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP, |
|---|
| Protocol | ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, |
|---|
| Manual Control Speed | Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| Preset Speed | Pan:160° /s; Tilt: 60° /s Interoperability ONVIF, PSIA, CGI |
|---|
| 預置位 | 300 Streaming Method Unicast / Multicast |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan Max. User Access 20 users |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation Edge Storage Local PC for instant recording, Micro SD card 128GB Auto restore to previous PTZ and lens status after |
|---|
| Power up Action | Web Viewer IE, Chrome, Firefox, Safari power failure Activate Preset/ Scan/ Tour/ Pattern if there is no Management Software Smart PSS, DSS Idle Motion command in the specified period |
|---|
| Smart Phone | IOS, Android |
|---|
| Auto Tracking | Support CE: EN55032/EN55024/EN50130-4 Certifications FCC: Part15 subpartB,ANSI C63.4- 2014 Tripwire, Intrusion,Abandoned/Missing, Face IVS Detection， Heat Map www.dahuasecurity.com |
|---|
| 接口 | Accessories |
|---|
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) Included： |
|---|
| RS485 | 1 |
|---|
| Audio I/O | 1/1 |
|---|
| Alarm I/O | 7/2 AC24V/8A Electrical Power Adapter |
|---|
| 供電 | AC24V/8A(±25%) Optional： |
|---|
| 功耗 | 70W, 90W (IR on, Heater on) Environmental |
|---|
| Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH PFB712W-CA010 |
|---|
| 防護等級 | IP66 Wall Mount |
|---|

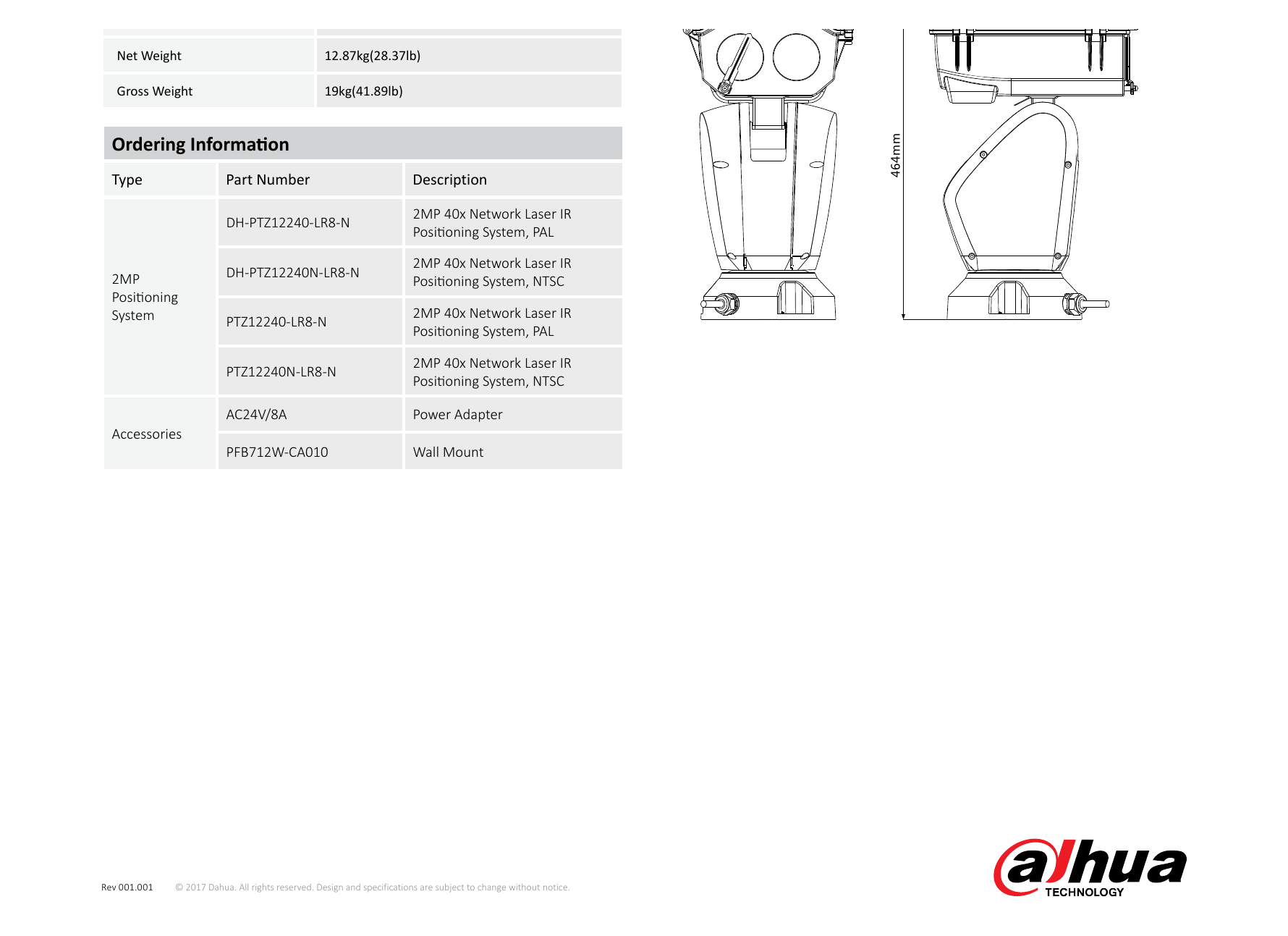

| Vandal Resistance | N/A Dimensions (mm) Construction |
|---|
| Casing | Metal 252mm 360mm |
|---|
| 尺寸 | Φ252(mm) x 360 (mm) x 464 (mm) |
|---|
| 淨重 | 12.87kg(28.37lb) |
|---|
| 毛重 | 19kg(41.89lb) Ordering Information 464mm |
|---|

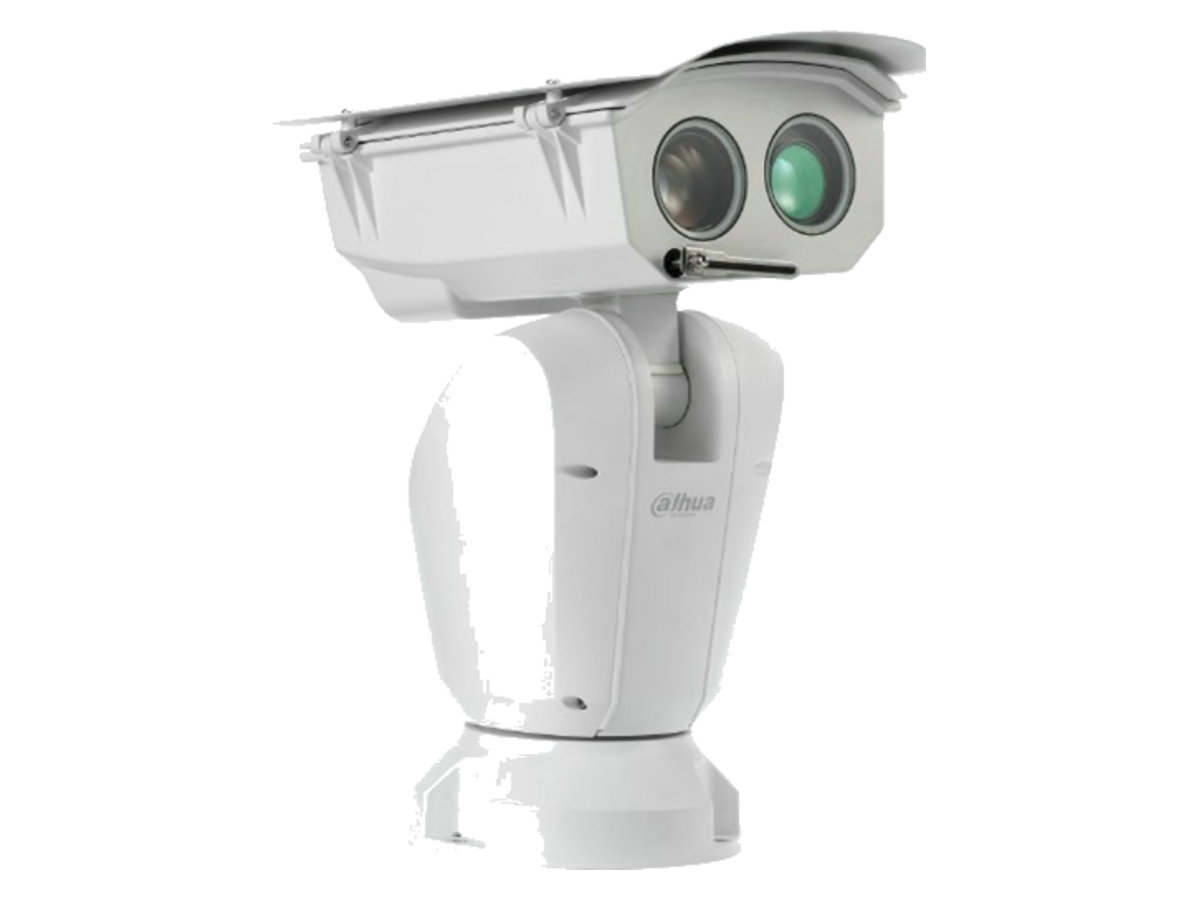

| 類型 | Part Number Description 2MP 40x Network Laser IR DH-PTZ12240-LR8-N Positioning System, PAL 2MP 40x Network Laser IR 2MP DH-PTZ12240N-LR8-N Positioning System, NTSC Positioning |
|---|
| System | 2MP 40x Network Laser IR PTZ12240-LR8-N Positioning System, PAL 2MP 40x Network Laser IR PTZ12240N-LR8-N Positioning System, NTSC |
|---|
| AC24V/8A | Power Adapter Accessories |
|---|
| PFB712W-CA010 | Wall Mount |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
