| Camera | IVS Tripwire, Intrusion, Abandoned/Missing |
|---|
| 影像感測器 | 1/1.9" CMOS Advanced Intelligent Functions Face Detection, Heat Map |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Video |
|---|
| RAM/ROM | 1024M/64M Compression H.264 / MJPEG |
|---|
| Scanning System | Progressive Streaming Capability 3 Streams |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s 1080P(1920×1080)/720P(1280×720)/D1(704×576/ Resolution 704×480)/CIF(352×288/352×240) Color: 0.002Lux@F1.5; B/W: 0.0002Lux@F1.5; Minimum Illumination 0Lux@F1.5 (IR on) Main stream: 1080P(1~25/30fps), 720P(1~50/60fps) |
|---|
| S/N Ratio | More than 55dB |
|---|
| Frame Rate | Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| IR Distance | Distance up to 800m(2625ft) Sub stream2: 1080P/720P/D1/CIF (1 ~ 25/30fps) |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| 碼率控制 | CBR/VBR |
|---|
| IR LEDs | 4 |
|---|
| Bit Rate | H.264: 448K~8192Kbps, MJPEG: 4096K~20480Kbps |
|---|
| Wiper | Support |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| Backlight Compensation | BLC / HLC / WDR (120dB) |
|---|
| 焦距 | 6mm ~ 180mm |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Max. Aperture | F1.5~ F4.3 |
|---|
| Gain Control | Auto / Manual |
|---|
| Angle of View | H: 61.2° ~ 2.1° |
|---|
| Optical Zoom | 30x Noise Reduction Ultra DNR (2D/3D) |
|---|
| Focus Control | Auto/Manual Motion Detection Support |
|---|
| Close Focus Distance | 100mm~ 1000mm Region of Interest Support Electronic Image Stabilization |
|---|
| DORI Distance | Support (EIS) *Note: The DORI distance is a “general proximity” of distance which makes it easy to |
|---|
| 除霧 | Support pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Digital Zoom 16x |
|---|
| Detect | Observe Recognize Identify Flip 180° 1920m(6299ft) 768m(2520ft) 384m(1260ft) 192m(630ft) Privacy Masking Up to 24 areas |
|---|
| PTZ | Audio |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -90° ~ 45° Compression G.711a/G.711mu/G.726/AAC |
|---|
| Manual Control Speed | Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s Network |
|---|
| Preset Speed | Pan:160° /s; Tilt: 60° /s Ethernet RJ-45 (10Base-T/100Base-TX) |
|---|
| 預置位 | 300 IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation Interoperability ONVIF Profile S&G, API Auto restore to previous PTZ and lens status after Streaming Method Unicast / Multicast Power up Action power failure Activate Preset/ Scan/ Tour/ Pattern if there is no Max. User Access 20 users Idle Motion command in the specified period |
|---|
| Edge Storage | Local PC for instant recording, Micro SD card 128GB |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari Intelligence |
|---|
| Management Software | Smart PSS, DSS, DMSS Motion detection, Video tampering , Scene |
|---|
| Event Trigger | changing, Network disconnection, IP address |
|---|
| Smart Phone | IOS, Android conflict, Illegal Access, Storage anomaly www.dahuasecurity.com |
|---|
| Certifications | Accessories Certifications |
|---|
| CE: EN55032/EN55024/EN50130-4 | Included： FCC: Part15 subpartB,ANSI C63.4- 2014 |
|---|
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) |
|---|
| RS485 | 1 AC24V/8A |
|---|
| Audio I/O | 1/1 Power Adapter |
|---|
| Alarm I/O | 7/2 Optional： Electrical |
|---|
| 供電 | AC24V/8A(±25%) |
|---|
| 功耗 | 70W, 90W (IR on, Heater on) PFB712W Wall Mount Environmental |
|---|
| Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH Dimensions (mm) |
|---|
| 防護等級 | IP66 |
|---|
| Vandal Resistance | N/A 252mm 360mm Construction |
|---|
| Casing | Metal |
|---|

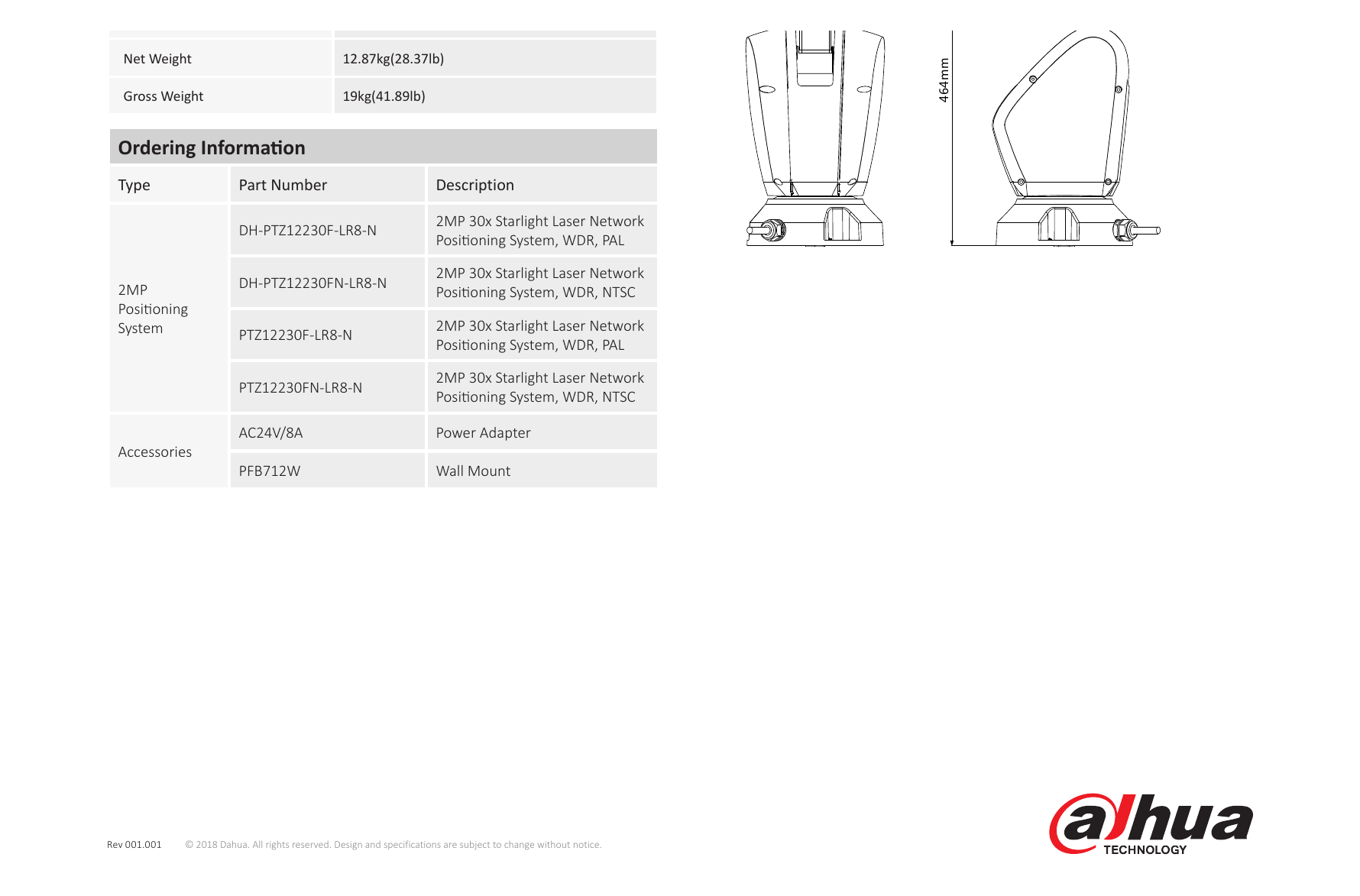

| 尺寸 | Φ252(mm) x 360(mm) x 464(mm) |
|---|
| 淨重 | 12.87kg(28.37lb) 464mm |
|---|
| 毛重 | 19kg(41.89lb) Ordering Information |
|---|

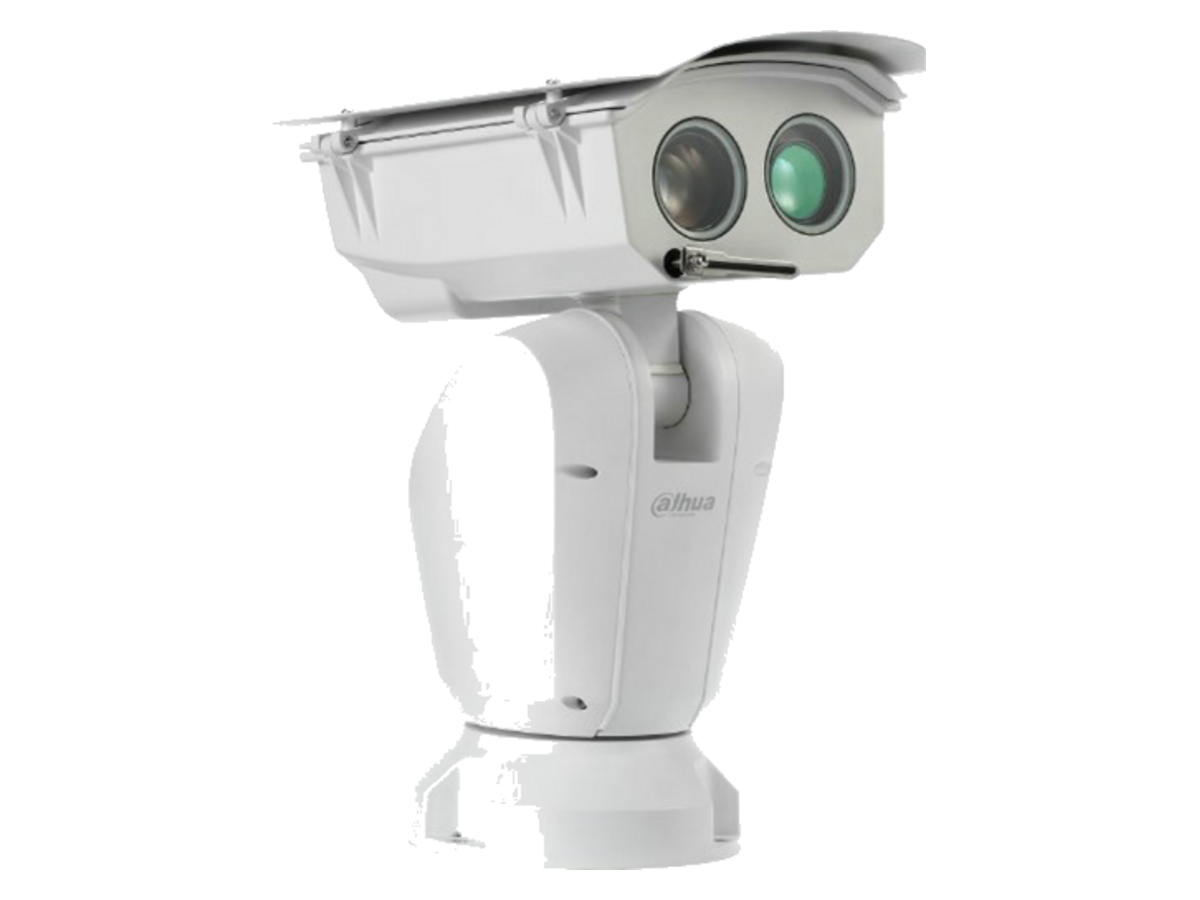

| 類型 | Part Number Description 2MP 30x Starlight Laser Network DH-PTZ12230F-LR8-N Positioning System, WDR, PAL 2MP 30x Starlight Laser Network 2MP DH-PTZ12230FN-LR8-N Positioning System, WDR, NTSC Positioning |
|---|
| System | 2MP 30x Starlight Laser Network PTZ12230F-LR8-N Positioning System, WDR, PAL 2MP 30x Starlight Laser Network PTZ12230FN-LR8-N Positioning System, WDR, NTSC |
|---|
| AC24V/8A | Power Adapter Accessories |
|---|
| PFB712W | Wall Mount |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
