| Camera | Advanced Intelligent Functions Face Detection, Heat Map |
|---|
| 影像感測器 | 1/2.8” STARVIS™ CMOS Video |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Compression H.265+/H.265/H.264+/H.264 |
|---|
| Scanning System | Progressive Streaming Capability 3 Streams 1080P(1920×1080)/1.3M(1280×960)/720P(1280× |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s Resolution 720)/D1(704×576/704×480)/CIF(352×288/352×240) Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; Main stream: 1080P/1.3M/720P(1~50/60fps) Minimum Illumination 0Lux@F1.6 (IR on) |
|---|
| Frame Rate | Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| S/N Ratio | More than 56dB Sub stream2: 1080P/1.3M/720P/D1/CIF |
|---|
| IR Distance | Distance up to 350m (1148ft) (1~25/30fps) |
|---|
| IR On/Off Control | Auto/Manual Bit Rate Control CBR/VBR |
|---|
| IR LEDs | 8 Bit Rate H.265/H.264: 448K ~ 8192Kbps |
|---|
| Smart Wiper | Support Day/Night Auto(ICR) / Color / B/W |
|---|
| 鏡頭 | Backlight Compensation BLC / HLC / WDR(120dB) |
|---|
| 焦距 | 3.95mm~177.7mm White Balance Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Max. Aperture | F1.6~ F4.95 Gain Control Auto / Manual |
|---|
| Angle of View | H: 70.3° ~ 1.8° Noise Reduction Ultra DNR (2D/3D) |
|---|
| Optical Zoom | 45x Motion Detection Support |
|---|
| Focus Control | Auto/Manual Region of Interest Support |
|---|
| Close Focus Distance | 100mm~ 1000mm Electronic Image Stabilization Support (EIS) |
|---|
| DORI Distance | Defog Support *Note: The DORI distance is a “general proximity” of distance which makes it easy to |
|---|
| Digital Zoom | 16x pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Flip 180° |
|---|
| Detect | Observe Recognize Identify Privacy Masking Up to 24 areas 2345m(7694ft) 938m(3077ft) 469m(1539ft) 234m(768ft) Audio |
|---|
| PTZ | G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/ Compression MPEG2-Layer2 Pan: 0° ~ 360° endless; Tilt: 0° ~ 360° endless, Network Pan/Tilt Range effective tilt angle: -55° ~ 223° |
|---|
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
|---|
| Manual Control Speed | Pan: 0.1° ~120° /s; Tilt: 0.1° ~60° /s IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Preset Speed | Pan: 120° /s; Tilt: 60° /s Protocol ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| 預置位 | 300 |
|---|
| Interoperability | ONVIF Profile S&G, API |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Max. User Access | 20 users Auto restore to previous PTZ and lens status after |
|---|
| Power up Action | NAS (Network Attached Storage),Local PC for |
|---|
| power failure | Edge Storage instant recording, Micro SD card 256GB Activate Preset/ Scan/ Tour/ Pattern if there is no |
|---|
| Idle Motion | Web Viewer IE, Chrome, Firefox, Safari command in the specified period |
|---|
| Protocol | DH-SD, Pelco-P/D (Auto recognition) Management Software Smart PSS, DSS, DMSS |
|---|
| Intelligence | Smart Phone IOS, Android Motion detection, Video tampering , Scene Certifications |
|---|
| Event Trigger | changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly CE: EN55032/EN55024/EN50130-4 Certifications |
|---|
| Auto Tracking | Support FCC: Part15 subpartB,ANSI C63.4- 2014 www.dahuasecurity.com |
|---|
| 接口 | AC24V/5A Power Adapter |
|---|
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) Accessories DH-PFB731W Wall Mount |
|---|
| RS485 | 1 DH-PFA120A Junction Box |
|---|
| Audio I/O | 1/1 Accessories |
|---|
| Alarm I/O | 7/2 Included: Electrical |
|---|
| 供電 | AC24V/5A(±25%), Hi-PoE For DH-PTZ19245U-IRB-N: AC 24V: 25W, 40W (IR on), 80W (IR on, Heater on) |
|---|
| 功耗 | Hi-PoE: 25W, 40W (IR on) |
|---|
| For DH-PTZ19245U-IRB-N-B: | AC24V/5A |
|---|
| AC 24V/Hi-PoE: 25W, 40W (IR on) | Power Adapter |
|---|
| Environmental | Optional： For DH-PTZ19245U-IRB-N: AC 24V: -50°C ~ 70°C (-58°F ~ +158°F) Hi-PoE : -40°C ~ 70°C (-40°F ~ +158°F) Operating Conditions For DH-PTZ19245U-IRB-N-B: -40°C ~ 70°C (-40°F ~ +158°F) Less than 95% RH |
|---|
| 防護等級 | IP68 |
|---|
| DH-PFB731W | DH-PFA120A |
|---|
| Vandal Resistance | N/A Wall Mount Junction Box Construction Dimensions (mm) |
|---|
| Casing | Metal |
|---|
| DH-PTZ19245U-IRB-N: | DH-PTZ19245U-IRB-N-B: |
|---|

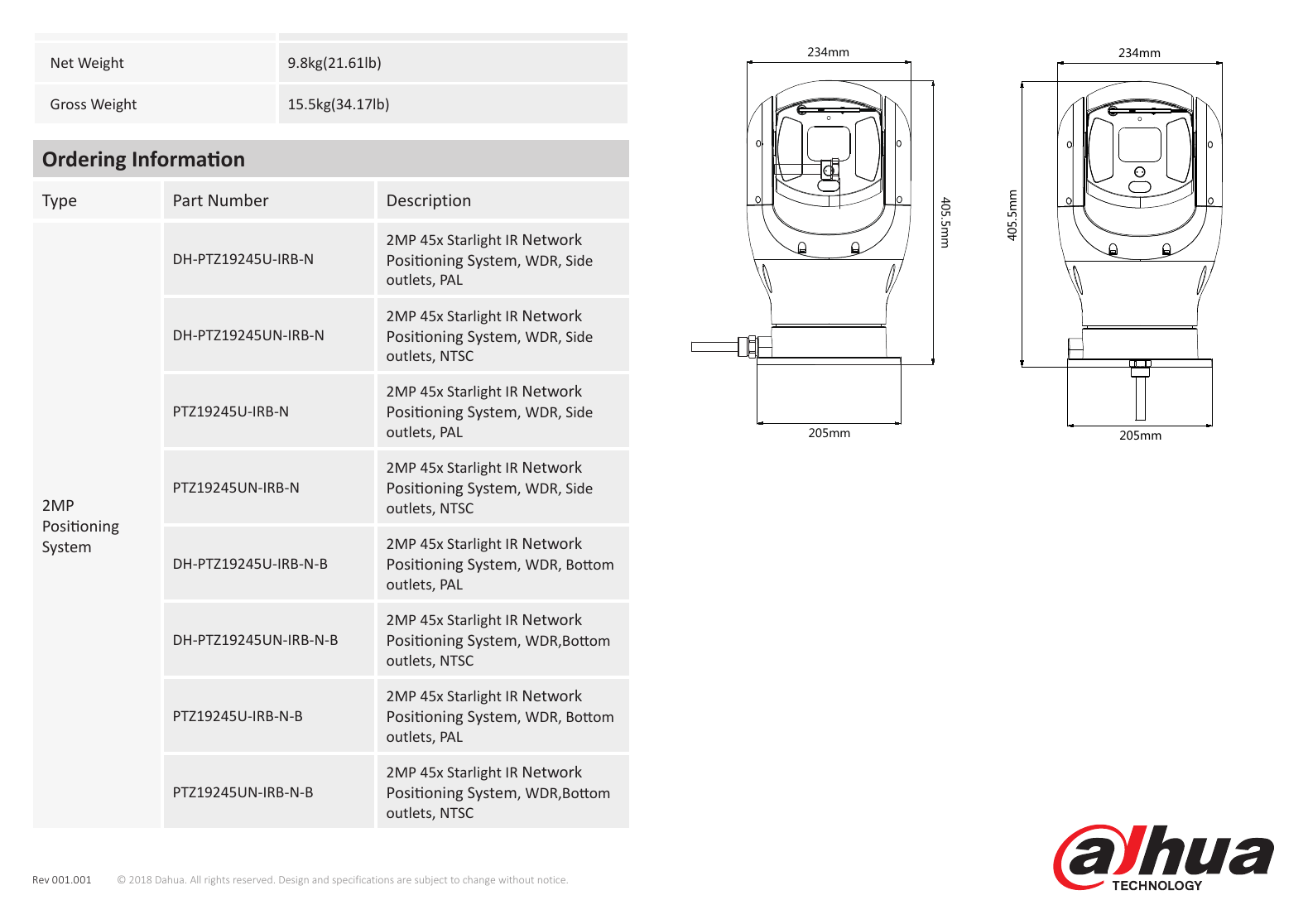

| 尺寸 | Φ234(mm) x 205(mm) x 405.5(mm) 234mm 234mm |
|---|
| 淨重 | 9.8kg(21.61lb) |
|---|
| 毛重 | 15.5kg(34.17lb) Ordering Information |
|---|
| 類型 | Part Number Description 405.5mm 405.5mm 2MP 45x Starlight IR Network |
|---|
| DH-PTZ19245U-IRB-N | Positioning System, WDR, Side outlets, PAL 2MP 45x Starlight IR Network |
|---|
| DH-PTZ19245UN-IRB-N | Positioning System, WDR, Side outlets, NTSC 2MP 45x Starlight IR Network |
|---|
| PTZ19245U-IRB-N | Positioning System, WDR, Side |
|---|
| outlets, PAL | 205mm 205mm 2MP 45x Starlight IR Network |
|---|
| PTZ19245UN-IRB-N | Positioning System, WDR, Side 2MP outlets, NTSC Positioning |
|---|
| System | 2MP 45x Starlight IR Network |
|---|
| DH-PTZ19245U-IRB-N-B | Positioning System, WDR, Bottom outlets, PAL 2MP 45x Starlight IR Network |
|---|
| DH-PTZ19245UN-IRB-N-B | Positioning System, WDR,Bottom outlets, NTSC 2MP 45x Starlight IR Network |
|---|
| PTZ19245U-IRB-N-B | Positioning System, WDR, Bottom outlets, PAL 2MP 45x Starlight IR Network |
|---|
| PTZ19245UN-IRB-N-B | Positioning System, WDR,Bottom outlets, NTSC |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
