| Auto-tracking | regardless of manufacturer. www.dahuasecurity.com |
|---|
| Technical Specification | Video |
|---|
| Camera | Compression H.264 / MJPEG |
|---|
| 影像感測器 | 1/2.8" CMOS Streaming Capability 3 Streams |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels 1080P(1920×1080)/720P(1280×720)/D1(704×576/ Resolution 704×480)/CIF(352×288/352×240) |
|---|
| RAM/ROM | 1024M/64M Main stream: 1080P (1 ~ 25/30fps), 720P(1~50/60fps) |
|---|
| Scanning System | Progressive |
|---|
| Frame Rate | Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s Sub stream2: 1080P/720P/D1/CIF (1 ~ 25/30fps) |
|---|
| Minimum Illumination | Color: 0.05Lux@F1.6; 0Lux@F1.6 (IR on) |
|---|
| 碼率控制 | CBR/VBR |
|---|
| S/N Ratio | More than 55dB |
|---|
| Bit Rate | H.264: 448K~8192Kbps, MJPEG: 4096K~20480Kbps |
|---|
| IR Distance | Distance up to 300m(984ft) |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| Backlight Compensation | BLC / HLC / DWDR |
|---|
| IR LEDs | 4 |
|---|
| White Balance | Auto,ATW,Indoor,Outdoor,Manual |
|---|
| Gain Control | Auto / Manual |
|---|
| 焦距 | 7.9mm ~ 316mm |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| Max. Aperture | F1.6 ~ F6.1 |
|---|
| Motion Detetion | Support |
|---|
| Angle of View | H: 41.5° ~ 1.1° |
|---|
| Region of Interest | Support |
|---|
| Optical Zoom | 40x Electronic Image Support Stabilization (EIS) |
|---|
| Focus Control | Auto/Manual |
|---|
| 除霧 | Support |
|---|
| Close Focus Distance | 100mm~ 1000mm |
|---|
| Digital Zoom | 16x DORI Distance |
|---|
| Flip | 180° *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Privacy Masking Up to 24 areas sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Audio |
|---|
| Detect | Observe Recognize Identify |
|---|
| Compression | G.711a/G.711mu/G.726/AAC 3571m(11716ft) 1428m(4685t) 714m(2343ft) 357m(1171ft) |
|---|
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -90° ~ 45° IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP, |
|---|
| Manual Control Speed | Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s Protocol ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| Preset Speed | Pan:160° /s; Tilt: 60° /s |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| 預置位 | 300 |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
|---|
| Max. User Access | 20 users |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Edge Storage | Local PC for instant recording, Micro SD card 128GB Auto restore to previous PTZ and lens status after Power up Action |
|---|
| power failure | Web Viewer IE, Chrome, Firefox, Safari Activate Preset/ Scan/ Tour/ Pattern if there is no |
|---|
| Idle Motion | Management Software Smart PSS, DSS command in the specified period |
|---|
| Protocol | DH-SD, Pelco-P/D (Auto recognition) Smart Phone IOS, Android |
|---|
| Intelligence | Certifications |
|---|
| Auto Tracking | Support CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 Tripwire, Intrusion,Abandoned/Missing, Face UL: UL60950-1+CAN/CSA C22.2,No.60950-1 IVS Detection, Heat Map www.dahuasecurity.com |
|---|
| 接口 | Accessories |
|---|
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) Included： |
|---|
| RS485 | 1 |
|---|
| Audio I/O | 1/1 |
|---|
| Alarm I/O | 7/2 AC24V/5A Electrical Power Adapter |
|---|
| 供電 | AC24V/5A(±25%) Optional： |
|---|
| 功耗 | 50W, 75W (IR on, Heater on) Environmental |
|---|
| Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH PFB712W-CA010 |
|---|
| 防護等級 | IP66 Wall Mount |
|---|

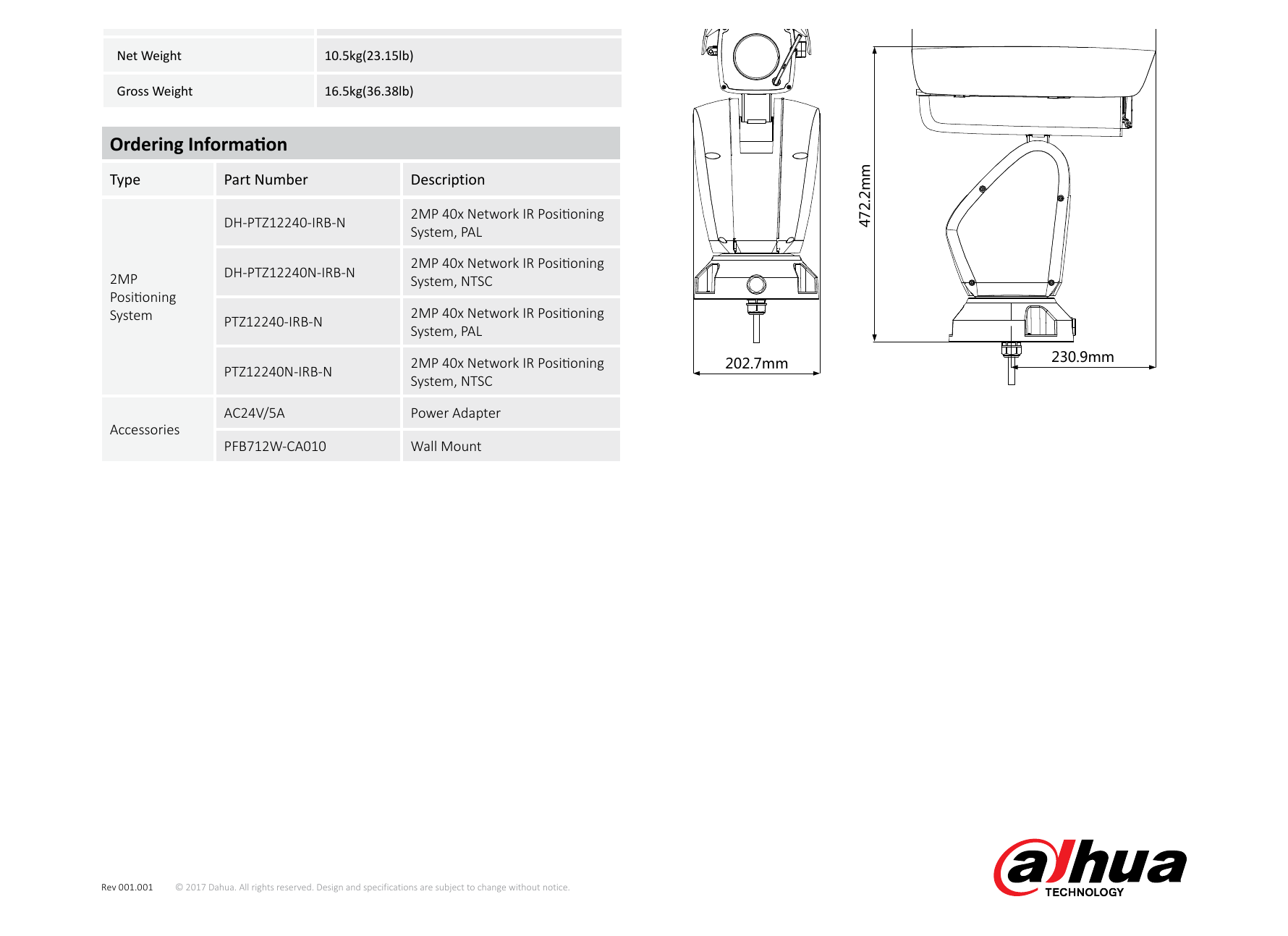

| Vandal Resistance | N/A Construction Dimensions (mm) |
|---|
| Casing | Metal 390.8mm |
|---|
| 尺寸 | Φ202.7(mm)×390.8(mm)×472.2(mm) |
|---|
| 淨重 | 10.5kg(23.15lb) |
|---|
| 毛重 | 16.5kg(36.38lb) Ordering Information 472.2mm |
|---|
| 類型 | Part Number Description 2MP 40x Network IR Positioning DH-PTZ12240-IRB-N System, PAL 2MP 40x Network IR Positioning 2MP DH-PTZ12240N-IRB-N System, NTSC Positioning |
|---|
| System | 2MP 40x Network IR Positioning PTZ12240-IRB-N System, PAL 2MP 40x Network IR Positioning 202.7mm 230.9mm PTZ12240N-IRB-N System, NTSC |
|---|
| AC24V/5A | Power Adapter Accessories |
|---|
| PFB712W-CA010 | Wall Mount |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
