dahua DH-PFM907 為DH-PFM907，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DH-PFM907 香港價格連安裝報價。
| Screen | New 7 inch capacitive touch screen with retina display, 1920*1200 resolution, Adjustable backlight |
|---|---|
| WiFi | Built in Wi-Fi, allows you to connect to a wireless network and view IP cameras |
| Control | Power button, 13 key control button, capacitive multi touch screen input |
| Auto Power Off | Disable / 5~60 minutes |
| 語言 | English / Chinese |
| Keyboard Tone | Enable / Disable |
| 升級方式 | Support online update on the internet Dimension/Environmental |
| 尺寸 | 235x135x45mm |
| 淨重 | 0.93Kg(2.05lb) |
| 工作溫度 | -10℃~+55℃(-22℉~+158℉) |
| 工作濕度 | 30%~90% RH IPC Test |
| IPC Protocal | ONVIF, RTSP,RTP 10M/10M/1G ethernet link detection,ethernet loop detection, DHCP client and server, ethernet Ethernet Test traffic detection, data link quality detection. |
| IPC Test | Discovering the device, real-time video,camera configuration,PTZ test,discovering ONFIV device |
| IPC Image Test | H.264/H.265 decoding, support 4K@30FPS, local zoom preview(at 8 levels) |
| 接口 | Dual-port RJ45 ethernet 1Gbps, support Series/bridge connec Analog Test |
| Video Format | HDCVI/HDTVI/AHD/CVBS(NTSC,PAL) |
| Video Signal | 1 Vpp |
| Video Resolution | HDCVI 720P/1080P/4MP/5MP/4K; AHD/TVI 1080P/4MP |
| Video Input/Output | Video IN BNC input, Video OUT BNC output |
| Video Digital Zoom | Support 8x digital zoom level |
| Video Signal Generator | Sending NTSC/PAL video test signal, sending HDCVI/HDTVI/AHD video test signal(720P/1080P) WiFi Test Support 2.4G&5G frequency band, WiFi connection, WiFi list, WiFi information detection, Delay WiFi Test detection, Test of packet loss rate |
| Spectrum Test | Support spatial frequency band signal scanning and detection and spatial noise signal detection |
| Signal Monitoring | Monitor WiFi signal change, refresh frequency: 1~10Hz |
| Antenna type | Foldable dual antenna, dual band dipole omnidirectional antenna www.dahuasecurity.com POE Test |
| PD Test | The tester receives the power(POE 802.3at), power supply voltage detection |
| PSE Test | The tester supplies the power(POE 802.3at)25.5W, PD actual power detection HDMI Test |
| HDMI 輸出 | Support 720P@25/30/50/60 Fps, 1080P@25/30Fps various formats video signal Audio Test |
| 音訊輸入 | Support audio signal input test Digital Multi-meter |
| DC Voltage | 2/20/200/600V measuring range, 0.1mV minimum resolution |
| AC Voltage | 20/200/600V measuring range, 1V minimum resolution |
| DC Current | 20/200/2000mA measuring range, 1μA minimum resolution |
| AC Current | 20/200/2000mA measuring range, 1μA minimum resolution |
| Resistor | 2/20/200KΩ 2/20MΩ measuring range, 0.1Ω minimun resolution |
| Capacitance | 2/20/200nF 2/20/200μF 2/20mF measuring range, 1pF minimun resolution |
| Diode Forward Voltage Drop | 2V measuring range, 0.1mV minimun resolution |
| Conductivity | 2KΩ measuring range, 0.1Ω minimun resolution Optical Power Meter |
| Type of Detector | InGaAs |
| Calibration Wavelength | 1625nm/1550nm/1480nm/1310nm/1300nm/850nm |
| Power Range(dBm) | -70 - +10 dBm |
| Measurement Accuracy | <± 0.3dB(-10dBm@22℃) / <± 0.5dB(Full scale range@22℃) |
| Display Resolution | Linear display: 0.1%, Logarighmic dispaly: 0.01dBm |
| Connector | Interchangeable FC/PC Power Supply |
| Charger | 12V/1.5A 5.5mm round-plug power supply |
| 電池 | Two lithium batterys(18.5Wh) which can support 8~10 hours(it can work with a single battery) |
| Charging | 12V/1.5A(18W) charging about 3~4 hours. |
| 電源輸出 | 12V/2A output interface: Round, external diameter 4mm, Internal needle: 1.6mm PTZ Control test |
| Coaxial PTZ Control | HDCVI/HDTVI/AHD protocol |
| RS485 Control | More than 30 protocols including Pelco-D/P, Samsung, Panasonic, Lilin, Yann & etc. www.dahuasecurity.com Ordering Information |
| 類型 | Part Number Description DH-PFM907 |
| Integrated Mount Tester Series | Integrated Mount Tester PFM907 Dimensions (mm/inch) Application www.dahuasecurity.com Package Information · Tool bag *1 · Warranty card *1 · User manual *1 · Power adaptor DC12V *1 · Network cable *1 · BNC cable *1 · RS485 cable *1 · 12V output cable *1 · Audio cable *1 · USB cable *1 · RS485 connection terminal *1 · Safety cord *1 · Tool bag cord *1 · Polymer lithium ion battery *2 · Multi-meter |
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

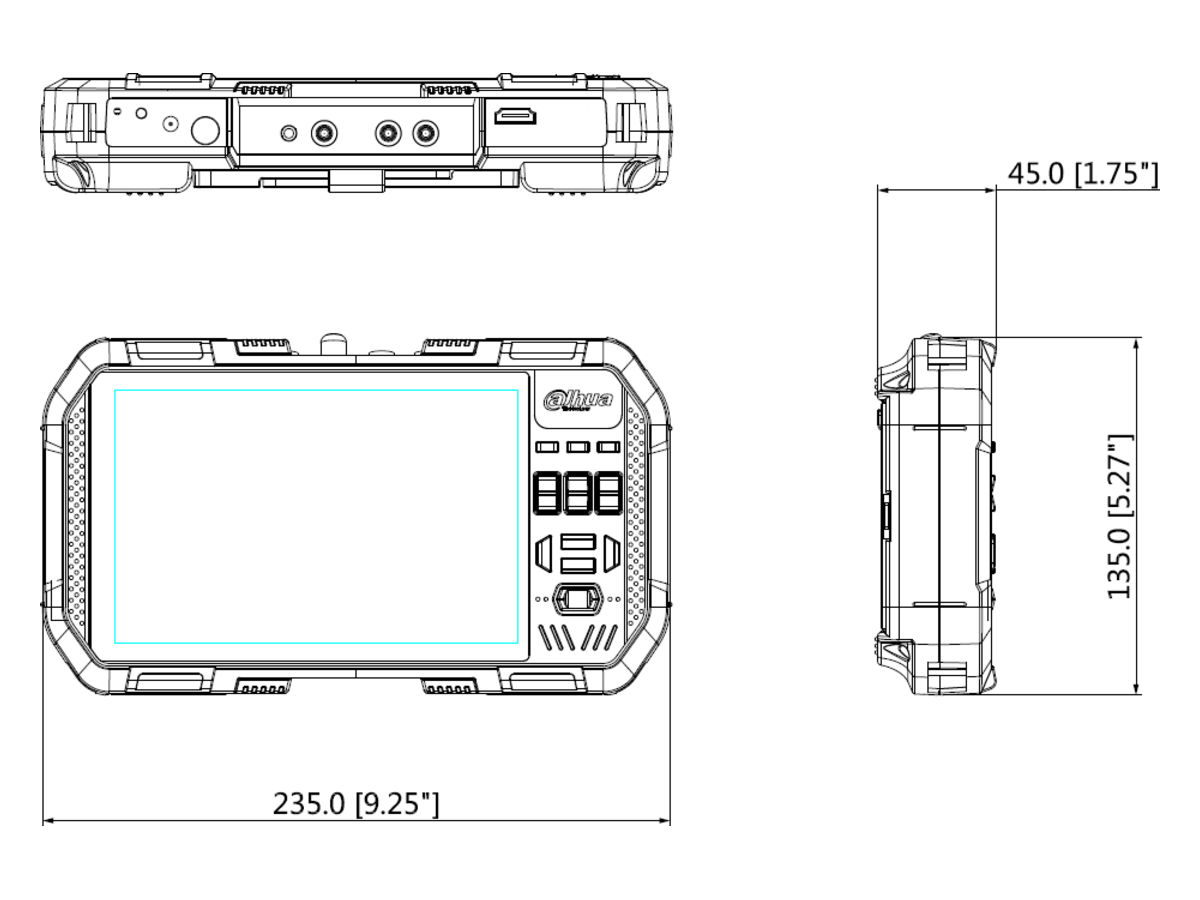

235x135x45mm｜Unit: mm
DH-PFM907 dahua DH-PFM907亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DH-PFM907 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 gDMSS/DMSS App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：淨重方面，DH-PFM907 係 0.93Kg(2.05lb)，IPC-HFW1230S1-S5 係 0.22 kg (0.5 lb)；工作濕度方面，DH-PFM907 係 30%~90% RH IPC Test，IPC-HFW1230S1-S5 係 ≤ 95%；類型方面，DH-PFM907 係 Part Number Description DH-PFM907，IPC-HFW1230S1-S5 係 Model Description。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 IPC-HFW1230S1-S5 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
