| Conductor | Min. Insulation Resistance 5000MΩ·km |
|---|
| 材質 | CCA (Copper content 8%–12%) Max. DC Resistance Unbalance 2% (pair intra), 4% (pairs inter) |
|---|
| Diameter | 0.57 mm ± 0.01 mm (0.0224"±0.0004") |
|---|
| Dielectric Strength | No breakdown with 1kV DC for 1 min |
|---|
| Wire Gauge | 23AWG Transmission |
|---|
| Insulation | Characteristic Impedance 100 Ω ± 15 Ω |
|---|
| Near End Cross Talk | ≥39.30 dB/100 m @250 MHz |
|---|
| Thickness | 0.21 mm (0.0083") |
|---|
| Max. Attenuation | 34.8 dB/100 m @250 MHz |
|---|
| Return Loss | ≥17.3 dB/100 m @250 MHz Blue, white/blue; orange, white/orange; green, |
|---|
| 顏色 | Mechanical white/green; brown, white/brown |
|---|
| Separator | Tensile Strength Sheath≥13.5 MPa, insulation≥16 MPa |
|---|
| Specification | Translucent 4.5 mm × 0.4 mm (0.1772"±0.0157") Installation Bending Radius >8 times of outer cable diameter |
|---|
| Rip Cord | Conductor Elongation at Break ≥10% |
|---|
| Sheath | Color Migration Resistance of No migration Insulation |
|---|
| Elongation at Break after | ≥12.5 MPa, ≥100% Aging Low Temperature Bending No cracking after the test Test |
|---|
| Heat Shock Test | No cracking after the test |
|---|
| Operation Temperature | –20°C to +60°C (–4°F to 140°F) |
|---|
| Installation Temperature | 0°C to +50°C (32°F to 122°F) Storage Temperature and –10°C to +40°C (14°F to 104°F), <60% (RH) Humidity Security |
|---|
| Vertical Fire Propagation Test | Comply with IEC 60332-1-2 Packaging |
|---|
| Cable Length | 100.0 m (328.08 ft)±1 m (3.28 ft) 286 mm × 119 mm × 289 mm Inner Carton Dimensions (11.26" × 4.69" × 11.38")(L × W × H) |
|---|
| 淨重 | 3.2 kg ±0.3 kg (7.05 lb±0.66 lb) |
|---|
| 毛重 | 3.5 kg ±0.3 kg (7.72 lb±0.66 lb) 595 mm × 310 mm × 270 mm Packaging Dimensions (23.43" × 12.20" × 10.62") (L × W × H) |
|---|
| Packaging Method | 100 m/carton, 4 inner cartons in one package Compliance |
|---|
| Executive Standards | Q/DXJ 067-2019 |
|---|
| Certification | CPR Eca Ordering Information |
|---|
| 類型 | Model Description DH-PFM922I- |
|---|

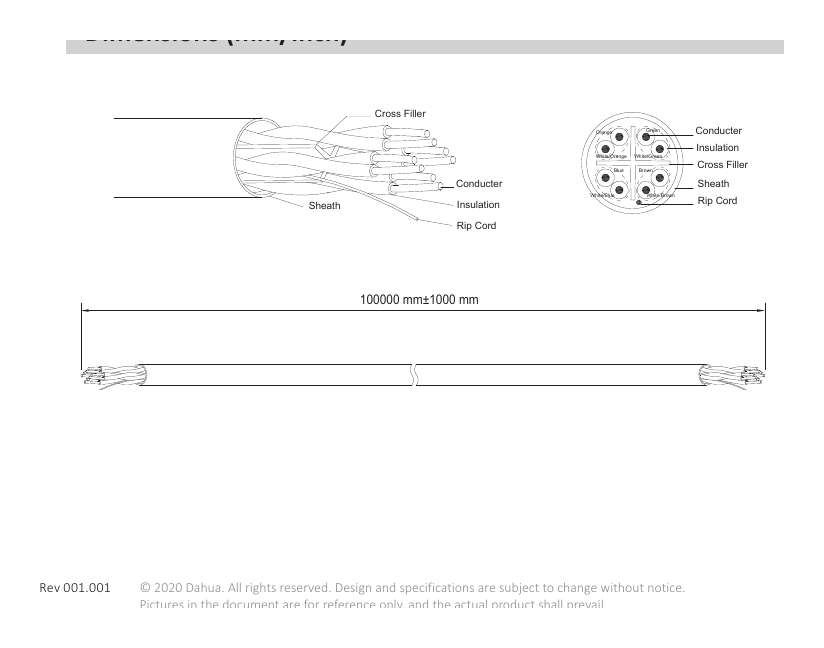

| Cable Series | UTP CAT6 Cable 6UN-C-100 Dimensions (mm/inch) Cross Filler |
|---|
| Orange | Green Conducter Insulation |
|---|
| White/Orange | White/Green |
|---|
| Blue | Brown Cross Filler |
|---|
| Conducter | Sheath |
|---|
| White/Blue | White/Brown |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
