| Functions | Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, |
|---|
| and snow. | when compared to standard H.265 video compression. |
|---|
| Fewer false alarms | Protection |
|---|
| the false alarm rate is greatly reduced. | rating provides effective protection for both the camera and its structure against lightning. |
|---|
| calibration algorithm. | Forum) specifications, ensuring interoperability between network video products regardless of manufacturer. www.dahuasecurity.com |
|---|
| Technical Specification | Preset Speed Pan: 240° /s; Tilt: 200° /s |
|---|
| Radar | Presets 300 |
|---|
| Working Frequency | 24.05~24.25GHz PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Transmit Power | <20 dBm (100mW) Auto restore to previous PTZ and lens status after |
|---|
| 網絡接口 | RJ45 Power up Action power failure |
|---|
| Detecting Mode | Doppler, slow-moving, quick-through. Activate Preset/ Scan/ Tour/ Pattern if there is no Idle Motion command in the specified period |
|---|
| Target Type | Human/Vehicle/Animal Protocol DH-SD, Pelco-P/D (Auto recognition) |
|---|
| Max. Target Number | 64 Intelligence |
|---|
| Distance | 50m(164.04ft) Motion detection, Video tampering , Scene |
|---|
| Event Trigger | changing, Network disconnection, IP address |
|---|
| Angle(Horizontal) | 120° conflict, Illegal Access, Storage anomaly |
|---|
| Angle(Vertical) | 20° IVS Tripwire, Intrusion, Abandoned/Missing |
|---|
| Scan Frequency | 10Hz Smart Tracking |
|---|
| Max. Detection Speed | ≤50km/h, continuous trace Auto Tracking Support |
|---|
| Min. Detection Speed | 0.17m/s, continuous trace Support PNG, JPG, and BMP maps with the Import Map resolution of 480×360~3000×4000 |
|---|
| Angle Accuracy | ±1° |
|---|
| Draw defense protection zone | Support draw alarm zones and shield zones |
|---|
| Installation Height | 2~4m(6.56~13.12ft) |
|---|
| Modulation Type | FMCW (Frequency-Modulated Continuous-Wave) |
|---|
| Compression | H.265+/H.265/H.264+/H.264/MJPEG(Sub Stream) |
|---|
| Distance Accuracy | ±0.5m(1.64ft) |
|---|
| Streaming Capability | 3 Streams |
|---|
| Transmission power | <20 dBm (100mW) 1080P(1920×1080)/1.3M(1280x960)/720P(1280× |
|---|
| Camera | Resolution 720)/D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| 影像感測器 | 1/1.9” CMOS Main stream: 1080P/1.3M/720P((1~50/60fps) |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Frame Rate Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| Scanning System | Progressive Sub stream2: 1080P/720P/D1/(1 ~ 25/30fps) |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s Bit Rate Control CBR/VBR Color: 0.0024Lux@F1.6; B/W: 0.0024Lux@F1.6; Bit Rate H.265/H.264: 256K ~ 8192Kbps Minimum Illumination 0Lux@F1.6 (IR on) |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| S/N Ratio | >56.5dB |
|---|
| Backlight Compensation | BLC / HLC / WDR(140dB) |
|---|
| IR Distance | Distance up to 220m (722ft) |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| IR On/Off Control | Auto /Manual |
|---|
| Gain Control | Auto / Manual |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| 焦距 | 6mm~198mm Motion Detection Support |
|---|
| Max. Aperture | F1.5-F4.8 Region of Interest Support |
|---|
| Angle of View | H: 60.4°~2.4° Electronic Image Stabilization Support (EIS) |
|---|
| Optical Zoom | 33x |
|---|
| Optical Defog | Support |
|---|
| Close Focus Distance | 10mm~1500mm |
|---|
| Digital Zoom | 16x |
|---|
| Flip | 180° |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180° |
|---|
| Privacy Masking | Up to 24 areas |
|---|
| Manual Control Speed | Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s www.dahuasecurity.com |
|---|
| Audio | Ordering Information G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/ Type Part Number Description Compression MPEG2-Layer2 |
|---|
| DH-PFR4KS-E50 | 50m radar system Detector Series |
|---|
| PFR4KS-E50 | 50m radar system |
|---|
| Ethernet | RJ-45 (10Base-T/100Base-TX) IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, Accessories DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x Included: |
|---|
| Interoperability | ONVIF Profile S&G, API |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Max. User Access | 20 users NAS (Network Attached Storage),Local PC for Edge Storage instant recording, Micro SD card 128GB |
|---|
| DC36V power adapter | European standard power cord |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari |
|---|
| Management Software | Smart PSS, DSS, DMSS Application |
|---|
| Smart Phone | IOS, Android Certifications FCC: EMC Part 15B |
|---|
| Certifications | FCC ID: RF Part 15C CE: EN55032/EN55024/EN301489 |
|---|
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) |
|---|
| RS485 | 1 |
|---|
| Audio I/O | 1/1 |
|---|
| Alarm I/O | 7/2 Dimensions (mm/inch) Electrical |
|---|
| 供電 | 36V DC/2.23A (±25%), Hi-PoE Radar: 8W Power Consumption PTZ: 24W, 38W (IR on) Environmental |
|---|
| Operating Conditions | -40°C ~ 65°C (-40°F ~ +149°F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 (Radar) Construction |
|---|
| Casing | Metal 443.3mm x 297mm x 665.3mm Dimensions (17.45"x11.69"x26.19") |
|---|

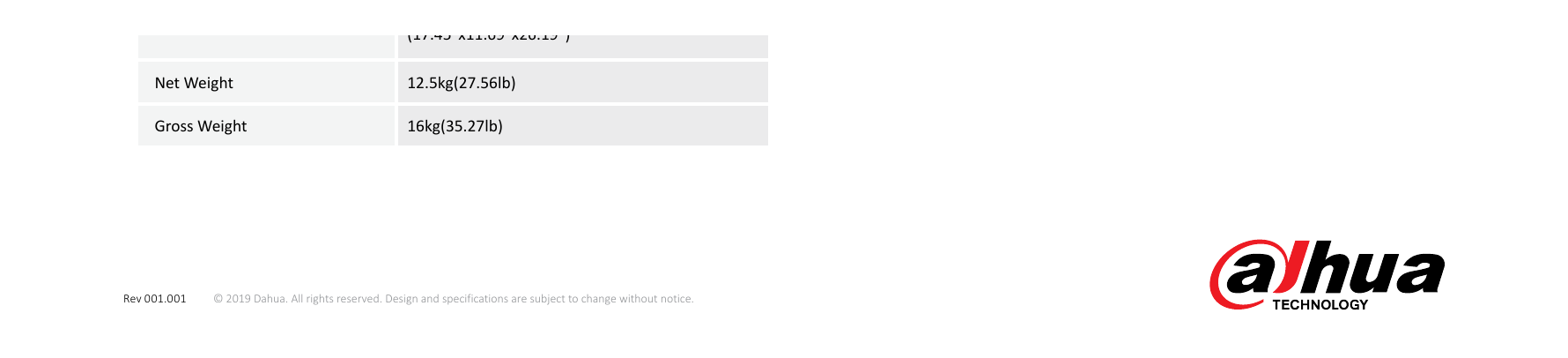

| 淨重 | 12.5kg(27.56lb) |
|---|
| 毛重 | 16kg(35.27lb) |
|---|
| Rev 001.001 | © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
