DAHUA DH-SD59225-HC-LA CCTV攝影機安裝・保養

Name: DAHUA DH-SD59225-HC-LA DH-SD59225-HC-LA
Brand: Dahua
SKU: DH-SD59225-HC-LA

產品簡介

Dahua DH-SD59225-HC-LA 為DH-SD59225-HC-LA，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DH-SD59225-HC-LA 香港價格連安裝報價。

Camera：Resolution 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 ×
影像感測器：1/2.8" STARVIS™ CMOS
Frame Rate：1080P (25/30 fps), 720P (25/30/50/60 fps)
Pixel：2MP
CVI Product Output Mode：CVI; TVI; AHD; CVBS

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

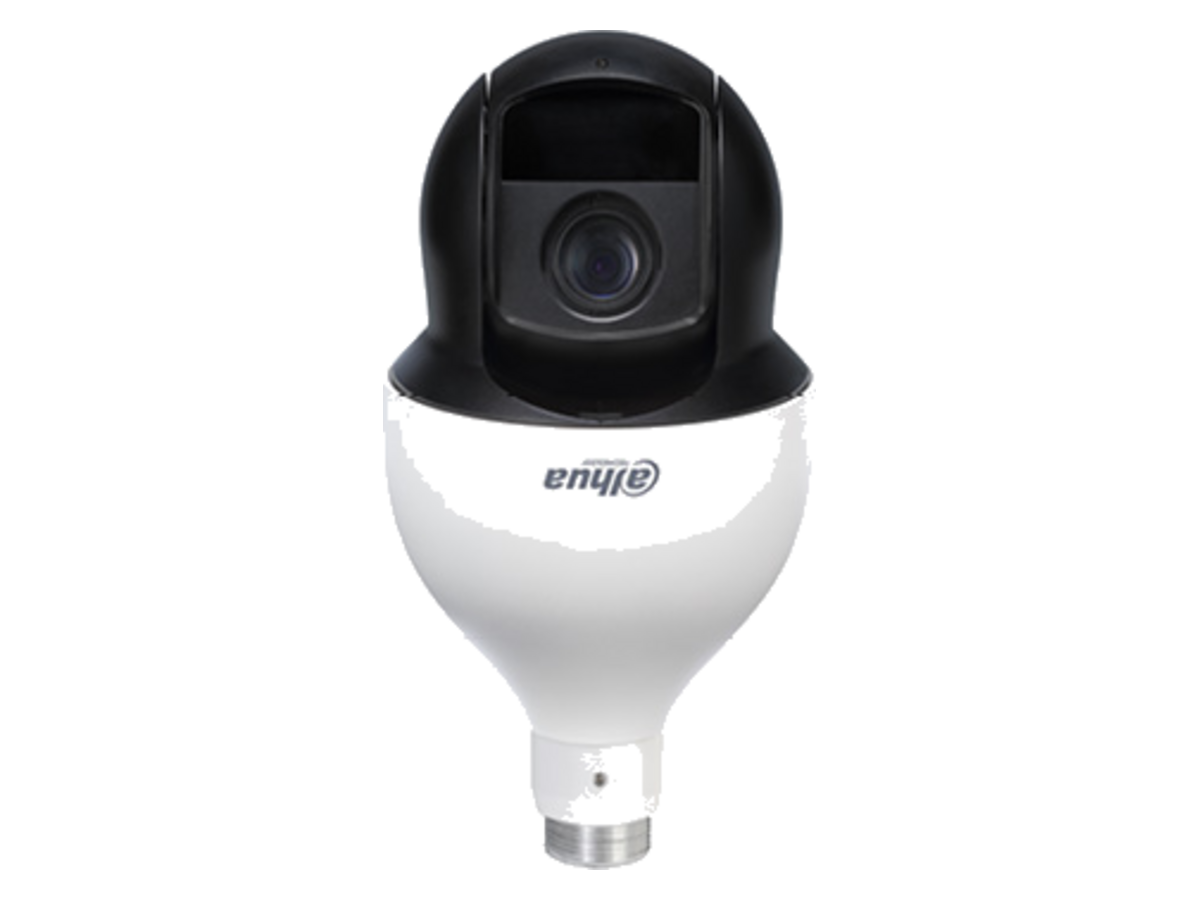

DH-SD59225-HC-LA Dahua DH-SD59225-HC-LA 產品圖片

詳細規格

Camera	Resolution 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480)
影像感測器	1/2.8" STARVIS™ CMOS
Frame Rate	1080P (25/30 fps), 720P (25/30/50/60 fps)
Pixel	2MP
CVI Product Output Mode	CVI; TVI; AHD; CVBS
最大解像度	1920 (H) x 1080 (V)
Day/Night	Support
ROM	16 MB
BLC	Support
RAM	256 MB
WDR	120 dB
Electronic Shutter Speed	1/3 s–1/100000 s HLC Support
Scanning System	Progressive Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/ White Balance Natural light/Street lamp Color: 0.005 Lux@F1.6
最低照度	B/W: 0.0005 Lux@F1.6 Gain Control Auto/Manual 0 Lux@F1.6 (IR on)
Noise Reduction	2D/3D
Illumination Distance	150 m (492.13 ft)
除霧	Electronic
Illuminator On/Off Control	Auto/Manual
Digital Zoom	16x
Illuminator Number	4
Flip	0°/180°
Privacy Masking	Up to 24 areas
焦距	4.8 mm–120 mm
Max. Aperture	F1.6–F3.5
Compression	G.711a; G.711Mu H: 61°–2.8° Field of View V: 22.6°–0.4°
Optical Zoom	25x CE: EN55032/EN55024/EN50130-4
Certifications	FCC: Part15 subpartB, ANSI C63.4-2014
Focus Control	Auto/Semi-Auto/Manual UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Close Focus Distance	0.1 m–1.5 m (0.33 ft–4.92 ft) Port
Iris Control	Auto/Manual Audio Input 1 (LINE IN; bare wire)
Detect	Observe Recognize Identify Analog Output 1 (CVBS/CVI output, BNC port )
DORI Distance	1655.2 m 656.8 m 331.0 m 165.5 m RS-485 1 (baud rate range: 1200 bps–9600 bps) (5430.45 ft) (2154.86 ft) (1085.96 ft) (542.98 ft)
警報輸入	2
警報輸出	1 Pan: 0°–360° Pan/Tilt Range Tilt: -15°–+90° Power Pan:0.1°–300°/s
Manual Control Speed	Power Supply DC 24V/3A ± 25% Tilt:0.1°–200°/s
Preset Speed	Pan: 400°/s; Tilt: 300°/s 9.6W Power Consumption 22W (IR light on, PTZ)
預置位	300
Tour	8 (up to 32 presets per tour)
工作溫度	–40°C to +70°C (–40°F to +158°F)
Pattern	5
工作濕度	≤ 95%RH
Scan	5
防護等級	IP66; TVS 6000V lightning protection; surge protection
Speed Adjustment	Support Structure
斷電記憶	Support
尺寸	310.0 mm × Φ186.0 mm (12.20" × Φ7.32")
Idle Motion	Preset/Tour/Pattern/Scanning
淨重	3.9 kg (8.60 lb) DH-SD
Protocol	Gross Weight 7.2 kg (15.87 lb) Pelco-P/D (auto recognition) www.dahuasecurity.com Ordering Information
類型	Model Description 2MP 25x Starlight IR PTZ HDCVI Camera, WDR, DH-SD59225-HC-LA PAL 2MP 25x Starlight IR PTZ HDCVI Camera, WDR, DH-SD59225N-HC-LA NTSC 2MP 25x Starlight IR PTZ HDCVI Camera, WDR, SD59225-HC-LA PAL 2MP 25x Starlight IR PTZ HDCVI Camera, WDR, SD59225N-HC-LA NTSC
PFB300S	Wall Mount Bracket
PFA110	Mount Adapter
DC24V/2.5A	Power Supply
PFA140	Power Box
Accessories	PFB300C Ceiling Mount Bracket
PFA120	Junction Box
PFA150	Pole Mount Bracket
PFA151	Corner Mount Bracket
PFB303S	Parapet Mount Bracket Accessories Included:
供電	Wall Mount Bracket Mount Adapter 26[1.02] Optional: ∅47[1.85] 144[5.67]
Power Box	Ceiling Mount Bracket Junction Box 310[12.20]
Pole Mount Bracket	Corner Mount Parapet Mount
Bracket	Bracket 154[6.06] ∅186[7.32]
Rev 001.001	© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com
