| Camera | Motion detection, video tampering, scene changing, |
|---|
| Event Trigger | network disconnection, IP address conflict, illegal |
|---|
| 影像感測器 | 1/2.8" CMOS access, and storage anomaly |
|---|
| Pixel | 4MP IVS Object abandoned/missing |
|---|
| 最大解像度 | 2560 (H) × 1440 (V) Artificial Intelligence |
|---|
| ROM | 4GB Support human, motor vehicle and non-motor vehicle Smart Capture image capture. |
|---|
| RAM | 1GB Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering |
|---|
| Electronic Shutter Speed | 1/1 s –1/30000 s Perimeter Protection false alarms caused by animals, rustling leaves, bright lights, etc. |
|---|
| Scanning System | Progressive |
|---|
| Face Detection | Support Color: 0.005Lux@F1.6 |
|---|
| 最低照度 | B/W: 0.0005Lux@F1.6 SMD PLUS Support 0Lux (IR light on) |
|---|
| Illumination Distance | 300 m (984.25 ft) H.265; H.264B; H.264M; H.264H; MJPEG; MPEG4; Compression H.265+; H.264+; MJPEG (sub stream) |
|---|
| Illuminator On/Off Control | Zoom Prio/Manual/SmartIR/Off |
|---|
| Streaming Capability | 3 streams |
|---|
| Illuminator Number | 7 4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × |
|---|
| Wiper | Support Resolution 1080); 720P (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) Main stream: 4M/3M (1–25/30 fps), 1080P/1.3M/720P |
|---|
| 焦距 | 3.95 mm–177.7 mm (1–25/30 fps) Frame Rate Sub stream 1: D1/CIF (1–25/30 fps) |
|---|
| Max. Aperture | F1.6–F4.9 Sub stream 2: 1080P (1–25/30 fps), 720P (1–25/30 fps) |
|---|
| Field of View | H: 70.3°–1.8°; V: 37°–1°; D: 69.3°–2° Bit Rate Control Variable/Constant |
|---|
| Optical Zoom | 45x Main stream with default resolution: |
|---|
| Bit Rate | H.264: 3 Kbps–20480 Kbps |
|---|
| Focus Control | Auto/Semi-Auto/Manual H.265: 3 Kbps– 20480 Kbps |
|---|
| Close Focus Distance | 0.01 m–3 m (0.03 ft–9.84 ft) Day/Night Auto (ICR)/Color/B/W |
|---|
| Iris Control | Auto BLC Support |
|---|
| Detect | Observe Recognize Identify WDR 120dB 3554 m 1421.6 m 710.8 m 355.4 m HLC Support (11660.10 ft) (4664.04 ft) (2332.02 ft) (1166.01 ft) Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/ White Balance |
|---|
| PTZ | Natural light/Street lamp |
|---|
| Pan: 0°–360° endless | Gain Control Auto/Manual Tilt: –20°–+90°, auto flip 180° |
|---|
| Noise Reduction | 2D/3D Pan: 0.1°–200°/s |
|---|
| Tilt: 0.1° –120°/s | Motion Detection Support |
|---|
| Preset Speed | Pan: 240°/s; Tilt: 200°/s Region of Interest (RoI) Support |
|---|
| 預置位 | 300 Image Stabilization Electronic |
|---|
| Tour | 8 (up to 32 presets per tour) Defog Digital |
|---|
| Pattern | 5 Digital Zoom 16x |
|---|
| Scan | 5 Flip 180° |
|---|
| 斷電記憶 | Support Privacy Masking Up to 24 areas, and up to 8 areas in the same view |
|---|
| Idle Motion | Preset/Tour/Pattern/Scanning Audio |
|---|
| DH-SD | G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; |
|---|
| Protocol | Compression |
|---|
| Pelco-P/D (auto recognition) | G.729; G.723 www.dahuasecurity.com |
|---|
| Network | Ordering Information |
|---|
| Ethernet | RJ-45 (10/100Base-T) Type Model Description IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; DH-SD6AL445XA- 4MP 45x Starlight IR WizMind Network PTZ |
|---|
| DH-SD6AL445XAN- | 4MP 45x Starlight IR WizMind Network PTZ |
|---|
| Interoperability | ONVIF Profile S&G&T; CGI 4MP HNR-IR Camera, WDR, NTSC WizMind |
|---|
| Streaming Method | Unicast/Multicast PTZ Camera 4MP 45x Starlight IR WizMind Network PTZ SD6AL445XA-HNR-IR Camera, WDR, PAL |
|---|
| 用戶管理 | 19 4MP 45x Starlight IR WizMind Network PTZ SD6AL445XAN-HNR-IR Camera, WDR, NTSC |
|---|
| Storage | FTP; Micro SD card (256G); P2P |
|---|
| PFB303W | Wall Mount Bracket IE7 and later versions |
|---|
| Chrome 42 and earlier versions | PFA111 Mount Adapter Firefox 52 and earlier versions |
|---|
| Safari | DC36V/2.23A Power Adapter |
|---|
| Management Software | Smart PSS; DSS; DMSS; Easy4ip; IVSS PFA140 Power Box |
|---|
| Mobile Phone | IOS; Android Accessories PFB300C Ceiling Mount Bracket |
|---|
| Certification | PFA120 Junction Box CE: EN62368-1; EN55032; EN61000-3-2; EN61000-3-3; PFA150 Pole Mount Bracket EN55024; EN55035; EN50130-4 FCC: 47 CFR FCC Part15, SubpartB, ClassA; ANSI C63.4: PFA151 Corner Mount Bracket 2014 |
|---|
| PFB303S | Parapet Mount Bracket |
|---|
| RS-485 | 1 (Baud rate range: 1200 bps–115200 bps) |
|---|
| 音訊輸入 | 1 Accessories |
|---|
| 音訊輸出 | 1 Included: |
|---|
| Alarm I/O | 7/2 |
|---|
| 供電 | DC36V/2.23A; HI-PoE |
|---|
| Basic: 20W | PFB303W PFA111 DC36V/2.23A Max.: 36W (IR light and PTZ on at minimum voltage) Wall Mount Bracket Mount Adapter Power Adapter Optional: |
|---|
| 工作溫度 | –40°C ~ 70°C (-40°F to 158°F) |
|---|
| 工作濕度 | ≤95% |
|---|
| 防護等級 | IP67; TVS 8000V lightning proof; Surge protection |
|---|
| Structure | PFA140 PFB300C PFA120 |
|---|
| Power Box | Ceiling Mount Bracket Junction Box |
|---|
| Casing | Metal |
|---|
| 尺寸 | 382 mm × Φ240 mm (15.04" x Φ9.45") |
|---|
| 淨重 | 6.5 kg (14.33 lb) |
|---|
| 毛重 | 8.9 kg (19.62 lb) |
|---|
| PFA150 | PFA151 PFB303S |
|---|
| Pole Mount Bracket | Corner Mount Parapet Mount |
|---|

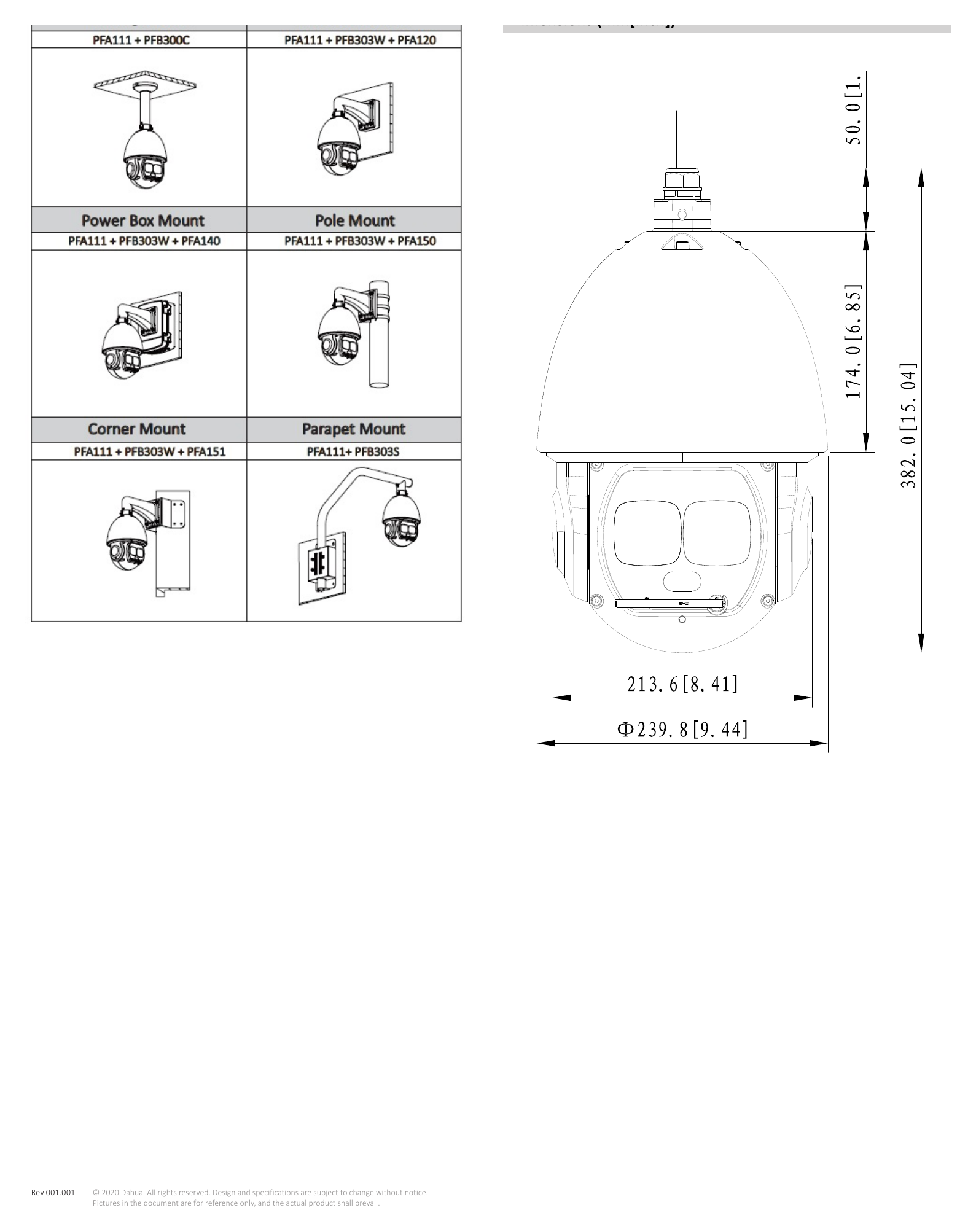

| Bracket | Bracket www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
