| Thermal Camera | Preset 300 |
|---|
| 影像感測器 | Uncooled VOx Microbolometer PTZ Mode 5 Auto Scan, 8 Tour, 5 Pattern, Auto Pan |
|---|
| Effective Pixels | 400(H)x300V) Speed Setup Human-oriented focal length / speed adaptation |
|---|
| Pixel Size | 17um Auto restore to previous PTZ and lens status Power Up Action after power failure |
|---|
| Thermal Sensitivity(NETD) | <40mK@f/1.0 Activate Preset / Scan / Tour / Pattern if there is no Idle Motion |
|---|
| Spectral Range | 7~14um command in the specified period |
|---|
| Image Setting | Brightness/Sharpness/ROI/AGC/FFC/3D DNR Protocol DH-SD, Pelco-P/D (Auto recognition) 14(Whitehot/Blackhot/Ironrow/Icefire/ Video |
|---|
| Color Palettes | Fusion/Rainbow/Globow/Iconbow1/ |
|---|
| Iconbow2 .etc) | Compression H.264 / MJPEG |
|---|
| Thermal Lens | Main Stream: Thermal: 1280x1024(default) / 720P @1~25/30fps |
|---|
| 鏡頭類型 | Fixed Visible: 1080P(default) /720P @1~25/30fps Frame Rate |
|---|
| Focus Control | Athermalized, Focus-free Sub Stream: Thermal: 400x300(default) / 320x256 @1~25/30fps |
|---|
| 焦距 | 35mm 60mm Visible: CIF(default) / D1 @1~25/30fps |
|---|
| Angle of View | H:10.9°, V:8.2° H:6.5°, V:4.9° Bit Rate Control CBR / VBR |
|---|
| D②:1300m | D:2000m Bit Rate H.264: 640 ~8192Kbps Effective Distance① |
|---|
| R③:320m | R:510m |
|---|
| Man(1.8m*0.5m) | I ④ :160m I :260m Day/Night Auto(ICR) / Color / B/W |
|---|
| D:4000m | D:6000m BLC Mode BLC / HLC / WDR Effective Distance |
|---|
| R:1000m | R: 1600m |
|---|
| Vehicle(2.3m*2.3m) | I :500m I : 800m White Balance Auto / ATW / Indoor / Outdoor / Manual |
|---|
| Visible Camera | Noise Reduction 3D DNR |
|---|
| Electronic Shutter Speed | 1/1 ~ 1/30,000s Electronic Image Stabilization (EIS) |
|---|
| 最低照度 | 0.001Lux@F1.5(Color), 0.0001Lux@F1.5(B/W) |
|---|
| 除霧 | Off / On |
|---|
| S/N Ratio | More than 55dB |
|---|
| Digital Zoom | 4x(19 levels) |
|---|
| IR Distance | 150m (492ft) |
|---|
| Flip | 180° |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| Mirror | Off / On |
|---|
| IR LEDs | 9 |
|---|
| Privacy Masking | Off / On (4 area, Rectangle) |
|---|
| Visible Lens | Audio |
|---|
| Compression | G.711A / G.711Mu / AAC |
|---|
| Max Aperture | F1.5 ~ F4.3 Intelligence |
|---|
| Advanced Intelligent Functions | Fire detection & alarm |
|---|
| Optical Zoom | 30x |
|---|
| Tracking Trigger Mode | NA |
|---|
| Tracking Trigger Event | NA |
|---|
| Close Focus Distance | 100mm~ 1000mm (0.33ft~3.28ft) |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless;Tilt: -90° ~ 40° |
|---|
| Manual Control Speed | Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s www.dahuasecurity.com |
|---|
| Network | Ordering Information |
|---|
| Ethernet | RJ-45 (10/100Base-T) Type Part Number Description IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, DH-TPC-ACPT8420AP-B35Z30 Thermal: 400x300 35mm lens |
|---|
| Protocol | UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, DH-TPC-ACPT8420AN-B35Z30 Visible: 2MP 30X |
|---|
| IGMP, ICMP, DHCP, PPPoE, ONVIF | DH-TPC- ACPT8420A |
|---|
| Interoperability | ONVIF Profile S&G, PSIA, CGI DH-TPC-ACPT8420AP-B60Z30 Thermal: 400x300 60mm lens |
|---|
| DH-TPC-ACPT8420AN-B60Z30 | Visible: 2MP 30X |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Max. User Access | 10 Users / 20 Users Micro SD (256GB) Memory status display (Normal / Error / Active / Accessories |
|---|
| Edge Storage | Formatting / Lock), NAS (Network Attached Storage), Local PC for instant Included: recording |
|---|
| Web Viewer | |
|---|
| Management Software | Smart PSS, DSS Power Supply |
|---|
| Smart Phone | Android, iOS |
|---|
| Certifications | Mounting Type CE (EN 60950:2000), FCC (FCC Part 15 SubpartB ), NEMA 4X |
|---|
| Video Interface | 1.0Vp-p/75Ω, PAL / NTSC (HDCVI Optional) |
|---|
| Audio Interface | Input/Output 1 Input / 1 Output |
|---|
| RS485 | Support |
|---|
| 警報 | 7/2 In/Out Electrical |
|---|
| 供電 | DC 36V Dimensions (mm) |
|---|
| 功耗 | 30W, Max. 70W (Heater, LEDs on) Environmental -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH Operating Conditions * Start up should be done at above -40°C (-40°F) |
|---|
| 儲存環境 | -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH |
|---|
| 防護等級 | IP67 Construction |
|---|
| Casing | Metal |
|---|
| 尺寸 | 345mm x 252mm x 470mm (13.58" x 9.92" x 18.50") |
|---|

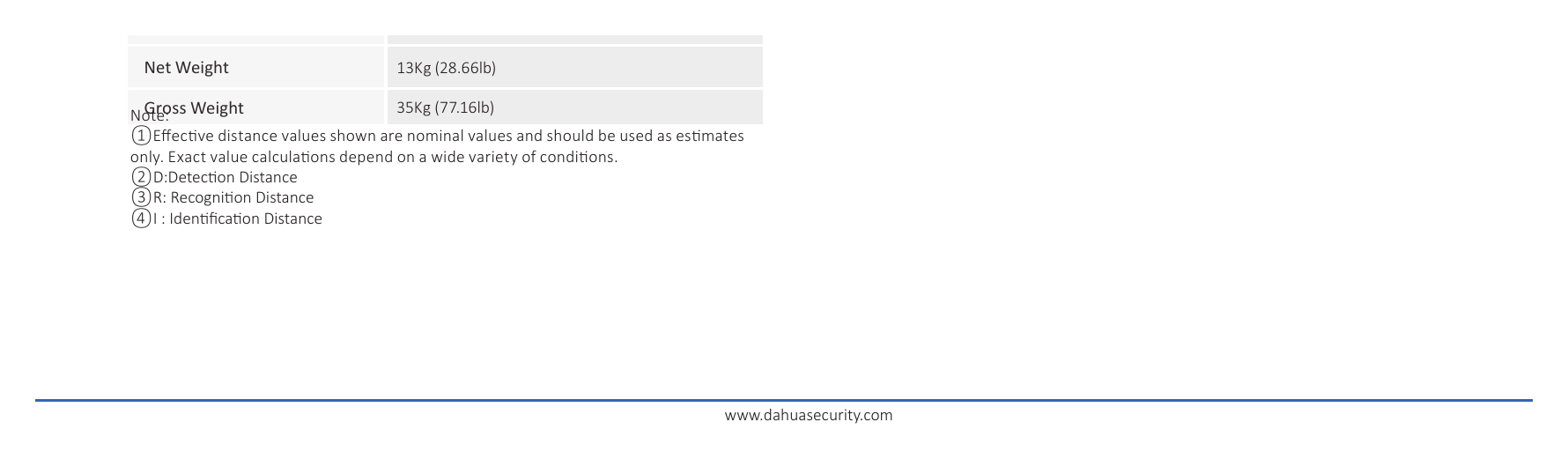

| 淨重 | 13Kg (28.66lb) Gross Weight |
|---|
| Note: | 35Kg (77.16lb) www.dahuasecurity.com |
|---|
