| Thermal Camera | Preset Speed Pan: 0.1° ~90° /s ;Tilt: 0.1° ~60° /s |
|---|
| 影像感測器 | Uncooled VOx Microbolometer Preset 300 |
|---|
| Effective Pixels | 400(H)x300(V) PTZ Mode 5 Auto Scan, 8 Tour, 5 Pattern, Auto Pan |
|---|
| Pixel Size | 17um Speed Setup Human-oriented focal length/ speed adaptation |
|---|
| Thermal Sensitivity(NETD) | <40mK@f/1.0 Auto restore to previous PTZ and lens status Power Up Action after power failure |
|---|
| Spectral Range | 7~14um Activate Preset/ Scan/ Tour/ Pattern if there is no |
|---|
| Image Setting | Brightness/Sharpness/ROI/AGC/FFC/3D DNR Idle Motion command in the specified period 14(Whitehot/Blackhot/Ironrow/Icefire/ |
|---|
| Protocol | DH-SD, Pelco-P/D (Auto recognition) |
|---|
| Color Palettes | Fusion/Rainbow/Globow/Iconbow1/ Iconbow2 .etc) Thermal Lens |
|---|
| Compression | H.264 / MJPEG |
|---|
| 鏡頭類型 | Fixed Main Stream: |
|---|
| Focus Control | Athermalized, Focus-free Thermal: 1280x1024(default) / 720P @1~25/30fps Visible: 1080P(default) /720P @1~25/30fps |
|---|
| 焦距 | 19mm 25mm Frame Rate Sub Stream: Thermal: 640x512(default) / 320x256 @1~25/30fps |
|---|
| Angle of View | H:20.4°, V:15.3° H:15.5°, V:11.6° Visible: CIF(default) / D1 @1~25/30fps |
|---|
| D②:640m | D:1000m Bit Rate Control CBR / VBR Effective Distance① |
|---|
| R③: 160m | R:250m |
|---|
| Man(1.8m*0.5m) | I ④: 80m I : 125m Bit Rate H.264: 640 ~8192Kbps |
|---|
| D:2000m | D:3000m Day/Night Auto(ICR) / Color / B/W Effective Distance |
|---|
| R:500m | R: 720m |
|---|
| Vehicle(2.3m*2.3m) | I : 250m I : 360m BLC Mode BLC / HLC / WDR |
|---|
| White Balance | Auto / ATW / Indoor / Outdoor / Manual Visible Camera |
|---|
| Electronic Shutter Speed | 1/1 ~ 1/30,000s Region of Interest Off / On (4 zone) Electronic Image Stabilization |
|---|
| 最低照度 | 0.001Lux@F1.5(Color), 0.0001Lux@F1.5(B/W) NA (EIS) |
|---|
| S/N Ratio | More than 55dB Defog Off / On |
|---|
| IR Distance | 150m (492ft) Digital Zoom 4x(19 levels) |
|---|
| IR On/Off Control | Auto / Manual Flip 180° |
|---|
| IR LEDs | 4 Mirror Off / On |
|---|
| Visible Lens | Privacy Masking Off / On (4 area, Rectangle) |
|---|
| Max Aperture | F1.5 ~ F4.3 Low Temperature: -20°C ~+150°C Measurement Range High Temperature: 0°C ~+550°C |
|---|
| Measurement Accuracy | Max (±2°C, ±2%)/Operating Temperature(-10°C~50°C) |
|---|
| Optical Zoom | 30x Measurement Mode Spot / Line / Area |
|---|
| Close Focus Distance | 100mm~ 1000mm (0.33ft~3.28ft) Support 12 rules per preset simultaneously |
|---|
| PTZ | Audio |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless;Tilt: -90° ~ 90° |
|---|
| Intelligence | Note: ①Effective distance values shown are nominal values and should be used as estimates only. Exact value calculations depend on a wide variety of conditions. |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing ②D:Detection Distance ③R: Recognition Distance |
|---|
| Advanced Intelligent Functions | Fire detection & alarm ④I : Identification Distance |
|---|
| Tracking Trigger Mode | NA Ordering Information |
|---|
| Tracking Trigger Event | NA |
|---|
| 類型 | Part Number Description |
|---|
| Network | Thermal: 400x300 19mm lens DH-TPC-PT8420MP-TB19Z30 Visible: 2MP 30X |
|---|
| Ethernet | RJ-45 (10/100Base-T) DH-TPC-PT8420MN-TB19Z30 Temperature measurement DH-TPC- IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, PT8420M-TB Thermal: 400x300 25mm lens |
|---|
| IGMP, ICMP, DHCP, PPPoE, ONVIF | DH-TPC-PT8420MN-TB25Z30 Temperature measurement |
|---|
| Interoperability | ONVIF Profile S&G, PSIA, CGI Accessories |
|---|
| Streaming Method | Unicast / Multicast Included: |
|---|
| Max. User Access | 10 Users / 20 Users Micro SD (256GB) Memory status display (Normal / Error / Active / |
|---|
| Edge Storage | Formatting / Lock), NAS (Network Attached Storage), Local PC for instant |
|---|
| recording | DC12V/5A Power Supply |
|---|
| Web Viewer | |
|---|
| Management Software | Smart PSS, DSS |
|---|
| Smart Phone | Android, iOS Certifications |
|---|
| Certification | CE (EN 60950:2000) FCC (FCC Part 15 SubpartB ) |
|---|
| Video Interface | 1.0Vp-p/75Ω, PAL / NTSC (HDCVI Optional) |
|---|
| Audio Interface | 1/1 In/Out |
|---|
| RS485 | Support |
|---|
| 警報 | 2/2 In/Out Dimensions (mm) Electrical |
|---|
| 供電 | 9 ~ 36V DC |
|---|
| 功耗 | 32W, Max. 50W (Heater, LEDs on) Environmental -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH Operating Conditions * Start up should be done at above -40°C (-40°F) |
|---|
| 儲存環境 | -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH |
|---|
| 防護等級 | IP66 Construction |
|---|
| Casing | Metal 341 mm × 262mm× 275mm (13.42" x 10.31" x 10.82") Dimensions (With bracket) |
|---|

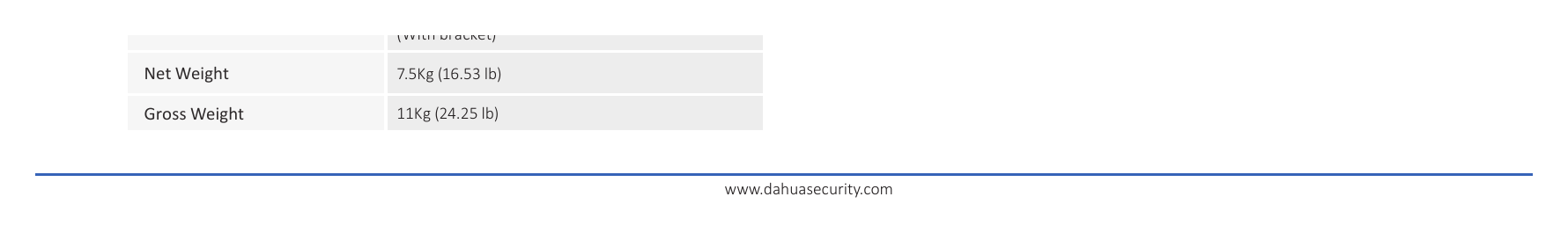

| 淨重 | 7.5Kg (16.53 lb) |
|---|
| 毛重 | 11Kg (24.25 lb) www.dahuasecurity.com |
|---|
