| Thermal Camera | Compression H.265/H.264M/H.264H/H.264B/MJPEG |
|---|
| 影像感測器 | Uncooled VOx Microbolometer Main Stream: 50Hz: |
|---|
| Effective Pixels | 256(H) x 192(V) Thermal: 1280*960/1024*768/640*480/256*19 12um 2@25fps Pixel Size Visible: 1920*1080/1280*720/704*576@25fps 60Hz: |
|---|
| Thermal Sensitivity (NETD) | ≤50mK Thermal: 1280*960/1024*768/640*480/256*19 8 ~ 14um 2@30fps Spectral Range |
|---|
| Frame Rate | Visible: 1920*1080/1280*720/704*480@30fps |
|---|
| Image Setting | Brightness/Sharpness/ROI/AGC/FFC/3D DNR Sub Stream: 18(Whitehot/Blackhot/Ironrow/Icefire/ 50Hz: |
|---|
| Color Palettes | Fusion/Rainbow/Globow/Iconbow1/ Thermal: 640*480/256*192@25fps |
|---|
| Iconbow2 .etc) | Visible: 704*576/352*288@25fps 60Hz: |
|---|
| Thermal Lens | Thermal: 640*480/256*192@30fps Visible: 704*480/352*240@30fps |
|---|
| 鏡頭類型 | Fixed/F1.0 |
|---|
| 碼率控制 | CBR/VBR |
|---|
| Focus Control | Athermalized, Focus-free |
|---|
| Bit Rate | H.264: 640 ~ 8192Kbps |
|---|
| 焦距 | 3.5mm 7mm |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| Angle of View | H: 50.6°, V: 37.8° H: 24°, V: 18° |
|---|
| BLC Mode | BLC/HLC/DWDR |
|---|
| D: 146m | D: 292m Effective Distance① |
|---|
| R: 38m | R: 75m White Balance Auto/Indoor/ Outdoor/Manual etc. Human(1.8m*0.5m) |
|---|
| I: 19m | I: 38m |
|---|
| D: 389m | D: 778m Noise Reduction 2D DNR/3D DNR Effective Distance |
|---|
| R: 97m | R: 194m |
|---|
| Vehicle(4.0m*1.4m) | Motion Detetion Off/On (4 zone, Rectangle) |
|---|
| I: 49m | I: 97m |
|---|
| Visible Camera | Region of Interest Off/On (4 zone) |
|---|
| Electronic Shutter Speed | 1/1 ~ 1/30,000s Mirror Off/On |
|---|
| 最低照度 | Color: 0.005Lux; B/W: 0.0005Lux; 0Lux (IR on) |
|---|
| Privacy Masking | Off/On (4 area, Rectangle) |
|---|
| IR Distance | 35m 50m |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| IR LEDs | 1 Compression G.711a/G.711Mu/AAC/PCM |
|---|
| Visible Lens | Intelligence |
|---|
| IVS | Tripwire, Intrusion |
|---|
| Max Aperture | F2.0 F1.9 |
|---|
| Close Focus Distance | 0.2m |
|---|
| Tracking Trigger Mode | Manual/Auto (alarm triggered) |
|---|
| PTZ | Tracking Trigger Event Targetng, Tracking, Recording, Snapshot, Alarm, etc. |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90° |
|---|
| Manual Control Speed | Pan: 0.1° ~ 200° /s; Tilt: 0.1° ~ 120° /s |
|---|
| Ethernet | RJ-45 (10/100Base-T) |
|---|
| Preset Speed | Pan: 0.1° ~ 240° /s; Tilt: 0.1° ~ 200° /s |
|---|
| Preset | 300 HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, |
|---|
| Protocol | DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, |
|---|
| PTZ Mode | 5 Auto Scan, 8 Tour, 5 Pattern, Auto Pan UPnP, NTP Auto restore to previous PTZ and lens status |
|---|
| Power Up Action | Interoperability ONVIF Profile S & G, API after power failure Actvate Preset/ Scan/Tour/Patern if there is no Streaming Method Unicast/Multicast Idle Moton command in the specifed period |
|---|
| Micro SD (256G) | Accessories Memory status display (Normal/Error/Active/ Include: |
|---|
| Edge Storage | Formatting/Lock) NAS (Network Attached Storage) Local PC for instant recording |
|---|
| Web Viewer | >IE8, |
|---|
| Management Software | Smart PSS, DSS |
|---|
| Smart Phone | Android, IOS Optional: Certifications |
|---|
| Certification | CE (EN 60950:2000) FCC (FCC Part 15 SubpartB ) |
|---|
| 接口 | PFA111 DC12V/3A PFA140 |
|---|
| Mount Adapter | Power Adapter Power Box |
|---|
| Video Interface | 1 port(BNC) |
|---|
| Audio Interface | In/Out 1/1 |
|---|
| RS485 | Support |
|---|
| PFB300C | PFA120 PFA150 |
|---|
| 警報 | 2/1 In/Out Ceiling Mount Junction Box Pole Mount Electrical |
|---|
| 供電 | DC 12V±15%/PoE+ PFA151 |
|---|
| 功耗 | Max 24W Corner Mount Environmental Mounting Type |
|---|
| 工作環境 | -30°C ~ +60°C (-22°F ~ +140°F) |
|---|
| Junction Mount | Ceiling Mount |
|---|
| Strorage Conditions | -40°C ~ +70°C (-40°F ~ +158°F) |
|---|
| 相對濕度 | ≤ 95% |
|---|
| 防護等級 | IP66 Construction |
|---|
| Casing | Metal |
|---|
| 尺寸 | 295mm × Φ160mm (11.61" x Φ6.30") |
|---|
| 淨重 | 3.2Kg (7.05 lb) PFB305W + PFA120 PFB305W + PFA150 |
|---|
| Cross Weight | 4.7Kg (10.36 lb) |
|---|
| Corner Mount | Pole Mount Ordering Information |
|---|
| 類型 | Part Number Description |
|---|
| PFB305W + PFA151 | PFB305W + PFA150 |
|---|

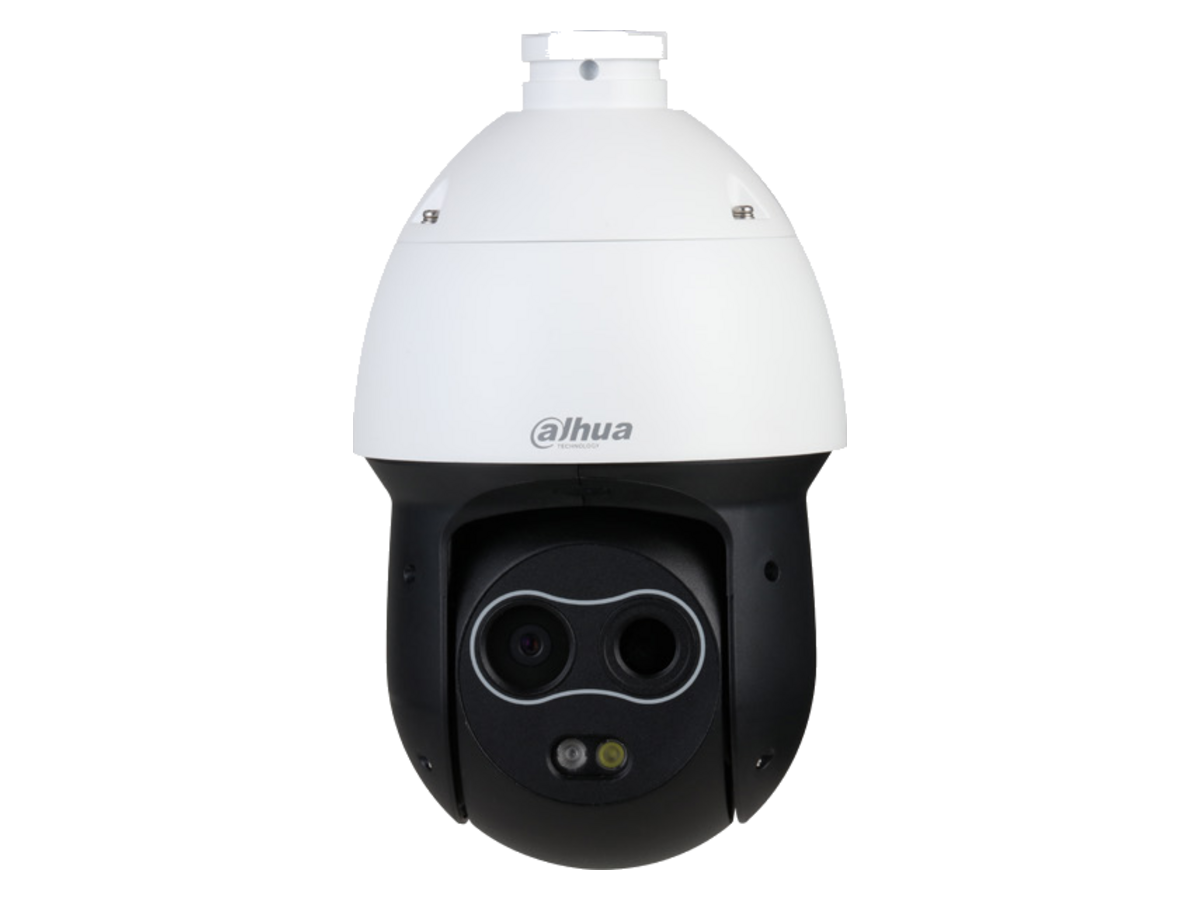

| DH-TPC-SD2221P-B3F4 | Thermal: 256x192 3.5mm lens |
|---|

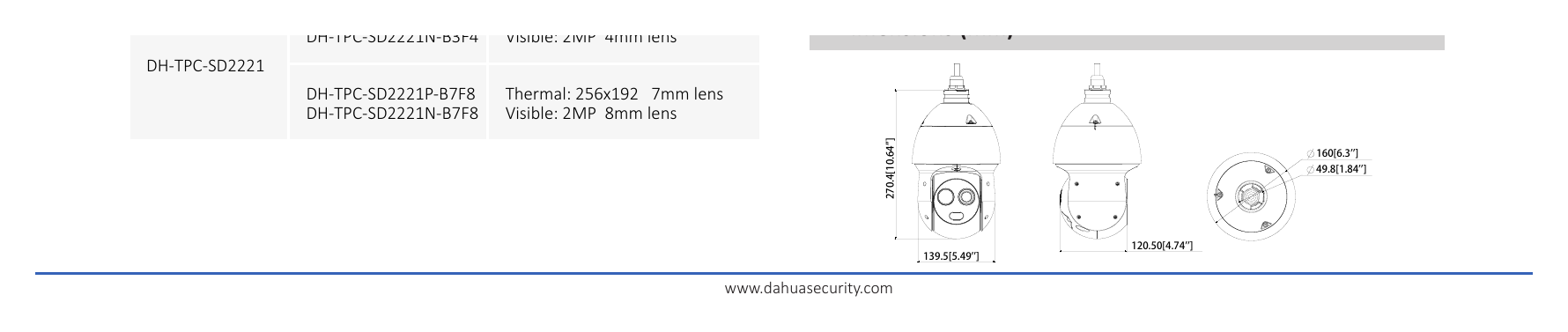

| DH-TPC-SD2221N-B3F4 | Visible: 2MP 4mm lens Dimensions (mm) DH-TPC-SD2221 |
|---|
| DH-TPC-SD2221P-B7F8 | Thermal: 256x192 7mm lens |
|---|
| DH-TPC-SD2221N-B7F8 | Visible: 2MP 8mm lens 270.4[10.64''] 160[6.3''] 49.8[1.84''] 120.50[4.74''] 139.5[5.49''] www.dahuasecurity.com |
|---|
