| Camera | Mirror Off/On |
|---|
| 影像感測器 | 1/2.7 inch CMOS Privacy Masking Off/On (8 area, rectangle) |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP Certifications |
|---|
| Scanning System | Progressive CE (EN55032:2015, EN 61000-3-2:2014, EN 61000- 3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, |
|---|
| PAL: 1/25s–1/100000s | Certifications EN50130-4:2011+A1:2014) Electronic Shutter Speed |
|---|
| NTSC: 1/30s–1/100000s | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| S/N Ratio | >65dB Port |
|---|
| Minimum Illumination | 0.02Lux/F1.7, 30IRE, 0Lux IR on |
|---|
| 音訊輸出 | One channel built-in mic (-A) |
|---|
| Fill Light Working Distance | 60 m (196.9 ft) Video output choices of CVI/TVI/AHD/CVBS by one Video Output |
|---|
| IR On/Off Control | Auto; manual BNC port |
|---|
| IR LED Number | 4 Power |
|---|
| Pan: 0°–360° | Power Supply 12V ±30% DC |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–90° |
|---|
| Rotation: 0°–360° | Power Consumption Max 12.1W (12V DC, IR on) |
|---|
| 鏡頭 | Environment |
|---|
| 鏡頭類型 | Motorized vari-focal -30°C to +60°C (-22°F to 140°F);<95% (non- Operating Temperature condensation) |
|---|
| Auto Focus | N/A -30°C to +60°C (-22°F to 140°F);<95% (non- Storage Temperature condensation) |
|---|
| Mount Type | φ14 |
|---|
| Protection Grade | IP67 |
|---|
| 焦距 | 2.7 mm-12 mm Structure |
|---|
| Max. Aperture | F1.7 |
|---|
| Casing | Mental throughout the whole casing Diagonal: 38°– 125° |
|---|
| Field of View | Horizontal: 33°–102° |
|---|
| Camera Dimensions | 209.9 mm × 90.4 mm × 90.4 mm (8.26" × 3.56" × 3.56") Vertical: 19°– 53° |
|---|
| 光圈類型 | Fixed iris Net Weight 0.55 Kg (1.21 lb) |
|---|
| Close Focus Distance | 1.2 m (3.9 ft) Gross Weight 0.7 Kg (1.54 lb) |
|---|
| Detect | Observe Recognize Identify |
|---|
| Distance | 49.7 m 19.9 m 9.9 m 5m 2.7mm (163.1 ft) (65.3 ft) (32.5 ft) (16.4 ft) 82.8 m 33.1 m 16.6 m 8.3 m 12mm (271.7 ft) (108.6 ft) (54.5 ft) (27.2 ft) CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; Frame Rate TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H 1080P (1920×1080); 720P (1280×720); 960H (960× Resolution 576/960×480) |
|---|
| Day/Night | Auto switch by ICR |
|---|
| BLC | BLC/HLC/DWDR |
|---|
| WDR | DWDR |
|---|
| White Balance | Auto; manual |
|---|
| Gain Control | Auto; manual |
|---|
| Noise Reduction | 2D NR |
|---|
| Smart IR | Yes www.dahuasecurity.com |
|---|
| Ordering Information | Wall Mount 1 Wall Mount 2 Pole Mount |
|---|
| 類型 | Part Number Description DH-HAC-HFW1200RP- Z-IRE6 2.7-12mm DH-HAC-HFW1200RN- Z-IRE6 2.7-12mm 2MP Camera 2MP HDCVI IR Bullet Camera DH-HAC-HFW1200RP- Z-IRE6-A 2.7-12mm DH-HAC-HFW1200RN- Z-IRE6-A 2.7-12mm |
|---|

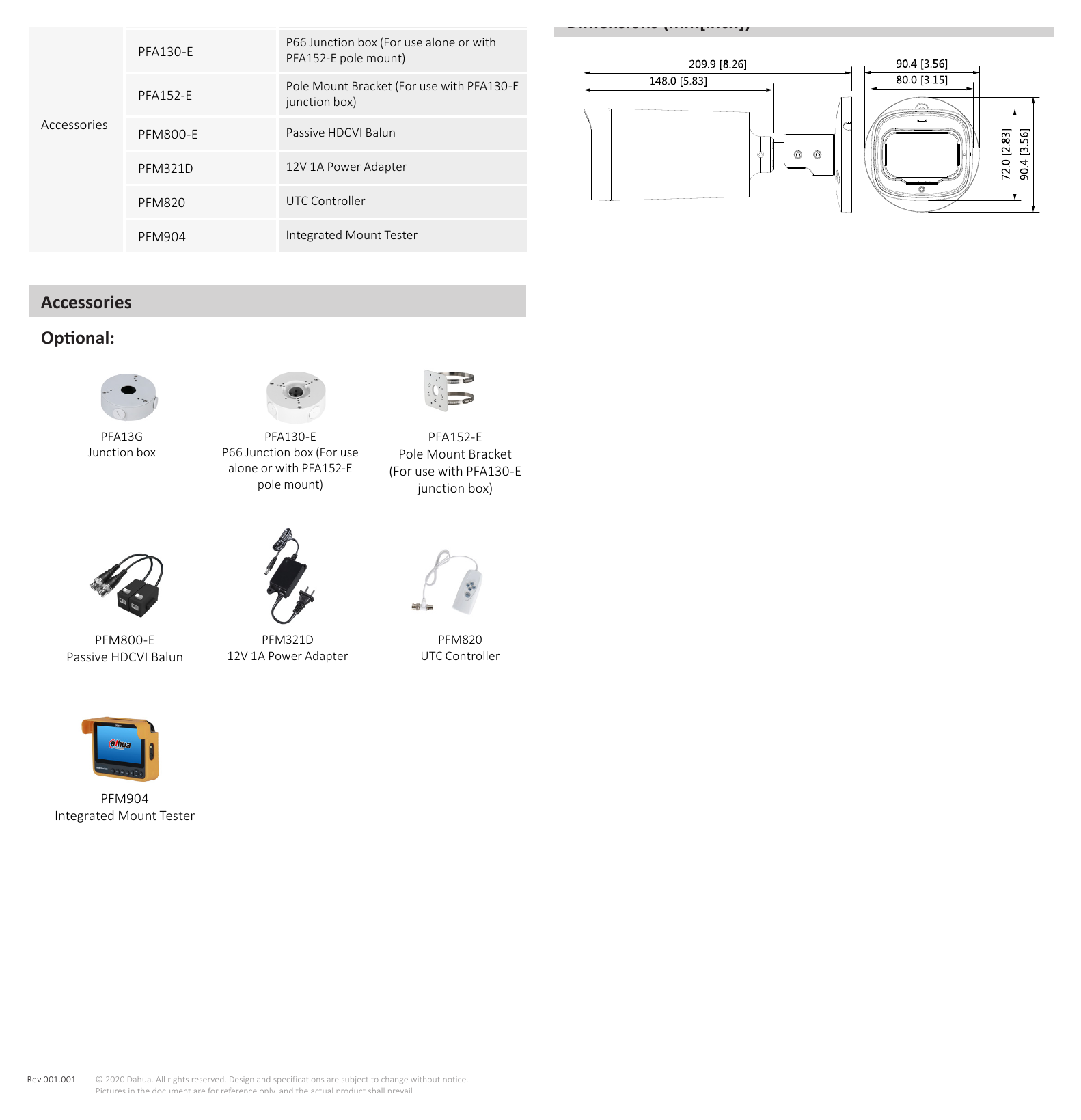

| PFA13G | Junction box Dimensions (mm[inch]) P66 Junction box (For use alone or with |
|---|
| PFA130-E | PFA152-E pole mount) Pole Mount Bracket (For use with PFA130-E |
|---|
| PFA152-E | junction box) Accessories |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|
| PFM820 | UTC Controller |
|---|
| PFM904 | Integrated Mount Tester Accessories Optional: |
|---|
| Junction box | P66 Junction box (For use Pole Mount Bracket |
|---|
| alone or with PFA152-E | (For use with PFA130-E |
|---|
| pole mount) | junction box) |
|---|
| Passive HDCVI Balun | 12V 1A Power Adapter UTC Controller PFM904 Integrated Mount Tester |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
