| System | · Doorbell function. |
|---|
| Main Processor | High-performance embedded processor · Audio prompts. · Compatible with SmartPSS-AC and DSS Pro. |
|---|
| 網絡協議 | IPv4; TCP; UDP; P2P |
|---|
| Basic | First User Unlock Yes |
|---|
| Display Screen | 2.4" LCD Remote Verification Yes |
|---|
| Screen Type | LCD Restricted List/Trusted List Yes |
|---|
| 解像度 | 240 (H) × 320 (V) Wi-Fi Yes |
|---|
| Voice Prompt | Yes 1 × RS-485 card reader Peripheral Card Reader 1 × Wiegand card reader |
|---|
| Buzzer | Yes |
|---|
| Multi-user Authentication | Yes |
|---|
| Casing | PC + ABS/acrylic panel |
|---|
| Multi-factor Authentication | Yes |
|---|
| Function | Web Configuration Yes Card/Remote/Password unlock and unlock through |
|---|
| Unlock Mode | Auto Registration Yes their combinations |
|---|
| 卡類型 | IC or ID card Performance |
|---|
| Period List | 128 Card Reading Distance 0-5 cm (0" to 1.97") |
|---|
| Holiday Period | 128 User |
|---|
| Network Update | Yes General user, VIP user, patrol user, guest user, User (Card) Type blocklist user and others www.dahuasecurity.com |
|---|
| 容量 | Gross Weight 462 g (1.02 lb) |
|---|
| 用戶容量 | 30,000 users Accessory Bracket (included) |
|---|
| 卡容量 | 30,000 Installation Surface mount |
|---|
| Password Capacity | 30,000 Certifications CE; FCC |
|---|
| Record Capacity | 150,000 unlock records |
|---|
| Port | Installation |
|---|
| RS-485 | 1 |
|---|
| RS-232 | 1 |
|---|
| Wiegand | 1-ch input/output |
|---|
| USB | 1 × USB2.0 port |
|---|
| Network Port | 1 × RJ-45, 100 Mbps |
|---|
| 警報輸入 | 2 (digital quantity) |
|---|
| 警報輸出 | 1 (relay) |
|---|
| Alarm Linkage | Yes |
|---|
| Doorbell | 1 |
|---|
| 出門按鈕 | 1 |
|---|
| Door Status Detection | 1 |
|---|
| 鎖控 | 1 Alarm |
|---|
| Anti-pass Back | Yes Dimensions (mm[inch]) |
|---|
| Tamper Alarm | Yes |
|---|
| Duress Alarm | Yes |
|---|
| Door Sensor Timeout | Yes |
|---|
| Intrusion | Yes Illegal Card Exceeding Yes Threshold |
|---|
| Power Adapter | Optional |
|---|
| 供電 | 12 V DC, 1 A IP65 (silicone sealant is needed, see the quick start Protection guide) |
|---|
| 功耗 | ≤ 12 W 183 mm × 80 mm × 25.5 mm (7.20" × 3.15" × 1.00") Product Dimensions (H × W × D) 248 mm × 143 mm × 66 mm (9.76" × 5.63" × 2.60") Packaging Dimensions (H × W × D, 1 in an inner carton) |
|---|

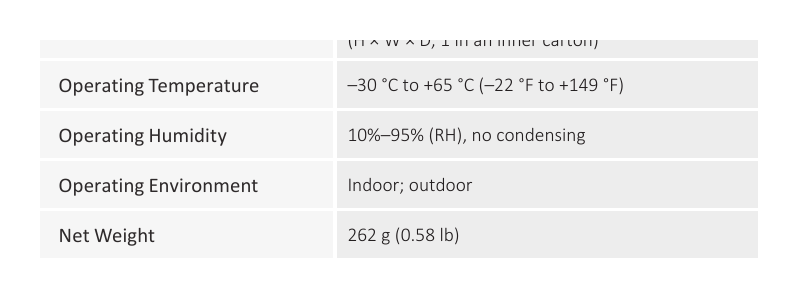

| 工作溫度 | –30 °C to +65 °C (–22 °F to +149 °F) |
|---|
| 工作濕度 | 10%–95% (RH), no condensing |
|---|
| Operating Environment | Indoor; outdoor |
|---|
| 淨重 | 262 g (0.58 lb) www.dahuasecurity.com Panels |
|---|
| Rev 001.001 | © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
